The HBR-300 features hydraulic wheel tensioning, inverter feed drive, powerful 30hp main motor, oil mist cooling system, and automatic electronic digital blade height setup. This machine is in excellent used condition and mechanically sound.
Maximum material size 300 mm X 300 mm (12" x 12")
Saw wheel motor: 30 hp
Dust hood outlet diameter: 100 mm x 2 (4"x 2")
Feeding motor: 1 hp with inverter
Distance from blade to conveyor: 2-270 mm (5/64" - 10 5/8")
Saw blade width: 50 mm (2")
Saw blade length: 4980 mm (196")
Saw blade speed: 25.4 M/s
Conveyor belt size: 270 mm x 4200 mm (11" x 165")
Feed speed (variable): 0-30 M/min (0-100 ft/min)
Feed Conveyor Tilt: 30 Degrees
Conveyor height from floor: 1016 mm (40")
Saw wheel diameter: 700 mm (28")
Blade lift servo motor: 0.5 hp
Equipment Location:Sterrett, AL
Smith Companies
205-620-4455 ext:111
|
|
COMPLETE "LIKE NEW" RECKART 16 X 16 GRADE RESAW W/CANT FLIPPER 5 WAY TRANSFER OUTFEED DECK W/PLC CONTROLS SAW CAB & 40HP
Equipment Location:Clarksburg, TN
LPS Equipment & Acquisition Co.
731-986-4351
|
|
Product No. 876
Compact Design
230/460 Volt
(2) 40 Hp Motors
4 Cuts Per Pass
6" Wide Capacity
Hyd Power Rollers
Spare Parts
PRICE: $8900
Machine Type: Resaw Horizontal
Manufacturer: Baker
Model: Bang Saw
Year: 1999
Machine Location: South East
Equipment Location:South East
Keith Comeau
704-929-9122
|
|
Single-Head Band Resaw can be used to cut boards, cants, or reclaim slabs, This Resaw can process a Timber up to 12" H x 16 W" in any desired length. Hydraulic variable speed from 0 - 120 ft/min. -- This Model "ABXX" Resaw covers a large range of applications from small to large facilities, they are simple to operate and maintain with few moving parts and few adjustments. -- Complete With: 40 HP Electric Motor, 28" all-steel band wheels, 13'2" x 1-1/4" x 0.035" band saw blade, BAKER's Exclusive Low-Profile Flat Guide System, spring blade tensioning and heavy duty construction. -- Options included: Hydraulic infeed holddown, spring outfeed holddown, digital readout of blade height.
Equipment Location:MIDWEST
Jim Reedy
800-374-5009 ext:455
|
|
Product No. 4698
Baker B Resaw
Double Head
All Electric
With Return
240v 3ph
REDUCED
PRICE: $17500
Machine Type: Resaw Horizontal
Manufacturer: Baker
Model: B
Year:
Machine Location: Mid West
Equipment Location:Mid West
Mitch Stevens
828-773-6986
|
|
BAKER Model BBR-O Single head equipped with: -- Separate 30 HP TEFC motor, hydraulic feed drive via a 2 HP pump motor, 0 - 90 FPM variable feed speed. -- Endless rough-top belt infeed w/floating overhead feed rollers, each is hydraulically powered; spring blade tensioning. -- 3/4" - 7" Cutting width, 1/4" - 7" cutting height, uses 0.035" x 1" x 13'-2" blade length; BAKER flat guides for higher production, accuracy & extended blade life.
Equipment Location:WESTERN CDN
Jim Reedy
800-374-5009 ext:455
|
|
BAKER Model BBR-O Single head equipped with: -- Separate 30 HP TEFC motor, hydraulic feed drive via a 2 HP pump motor, 0 - 90 FPM variable feed speed. -- Endless rough-top belt infeed w/floating overhead feed rollers, each is hydraulically powered; spring blade tensioning. -- 3/4" - 7" Cutting width, 1/4" - 7" cutting height, uses 0.035" x 1" x 13'-2" blade length; BAKER flat guides for higher production, accuracy & extended blade life.
Equipment Location:MID ATLANTIC
Jim Reedy
800-374-5009 ext:455
|
|
BAKER Model BBR-O Single-Head Resaw -- Equipped with: -- 20 HP TEFC motor, hydraulic feed drive via a 2 HP pump motor, 0 - 90 FPM variable feed speed. -- Endless rough-top belt infeed w/floating overhead feed rollers; spring blade tensioning. -- 3/4" - 7" Cutting width, 1/4" - 7" cutting height, uses 0.035" x 1" x 13'-2" blade length; BAKER flat guides for higher production, accuracy & extended blade life.
Equipment Location:WEST COAST
Jim Reedy
800-374-5009 ext:455
|
|
PENDING
BAKER 3 HEAD MDL BBR-O S/N 95-1256
Equipment Location:Clarksburg, TN
LPS Equipment & Acquisition Co.
731-986-4351
|
|
2-Head, 30 HP TEFC motor, hydraulically driven feed from head motor, feed speed from 20 - 120 FPM, feed works with 12" wide rough top belt conveyor on self-centering rollers, and holddown wheel. -- Mechanical spring blade tensioning, 0.035" x 1" x 13-1/6' blades, 0.072" kerf. -- Baker flat guides for higher production, accuracy & extended blade life.
Equipment Location:MIDWEST
Jim Reedy
800-374-5009 ext:455
|
|
4-Head Re-Saw, each head equipped with a separate 30 HP TEFC motor and 3-sided feed works with: Rough-top belting, powered side feed rollers, non-powered hold-over wheels. -- Fully variable 20 - 120 FPM feed speed. The system is perfectly suited for resawing squares, and 3-sided cants into various thickness of lumber. -- Equipped with: Roughtop conveyor belt, powered side feed rollers, and non-powered holddown wheels, return conveyor, and air blade tensioning. -- Specifications: 12" Cutting height x 12 wide, uses 0.035" x 1" x 13'-2" band blades, creates less 1/16" kerf; 4" diameter, 500 CFM saw dust outlet per head recommended. -- Completely pre-wired with NEMA 12 enclosure with starter, disconnect and overload protection, and start/stop stations. -- Feedworks/Conveyor Hydraulic Motor driven by main motor. -- Features include: Air tensioning system; blade height adjustments can be made quickly via hand crank; Low-profile flat guides for maximum accuracy. 28" Dia. all-steel band wheels, with crown. -- Material is firmly held in place during the entire cut - the only continuous feedworks on the market today!
Equipment Location:MIDWEST
Jim Reedy
800-374-5009 ext:455
|
|
BAKER D Thin Kerf Horizontal ReSawWith a resawing capacity of 16" x 16". -- Saw is driven by a 40 HP motor; 10 HP feed motor from 10 - 60 FPM, variable speed controller. -- Dynamically balanced CNC machined solid steel wheels, 36" diameter. Wide, powered steel holddown rollers over 16" wide infeed belt. -- Hydraulically powered feed works driven by 10 HP unit with flow control valve and stop start controls. -- Band blade dimensions: 18'-5" x 1-1/4" x 0.035" tensioned and supported by BAKER low profile flat guides with steel plates. Tensioning in conjunction with hydraulic unit. -- Includes: 8 ' Extended Outfeed Conveyor and Frame Length.Note: Outfeed Conveyor is Removable.
Equipment Location:MIDWEST
Jim Reedy
800-374-5009 ext:455
|
|
Baker single head band resaw w/20 hp. electric motor.
Equipment Location:Clarksburg, TN
LPS Equipment & Acquisition Co.
731-986-4351
|
|

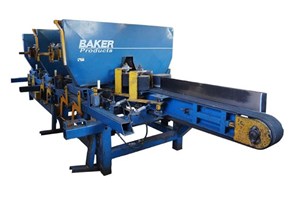

Baker Model C Multi-Head Resaw
Product No. 4927
Baker Model C Multi-Head Resaw
2017
New Machine
Never Used
Original Paperwork And Invoice Available
480v 3 Phase 60 HZ
5 Head
28" Band Wheels
20 HP TEFC Motors For Heads
7.5 HP Hydraulic Unit With Tank And Cooler
Hydraulic Three Sided Feed Works
NEMA 12 Panel With Starters And Disconnect
Pedestal Mounted Remote Start & Stop Station
Powered Return Conveyour
price: $66000
Machine Type: Resaw Horizontal
Manufacturer: Baker
Model: Model C Multi-Head
Year: 2017
Machine Location: South
Equipment Location:South
|
|
Brewco 4 HD Resaw
Equipment Location:Clarksburg, TN
LPS Equipment & Acquisition Co.
731-986-4351
|
|
Brewco B-800 4 Head Band Resaw, Wheels have been recrowned and new bearings, Linear bearings & Rails on adjustable air guides have been replaced.
Runs a 2" Band. Any air regulator, gauge, or micro-valve that needed was replaced. It has a 4' x 8' in feed belt with the horizontal chains in feed.
A 4' x 16' out feed belt, and a 6" x 32' return belt. It has a hydraulic unit with 2 motors and 2 pumps.
Equipment Location:Clarksburg, TN
LPS Equipment & Acquisition Co.
731-986-4351
|
|
Brewco Big Band 7 Head Resaw S/N BBO6L-8252, 20HP Motors. this is a 4 Head and 3 Head Combined with Onboard Hydraulic Unit. Out and Ready to Ship.
Equipment Location:Clarksburg, TN
LPS Equipment & Acquisition Co.
731-986-4351
|
|
Brewco 6 Head Resaw. 20HP Each Head, S/N BB3E0966.
(2) 3 Head Units together. Out and Ready to Ship.
Equipment Location:Clarksburg, TN
LPS Equipment & Acquisition Co.
731-986-4351
|
|
BREWCO MDL BSBH SUPER BAND 4 HEAD BAND RESAW W/20HP ON EACH HEAD; S/N SB4B414
Return available with it.
Equipment Location:Clarksburg, TN
LPS Equipment & Acquisition Co.
731-986-4351
|
|
BREWCO MDL BSBH SUPER BAND 2 HEAD BAND RESAW W/20HP ON EACH HEAD S/N SB25414-2
Equipment Location:Clarksburg, TN
LPS Equipment & Acquisition Co.
731-986-4351
|
