Equipment For Sale

CAM-WOOD TRS-2218 18" Single Blade Bottom Cut Straight Line Rip SawPrecision fence ensures absolute accuracy between blade & fence, with a precision gauge.Equipped with and Features: -- Double anti-kickback fingers mounted at the infeed end provides maximum safety protection. -- Heavy-duty industrial motor for powerful cutting capacity. -- Ruggedly constructed cast iron frames for durability usage. -- The variable feed speed enables the machine to suit different wood species and work applications. -- V-way track and chain block surface are heat-treated for long wear resistance. -- Automatic lubrication to V-Way track facilitates chain running smoothly. -- Precision built saw head ensures accuracy for straight line rip saw operations. -- Four bearing spindle mount ensures rigidity & long life. -- Anti-kick finger, two long rollers, in front of saw blade, 4 x 2 = 8 short rollers at side of saw blade, two long roller at out feed. -- The auto lubrication device is equipped with an alarm that sends signals upon a lack of lubrication oil. Specifications: -- Max. cutting depth: 4-3/4". -- Arbor dia.: 2". -- Saw blade size: 14" - 18" dia., -- Spindle speed: 3,300 RPM. -- Feed speed 30 - 85 FPM. -- Throat to blade depth 26". -- Main motor: 15 HP. -- Feed motor 3 HP. -- Min. work piece length: 8". -- Dust Collection Hood dia. 4".Options- LA-6000 LASER BEAM LIGHT ...$980.00Machine size 91" L X 47" W X 59" H; Net weight: 3960 Lbs

CAM-WOOD TRS-405-SS Short Stock Rip Saw ...with the following specifications and features:Specifications: -- Max cutting width: 12.6"; -- Min length part: 3.15"; -- Short stock ratio of thickness to length: 2:5 -- Distance from center of chain to throat, 30"; -- Saw arbor powered by 50 HP Std. - 30 HP, 60 HP and 75 HP optional -- Spindle speed, 3,200 RPM -- Sawblade diameter to thickness: 10"; dia = 2"; thick, 12"; dia = 3"; thick, 14"; dia = 4"; thick, 16"; dia = 5"; thick -- Sleeve diameter (sawblade bore), 70 mm -- Sawblade keyway, 2 each 20 mm wide -- Spacer size, 70 mm ID x 95 mm OD -- 2 HP feed motor, 3 HP optional -- Variable feed speeds from 20 to 80 FPM -- Head elevation powered by ¼ HP motor -- With (2) 6"; dia. dust outlets -- NET weight, 5,500 Lbs. Features and Benefits: -- Exclusive feed track - Design for short stock feed – see literature! -- Exclusive length capacity on a standard Gang Ripsaw, as short as 3";! -- Turn waste blocks into useable parts -- Pressure rolls supported from both sides hold stock securely for even, smooth ripping -- Pressure plate (hold-down shoe) supported from both sides; helps prevent split parts from damaging sawblades -- Power raise and lower for overhead pressure roll and hold-down assembly -- Variable feed speeds allow ripping a variety of material, hard or soft, thick or thin -- 2-Top and 1-bottom rows of kickback fingers plus side splitter guards provide operator safetyNOTE: ...Where have you seen a Gang Ripsaw capable of ripping as short as 3"!!! ...Also perfect for slats!

CAM-WOOD TRS-190-2VS 7.5"; x 6"; VERTICAL SPINDLE MOULDER FOR SMOOTH SLAT RIPPINGIncludes one setup including Splitter Set, Holddown Plate, Fence, Sawblades, and Spacers WORKING CAPACITY -- Working width: 3"; to 7-1/2"; -- Working height: 3/4"; to 6"; RIGHT VERTICAL SPINDLE -- With 25 HP motor: -- Spindle diameter: 1.968"; with keyway and blade cooling device -- Spindle speed: 3,500 RPM -- Cutting circle: 9"; to 12"; -- Axial adjustment range: 2"; -- Table adjustable to cutting circle. -- Blade cooling device. LEFT VERTICAL SPINDLE -- With 25 HP motor: -- Spindle diameter: 1.968"; with keyway and blade cooling device -- Spindle speed: 3,500 RPM -- Cutting circle: 9"; to 12"; -- Axial adjustment range: 2"; -- Table adjustable to cutting circle. -- Blade cooling device. SPINDLE COMPONENTS AND ASSEMBLY -- Precision spindles are manufactured from SCM-4 tool steel imported from MITSUBISHI Japan, heat treated to HR 46° (ROCKWELL C Scale) fitted with class 6 -- SKF-matched ball bearings then mated to precision machined spindle housings. -- The spindle body and bearing housing are burnished. -- Spindle hardness and accuracy, high precision SKF bearings, and precise spindle housing and bearing installation by SHEN KO provides a spindle assembly -- Capable of speeds to 9,000 RPM and will meet every user’s requirement. -- Spindles are powered by V-shaped belts (MITSUBISHI) without slippage. FEED SYSTEM -- Powered with a 5 HP motor -- Feed speed is infinitely variable by inverter drive from 20 to 120 FPM -- Infeed rolls consist of (3) top and (2) bottom-powered feed rolls. -- Outfeed with (1) set of top and bottom-powered feed rolls -- Pneumatic pressure to all (4) top feed rolls -- Top rolls with independent pressure adjustment -- All top and bottom feed are driven by a universal joint drive -- Feed rolls are 5-1/2"; diameter TABLE AND FENCE -- 4’ infeed table with (1) driven roller above the tablet -- Table is harden and chromed. -- Fence is harden PRESSURE ELEMENTS -- A pneumatic pressure plate assures stability during slicing -- Precision splitting wedge guide for saw kerf SETUP FEATURES -- Mechanical digital read-outs -- Mobile jog box for ease of setting up -- Central lubrication system for spindles -- Oil pump to remove the resin from table -- Each table has (2) holes for lubrication ELECTRICAL -- Operating voltage 230.460/575/600-volt, 60-cycle, 3-phase -- All “name brand"; electric components. -- Operating panel separate from motor control cabinet for ease of operation MISCELLANEOUS -- Machine cover/hood with a lamp for ease of set up -- Includes a toolbox and operator’s manual

CAM-WOOD SET-88DET-SHJCJC 8-Head, 96" Double End Tenoner -- Suitable for mass production of woodworking task for double-end cutting, tenoning, grooving, profiling and sanding -- Scoring, Hogger/Saw, Jump Shaper, Jump Shaper: Total (4) stations on both sides. -- A solid, powerful machine great for Heavy-Duty production.Capacity: -- The specially designed numeric controller allows quick setting of sizes, for the tolerance within 0.004";. -- Variable speed, through feed, wide rubber pad chain, spring-loaded dogs at 8" center conveyor for the best finish selections. -- Heavy-duty pressure rolls at top of wide width conveyor to hold the material tight to prevent sliding during the cutting process. -- Shaper heads can be moved up & down, forward & backward. -- Max. 96" working capacity, min. 12"; max. 3-1/8" opening, 24" load area in front of hold-downs. -- The automatic high-speed through feed device allows for perfect finishing at speeds ranging from 20 - 66 FPM. -- Motorized opening with LED indicator.Each side equipped -- Top Scoring saw unit , 2 HP - 3,600 RPM motor, 1" dia. arbor & up to 8" blade -- Hogging/ Trim saw tiltable unit, 5 HP - 3,600 RPM motor, 1" arbor and up to 10" blade. -- Jump Shape/coping head unit, 7.5. HP - 4,500-7,000 RPM motor, 40mm dia. arbor for 6" to 8" cutter head. -- Jump Shape/coping head unit, 7.5 HP - 4,500-7,000 RPM motor, 40 mm dia. arbor for 6" to 8" cutter head -- Variable feed speed from 20 - 66 FPM, 2 HP motor, steel feed chains with plastic anti-slip pads and dogs at 16" center. -- Spring-loaded overhead hold-down beams w/endless belts. -- Separate electrical control cabinet with operator controls.Options Not Included -- Hopper feed magazine $3,960) -- Extended infeed 42" in front of hold-down belt $4,900) -- Sound enclosure $ 8,900Floor space : 8.5' X 9' X 6', weight 10,500 Lbs

CAM-WOOD SET-812 SCCWW, Double End Tenoner with Sanding12-Head Double End Tenoner, suitable for mass production in a woodworking factory, processing double end cutting, tenoning, grooving, moulding, and sanding.Features: -- Automatic high-speed through feed device allows for perfect finishing at speeds ranging from 20 - 75 FPM. -- In addition to the double-end cutting, all the settings and other processing can also be executed with high accuracy. -- Since the machine is so versatile, we believe it will be one of the most satisfactory machines for bulk production lumber-processing factories. -- The specially designed numeric controller allows quick setting of length sizes for tolerance within 0.004". -- The numeric control system provides highly accurate settings, and a special memory retains all settings, even if there is a power failure. -- Variable speed, through feed, wide rubber pads with spring-loaded dogs located at 16" center distance with conveyor speed for the best finish selections. -- Heavy-duty powered pressure rolls at top of the wide width conveyor holds the material tight to prevent sliding during the cutting and sanding process. -- Shaper head can be moved up & down, forward & backward. -- Workstations are powered by industrial motors for full power cutting and utilizing the entire sanding capacity range. -- Two sanding heads can use brush, flap wheel or profile disc for fine finish with one pass. -- Trim saws and sanding heads can be tilted for different angular setup. -- Heavy cast iron base for durability and heavy duty usage.Specifications: -- Thickness: ½" to 4" -- Length: 10" to 96" -- Miter Saw Blade: 10" x 30 mm Dia. -- Grooving Saw Blade: 8" x 1" Dia. -- Shaper Cutter: 6" - 10" x 30 mm Dia. -- Feed Speed: Variable, 20 ~ 75 FPM -- Trim Saw 3 HP x 2, 3,450 RPM -- Hogging Saw 10 HP x 2, 3,450 RPM -- Jump Shaper 10 HP x 2, 4,500 to 7,000 RPM -- Shaper 10 HP x 2 4,500 to 7,000 RPM -- Belt Sanding 3 HP x 2, 0-1500 RPM -- Brush Sanding 3 HP x 2 with 30 mm arbor 0-1500 RPM -- Feeding 3 HP x 1 -- Width (Opening) Setting 1 HP x 1 Option: -- Sound enclosure ...$ 7800

CAM-WOOD SET-42TS-S 2 Heads 48" Double End Tenoner: Trimming only Capacity: -- Max. 48" working capacity, min. 12"; max. 4" opening, 24" load area in front of hold-downs. -- Motorized opening with LED indicator; -- Single-post machine, single "dual-track" base, right side fixed, left side movable.Each side equipped -- Top trim head, 5 HP - 3,600 RPM motor, 1" dia. arbor for up to 10" blade; -- Variable feed speed from 12 - 52 FPM, 1 HP motor, steel feed chains with plastic anti-slip pads and dogs at 6" center, --Spring loaded overhead hold-down beams w/endless belts. -- Separate electrical control cabinet with operator controls.Options Available: -- Cross transfer system with transfer line 4' X 8' transfer table with rollers (additional $38,900) -- Hopper feed magazine (additional $3,990)Extended infeed 42" (additional $4,500) -- Pneumatic jump control on scoring or shaping unit -- Same machine with 8' opening

CAM-WOOD SET-86TS SJC Double End Tenoner, 6 HeadsCapacity & Style: -- Max. 98" working capacity, min. 12"; max. 4" opening, 24" load area in front of hold-downs. -- Single-post machine, single "dual-track" base, right side fixed, left side movable. -- Motorized opening with LED indicator.Each side equipped with: -- Top trim head, 10 HP - 3,600 RPM motor, 1" dia. arbor for up to 10" blade. -- Jump cope shaping head, 7.5 HP - 7,200 RPM motor, 5-7/8" (150 mm) long & 1" dia. arbor, 8" max. dia. cutter-head. -- Cope shaping head, 7.5 HP - 7,200 RPM motor, (150 mm) 5 7/8" long X 1" diameter arbor, 6" to 8" max. dia. cutter head -- Variable feed speed from 12 - 52 FPM, 1 HP motor, steel feed chains with plastic anti-slip pads, and dogs at 6" center. -- Spring-loaded overhead hold-down beams w/endless belts. -- Separate electrical control cabinet with operator controls.Options Available: -- Cross-transfer system with transfer line 4' X 8' transfer table with rollers (additional $38,900). -- Hopper feed magazine (additional $3,990). -- 42" Infeed extension (additional $4,500) -- Pneumatic jump control on scoring or shaping unit. -- Sound enclosure (additional $ 6,900) -- Electric motor brake -- Central supportNote: Pictures are showing the machine with several options included

CAM-WOOD SET-46TS 6 Heads 48" Double End Tenoner: Soring, trimming and shapingCapacity: -- Max. 48" working capacity, min. 12"; max. 4" opening, 24" load area in front of hold-downs. -- Motorized opening with LED indicator; -- Single-post machine, single "dual-track" base, right side fixed, left side movable.Each side equipped -- Front of post: Bottom scoring unit, 2 HP - 3,600 RPM motor, 1" dia. arbor & up to 10" blade; -- Top trim head, 3 HP - 3,600 RPM motor, 1" dia. arbor for up to 10" blade; -- Back of post: Vertical shaping head, 5 HP - 7,200 RPM motor, 5-7/8" (150 mm) long & 1" dia. arbor, 8" max. dia. cutter-head. -- Variable feed speed from 12 - 52 FPM, 1 HP motor, steel feed chains with plastic anti-slip pads and dogs at 6" center, --Spring loaded overhead hold-down beams w/endless belts. -- Separate electrical control cabinet with operator controls.Options Available: -- Cross transfer system with transfer line 4' X 8' transfer table with rollers (additional $41,400) -- Hopper feed magazine (additional $4,250)Extended infeed 42" (additional $4800) -- Sound enclosure $ 7,350 -- Pneumatic jump control on scoring or shaping unit -- Same machine with 8' opening

CAM-WOOD SET-52SAT 6-Head Double End Tenoner (Not Feed Through)Capacity: -- Length of cut: 12" to 60" (opening). -- Max. width of cut: 24" (cross cut). -- Max. clamping thickness: 4-1/2". -- Saw blade dia. 8" to 12"; saw arbor dia. 1"; saw blade speed 3,400 RPM; saw head swivels 180 degrees. -- Moulder (Shaper) spindle: 1" Dia. x 5" long; spindle speed 6,000 RPM; spindle swivels 180 degrees. -- Vertical travel: 17" vertical. -- Carriage (table) travel (front/back): 24".Equipped with: -- Saw motors: (4), each 2 HP motors (1 top & bottom each side). -- Shaper spindles: (2), each 2 HP motors (1 each side). -- Out Feed Conveyor drive: 1 HP motor (not this model!). -- Powered length setting: 1/2 HP motor (machine opening).Features: -- With the double end miter saw set-up, you can cut-off stock faster or consider a double end miter saw combined with moulding (shaper) head. It lets you cut and machine stock and moulding pattern in a single feed, saves time, space and cost. -- Air-operated vertical clamps hold sticks firmly in place. After the work piece is clamped, table start to feed, performs trimming and shaping operations. -- Trim saw allows to cut stock accurately with a clean cut. -- Moulding (Shaper) spindle mounted at the rear of saw head enables the machine to perform edge moulding after stock is cut off. -- The entire cutting cycle, cut-off, shaping/tenon or mortise is automatically operated in a single pass of stock feeding. -- The material Clamping table travels on a precision linear motion guide for stability. -- The table traverse is motorized, ensuring very stable, smooth workpiece feeding. -- Material transport thru machine powered by variable speed inverter drive for 10 to 20 Sec per cycle -- Variable feed speed permits proper feed selection for hard or soft wood materials. -- Large hand-wheel to adjust depth of cut. -- All controls are grouped in a control panel. -- Industrial motors for optimal cutting results.Machine Stations: -- 1: Top & Bottom Trim Saws powered by (4) 2 HP saw arbor motors for trimming to length. -- 2: Shaper spindles powered by (2) 2 HP spindle motors for applying tenons and grooves. -- Floor space requirement: 94" X 40" X 54" high. -- Cycle time: 10 to 20 Sec per cycle.Available option at additional cost: -- Auto Outfeed device -- Return conveyor

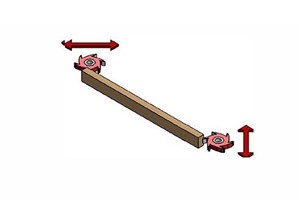

CAM-WOOD SET-402TS-N Double End NotcherDouble end notchine machine for pallet componentsSpecifications: -- Working Length: 24" to 49" -- Working Thickness: 3/4" to 4" -- Pneumatic Hold Down x 4 units (2 sets at Top & 2 set at Bottom) -- Notch Cutter Speed 6,000 rpm -- Notch Cutter Stroke 4" -- Notch Cutter Diameter 1-1/4" -- Notch Cutter Motor 5 HP x 2 -- Feeding Hydraulic Motor 1 HP -- Linear servo drive feeding rails system -- Cycle time 4 to 7 second per piece -- Dust Hood 4" x 2

CAM-WOOD SET-108TS- SHJC Double End Tenoner, (8) HeadsCapacity & Style: -- Max. 120" working capacity, min. 12"; max. 2" opening(thickness), 24" load area in front of hold-downs. -- Single-post machine, single "dual-track" base, right side fixed, left side movable. -- Motorized opening with LED indicator.Each side equipped with: -- Top scoring head, 2 HP - 3,600 RPM motor, 1" dia. arbor for up to 10" blade. -- Top trim head , 10 HP - 7,200 RPM motor, 5-7/8" (150 mm) long & 1" dia. arbor, 8" max. dia. cutter-head. -- Cope shaping head, 7.5 HP - 7,200 RPM motor, (150 mm) 5-7/8" long x 1" diameter arbor, 6" to 8" max. dia. cutter head -- Jump coping head, 7.5 HP - 7,200 RPM motor, (150 mm) 5 7/8" long X 1" diameter arbor, 6" to 8" maximum dia. cutter head -- Variable feed speed from 12 - 52 FPM, 2 HP motor, steel feed chains with plastic anti-slip pads, and dogs at 6" center. -- Spring-loaded overhead hold-down beams with endless belts. -- Separate electrical control cabinet with operator controls.Options Available: (Pricing to be confirmed at time of order) -- Cross transfer system with transfer line 4' X 8' transfer table with rollers (additional ...$39800). -- Hopper feed magazine (additional ...$3,990). -- 42" Infeed extension (additional ...$4,500) -- Pneumatic jump control on scoring or shaping unit. -- Sound enclosure (...$6,900) -- Electric motor brake -- Central support Included for 10' opening machineNote: Pictures are showing the machine with several options included

CAM-WOOD WP-4 S2C-500-12 4-SIDED PLANEROutstanding Performance - Quality Components 4 sided with 6 heads as: top and bottom, left and right, (2) chamfer units -- Floating bottom infeed rolls for smooth, positive feeding -- PLC controls with touch-screen interface for ease of operation -- Variable feed speeds by VFD. Controlled from touch screen -- Drive shaft and universal joint feed roll transmission for each feed roll -- Power elevation of overhead mechanism via touch screen control -- Thickness settings from touch screen control -- With cutterheads and carbide knives for straight knife work -- With spindles for easing top edges -- Tables, fences, etc. are precision ground and hard chromed to provide long life and smooth feeding -- Overhead mechanism travels up/down and is support by (6) hard chromed posts -- Motor Control Center with under voltage and overload protection; includes UL and CSA approved electrical componentsWorking Capacities: -- 19 3/4" wide x 12"; high (500 mm X 305 mm) -- Min. thickness: 3/4"; -- Min. width 2-3/4"; -- Max. depth of cut: 1/4"; all heads -- Max. length: Unlimited -- Min. length: 70"; for feed-thru; butt-feed down to 40". (40"; to 70"; may have minor inaccuracies at edge due the hold-down restrictions) -- Feed speeds from 20 to 66 FPMCutterhead Motors: -- 25 HP Top and Bottom (see optional equipment for larger motors) -- 20 HP Right & Left Side Heads (see optional equipment for larger motors) -- Includes Right & Left Spindles for eased edge at top of board; consists of (2) 1 HP floating spindles to accurately ease top edges. Profile knives in primary side heads ease bottom edges. -- Chamfer motor 1/2 HP Feed Works: -- (2) 5 HP VFD’s -- (1) motor drives top set and (1) motor drives the bottom set of feed rolls -- Boards synchronize top and bottom feed roll speed and torque --Cutterheads and Spindles: -- Top and bottom spindles with 60mm (2.362";) spindle dia. Other diameters on request. -- Includes a set of (2) 4-knife x 20"; long x 5-1/2"; dia. spiral carbide cutterheads. -- Side heads with 40mm spindle dia. Other diameters on request -- Includes a set of (2) 4-knife x 12"; long spiral carbide heads -- Includes (1) set per head: 15 x 15 x 3mm carbide knives with (4) cutting edges -- All spindles with hydro-lock outboard bearings -- Left & Right Side Heads can be used for profile work with owner provided tooling -- Eased Edge Spindles: 30mm"; dia. -- Eased Edge Cutting Circle: 4.9"; -- Powered side pressure device at infeed Dust hoods: -- 6"; dia top and bottom head hoods; 6"; dia. side head hoodsOptional Equipment: -- Optional HP on Top & Bottom Heads, up to 40 HP, -- Optional HP on Right & Left, up to 30 HP, -- Electric Brakes for side spindles, -- Power raise/lower and auto-setting for side spindles, Machine Dimensions and Weight: -- 110" long x 86" wide x 94" high x 15200 Lbs.

CAM-WOOD WX-1504HC Horizontal Grinder w/ConveyorImpact resistant tooling with excellent wear capability. Specifications: -- Horizontal feed with (2) 1 HP infeed roller motors; 20 HP - 1,750 RPM drive motor; -- 15-3/8" x 4" Infeed chute; 8" dia. air discharge.Equipped with: -- (18) Rotary cutter sets with cutter head angle to allow aggressive cutting rates and high-speed shredding of waste; -- (4) Stationary cutter sets; 10" dia. rotor; 680 RPM. -- The shaft rest for the cutter head is constructed by a round hollow with a special angle for cooling during production. Complete with: -- Removable screen for easy clean up and chip size changes from standard 1/2". Includes: -- Operators' & Parts Manual and covered by (1) Year Warranty.

CAM-WOOD WX-1510 Vertical Grinder-ShredderImpact resistant tooling with excellent wear capability. Specifications & features: -- Vertical-feed Chute, 10 HP - 1,750 RPM drive motor; 15" x 11" infeed chute; (6) rotary cutter sets & (2) counter-knives with cutter head angle to allow aggressive cutting rates and high speed shredding of waste. -- The shaft rest for the cutter head is constructed by round hollow with special angle for cooling during production. -- Complete with: -- Removable screen for easy clean up and chip size changes from standard 1/2". -- OutPut: -- 300 - 900 Lbs/Hr, depending on material and moisture content. -- Includes: -- Operators' & Parts Manual and covered by (1) Year Warranty.

CAM-WOOD WX-4751 Vertical Grinder-Shredder Specially designed with push ram, powerful crusher for different materials such as wood, MDF, particle board, plastic, rubber, corn cob, etc. Specifications & features: -- Vertical Hopper 47" x 51"; 50 HP - 1,750 RPM drive motor; (96) rotary cutter sets & (6) stationary cutter sets; cutter-head angle cutting design allows aggressive cutting rates & high speed shredding of waste with maximum durability; 85 RPM rotor speed. -- The shaft rest for the cutterhead is constructed by round hollow with special angle to keep cooling for long hours of usage. -- Complete with: -- Removable screen for easy clean up and chip size changes from standard 1/2". -- Includes: -- Operators' & Parts Manual and covered by (1) Year Warranty.

CAM-WOOD WX-1502H Horizontal GrinderFeatures Impact resistant tooling with excellent wear capability. Specifications: -- Horizontal feed, 20 HP - 1,750 RPM drive motor; 15-3/8" x 2-3/8" infeed chute; 8" dia. air discharge. -- Equipped with: -- (18) rotary cutter sets with cutter head angle to allow aggressive cutting rates and high-speed shredding of waste; (4) stationary cutter sets; 10" dia. rotor; 575 RPM. -- The shaft rest for the cutter head is constructed by round hollow with special angle for cooling during production. -- Complete with: -- Removable screen for easy cleanup and chip size changes from standard 1/2". -- Includes: -- Operators' & Parts Manual and covered by (1) Year Warranty.

CAM-WOOD IAH-SC Inverter Drive, End-Less Auto Finger Jointer SystemFinger jointer shaper with gluer and troughfeed press for unlimited lengthTechincal Specifications: -- Infeed timber working length(min-max) L = 300MM ~ 2500MM (11.9" - 98.4") --Timber length to be processed must be at least 50% longer than the timber width to beprocessed. -- Timber working thickness T = 15MM ~ 75MM (1/2" - 3") -- Timber working width W = 35MM ~ 255MM (1 3/8" - 10") -- Timber out-feed length L = ENDLESS -- Glue type to be used PVAC (glue pump not included) -- Timber moisture 8 ~ 12 % -- lnfeed qualities: Timber must be processed via four sides moulder machine (tolerance: ±0.2mm) and wood needs 90 degrees right angle, four planning clear, straight. FSL 6121 Inverter Type FingerShaper With Glue ApplicatorSpecifications: -- Working dimension W=620mm (24.5"). L=150mm~2500mm. (6" - 98") Thickness=15mm~75mm (1/2" - 3") -- Motor of finger spindle 20HP 1pcs -- Spindle size 50mm -- OD of finger cutter OD160 mm(without finger cutter) -- Finger spindle RPM 5500RPM -- Power of Cut-off saw 7.5HP 1pcs -- Size, cut-off saw 255mm x 100T x 5mm (with saw blade) 1pcs -- RPM, cut-off saw 4800rpm/min -- Power of scoring saw 2HP 2pcs -- Size, scoring saw 180mm x 50T x 5mm (with saw blade) 2pcs -- RPM, scoring saw 2850rpm/min -- Conveyor drive power 1/2HP 1pcs -- Table movement INVERTER system power, 3HP + 3HP inverter 1pcs -- Glue Applier injection glue spreader -- Standard glue height H=100mm (3.9") Pitch 4.0mm .157") L=10-12mm (3/8" -7/16") (special size made by optional) -- Cycle speed packing/min 1-4 times/min (TOP SPEED) -- Double cylinder clamping -- ROLLER DEVICE AT FEEDING & OUTPUT LOCATION OF SHAPERUFJ-600 Unlimited lenght Finger Joint PressSpecifications: -- Working dimension Width: 35mm-255mm (1 3/8" - 10"). Thickness: 25mm-100mm. 1" -3.9") Length : Unlimited -- Infeed speed 10M-90M / min (32.5' - 292'/min.) -- Power of upper roller 2H P 1: 10 2pcs -- Power of lower roller 2HP 1: 10 2pcs -- In-feed Inverter 5HP 2pcs -- Cut-off saw, power 7.5HP 1pcs -- Cut-off dimensions 455 x 120T x 25.4M M (with saw blade) 1pcs -- Cut-off saw, RPM 2850rpm/min -- Hydraulic power 15HP 1pcs -- Out-feed table size 2M x 3 -- Oil tank 200L -- Max. capacity without HSC 18M / min(full status)Production Capacity: -- Working time 480 MIN/SHIFT -- Finger length MADE BY ORDER -- Average infeed length at the finger jointing line 2500 MM (98") -- Average timber cross section 255X50 MM (10.2" X 2") -- Shaper max speed 4/2 TABLE/MIN; the speed will change by the working height of wood -- Number of timber pieces per shaper table(horizontal finger jointing 50X255 mm (2" X 10")) 2 PIECES -- Capacity of the press 18M/MIN (58.5'/min) -- The data is the max capacity for one-section cutting, the capacity will be amended while multi­ section cutting. -- Rate of utilization 80%CAPACITIES OF THE COMPONENTCAPACITY OF THE SHAPER -- (HORIZONTAL FINGER JOINTING for 50X255 mm

Camaster PT 510 CNC Router Manufacturer Specification - 5 HP HSD Spindle - All-Steel Welded Frame - All-Steel Gantry and Supports - AC Digital Servos with Absolute Encoders - THK 25 MM Precision Rails & Bearings - High Precision Planetary Gearboxes - Zoned Vacuum Table Top - Laser Cross Hair for XY - Centroid PLC Controller with High Speed Ethernet Communication - Failsafe Z Motor Brake System - Control PC that runs Windows 10 PRO and a 19” LED Monitor - Dual Drive on Y Axis - Z-Zeroing Plate - Vectric VCarve Pro Software

CAMASTER - PANTHER 408: Router w/Vacuum Pump -- SpecificationsMaterial processing dimensions: 48" Wide x 96" long x 8" thick; 11" "Z" axis stroke. -- Fixed 4-zone universal vacuum table for simple clamping of workpiece to machine; moving gantry bridge rides on high precision HIWIN linear rails for consistent movement & accurate cutting. -- Welded structural steel machine base provides a solid foundation for superior cut quality; tool gantry & bridge travel by rack & pinion; vertical axis travels on ball screws for smooth consistent movement. -- Working UnitsIndustrial grade direct drive: 4 HP (3 kW) HSD router spindle; variable tool speed: Up to 18,000 RPM allows for the right cutting speed in any application. -- X- & Y-Axis 1,500 IPM traverse speed for quick movement between cutting cycles to reduce total CNC machining time. -- Includes Windows-based CNC control preloaded on a PC (included); very intuitive interface; quick to learn and easy to use. -- Full-featured machine Operating System with: On-screen tool path graphics and CAM software; controller accepts direct import of: DXF, HPGL, BMP, or JPEG files and will create machine code simply and easily with a few "clicks" from the mouse. -- Compatible with virtually all CAD/CAM programming software on the market, which means you can choose the software that suits your business best. -- IncludesRemote Control Pendant; dust hood with: 4" Dia. inlet; BECKER "VTLF 2.250/10" HP Vacuum Pump & piping; JET Cyclone Dust Collector & ductwork; A Tool holder & Collet. -- Actual Model - CAMASTER PANTHER 408 ROUTER.

5 tools, Hydraulic rubber band tensioners, ring and pension feedworks, MCC and control panel, spare parts.
