Description:

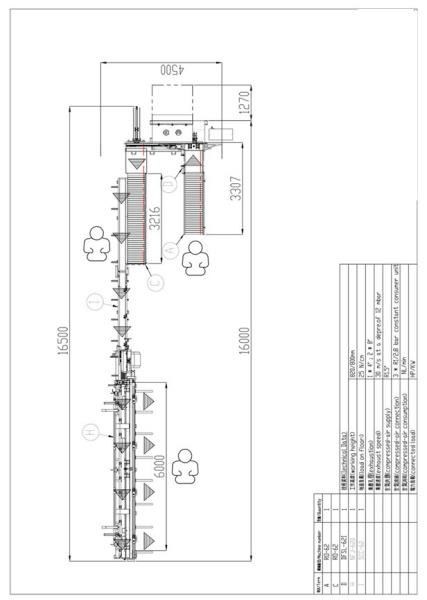

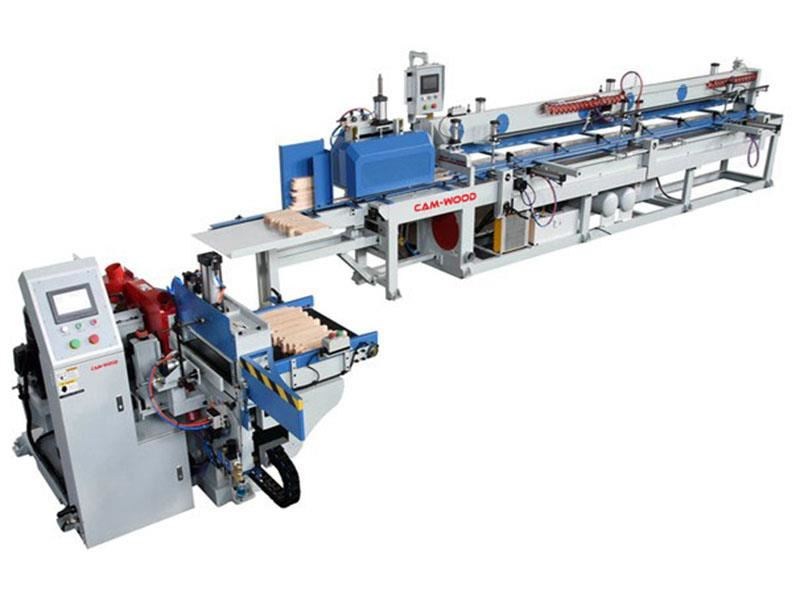

CAM-WOOD IAH-SC Inverter Drive, End-Less Auto Finger Jointer SystemFinger jointer shaper with gluer and troughfeed press for unlimited lengthTechincal Specifications: -- Infeed timber working length(min-max) L = 300MM ~ 2500MM (11.9" - 98.4") --Timber length to be processed must be at least 50% longer than the timber width to beprocessed. -- Timber working thickness T = 15MM ~ 75MM (1/2" - 3") -- Timber working width W = 35MM ~ 255MM (1 3/8" - 10") -- Timber out-feed length L = ENDLESS -- Glue type to be used PVAC (glue pump not included) -- Timber moisture 8 ~ 12 % -- lnfeed qualities: Timber must be processed via four sides moulder machine (tolerance: ±0.2mm) and wood needs 90 degrees right angle, four planning clear, straight. FSL 6121 Inverter Type FingerShaper With Glue ApplicatorSpecifications: -- Working dimension W=620mm (24.5"). L=150mm~2500mm. (6" - 98") Thickness=15mm~75mm (1/2" - 3") -- Motor of finger spindle 20HP 1pcs -- Spindle size 50mm -- OD of finger cutter OD160 mm(without finger cutter) -- Finger spindle RPM 5500RPM -- Power of Cut-off saw 7.5HP 1pcs -- Size, cut-off saw 255mm x 100T x 5mm (with saw blade) 1pcs -- RPM, cut-off saw 4800rpm/min -- Power of scoring saw 2HP 2pcs -- Size, scoring saw 180mm x 50T x 5mm (with saw blade) 2pcs -- RPM, scoring saw 2850rpm/min -- Conveyor drive power 1/2HP 1pcs -- Table movement INVERTER system power, 3HP + 3HP inverter 1pcs -- Glue Applier injection glue spreader -- Standard glue height H=100mm (3.9") Pitch 4.0mm .157") L=10-12mm (3/8" -7/16") (special size made by optional) -- Cycle speed packing/min 1-4 times/min (TOP SPEED) -- Double cylinder clamping -- ROLLER DEVICE AT FEEDING & OUTPUT LOCATION OF SHAPERUFJ-600 Unlimited lenght Finger Joint PressSpecifications: -- Working dimension Width: 35mm-255mm (1 3/8" - 10"). Thickness: 25mm-100mm. 1" -3.9") Length : Unlimited -- Infeed speed 10M-90M / min (32.5' - 292'/min.) -- Power of upper roller 2H P 1: 10 2pcs -- Power of lower roller 2HP 1: 10 2pcs -- In-feed Inverter 5HP 2pcs -- Cut-off saw, power 7.5HP 1pcs -- Cut-off dimensions 455 x 120T x 25.4M M (with saw blade) 1pcs -- Cut-off saw, RPM 2850rpm/min -- Hydraulic power 15HP 1pcs -- Out-feed table size 2M x 3 -- Oil tank 200L -- Max. capacity without HSC 18M / min(full status)Production Capacity: -- Working time 480 MIN/SHIFT -- Finger length MADE BY ORDER -- Average infeed length at the finger jointing line 2500 MM (98") -- Average timber cross section 255X50 MM (10.2" X 2") -- Shaper max speed 4/2 TABLE/MIN; the speed will change by the working height of wood -- Number of timber pieces per shaper table(horizontal finger jointing 50X255 mm (2" X 10")) 2 PIECES -- Capacity of the press 18M/MIN (58.5'/min) -- The data is the max capacity for one-section cutting, the capacity will be amended while multi­ section cutting. -- Rate of utilization 80%CAPACITIES OF THE COMPONENTCAPACITY OF THE SHAPER -- (HORIZONTAL FINGER JOINTING for 50X255 mm
