woodworking Equipment For Sale

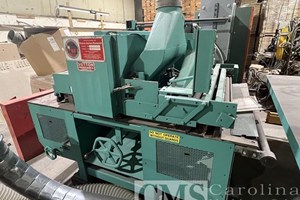

Mereen Johnson 524-DC/SR4 Rip Saw (4) Shifting Saw Blades Infeed & Outfeed Decks Per MFG - Saw was ingrates into: Rip Navigator Scout Deck, Power Table, Servo Laser Stand, Sorting Printer

Manufacturer specs (to be confirmed): - Mereen Johnson "312-DC-1" Gang rip saw - 12" Arbor cap., 14" max. dia. tooling, 3-1/2" max. thickness, 30" min. length for glue joint accuracy & 22" min. for busting only; 6" throat. - 50 HP - 3,600 RPM TEFC Direct drive motor - Arbor with disc brake & load meter - Arbor lockout on the access door - Feed & chain: 3 HP Variable feed speed from 30 - 150 FPM with adjustable jam protection, M-J "Posi-Feed" dip bed carried on 5" pitch hardened double-V chain - "Quad Life" hardened dip cams, extruded structural aluminum feed bed slats with BRAND NEW replaceable steel-backed rubber insert strips, automatic chain oiler with low-level shutoff. - (4) 3" Dia. air loaded overhead pressure rolls; full width segmented maple, spring loaded overhead pressure shoe, pressure rolls & pressure shoe unit adjust with scale & pointer thickness reference; anti-kickback fingers. Includes (1) saw sleeve and spacers. - 460 v/3 ph

225 KVA 480 volt to 208Y/120

MIDWEST AUTOMATION GS 214 Top and Bottom Glue Spreader53" Cap., top & bottom opposed glue applicator rolls, max. 3" opening, 40" pass-line height, 7-3/4" dia. grooved rubber spreading rolls. -- Rolls fitted with Teflon end seals and water tight bearings, upper elevator opening by single hand wheel on left with dial indicator; dual hand wheel opening glue film thickness adjustment. -- Galvanized collection tank; 54 FPM feed speed, top & bottom direct drive, 1.5 HP direct drive motors. -- Complete with: (2) Protection safety guards at roller in- & outfeed with safety interlocks, complies with UL & CE safety standards.

Specification from owner 5 Foot Wide - Midwest Automation top and bottom high pressure laminating line capable of laminating up to 5’ x 12’ panels consisting of the following equipment: Powered infeed roller conveyor PC-160 panel cleaner with top and bottom nylon brushes and dust collection shrouds. GS-417 top and bottom glue spreader with 65” panel width capacity, glue rolls are in excellent condition, separate top and bottom direct drive motors, powered opening, glue pump system. PP-500 panel positioning station for panels up to 62”W x 148”L x 1.63”T. RP-3170 heated roller press with 67”W high temperature silicone covered top and bottom rolls. SL-510 scissor lift table, 5’ x 10’ roller platform and 6000 lb. capacity. Includes 2 new recoated glue rollers and manuals. All equipment is 575V, 3PH. May consider selling pieces separately.

There are two countertop saws in this listing. The first saw was in good working condition when removed from service. The second saw had some parts replaced. It can be used with some TLC, or as a parts machine.

Automatically feeds, shapes & ejects Rosette blocks in sizes from 2-1/2" - 5" max. square blocks; 1.5 HP motor belt drives 2-7/8" spindle cutterhead @ 7,500 RPM. -- Operation: Adjustable hopper feed to side of spindle automatically indexes Rosette blocks under cutterhead up against a corner-V holding fixture with overhead spring fingers, cutterhead advances and machines Rosette, then automatically ejects block to front (hydraulic position of block and air eject cylinder). -- Features: Cutterhead equipped for standard 16°/60° corrugated back 1/4" thick knives to be ground at 0° hook angle. -- Produces up to (500) Rosettes/Hr; Rosette profiles can be ground on any profile grinder for infinitely variable design possibilities; table top unit may include base.

Horizontal Tilting Multi-Moulder with Verical Router System designed for curved casings, crowns, circles, ellipses and straight mouldings. -- Equipped with: (1) 1-1/4" Diameter Spindle, 6" max. width x 7" max. thickness cap., 7.5 HP spindle motor, 6,000 RPM spindle with reverse rotation, 6-1/2" max. cutting circle horizontal, 6" max. cutting circle tilted, 0° - 52° horizontal tilting arbor, hand wheel spindle height & spindle tilt adjustment. -- Variable feed speed from 0 - 30 FPM, DC feed feed motor; hand wheel adjustable thickness opening, 34" x 30" table, independently adjustable feed rollers, and mechanically adjusted fence. -- 3.25 HP, 5-speed Porter Cable router with 1/2" shank included. This allows easy insert & Channels on both straight and curved mouldings. -- Designed to use standard 4" dia. 2-knife cutterhead for 16°/60° 1/4" corrugated back knives, (1) supplied; includes operating manual & video, parts list and covered by (1) year warranty. -- Optional: ProScale digital readouts for height and tilt settings, please add $900 for each, or for the Optional 8’’ spindle and aluminum Cutter-head, please add $3,550

Designed for curved casings, crowns, circles, ellipses and straight mouldings. -- Working dimensions: 6" wide x 7" thickness capacity. -- Spindle diameter 1-1/4" with cutterhead speed of 6,000 RPM. 6-1/2" max. cutting circle in horizontal position, 6" max. cutting circle tilted. -- Feed motor 7.5 HP variable speed 0 - 30 FPM. -- Tilting of spindle head 0° - 52°. -- Includes: Hand wheel for spindle height & tilt adjustment, mechanically adjustable fence for accurate and easy positioning. Axial adjustment. Floating work table 30" x 23". -- Linear tracking system guides the work piece smoothly and directly under the cutterhead, while keeping the workpiece flat. -- Includes (1) 4" dia. corrugated cutterhead. Operating video and manual, spare parts list and (1) year warranty. -- Additional options: Proscale digital readout for height and tilt setting .... add $900.00 for each.

Milwaukee 8" Panel Saw

MINNESOTA 24-8 Multi-Spindle Carving Machine.Specifications: -- Spindles/Capacity: (24) Spindles, 8" between centers & 72" length capacity. -- Motors: (12) 0.75 HP motors with (1) motor driving (2) spindles via flat belt. -- Features: Manual table elevation, motorized stock rotation, non-indexable head. -- Comes with: (2) Sets of carving tools (one medium and one fine). -- Includes: Tables for flat carving - to be confirmed (?).

16” capacity 5 hp motor 220 volt 3-phase

Monco T & B Laminator TB 60 Monco TB60 60" inch Hot Roll Laminating Line 65" Cap., Top & Bottom Laminator with oil heated chrome plated rollers 14" roller diameter 25 - 106 FPM 5 HP feed motor 48 kW oil heating system, 400° F max. heating including over-temperature cutoff safety device. 1 HP Oil circulation pump & a 1.5 HP hydraulic system for up to 900 PSI line pressure 3" dia. x 4" stroke cylinders control roll pressure. 62" width capacity. Solid-State temperature, high limit & cool down controls Manual emergency stop system on all (4) columns to stop the drive & raise the rolls.

Montgomery Blo-Hog, drop feed Steel Flywheel for surge loads Top infeed opening: 18 ¼ X 13 1/4” Bottom discharge Will be repainted Model: ER 18S315FHDL Serial # 1032 75 hp motor. 230/460V, frame: 405T, Support stand Extra parts Contact us for a delivered price

MORBIDELLI - AUTHOR 330: Flat Table Machine (w/ATC/Boring) -- Specifications4' x 10' Stationary extruded aluminum "MATRIX" table for "Nested Base" manufacturing. -- Work Area"X" Axis: 113.85" (2,892 mm); "Y" axis: 50.78" (1,290 mm); "Z" axis stroke: 11" (280 mm); max material thickness: 4.7" (120 mm). -- NOTE: When using the "Rake System," 4' x 8' is the max. panel size. -- Positioning Speed"X" Axis: 262 FPM (80 MPM); "Y" axis: 148 FPM (45 MPM); "Z" axis: 74 FPM (22.5 MPM). -- Closed loop AC Servo drive system with: Recirculating ground ball screw in the "X", "Y" & "Z" axes; all axes ride on precision prism linear guideways. -- WorktableAluminum grid "MATRIX" vacuum table machined with: Square grid pattern for fixturing parts; grid pattern allows use of vacuum pods or closed cell rope gasket material and use of spoil boards. -- (2) Independent working areas; external pop-up reference pins located on the sides & back of the table for positioning parts. -- Boring Unit2 HP (1.5 kW) - 4,000 RPM Motor; (12) independent vertical boring spindles: (7) Spindles in "X" axis & (5) spindles in "Y" axis. -- Machining (1) 10 HP (7.5 kW) "Power 2000" Electrospindle w/lifetime lubrication; HSK F63 adaptor; spindle speeds from: 900 - 18,000 RPM. -- (1) 12-Position "Rapid-12" traveling ATC tool plate for "on the fly" ATC. -- Operator InterfacePC Front-End with: NUM 1040 + Xilog III + Windows Operating System. -- 12" High resolution CRT, ergonomic keypad; 1.44 MB & CD ROM disk drives; (2) serial ports: RS-232 & RS-242. -- All housed in air-conditioned cabinet with: KELVIN Air-Conditioner. -- Complete with:(2) 300 cbm/Hr Vacuum pumps; emergency stop rope; Safety "Bump-Stop" system; Handheld pendant control. -- Options IncludedNesting Rake & off feed table to increase machine/Operator output. -- "SOUTHWORTH" Lift Table; roller conveyor section to bridge safety barrier. -- (1) 10 HP (7.5 kW); 460 V; 3 Cy DUSTEK 3-bag Dust Collector. -- Actual model: MORBIDELLI AUTHOR 330 NBR

12 vertical spindles X 16 vertical spindles Y 3 vertical hinge units 3 vertical spindles in Y 2 + 2 horizontal spindles in X 2 horizontal spindles in Y Y Prime: 11 vertical spindles in X, 3 vertical spindles in Y, 2 + 2 horizontal spindles in X 2x 10HP electrospindle (HSK 63F) - one lower & one upper 6 + 6 position tool holder: to manage 6 tools for upper electrospindle and 6 tools for lower electrospindle Loading table: table with cross belts for pre-loading 2 overlapped panels Unloading station with cross belts Auto-transformer Included (208, 230, or 460 volt) AC electrical cabinet Automatic Lubrication System

MORBIDELLI - N 100 15. Flat Table Machine with: ATC, Boring -- Specifications5' x 12' x 37"; H - High efficiency laminate aluminum with: Vacuum locking system.Grid pattern allows: Use of vacuum pods or closed cell rope gasket material; use of spoilboards for nested-base machining. Part location pop-up pins mounted on: Table perimeter; chips conveying device. -- Working AreaX-Axis: 3,686 mm (145.12"); Y-Axis: 1,555 mm (61.22"); Z- Axis stroke: 250 mm (9.8"); Z- Axis: 150 mm (5.9"). -- TravelsX-Axis: 4,230 mm (166.54"); Y-Axis: 1,985 mm (78.15"); Z-Axis: 250 mm (9.84"). -- Positioning SpeedsX- & Y- Axes: 35 MPM (114 FPM); moving gantry, high precision rack & pinion system for: X & Y Axes; ground ball screws for: Z-Axis. All axes ride on extra large precision profile linear guide ways. -- Boring Unit2.2 kW (3 HP) Motor; (12) independent vertical roto-axial spindles with: (8) In X-Axis; (4) in Y-Axis; max. spindle speed: 8,000 RPM. -- Machining(1) 9.6 kW (13 HP) Air-cooled electrospindle with: HSK F63 Adaptor; variable spindle speeds: 1,500 - 24,000 RPM; (1) 14-position TR side tool changer. -- Operator InterfaceMobile console: 17" LCD Display with Windows 7 Operating System.“XILOG PLUS Operator Interface & Xilog MAESRO CAD CAM free-form software with labeling. "MAESTRO SUITE" with: Auto-diagnostic to zooming; controlled acceleration & deceleration; encoder feedback; dynamic tool correction via PLC: Due to active tool wear using space-and-time criteria; "TECPAD" remote pendant with: 7" Color touchscreen & fitted with a USB port, which allows for a quick load & setup of new programs. -- Complete with: (1) 300 CBM/Hr Vacuum Pumps; air-conditioned electrical cabinet. - Universal 3-phase transformer.Electronic tool detecting length (touch probe) allows for: Detecting tool length without running a test program.Safety bumpers on both sides of the mobile unit allow: Safe movement while saving space by eliminating caging around the machine.

MORBIDELLI - CX 220: CNC Machining Center (Vertical) with (2) NC Controlled "Split Heads" -- Specifications• HSK63F Electrospindle.• 6-Position tool holders.• (S1/S6) 6.6/7.5 kW (9/10.2 HP).• Constant motor power from: 12,000 - 18,000 RPM.• Automatic lubrication.• Autotransformer.• Drilling on (5) faces.• "EYE-M" PC Controller.• 21-1/2" LCD Color display.Drill Head #1• Vertical spindles: 21.• Horizontal spindles in X direction: 6.• Horizontal spindles in Y direction: 4.• Integrated blade in X axis: Ø 125 mm.• Max. saw blade thickness: 6 mm.• Motor power: 2.2 kW (3 HP).Drill Head #2• Vertical spindles: 13.• Horizontal spindles in X direction: 6.• Horizontal spindles in Y direction: 2.• Integrated blade in X axis: Ø 125 mm.• Max. saw blade thickness: 6 mm.• Motor power 2.2 kW ((3 HP).• Actual Model: MORBIDELLI CX 220.

MORBIDELLI - X200: Flat Table Machine with ATC / BORING / RAKE / OFFLOADING -- Specifications5' x 10' Traveling "Bridge Gantry"; stationary aluminum "MATRIX" grid table with: Square grid pattern for fixturing parts.Grid pattern allows: Use of vacuum pods or closed cell rope gasketing material; use of spoil boards for "nested base machining".(8) Vacuum zones controlled by electronic switches; (5) part location pop-up pins mounted on the table perimeter.Working Flow from left-to-right direction. -- Working Field"X" Axis: 123" (3,117 mm); "Y" axis: 61" (1,557 mm); "Z" axis stroke: 9.4" (240 mm); max. material thickness: 5.9" (150 mm). -- Work TableWorktable divided into (8) Vacuum Zones with: Automatic & manual selection. -- Positioning SpeedPRO-SPEED "X" & "Y" Axis vectorial speed; 370 FPM (113 MPM); "Z" axis positioning: 82 FPM (26 MPM); closed loop AC Servo drive system.High precision "Rack & Pinion" system in: "X" & "Y" axis; ground ball screws "Z" axis; all axes ride on extra-large precision profile linear guideways. -- Boring Unit"F16V Ro.Ax" Boring Unit: 3 HP (2.2 kW); variable speed: 1,000 - 8,000 Max. RPM motor.(16) Independent vertical spindles on 32 mm Centers; (8) spindles in: "X" axis; (8) spindles in: "Y" axis. (12) Horizontal Spindles with: (4 + 4) in "X" axis; (2 + 2) in "Y" axis. (1) "X" Axis Grooving Saw with: Max. 120 mm dia. blade. -- Machining(1) 20 HP (14 KW) Air-cooled electro spindle with: HSK F63 Adaptor; variable spindle speeds: 1,500 - 24,000 RPM.(1) 14-Position "FAST 14" ATC tool rack mounted inside the protective cage on the mobile unit. -- Operator InterfacePC Front-End with: "Eye-M"; + "Maestro-Active HMI" (Human-Machine Interface Software) + Windows "10" Operating System.21-1/2" Full HD touchscreen; USB ports; serial ports: RS-232 & RS-242; Ethernet adaptor.Programs can be transferred via USB or downloading by wire is possible; all computer components are mounted on a mobile stand. "Xilog Maestro Active HMI" (Human Machine Interface software)"; offers incredible list of functions from: (a) Auto-diagnostic to (z) zooming; controlled acceleration & deceleration; encoder feedback; dynamic tool correction via PLC due to active tool wear using space-and-time criteria.MSL Connector (Maestro Scripting Language): Software module developed by SCM Group to directly connect its own CNC machines with: Main 3rd Party software packages available on the market.Maestro is: Protected against unauthorized copy through a hardware USB key.Includes 1-License for: "Xilog Maestro CAD CAM" Free Form Software + Maestro-Connect: (1) Year subscription service.Maestro-Connect: Complete hardware preset for IoT Platform. Additionally equipped with onboard mini-CAD with: Built-in programming for writing circles, ellipses, & angles with only a few keystrokes.Onboard cycle optimization, onboard calculator, mirror imaging, and repeat imaging. -- Complete with:(2) 300 m³/Hr Vacuum Pumps; Handheld "TECPAD" remote control with: 7" Touchscreen, co

This machine was purchased new. The seller has changed contracts and no longer needs the system for their application. 2019 Morbidelli P200 5 X 12 Contour Edgebander Eye M Controller with 21.5? Touch Screen Hand Held Pendant w/ 7? Touch Screen Air Conditioned Cabinet 20.5 HP Liquid Cooled Router Tool Touch Probe 12 Position Ride Along Tool Changer 14 Position Side Tool Changer 17 Vertical Spindles 8 Horizontal Spindles / 3+3 in X and 2+2 in Y Hinge Unit Edgebanding Unit Standard two Coils Magazines on Safety Enclosure Additional Support for 6 Coils EVA or PUR Glue Aggregates for 3mm PVC Flexmatic Table with 8 Rails 8 Lifting Rails Variety of Vacuum Pods HE Pods Conveyor for Dust Busch Mink Vacuum Pump Pro Speed w/ Safety Enclosure
