Equipment For Sale

WEB MECAHNICAL JET 10M Jet Air Oven Supply Side complete with the following: -- 400,000 BTUH rating, 3,200 CFM forward curved blower, 5 HP motor 575 V /3 Ph /60 Cy. -- Inlet filter section HEPA 99% DOP rated, Magnehelic gauge across the filter section. -- Thermometer to show outlet temperature, Thermostat to set and control temperature design from 60° -70° C, -- Jets designed to control flow across the belts. Exhaust Side complete with the following: -- Vane axial fan set to exhaust 600 CFM,1/2 HP motor. -- Direct drive fan with motor out of air stream, external grease fittings for lubrication.Heating Module: -- Air makeup sized for 3,200 CFM, 2 HP motor, rated for 400,000 BTUH. --Fan to exhaust through 2"; pleated filter and 12"; HEPA filter, Down discharge,3 HP motor, 3,200 CFM @ 2.0"; E.S.P. -- Engineered for 90° F temperature rise, 0.4 MBTU/hr hydronic coil, features FUJI temperature selector. Conveyor: -- Robust 10-gage steel frame, Novo 40 grey belt designed for up to 90° C and with Auto tracking mechanism. -- Large size 6"; driver and idler pulleys, Support pulleys 3"; as required. -- Heavy duty NORD gear box and a 2 HP direct coupled motor. OPTIONAL (Not included in Price):IR Adder (Lamps): -- Three (3) MW IR lamps in the center of the oven, Three (3) MW IR lamps at the end of the oven, -- Heated length of lamps 54";, dual gold plated element, 3,200 watts per bulb. -- Lamps are designed to sit between the jets on the oven with lamps 8"; (200 mm) above belt and 8"; apart. - Please add ...$ 7,700Control Panel for the above (600 V - Electric) complete with: -- Line interlock, E-stop, fuses, disconnect switch, DC power supply. -- Phase angle controller to control two (2) banks of three (3) lamps. CSA approved panel. - Please add ...$ 12,100BOILER: -- One (1) RBI dominator boiler "DB 600" to supply up to 600,000 BTUH. - Please add ...$ 18,900

WEB MECHANICAL HYDRONIC OVEN - Low Velocity Flash Off - STAGE # 1 and High Velocity Bake Oven - STAGE # 2 STAGE # 1, Low Velocity Flash Off Oven. -- The oven consist of one (1) only hot water oven, 14' wide x 9' high x 30' long with Air flow requirement of 30 FPM/ 9,000 CFM.Supply side complete with the following: -- 400 000 BTUH heat exchanger -- Motor/blower, 2 HP 575 V / 3 Ph / 60 Hz -- Thermometer to show outlet temperature -- Thermostat to set and control temperature to design temperature -- RTD's (1) for accurate oven dispersion temperature -- Eighteen gage galvanized steel panels -- Perforated metal side walls for even air distribution -- Design temperature of 30 -40°C -- Adjustable inlet mixing damper with intake filter (70% recycle) -- Exhaust fan for combustible gasesExhaust will be complete with the following: -- Size 14 direct drive aluminum fan wheelset to exhaust 30% of the contaminated airflow (2,500 CFM) -- Direct drive with the motor out of air stream -- External grease fittings -- Fan module c/w aluminum extrusions and galvanized panels, and will be complete with HEPA style filter, -- DWDI fan, space for hot water heat exchanger STAGE 2 HIGH-VELOCITY OVEN BAKEThe oven consist of one (1) only hot water oven, 14' wide x 9' high x 20' long with Air flow requirement of 50 FPM/ 9,000 CFM Supply side will be complete with the following: -- 1,500,000 BTUH heat exchanger -- 10,000 CFM -- Motor/ blower 5 HP 575v / 3 Ph / 60 Hz -- Thermometer to show outlet temperature -- Thermostat to set and control temperature to design temperature -- Eighteen gage galvanized steel panels c/w 3" insulation -- Perforated metal side walls for even air distribution -- Design temperature of 40 - 60C 104 - 140 F -- Adjustable inlet mixing damper with intake filter (85% recycle) -- Exhaust fan for combustible gases Exhaust will be complete with the following: -- -- -- Size 12 direct drive aluminum fan wheelset to exhaust 15% of the contaminated airflow (1,500) CFM) -- Direct drive with motor out of air stream -- External grease fittings There will be two (2) air knives one at start of the oven and one art the exit to control heat and fume exhaust Air knives will be complete with Multivee filters for inlet air Fan module c/w aluminum extrusions and galvanized panels will be complete with HEPA style filters, DWDI fan, space for hot water heat exchanger.

Webb Dryer System

10x40 Triple Pass Drum Dryer Webb Dust Burner All piping and controls Cyclone Additional blower Airlock

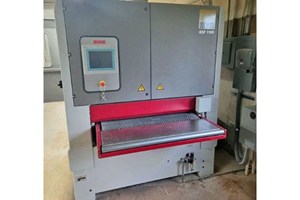

WEBER KSF2-1100 Wide Belt Sander (2) Heads43" Width cap.: Combination Head , Combination HeadHead Configuration:1st Head: Combination Head 15 kW.2nd Head: Combination Head 15 kW.3rd Station: Cleaning .55 KWSpecifications: -- 43" Width cap. -- Operating width: 1100 mm. -- Max. workpiece thickness: 140 mm -- Min 4 mm. -- Height adjustment: 0.75 kW; Frequency Controlled. -- Feed motor: 4 kW. -- Feed Speed 22M/Sec. -- Max. height 55 mm Equipped with & Features: -- -- Workpiece blowing off: 2.2 kW Vacuum. -- Extraction duct dia.: 1 x 150 mm and 5 x 200 mm. --Vacuum air quantity: 7,500 CFM. -- Constant Passline. -- Vacuum Feed Belt .4 KW

Webster 30" x 25' Vibrating Conveyor

(2) Webster 18’ x 30’ Vibration Conveyor

Webster Vibrating Conveyor 18” Bottom, 57’ Length

Webster vibrating conveyor, 18" wide pan x 20' long, electric drive, good working condition

Webster Vibrating Conveyor 50' long x 18" wide Includes Chipper Transition

Webster vibrating conveyor, 18" wide pan x 25' long, electric drive, includes chipper feed spout, good working condition

WEEKE ABD 050/28 CNC BORE. GLUE & DOWEL INSERTER: -- SpecificationsDesigned for small or large capacity horizontal drilling, gluing and dowel insertion; built on Heavy-Duty welded steel base; main horizontal beams hold the carriage for the boring head and glue/water injector.Support Table with: Left & right side stop & rear stop bar; center stop pneumatically activated.(8) Clamping cylinders; manually adjustable; automatic central lubrication. -- Working Capacity. Material size from: 20 mm - 2,800 mm (0.78" - 110.2") long; 100 mm - 800 mm (3.9" - 31-1/2") wide; 10 mm - 80 mm (0.4" - 3-1/2") thick.Machine is set up for 8 mm Dia. x 30 mm or 35 mm long dowels (additional dowel sizes are optional). -- Horizontal Drilling and Dowelling Aggregate with: (1) Individual spindle; (1) glue & dowel injector with glue flow control; (1) vibrating hopper dowel feeder. -- (2) Separate Stations process: (2) Parts independently on the left-hand or right-hand stops or (1) large piece as required with no additional setup; work can be loaded in: (1) Field while it is being machined in the other to allow fast production of varying parts. -- Operator Interface Power Control PC Front-End with: Microsoft Windows based control + WEEKE "PC85T" + "WoodWOP" Operating System with Graphic programming & error messaging.17" TFT Flat screen monitor: CD-RW Drive, 1.44 MB floppy drive; standard keyboard & mouse.Software allows program design with: Automatic mirror image by use of an active center stop located 1,380 mm (54.3") from zero. -- Includes: All manuals, documentation, and program disk provided with machine.

WEEKE - ABD 260: CNC Bore Glue & Inserter -- SpecificationsDesigned for small or large capacity horizontal drilling, gluing and dowel insertion; built on Heavy-Duty welded steel base; main horizontal beams hold the carriage for the boring head and glue/water injector.Support Table with: Left & right side stop & rear stop bar; center stop pneumatically activated.(8) Clamping cylinders; manually adjustable; automatic central lubrication. -- Working Capacity. Material size from: 20 mm - 2,800 mm (3/4" - 110-1/4") long; 100 mm - 800 mm (3.9" - 31-1/2") wide; 10 mm - 80 mm (0.4" - 3-1/2") thick.Machine is set up for 8 mm Dia. x 30 mm or 35 mm long dowels (additional dowel sizes are optional). -- Horizontal Drilling and Dowelling Aggregate with: (3) Individual spindles on 32 mm centers; (1) glue & dowel injector with glue flow control; (1) vibrating hopper dowel feeder. -- Vertical 3-Spindle Drilling Unit with: (3) Individual selectable spindles at: 32 mm Spacing; adjustable in "Y" direction from 0 - 50 mm; min. workpiece width: 100 mm. -- (2) Separate Stations process: (2) Parts independently on the left-hand or right-hand stops or (1) large piece as required with no additional setup; work can be loaded in: (1) Field while it is being machined in the other to allow fast production of varying parts. -- Operator Interface Power Control PC Front-End with: Microsoft Windows based control + WEEKE "PC85T" + "WoodWOP" Operating System with Graphic programming & error messaging.17" TFT Flat screen monitor: CD-RW Drive, 1.44 MB floppy drive; standard keyboard & mouse.Software allows program design with: Automatic mirror image by use of an active center stop located 1,380 mm (54.3") from zero. -- Includes: All manuals, documentation, and program disk provided with machine.

WEEKE - BHC 555 Optimat: CNC Machining Center (w/ATC/Boring/"C" Axis)SPECIFICATIONSWorking Capacity"X" Axis: 167" (4,250 mm); "Y" Axis: 59" (1,500 mm); "Z" Axis stroke: 14.6" (370 mm); max. material thickness: 6.6" (170 mm) When routing; 4" (100 mm) when using all other units.Positioning Speed"X" Axis; 263 FPM (80 MPM); "Y" Axis: 197 FPM (60 MPM); "Z" Axis: 65 FPM (20 MPM).Worktable(8) Movable "K-Table" support rails with: (6) side mounted raise-and-lower panel feeding rails; LED light bar positioning assistance.(3) Matrix vacuum pods per support, rubber seals in the matrix of the vacuum pod makes it possible to hold 50 mm wide strips. (8) Pneumatic back stops for large panels, (8) pneumatic front stops for small (narrow) panels, (2) movable pneumatic side stops that create (2) working zones. -- Boring Unit3.5 HP (2.7 kW) Motor with: Variable programmable spindle speed from 1,500 -7,500 RPM; "Quick-Change" tooling.(23) Independent vertical spindles: (15) Spindles in "X" axis & (8) in "Y" axis.(6) Horizontal spindles with: (2 + 2) Spindles in "X" axis & (1 + 1) in "Y" axis.(1) "X" Axis grooving saw with: 100 mm Dia. saw blade cap,; 2 HP (1.5 kW) variable speed motor from 2,000 - 7,500 RPM. -- Machining Units.(1) 12 HP (9 kW) liquid cooled Electrospindle with: HSK F63 Adaptor; variable speed from 1,200 - 24,000 RPM; constant torque from: 9,000 RPM; RH & LH rotation.(1) NC Controlled "C" Axis for: 360° Horizontal processing.(16) Total ATC positions with: (1) 8-Position ATC tool plate; magazines mounted on the head for "on the fly" ATC; (1) 8-position ATC tool plate magazines mounted at the back of the machine.The machining unit is controlled by: "KEB" solid-state frequency inverter; inverter output is programmable through the control. -- Operator InterfaceWEEKE IPC "MMC Control" + Windows "XP" + "WOODWOP 5.0" Operating System; "BECKHOFF" programmable logic (PLC) ensures high-speed precision for: Axes, linear, circular, and helical interpolation.Includes: 15" High resolution TFT color graphic monitor; industrial keyboard for data entry; 20.0 GB hard drive; 128 MB of RAM, 1.44 MB Floppy, & CD ROM drive.EtherNET Interface for: LAN Connection to office PC is possible; report generation software included; includes post-processor for DXF file conversion.RS-232 Serial interface & USB Ports for: Simple PC connection; all mounted in separate freestanding control cabinet. -- Complete with:(1) 100 m³/Hr Vacuum pump; scrap conveyor; safety mats & safety fencing; original docs/manuals. -- Actual Model: WEEKE BHC 555 OPTIMAT

WEEKE BHX 050 CNC MACHINING CENTER (VERTICAL): -- Specifications: Flexible "Vertical" Machining Center that uses less than 5 sq/m of valuable floor space, in addition to an innovative Panel Handling System. -- Working Cap.:Max. workable part size for "X" axis is 98.4" (2,500 mm); "Y" axis 33.4" (850 mm); max. part thickness 2.4" (60 mm).Min. worktable part size for "X" axis is 7.8" (200 mm); "Y" axis 2.7" (70 mm); min. part thickness of 0.47" (12 mm). - Automatic infeed & outfeed from the LH or RH side. -- Positioning Speed:The "BHX 050" can reach movement speeds of 164 FPM (50 MPM) in "X" & "Y" axes & 50 FPM (15 MPM) in "Z" axis with total safety, providing an unmatched working capacity. -- Boring Unit:(1) 3 HP (2.3 kW), Variable speed from 1,500 - 7,500 RPM motor, (6) independent spindles with: (4) spindles in "X" axis & (2) spindles in "Y" axis.Boring block has QUICK-CHANGE spindle system. -- Operator & Machine Control:WEEKE "POWER CONTROL" + Windows + WoodWOP 5.0 + Operating System; "IntelCore 2 DUO" Processor.17" TFT Monitor; international keyboard, soft touch keypad & industrial mouse; RS-232 serial ports, USB ports; (1) 1.44 MB floppy disk drive, (1) CD RW drive, modem, Ethernet connection.Real-time multitask processing; programs can be transferred via diskette or downloading by wire is possible. -- Complete with:Pneumatic part clamping devices; sound enclosure and complete set of safety devices. -- Options Include:&#9679 Max. workable part size for "X" axis is 120" (3,050 mm. &#9679 (1) "X" Axis grooving saw; 9,000 RPM, saw blade dia. 100 mm. &#9679 (1) 7 HP (5 kW) Electrospindle router with hydraulic "QUICK-CHANGE" tool system & "ETP 25" tool holders; variable speed from 6,000 - 18,000 RPM. -- Actual Model is WEEKE - BHX 050.

WEEKE ABD 100 CNC BORE, GLUE & DOWEL INSERTER: -- Specifications:(1) Horizontal drilling aggregate with (1) individual spindle; (1) glue & dowel injector with glue flow control; (1) 23" Dia. x 4" D vibrating hopper dowel feeder. -- Working Capacity: Material size from 20 mm - 1,250 mm (.75" - 49") long, 50 mm - 800 mm (1.9" - 31.5") wide, 10 mm - 60 mm (.4" - 2.4") thick. Machine is set up for 8 mm dia. x 30 or 35 mm long dowels (additional dowel sizes are optional). -- (2) Separate working fields with (4) 2-3/4"; LR x 3"; FB pneumatic top clamps can process up to (4) parts independently on the left-hand, right-hand or center-stops; work can be loaded in (1) field while it is being machined in the other to allow fast production of varying parts. -- Operator Interface:PC Front-end with Windows XP + Weeke "WoodWOP 5.0" operating system with graphic programming & error messaging; USB front side bus, 17" TFT flat screen monitor, CD-RW drive, Modem, standard keyboard & mouse.Software allows program design with automatic mirror-image by use of an active center stop located 600 mm (23.6") from zero. -- WEEKE "ABD 100" is designed for small or large capacity horizontal drilling, gluing and dowel insertion; built on a Heavy Duty welded steel base; main horizontal beams hold the carriage for the boring head and glue/water injector. -- Complete with: HAND-HELD PRODUCTS "ADAPTUS 5.0 3800G04E" Handheld Barcode Reader.

Weeke ABD 060 Bore & Dowel Machine This machine will be available in December 2023. - CNC DOWEL INSERTER FOR HORIZONTAL DRILLING AND DOWEL INSERTING - ENGINEERED TO SPRAY GLUE OR WATER - FEATURES A SORBTECH MAIN BEAM TO MINIMIZE VIBRATION - PNEUMATIC CONTROL OF CEBTER STOP AND RIGHT AND LEFT FENCES - OPEN END TABLE FOR MACHINING PARTS LONGER THAN 48” - VIBRATING HOPPER FOR AUTOMATIC FEEDING OF DOWELS - LARGER 17” DISPLAY AND WOODWOP PROGRAMMING - SERVO CONTROL OF DRILL HEIGHT AND DRILL DEPTH VIA PROGRAM - 3 INDEPENDENT SPINDLES ON 32MM CENTERS - BAR CODE READER

Homag Optimat NBP084/ Vantech 480 4x8 Bed 12 HP Spindle 7-Position Boring (3) Vacuum Pumps It has 4 Becker pumps (with extra set of vains + maintenance kit) OEM extra new spindle OEM extra computer for cabinet

--MAKE OFFER!---VERY GOOD CONDITION-- WEEKE BHP 100/VANTAGE 480 FLAT TABLE MACHINE, with ATC, Boring, Infeed Roller & Outfeed & 4,771 Hrs. (As of 10/31/23) Specifications: 4' x 8' Bridge style gantry machine with User-Friendly "S/C Tech" "MATRIX" grooved phenolic vacuum table. Working Area: 'X" axis 99.21" (2,520 mm), "Y" axis 49.21" (1,250 mm), Max. material thickness of 3.94" (100 mm). Travels: “X” axis 146.06” (3,710 mm), “Y” axis 81.30” (2,065 mm), “Z” axis 13.70” (348 mm) Routing, 8.46” (215 mm) Boring. Positioning Speed: "X" & "Y" axis Vector speed is 314 FPM (96 MPM), "Z" axis 65 FPM (20 MPM); The head travels via AC brushless drives & THK linear motion guides on all axes. Worktable: User-Friendly "S/C Tech "MATRIX" grooved phenolic vacuum table for easy vacuum pod placement. (2) Fixed LH side & (2) Fixed RH side pneumatic pop-up positioning stops. Boring Unit: (1) 3 HP (2.3 kW) Motor, variable speed for 1,500 - 7,500 RPM; (21) Independent vertical spindles with (8) in "X" axis, (9) in "Y" axis (1st Row), & (4) in "Y" axis (2nd Row). Machining: (1) 12 HP (9 kW) Air Cooled High speed constant duty Router with HSK F63 adaptor, 1,250 - 24,000 RPM, constant torque achieved at 9,000 RPM, RH or LH rotation (1) 14-Position tool changer Carousel located at the back side of the spindle carriage. Machine & Operator Control: PC Front-End with WEEKE "Power Control + Windows + WoodWOP operating system. 17" TFT Color graphic monitor, Hand-held control pendant, Foot pedal control; "BECKHOFF" Programmable logic control for (3/4) axes, linear, circular & helical interpolation; The controller is contained in a separate free-standing, dust-free control cabinet that can be placed at either the LH or RH side of the machine. Complete with: 488” W x 96” L Infeed electric/hydraulic Scissor Lift platform, with 3” x 3” Support beams on 7” Centers; 4’ L Roller track intermediate table; vacuum arm with (2) 10” dia. vacuum pads; rake off-feed System; 49” W x 10’ L x 36” H Outfeed motorized belt conveyor; BUSCH "MM 1322 A VM3" 10 HP (7.6 kW) 300 mbar Vacuum Pump; 6’ H Safety fencing. Actual model is WEEKE BHP 100/VANTAGE 480 Machine Dimensions: 292” x 202” x 96” H. Machine with Scissor Lift Dimensions: 389” x 202” x 96” H. CURRENCY NOTE: Negotiable Price is listed in U.S. Dollars.
