Description:

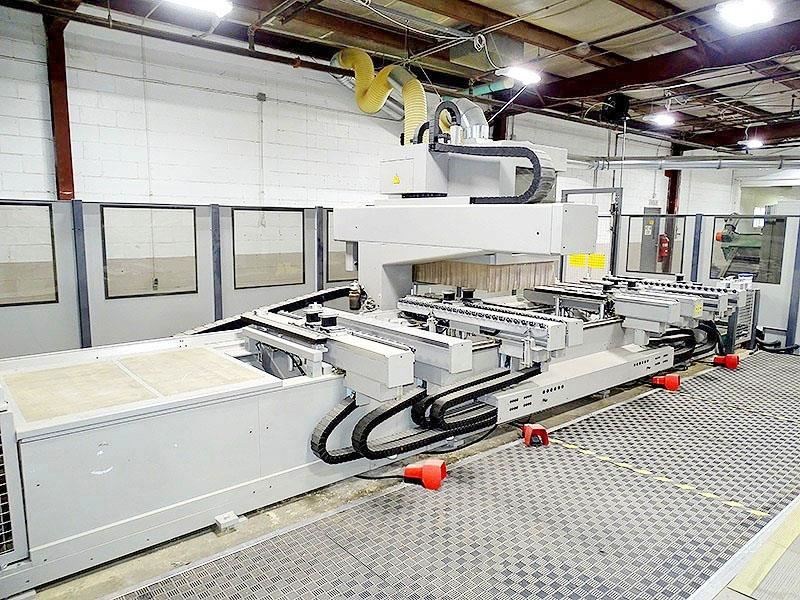

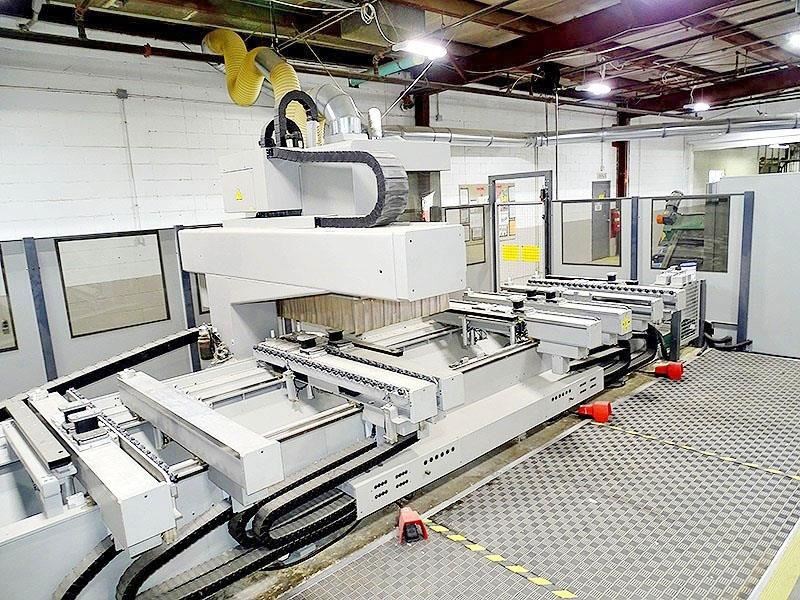

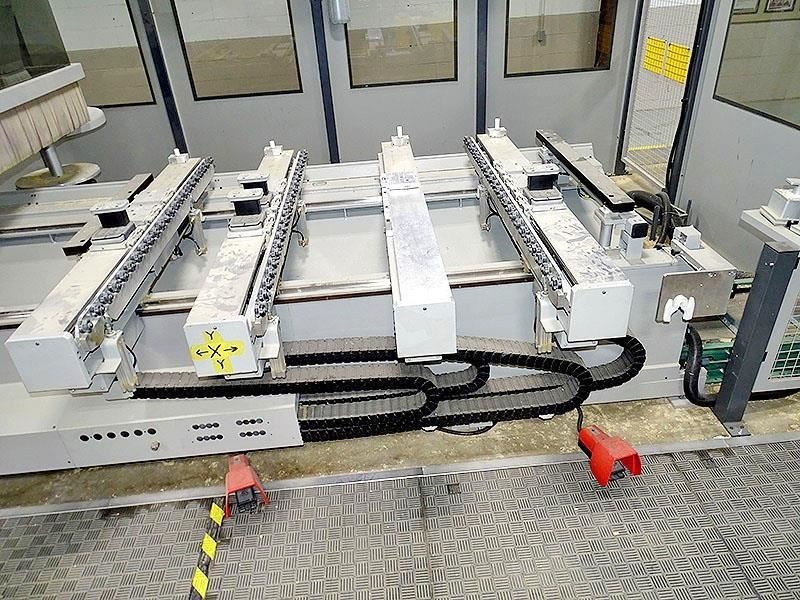

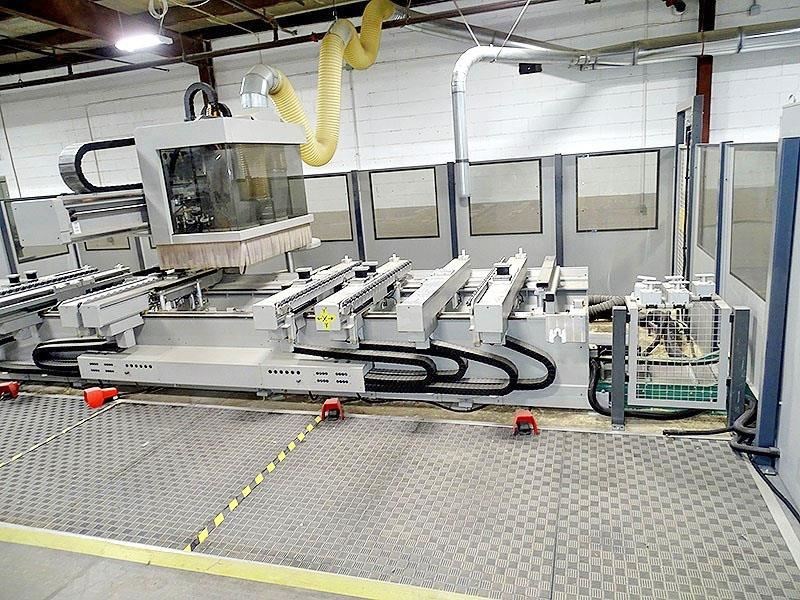

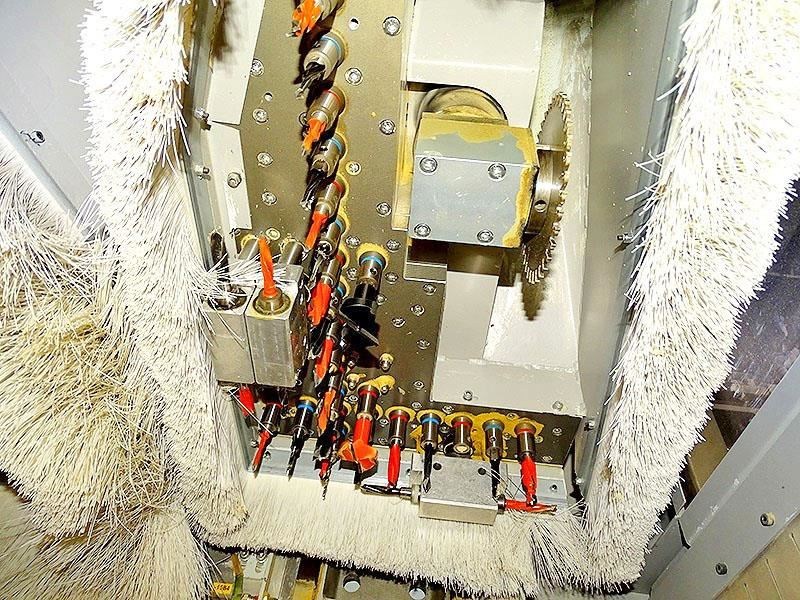

WEEKE BHC 555 OPTIMAT CNC MACHINING CENTER (W/ATC/BORING/"C"AXIS): -- Specifications:Working Capacity:"X" Axis 167" (4,250 mm), "Y" axis 59" (1,500 mm), "Z" axis stroke is 14.6" (370 mm), max material thickness 6.6" (170 mm) when routing & 4" (100 mm) when using all other units. -- Positioning Speed:"X" axis is 263 FPM (80 MPM), Y-axis 197 FPM (60 MPM), Z-axis 65 FPM (20 MPM). -- Worktable:(8) Movable "K-Table" support rails with (6) side mounted raise-and-lower panel feeding rails; LED light bar positioning assistance;(3) Matrix vacuum pods per support, rubber seals in the matrix of the vacuum pod makes it possible to hold 50 mm wide strips. (8) Pneumatic back stops for large panels, (8) pneumatic front stops for small (narrow) panels, (2) movable pneumatic side stops that create (2) working zones. -- Boring unit:3.5 HP (2.7 kW) motor with variable programmable spindle speed from 1,500 -7,500 RPM, "Quick Change" tooling.(23) Independent vertical spindles, (15) spindles in "X" axis & (8) in "Y" axis(6) Horizontal spindles with (2+2) spindles in "X" axis & (1+1) in "Y" axis;(1) "X" Axis grooving saw with 100 mm dia. saw blade cap, 2 HP (1.5 kW) variable speed motor from 2,000 -7,500 RPM. -- Machining units:(1) 12 HP (9 kW) liquid cooled Electro spindle with HSK F63 adaptor, variable speed from 1,200 - 24,000 RPM & constant torque from 9,000 RPM, RH & LH rotation;(1) NC controlled "C" axis for 360° horizontal processing.(16) Total ATC positions with (1) 8-position ATC tool plate magazines mounted on the head for "on the fly" ATC & (1) 8-position ATC tool plate magazines mounted at the back of the machine.The machining unit is controlled by a "KEB" solid state frequency inverter, the inverter output is programmable through the control. -- Operator Interface:Weeke IPC "MMC Control" + Windows "XP" + "WOODWOP 5.0" operating system; "Beckhoff" programmable logic (PLC) to ensure high-speed precision for axes, linear, circular & helical interpolation15" High resolution TFT color graphic monitor, industrial keyboard for data entry; 20.0 GB hard drive, 128 MB of RAM1.44MB Floppy & CD ROM drive,EtherNET interface for LAN connection to office PC is possible; report generation software included; post processor for DXF file conversion is includedRS-232 serial interface & USB ports for simple PC connection; all mounted in separate free-standing control cabinet. -- Complete with:(1) 100 m³/Hr Vacuum pump; scrap conveyor; safety mats & safety fencing; original docs/manuals. -- Actual Model is WEEKE BHC 555 OPTIMAT
