Equipment For Sale

CAM-WOOD BX-2410HR Single-Head Band Resaw w/30° Bevel CuttingCan be used to cut boards, cants, or reclaim slabs; max. working height up to 10" H under pressure roller x 24" W; 5/32" - 10" between blade and conveyor; VFD controlled variable speed from 0 - 82 FPM.Equipped with: -- 30 HP Saw Motor, 28" x 2" dynamically balanced cast iron band wheels, 195-1/2" x 2-1/8" x 3/64" band saw blade (not included); hand wheel adjustment for blade tension with tensioning scale. -- Tilting 23" x 215" infeed conveyor from 0° - 30° with side support for bevel cutting; hydraulic infeed and outfeed conveyor drive motor; variable feed speed 0 - 82 FPM; return gravity roller conveyor. -- Complete with: -- Digital controller for convenient and accurate thickness setting; 1/4 HP blade elevation motor; infeed and outfeed spring-loaded pressure rolls, easily adjusted by gear rack. -- Includes: -- Operators' & Parts Manual and covered by (1) Year Warranty.

CAM-WOOD IAT 620-150HX INVERTER DRIVEN FINGER JOINT SYSTEM Lay-Up and Block-Staging Infeed Conveyor: -- 24" Wide x 31.5" long belt conveyor powered with 1/2 HP motors. The conveyor is controlled by the operating and system. Feeds at a constant rate of 180 FPM. Block delivery is controlled by the operator and machine system criteria to feed the Shaper. The conveyor facilitates keeping the system full and productive. FSR-62I Right Hand Inverter Type Finger Joint Shaper: -- Feed table is 24" wide and accepts blocks from 6" to 31.5" long x 5/8" to 6" wide. Shaper spindle is driven by a 20 HP motor and is equipped with provisions for vertical adjustment of 20 mm up and 20 mm down. Spindle diameter is 50 mm and runs at 6,600 RPM. 8-1/4"; maximum shaper cutterhead diameter - without knives. -- 5 HP - 4,800 RPM Cutoff and trim saw; accepts 10" dia. x 100 tooth x 5 mm blades. 2 HP - 2,850 RPM Scoring saw, accepts 7" dia. x 50 tooth x 5 mm blades. -- Conveyor powered by 1/2 HP motor. -- Table movement is inverter driven; powered by a 3 HP inverter motor with cycle speeds from 1 to 4 cycles per minute. Motor senses load and varies travel as needed. TC-62 Single Table Transfer Conveyor to the 2nd (Left Hand) Shaper: -- 24" Wide x 31.5" long belt conveyor. Powered with (1) 1/2 HP motor. Controlled by system criteria. Feeds at a constant rate of 180 FPM. FSL-62I Left Hand Inverter Type Finger Joint Shaper with Glue Extruder: -- Feed table is 24" wide and accepts blocks from 6" to 31.5" long x 5/8" to 6" wide. Shaper spindle is driven by a 20 HP motor. Spindle diameter is 50 mm and runs at 6,600 RPM. 8-1/4" Maximum shaper cutterhead diameter - without knives. -- 10 HP - 4,800 RPM Cutoff and trim saw; accepts 10" dia. x 100 tooth x 5 mm blades. 2 HP motor powers a top and a 2nd 2 HP motor powers a bottom scoring saw, both running at 2,850 RPM; accepts 7" dia. x 50 tooth x 5 mm blades. -- Conveyer powered by 1/2 HP motor. Table movement is Inverter driven; powered by a 3 HP + 3 HP inverter motor with cycle speeds from 1 to 4 cycles/Min. Motor senses load and vary travel as needed. Speed is controlled by system criteria. Injection Type Glue Applicator: -- Extrudes adhesive into the fingers without a messy runoff. 6" Comb height is standard. Finger pitch 4 mm, 10 - 12 mm finger length is standard equipment (special sizes available as optional equipment) STC-62A Single Table Conveyor Belt to the Assembly Section: -- 24" Wide x 31.5" long belt conveyor. Powered with (1) 1/2 HP motor. Controlled by system criteria. Feeding at a constant rate of 180 FPM. FJ-500A (240") Assembly Press with Cut-Off Saw: -- Capacity from 1" to 6"; wide x 1/2" to 3" high x and from 6' to 16-1/2' long. motor powers the upper and lower pre-assembly driven by (2) 2 HP motor . -- 5 HP infeed inverter drive. In-feed speed from 30 to 230 FPM. Speed is controlled by system criteria. -- 5 HP - 2,850 RPM Cutoff saw accepts 14" dia. x 120 tooth x 4 mm kerf blade. Cutoff Saw c

CAM-WOOD HIAT-620-205 WITH 3"; HIGH X 8"; WIDE X 20’ LONG WORKING CAPACITIESTECHNICAL SPECIFICATIONS:Incoming Block Requirements: --Incoming block lengths from 6'' to 39"; (optionnal 122") --Blocks must be at least 50% longer than their width. --Block thickness from 1/2"; to 3 1/2" --Block width from 1"; to 8" - --Assembled lengths from 10’ to 20’ - 24’ Optional --For use with PVAC adhesives --Works equally well with soft & hardwoods. --Moisture content preferred from 8% to 12% --Blocks should be surfaced (4) sides to ± 0.2 mm with 90° right-angle corners. To be supplied by the customer: --Electric power supply to electrical cabinet --Constant voltage with deviations of 5% or less --Temperature range for computer control should not exceed 95°F. --Maximum humidity for computer control system under 65% --Hydraulic oil --Skilled operating and maintenance personnel --Motor Control Center with under-voltage and overload protection; includes UL and CSA approved electrical components. Electric parts only, not the complete machine. --Total electricity demand: 63.75 KW, 85 HP --30 HP Compressor with a 50-to-60-gallon Air Receiver PRODUCTION CAPACITIES:Shaper Capacity: --Shift = 480 minutes --Finger length to buyer’s requirement --As an example: 1-1/2"; X 5/1/2"; X 24"; average finished block size at the Shapers --Shaper max. speed of (3) table strokes per minute --Table cycles will change as block widths become “wider"; or “taller"; at the Shapers --Table accepts up to (16) blocks when vertical finger jointing 1-1/2"; X 5/1/2"; example blocks. --Table accepts up to (4) blocks when horizontal finger jointing 5-1/2"; x 1-1/2"; example blocks.Press Capacity: --Assembly Press w/2 operators: -- (4) Table loads per min. x 20’ lengths x 480 min. per shift x 0.8 rate of utilization = 30,720 lineal feet per shift OR 36,864 lineal feet per shift with 24’ Press)Production Calculations: --VERTICAL Finger Jointing w/2 operators: -- Capacity of the shaper when finger jointing 1-1/2"; x 5-1/2"; x 2’ long blocks: (3) tables stroke per minute X 16-blocks per table load X 2’ average infeed block length x 480 minutes per shift X 0.8 rate of utilization = 36,864 lineal feet per shift (63.34 M³) --HORIZONTAL Finger Jointing w/2 operators: -- Capacity of the shaper when finger jointing 5-1/2"; x 1-1/2"; x 2’ long blocks: (3) table strokes per minute X 4 blocks per table load x 2’ average infeed block length x 480 minutes per shift X 0.8 rate of utilization = 9,216 lineal feet per shift (19.46 M³) NOTE: Capacity is maximum as shown at Assembly Section and is dependent on blocks thru the Shapers System consists of

Camaster PT 510 CNC Router Manufacturer Specification - 5 HP HSD Spindle - All-Steel Welded Frame - All-Steel Gantry and Supports - AC Digital Servos with Absolute Encoders - THK 25 MM Precision Rails & Bearings - High Precision Planetary Gearboxes - Zoned Vacuum Table Top - Laser Cross Hair for XY - Centroid PLC Controller with High Speed Ethernet Communication - Failsafe Z Motor Brake System - Control PC that runs Windows 10 PRO and a 19” LED Monitor - Dual Drive on Y Axis - Z-Zeroing Plate - Vectric VCarve Pro Software

CAMASTER - PANTHER 408: Router w/Vacuum Pump -- SpecificationsMaterial processing dimensions: 48" Wide x 96" long x 8" thick; 11" "Z" axis stroke. -- Fixed 4-zone universal vacuum table for simple clamping of workpiece to machine; moving gantry bridge rides on high precision HIWIN linear rails for consistent movement & accurate cutting. -- Welded structural steel machine base provides a solid foundation for superior cut quality; tool gantry & bridge travel by rack & pinion; vertical axis travels on ball screws for smooth consistent movement. -- Working UnitsIndustrial grade direct drive: 4 HP (3 kW) HSD router spindle; variable tool speed: Up to 18,000 RPM allows for the right cutting speed in any application. -- X- & Y-Axis 1,500 IPM traverse speed for quick movement between cutting cycles to reduce total CNC machining time. -- Includes Windows-based CNC control preloaded on a PC (included); very intuitive interface; quick to learn and easy to use. -- Full-featured machine Operating System with: On-screen tool path graphics and CAM software; controller accepts direct import of: DXF, HPGL, BMP, or JPEG files and will create machine code simply and easily with a few "clicks" from the mouse. -- Compatible with virtually all CAD/CAM programming software on the market, which means you can choose the software that suits your business best. -- IncludesRemote Control Pendant; dust hood with: 4" Dia. inlet; BECKER "VTLF 2.250/10" HP Vacuum Pump & piping; JET Cyclone Dust Collector & ductwork; A Tool holder & Collet. -- Actual Model - CAMASTER PANTHER 408 ROUTER.

Complete debarking system including a Cambio 30" ring debarker rebuilt in 2021 by Woodland Parts and Service. Over $100,000 of improvements! Includes 30" Cambio ring debarker, infeed and outfeed, log decks, log troughs, 95' bark conveyor, hourglass rollers, hydraulics, electrical, control cab, catwalks and more! This is a complete operation made for production at an unbeatable cost. Excellent shape!

24" Cambio Debarker w/ hydraulic drive motors & Kockums air system installed

Owner believes it is a model 71-75, but cannot find an ID plate. Includes: Misc parts and roller withs over $25,000

Cambio 25" Ring Debarker

Rebuilt Frame exchanges available for 24", 26", 30" and 35" Cambio debarkers

This is a two year old system. The seller changed their machinery footprint and no longer needed. This system is meant to package material to bring to another line, not for shipping. Designed to nest/stack/pack up to 36” in height This system consists of the following components (1) Cameron Automation Scoop lifter system for material up to 6” in width Dual length measurement sensors Cameron Automation Computer (1) Cameron Automation Plywood Kicker (1) Cameron Automation Plywood Belt Driven Roller Conveyor Produces bundles up to 15” wide x 36” high Includes the big bundle nester option General specifications: Flooring lengths from 8” to 8’6” Flooring widths from 1½” to 6” Flooring thickness from 3/8” to 1” Pack width: up to 46” Production capabilities: 55 lineal feed per minute Capable of (36) 7’ bundles per hour 5,000 sq. ft. per shift Semi-automatic infeed approximately 31’ long Singulator Operating voltage: 440v, 3PH

Cameron Automation Flooring Nesting Line Buffer Table for making 2'-10' flooring into nested bundles. Makes a new bundle every 30 seconds. Feeds from right to left

3-4 Stringer | Stacker Up to 22 High | Up to 62x62

Campbell-Hausfield 5HP air compressor

Can-Car Knife Sharpener Serial# 1329-23-72

Can Car Chipping Saw - Out and ready to ship

CANTEK - EM-12: Finger Jointer / End MatcherMachine arranged to Finger Joint but can be easily converted to End Match.Specifications -- 1.6" to 12" Width x 3/8" to 1-3/8" thickness x 10.6" min. length capacity.Unlimited lengths possible.Feed speeds to: 295 FPM with approx. production speeds of 77 FPM (based on 6-1/2" incoming boards). -- Standard 118" long infeed table; standard 98" long outfeed table. -- (2) 5-1/2 HP Cutterhead motors; 40 mm spindle diameters; 1 HP feed motor; 1/2 HP motor drive to cutterhead carriage; clamping pressure from top and side.Standard Equipment & Features -- Heavy-Duty self- supporting main frame; compact design requires: Min. floor space; capable of processing material: As short as 11" to an unlimited length. -- Variable speed through-feed systems is: Controlled by frequency inverter; through-feed system: Allows the fingers to be cut simultaneously on the tail of one board & the leading edge of the next board. -- Powered top urethane rolls & spring-loaded bed rollers: Feed the material into position for processing. -- Pneumatic side pressure: Ensures the material is held square against the fence. -- Complete safety and noise reduction enclosure; convenient touchscreen control: Used to quickly activate & adjust the machine functions. -- Infeed & Outfeed roller conveyor

CANTEK MX340 Edgebander (Single Phase or 3-Phase)The MX340 from CANTEK is designed to be a compact, and durable edgebander. -- This machine is equipped with end trimming, flush trimming, PVC scraping, and buffing. -- The CANTEK MX340 Edgebander is operated through a PLC control system with an LED display and keypad.Specifications: -- The MX340 handles panel thicknesses of 0.315" up to 1.77" (8 mm to 45 mm). -- The coil feed accepts edgebanding from 0.4 mm to 3 mm thick, and strip material can be hand-fed. -- Conveyor feed speed is 29.5 FPM (fixed).Work stations: -- Heated infeed fence for optimum glue penetration. Large capacity Teflon coated glue pot (2.64 Lbs). -- Pneumatically operated guillotine for up to 3 mm thick banding, followed by spring loaded double pressure rollers. -- Single front/rear trimming unit 0.3 HP motor. -- Double top and bottom trimming units (2) 1/2 HP motors. -- Top and bottom scraper/radius scraper. -- Top and bottom buffing station (2) 0.16 HP motors.

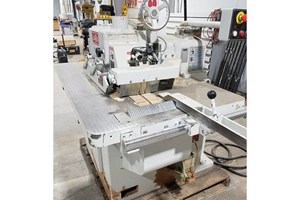

CANTEK - C 12 RS, ...Straight Line Rip Saw:Ruggedly constructed with cast iron & ground tables, cast iron pressure housing with (6) guide rollers, and solid welded steel base chassis.Specifications: -- Saw blade dia. 8" - 12", saw arbor dia. 1", saw arbor speed 4,400 RPM. -- 15 HP Saw arbor motor, 2 HP feed motor, 45 - 120 FPM variable speed range. -- Min. workpiece length 8", max. cutting thickness 3-3/8", distance from column to center of chain 18". -- Table size is 39" x 57", table height 31-1/2". -- The cast iron upper pressure housing provides a stable mounting for the precision ground & nickle chrome steel saw arbor and can be easily adjusted by hand wheel for thickness changes.Equipped with & Features: 1-Piece cast iron chain with a diamond cut surface for positive material feeding.Total amperage is 21.5 and the gross weight approx. 2,530 Lbs.

CANTEK - MX-370P: Edgebander (w/Premill & Corner Rounding) -- Specifications0.4 - 3 mm Edge thickness; panel thickness: 0.315" - 1.77"; min. panel length: 6.7"; min. panel width: 3-3/4". Heated infeed fence for better glue adhesion; fixed feed speed: 29 FPM. -- Equipped with: Premill: (2) 1.5 kW each (12,000 RPM) counter-rotating cutterheads for removing up to 3mm of the panel edge. -- Quick Change: 1.2 kG Teflon coated glue pot: Designed for EVA hot-melt glue; glue pot is a Quick-Change type & can be removed and replaced in less than (1) minute. -- Guillotine Shear: Guillotine shear can rough trim coiled material up to 3 mm in thickness. Pressure rollers section consists of: (1) Large driven roller followed by a smaller one. -- Workstations End Trim: System is a single motor with: (2) Saw blades. Unit is mounted on high precision linear guide rails. -- Top & Bottom Trimmers with: (2) High frequency motors for top & bottom trimming of the panel. Each motor equipped with: Inset knife cutterhead, which can be adjusted from flush to beveled finish for thin edges & radius trimming (2 mm radius). Single motor Corner Rounding Unit Can process between: 0.4 - 3 mm & Up to a board thickness of 1.77" (45 mm).Multifunctional Cutter can: Round straight or radius edges with a 2 mm radius cutter. -- Radius Scraping Unit: Fine-tunes the edge radius, while removing knife marks during the milling process on radius edging; insert knives: 2 mm Radius. -- Buffing Unit: Leaves a super finish on ABS & PVC edging and removes any discoloration on the edges.
