Equipment For Sale

HOLZ-HER 1321 SPRINT EDGEBANDER WITH PRE-MILLING & CORNER ROUNDING Specifications: 0.3 - 15 mm Thickness edgebanding capability (3 mm coil or 15 mm max. strip); 6 - 50 mm panel thickness, workpiece width min. of 60 mm; workpiece Length min. 180 mm; Feed speed 12.5 MPM (41 FPM). -- Programmable Logic Control (PLC) for Edge feed, glue application, end trimming, flush trimming, radius trimming, scraping, corner rounding, and buffing. -- Programs can be easily created and recalled at will; screen with graphic interface makes programming easy, icon of each unit may be brought up on the screen to show the operator the status of the unit and the parameters which can be programmed; Edgebander can be operated manually when required, without necessity to write a program.Machine configuration: -- Pre-milling station "1961", (2) 2.0 kW - 12,000 RPM motors; "1903" Edge strip Magazine; (1) Universal magazine for solid edges, strips, and coiled material.Utilizes motion detector to ensure accurate, trouble-free positioning of edge material; exclusive "Tractor-Belt feed System", edge guide equipped with automatic guillotine lock-out for safety, 3° approach angle allows easy feeding of large wood edges. -- "1906-M" Gluing Station - Cartridge System: Servo controlled pressure section with (1) large driven roller & (2) cantered idle rollers.Workstations: -- "1918 HF" Front & rear end trim unit (0.35 kW - 9,000 RPM motor each), Uni-Point axis for no re-indexing when changing from flush to bevel end trim (0° - 10° bevel),"PCS" Pneumatic Changeover from flush to bevel from control panel. -- Top & bottom flush trim unit "1823" (0.6 kW - 300 Cy HF motors 18,000 RPM Motor ea.), SIKO digital readouts. -- "1942-M" Servo controlled Top & Bottom combination flush/chamfer & radius unit (0.6 kW - 18,000 RPM each motor), Uni-Point design for no second adjustment when changing the degree of bevel, air jets for debris removal, digital counters, and includes 2-position "PCS" Pneumatic Changeover System from flush to radius from control panel. -- "1929" Servo controlled Top & bottom PVC scrape station: Reversible insert carbide knives, equipped with air-jet blowers; "PCS" Pneumatic Changeover System moves Scraper Unit in-and-out from control panel; Chip Collector Box. -- "1832" 1-Motor Corner Rounding unit: For edges up to 3 mm edge thickness; incl. Tooling R = 3 mm. -- Pneumatic controlled Top & Bottom glue scrape station -- "1940" Top & bottom buffing station: Possible to adjust in any direction (vertical tilt is 0° - 5°, horizontal Swivel is 0° - 20°); 1,440 RPM wheel rotation.Equipped with: -- Microprocessor for line control & glue temperature, 10 KVA frequency changer, outboard panel support, and sound enclosure w/interior lights over enclosed workstations of the machine, & used tooling on the stations.

HOLZ-HER - 1432, ...CP/B Edgebander (Compact) -- Cartridge glue system (single cartridge system); edge thickness cap.: 0.3 to 3 mm (1/8"); max. banding height: 2"; min. panel width: 60 mm; min. length: 180 mm.Equipped with: -- Semiautomatic feed magazine; coil stock feeds automatically with guillotine cutoff; all strip stock is fed manually with pusher bar to advance the edging.Workstations: -- Single motor end trim for leading & trailing edge (trim motor recently replaced). -- Top & bottom flush/bevel trim: 1 HP - 28,000 RPM Motor ea. (recently replaced with BOSCH Trimmer motors). -- Top & Bottom buffing unit: 0.3 HP - 1,620 RPM ea. motor; equipped with: Cotton flap wheels. -- Single feed speed: 16-1/2 FPM.Complete with: -- Sound/safety enclosure; outboard panel support. - Machine is on casters.

Year: 2008 Excellent Condition HolzHer Triathlon 1488 Edge Bander Ligmatec Return Conveyor Manual Included Description: PreMill Front & Rear Trim Saws Top & Bottom Rough Cutter Top & Bottom Combination Finish Cutter 3mm Corner Rounding Edge Scraping Edge Buffing Variable Speed 8-18 mpm 8-60mm panel thickness Electrical: 230V 3Phase

Holzher Ergebender

HOLZ-HER 1315 EDGEBANDER WITH CORNER ROUNDINGMax. 5/16" (8 mm) solid wood banding & 3 mm PVC cap., 1-3/4" max. panel thickness and 5-1/2" min. panel length.Equipped with: -- Cartridge glue system w/cartridge hopper & "quick melt" feature, automatic magazine for coil, strip & solid edgebanding; HD guillotine for 3 mm PVC, glue applicator nozzle. -- Pressure section with (1) large dia. drive roller & (2) idle rollers, each w/individual pneumatic plunge & pressure control, powered 1st roller with electronic speed control synchronized with chain feed speed.Workstations: -- Double motor end trim "1918" (0.5 HP - 18,000 RPM motor ea. 300 Cy HF motors), adjustable 0° - 10° for chamfer cuts electro-pneumatically. -- Top & bottom flush fine & radius trim unit "1942M" (0.8 HP - 300 Cy HF motors 18,000 RPM Motor ea.), bevels 0° - 15°, SIKO digital readouts. -- "Single Station" corner rounding unit for leading & trailing edge. -- "1929" Top & bottom profile scraper for thick PVC. -- Top & bottom buffing unit "1940" (0.25 HP - 2,600 RPM ea.), tilts 0° - 5°. -- Two feed speed 8/16 MPM (26 & 52 FPM), panel overhang beyond chain 35 mm (1.38"). Complete with: -- Operator Touch Screen Monitor Microprocessor for line control & glue temperature, 10 KVA frequency changer, outboard panel support, and sound enclosure w/interior lights over enclosed workstations of the machine & used tooling on the stations.

HOLZ-HER 1411 K-3 SPRINT EDGEBANDER -- Specifications: Cartridge Glue System for EVA & PUR pucks, 5 mm edge thickness cap. (up to 13 mm w/optional tooling), 1.77" max. panel thickness, and 7" min. panel length.Equipped with:Automatic magazine coil & strips, 3 mm PVC cap. pneumatic guillotine for coil cutoff. -- Pressure section with (1) large dia. drive roller & (1) idle. Workstations:Double-motor end trim model "1918" (tilting 0° - 10°), 0.5 HP - 18,000 RPM motor each. -- Top & bottom radius trim model "1942", 0.8 HP - 18,000 RPM motor each (trim motors are 0.6 kW HF). -- Top & bottom glue scraper unit "1929". -- Top & bottom buffing unit "1940" (tilting cap. 0 - 5°), 0.2 HP - 1,400 RPM Motors each. -- Variable feed speed from 36 - 52 FPM. - Fixed outboard panel support. Complete with:PLC (Programmable Logic Control) for easy setup and program storage. -- Frequency converter, sound enclosure, and used tooling.

HOLZ-HER 1327 SPRINT CLASSIC EDGEBANDER (W/PER-MILL & CORNER ROUNDING) + GLU-JET EVA & PUR GLUING TECHNOLOGY: -- Specifications: Servo Machine with Pre-mill, Corner Rounding and Riepe Spray Cleaners. -- Edgebanding Capacity: Edge thickness min./max. 0.4 - 8 mm (0.016 - 0.315"), coiled material 0.4 - 3 mm (0.016 - 0.157").Panel thickness 6 - 60 mm (0.236 - 2.362"), workpiece width min. of 65 mm (2.559").Workpiece length min. 160 mm (6.299"); Feed speed 10 - 18 MPM (33 - 59 FPM). Operator Interface: 15" Flat "Touch Screen" control. Programs can be easily created and recalled at will.The graphic interface makes programming easy; icons of each unit may be brought up on the screen to show the operator the status of the unit and the parameters that can be programmed.Edgebander can be operated manually when required, without the necessity to write a program.Machine In-Feed Configuration: Pre-Milling Station "1802": (2) 2.0 kW (2.68 HP) - 12,000 RPM motors. -- Edge Magazine "1901": For coil and strip processing, utilizing motion detector to ensure accurate, trouble-free positioning of edge material.Exclusive "Tractor-Belt feed System", edge guide equipped with automatic guillotine lock-out for safety,3° Approach angle allows easy feeding of solid wood edges. -- Pressure Section "1913": Pneumatic Plunge controlled pressure section with (1) large driven roller and (2) cantered idle rollers. -- Gluing System "JG301" Glu Jet Hybrid Technology; Processes "EVA" or "PUR" Glue in Cartridge or Granulate form.Motorized programmable glue nozzle (upper glue line) height positioning. Approx. 3-Minute Heat Up TimeWorkstations: End Trimming Unit "1918P": Front & rear 2 x 0.35 kW (0.5 HP) - 9,000 RPM motor each,For Straight or Chamfer trimming with pneumatic change-over/swiveling up to 10° bevel. -- Flush/Bevel/Radius Combination Trimming Unit "1827-Mot 4": Top & bottom, 2 x 0.65 kW (0.87 HP) - 9,000 RPM each motor.Manual Edge Radius adjustment up to 3 mm & chamfer adjustment up to 15°. -- Corner Rounding Unit "1832": (1) Motor 0.22 kW (0.30 HP) - 9000 RPM Up to 3 mm edge thickness, min./max. work-piece thickness 12 - 45 mm (0.473 - 1.772"),When CR unit is activated, the max. feed speed allowed is 10 MPM (33 FMP). -- Profile Scraping Unit "1929P": Top/Bottom pneumatic controlled knife position for PVC edges,Reversible insert carbide knives, equipped with air-jet blowers and chip collector box. -- Buffing Station "1940": Top & bottom buffing motors with 150 mm (6.0") cloth buffing wheel diameter,Adjusts in any direction (vertical tilt is 0° - 5°, horizontal swivel is 0° - 20°); 1,440 RPM wheel rotation.Complete with: Motorized Top Pressure Beam. Outboard panel support Manual Central Lubrication of the Transport Chain Sound enclosure w/interior lights over enclosed workstations of the machine Used tooling on the stations Machine documentation. -- Actual Model is HOLZ-HER 1327 SPRINT CLASSIC

1402HF Edgebander 600V /3 Ph / 60 Hz with included transformer Double motor end trim

HOLZ-HER 1488 TRIATHLON EDGEBANDER W/PRE-MILLING & CORNER ROUNDING + LIGMATECH -ZR01 RETURN CONVEYOR: -- SpecificationsWorking Capacity: Max. 1" (25 mm) solid wood banding; thin PVC, Veneer, HPL & 3 mm PVC cap.; 60 mm (2.37") max. panel thickness; 140 mm (5-1/2") min. panel length.Frontend equipped with: -- Premilling Unit: (2) 2.2 kW (3.0 HP) - 12,000 RPM; (1) jump spindle with digital indicators for positioning. -- "ULTRA-GRANUPRESS" Gluing System with: Flat glue nozzle only 3° angle of approach ideal for solid wood edgebanding & "quick melt" feature. -- Automatic Edge Magazine: Coil, strip & solid wood edgebanding with TRACTOR-BELT feed system; Heavy-Duty guillotine for 4 mm PVC. -- Pressure Section: (3) Large dia. rollers, each w/individual pneumatic plunge and pressure control; programmable with Servo motor positioning; powered 1st roller with electronic speed control synchronized with chain feed speed.Edgebanding Workstations -- End Trimming Unit: (2) 0.75 HP - 6,800 RPM ea. "HF" Motors with: "Uni-Point Swivel", quick change from flush 0° - 15° bevel programmable from operator panel; Servo controls. -- Flush Trimming Unit: (2) 2.6 HP - 12,000 RPM - 200 Cy HF motors; Servo controls. -- Fine/Bevel/Radius Trimming Unit: (2) 1-1/2 HP- 12,000 RPM - 200 Cy HF motors; bevels 0° - 45°, Servo controls + SIKO digital readouts. -- Corner Rounding Unit: (2) "HF" Top motors & (2) "HF" bottom motors for trimming leading & trailing upper & lower edge/corners; trailing edge (4 x 3/4 HP - 12,000 RPM - 300 Cy HF motors; 2 mm or 3 mm radius cap. -- Profile Scraper Unit: "Super Duty" for positively smooth finishing thick PVC for radius range from 2 - 5 mm; vertical & horizontal tracing wheels, positioning enabled through (1) Servo motor function from Control Panel; SIKO readouts for easy setup. -- Buffing Unit: (2) Lateral buffing wheel positioning motors with Oscillating & Programmable Jump Action for cleaning & polishing of edges (two 0.25 HP - 3,600 RPM motors); tilts 0° - 5°, Servo controls.Equipped with and Includes: -- "PPC 231" Controller with 15" LCD color screen: 90% of all setups can be adjusted from the Control Panel; programmable for a large variety of edges like solid lumber, veneer strips or coils, HPL, thin & thick PVC; line control so there are no mechanical limit switches along the chain track. -- Variable feed speed from 8 - 20 MPM (26 - 65 FPM); panel overhang beyond chain 35 mm (1.38"); features automatic track pad lubrication. -- Factory Documentation: Operating & Spare Parts Manuals. -- Actual Model is: HOLZ-HER 1488 TRIATHLON + LIGMATECH ZR01

Holz-her Streamer 1054 Edgebander Top/Bottom Trimmers End Trimmers Scraping Buffing Station No longer under power - Ready to ship! Serviced by Holly-her tech.

HOLZ-HER 1327 SPRINT CLASSIC SPECIAL EDGEBANDER + GLU-JET EVA & PUR GLUING TECHNOLOGY: -- NOTE: This is a "Special Machine for THIN TAPE Only". -- Specifications:Features the: HOLZ-HER Patented dual "GLU-JET" EVA & PUR Zero Joint Technology System.Edgebanding capacity: Edge thickness min./max. 0.4 - 8 mm (0.02 - 0.31"); coiled material 0.4 - 3 mm (0.016 - 0.157").Workpiece thickness: 6 - 60 mm (0.23" - 2.36"); Workpiece width min. of 65 mm (2.56").Workpiece length: Min. 160 mm (6.29"); variable feed speed 10 - 18 MPM (33 - 59 FPM). Machine Infeed -- "Open Space" for Premilling Station "1802": (2) 2.0 kW (2.68 HP) - 12,000 RPM motors.NOTE: This machine is not equipped with the Premilling Station, but it can be added. -- Edge Magazine "1903":For coil & strip processing; utilizes motion detector to ensure accurate, trouble-free positioning of edge material.Exclusive "Tractor Belt Feed System": Edge guide equipped with automatic guillotine lockout for safety.3° Approach angle allows easy feeding of solid wood edges. -- Pressure Section "1913 Mot":1-Axis Servo controlled adjustment of the edge thickness.Pneumatic Plunge controlled pressure section with: (1) Large driven roller and (2) cantered idle rollers. -- Gluing System "GJ301Auto":Glue Jet Hybrid Technology; processes "EVA" or "PUR" glue in cartridge or granulate form.Motorized programmable glue nozzle (upper glue line); height positioning; approx. 3-minute heat up time. Workstations -- End Trimming Unit "1918P": Front & Rear; (2) x 0.45 kW (0.6 HP) - 9,000 RPM each motor.For Straight or Chamfer trimming with: "UNI-POINT Axis for "PCS" pneumatic changeover/swiveling up to 10° bevel. -- Combination Trimming Unit "1827": Top & Bottom; (2) x 0.65 kW (0.87 HP) - 12,000 RPM each motor; for T & B Flush/Bevel/Radius trimming. - "ProLock" Clamping System for rapid tool change.Manual edge radius adjustment up to 3 mm; chamfer adjustment up to 15° with a max. edge thickness of 6 mm. -- "Open Space" for: 2nd T & B Trimming Unit.NOTE-1: This machine is not equipped with the 2nd T & B Trimming Unit, but it can be added. -- "Open Space"for Profile Scraping Unit "1929P". NOTE-2: This machine is not equipped with the Profile Scraping Unit "1929P", but it can be added. -- "Open Space" for Finish Scraping "1964". NOTE-3: This machine is not equipped with the Finish Scraping "1964", but it can be added. -- "Open Space"for Buffing Unit "1940". NOTE-4: This machine is no not equipped with the Buffing Unit "1940", but it can be added. Operator Interface: -- HOLZ-HER "PPC 231" Power-PC + "Windows-like" Operating System. - 15" SVGA Flat "Touchscreen" control.USB Connection & Ethernet network connection ready; programs can be easily created and recalled at will. Graphic interface makes programming easy; icon of each unit may be brought up on the screen to show the Operator the status of the unit and the parameters that can be programmed.Edgebander can be operated manually when required, without necessity to

HOLZ-HER LYNX 7511 FT FLAT TABLE MACHINE (W/ATC/BORING) -- Specifications5' x 10' Phenolic "MATRIX" table for "Nested Base" Manufacturing. -- Working Field"X" Axis 120" (3,050 mm); "Y" axis 62" (1,575 mm); "Z" axis stroke is 16-1/2" (419 mm); max material thickness 7" (180 mm). -- Positioning Speed"X" & "Y" Axis 230 FPM (70 MPM); "Z" axis is 65 FPM (20 MPM). -- WorktableFlat Table designed for: "Nested Base Manufacturing" with: (3) "Y" Axis pneumatically controlled reference stop pins. -- Boring Unit2.3 HP (1.1 kW) motor for spindle speed from 1,000 to 6,000 RPM; (10) independent vertical boring spindles with: (6) Spindles in the "X" axis & (4) spindles in the "Y" axis. -- Machining(1) 15 HP (11 kW) Electro-spindle Router; HSK F63 adaptor; 1,000 - 20,000 RPM; (1) 12-position tool rack for ATC. -- Operator & Machine ControlPC Front-End with HOLZ-HER "CAMPUS" + Windows Operating System; 17" Color monitor; continuous graphical and barcode interface.BAUMULLER - PLC for: (3/4) Axes simultaneous control; feed rate & spindle speed override & axis movement. -- Complete with:(1) 250 Cbm/Hr BECKER Vacuum Pump; automatic "forced" lubrication system for guides & ball screw; sound absorbing protective head enclosure. -- Actual Model: HOLZ-HER LYNX 7511 FT.

HOLZ-HER DYNESTIC 7532 FLAT TABLE MACHINE (W/LOADING, UNLOADING) -- Specifications:5' x 10' Phenolic MATRIX Table for "Nested Base" Manufacturing. -- Working Area:"X" Axis 1122" (3,100 mm), "Y" axis 61.45" (1,561 mm), "Z" axis stroke is 4.72" (120 mm). -- Positioning speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable: Flat table designed for "Nested Base Manufacturing";(4) Pneumatically controlled reference stop pins with (3) in "Y" axis & (1) in "X" axis. -- Boring Unit:2 HP (1.7 kW) motor for spindle speed from 1,000 to 6,000 RPM; (13) independent vertical boring spindles with (5+4) spindles in the "X" axis & (4+2) spindles in the "Y" axis;(4) Horizontal spindles with (1+1) in "X" axis & (1+1) in "Y" axis. -- Machining unit: (1) 15 HP (11 kW) Electro-spindle Router with HSK F63 adaptor, 1,000 - 24,000 RPM;(1) 14-position ATC tool plate for "on the fly" ATC. -- Operator & Machine Control: PC Front-End with Holz-Her "CAMPUS" V 7Basic Bundle + Windows operating system Intel Core i5-6600; 17" Color monitor; standard keyboard, mouse & CD ROM for data entry; (3) axes simultaneous control; feed rate and spindle speed override & axis movement.CAMPUS/NC Hops offers "Real Time" 2D or 3D graphics; Campus aCADemy is a full fledged, high-performance CAD/CAM software package with versatile import features. -- Complete with:(1) 25 HP BECKER Vacuum Pump; "forced" lubrication system for guides & ball screw; sound absorbing protective head enclosure. -- Options Include:(1) NC Controlled infeed Scissor Lift table with vacuum loading; (1) Rake system; (1) Outfeed table with vacuum sweeping system; Manual label printer at the outfeed table. Actual Model is HOLZ-HER DYNESTIC 7532.

HOLZ-HER DYNESTIC 7516 FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications: 5' x 10' MATRIX Table for "Nested Base" Manufacturing. -- Working Field: "X" Axis 122.2" (3,105 mm), "Y" axis 61.45" (1,561 mm), "Z" axis stroke is 16.5" (418 mm). -- Positioning speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable: Flat table designed for "Nested Base Manufacturing" with (4) pneumatically controlled reference stop pins. -- Boring Unit:2 HP (1.7 kW) motor for spindle speed from 1,000 to 4,400 RPM;(10) Independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis; -- Machining: (1) 15 HP (11 kW) Electro-spindle Router, HSK F63 adaptor, 1,000 - 24,000 RPM;(1) 8-Position ATC. (dynamic carrousel type) -- Operator & Machine Control: PC Front-End with: CAMPUS Version 6.3.0.3 (BECKHOFF CNC Version 2.3.7) machine control,17" Color Flat Panel Monitor; continuous graphical and barcode interface, (3) axes simultaneous control; feed rate and spindle speed override & axis movement. -- CAMPUS/NC Hops Software: This package provides the prerequisites for effective machining and convenient operation. Our ECO Mode automatic standby control is a standard feature on all HOLZ-HER CNC machining centers for software-controlled minimization of the power consumption.Campus aCADemy is a full-fledged, high-performance CAD/CAM software package with versatile import features. -- Complete With:(1) BECKER 250 m³/Hr vacuum pump; manual central lubrication pump for guides & ball screw; left & right-side safety enclosure; Hand Control, pendant for set-up and program try-outs -- Actual Model is HOLZ-HER DYNESTIC 7516 10.5.

HOLZ-HER DYNESTIC 7516 FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications: 5' x 10' MATRIX Table for "Nested Base" Manufacturing. -- Working Field: "X" Axis 122.2" (3,105 mm), "Y" axis 61.45" (1,561 mm), "Z" axis stroke is 16.5" (418 mm). -- Positioning speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable: Flat table designed for "Nested Base Manufacturing" with (4) pneumatically controlled reference stop pins. -- Boring Unit:2 HP (1.7 kW) motor for spindle speed from 1,000 to 4,400 RPM;(10) Independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis; -- Machining: (1) 15 HP (11 kW) Electro-spindle Router, HSK F63 adaptor, 1,000 - 24,000 RPM;(1) 8-Position ATC. (dynamic carrousel type) -- Operator & Machine Control: PC Front-End with: CAMPUS Version 6.3.0.3 (BECKHOFF CNC Version 2.3.7) machine control,17" Color Flat Panel Monitor; continuous graphical and barcode interface, (3) axes simultaneous control; feed rate and spindle speed override & axis movement. -- CAMPUS/NC Hops Software: This package provides the prerequisites for effective machining and convenient operation. Our ECO Mode automatic standby control is a standard feature on all HOLZ-HER CNC machining centers for software-controlled minimization of the power consumption.Campus aCADemy is a full-fledged, high-performance CAD/CAM software package with versatile import features. -- Complete With:(1) BECKER 250 m³/Hr vacuum pump; manual central lubrication pump for guides & ball screw; left & right-side safety enclosure; Hand Control, pendant for set-up and program try-outs -- Actual Model is HOLZ-HER DYNESTIC 7516 10.5.

HOLZ-HER LYNX 7511 FT FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications:5' x 10' Phenolic "MATRIX" table for "Nested Base" Manufacturing. -- Working Field: "X" Axis 120" (3,050 mm), "Y" axis 62" (1,575 mm), "Z" axis stroke is 16-1/2" (419 mm), max material thickness 7" (180 mm). -- Positioning Speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable:Flat table designed for "Nested Base Manufacturing" with (3) "Y" axis pneumatically controlled reference stop pins. -- Boring Unit:2.3 HP (1.1 kW) motor for spindle speed from 1,000 to 6,000 RPM; (10) independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis; -- Machining: (1) 15 HP (11 kW) Electro-spindle Router, HSK F63 adaptor, 1,000 - 20,000 RPM; (1) 12-position tool rack for ATC. -- Operator & Machine Control: PC Front-End with Holz-Her "CAMPUS" + Windows operating system, 17" Color monitor; continuous graphical and barcode interface,BAUMULLER - PLC for (3/4) axes simultaneous control, feed rate and spindle speed override & axis movement. -- Complete with:(1) 250 m³/Hr BECKER Vacuum Pump; automatic "forced" lubrication system for guides & ball screw; sound absorbing protective head enclosure. -- Actual Model is HOLZ-HER LYNX 7511 FT.

HOLZ-HER LUMINA 1598 4.0 PROFORMANCE EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): + GLU-JET EVA & PUR Gluing TechnologySPECIFICATIONS -- Working CapacityEdge thickness: Min./max. 0.4 - 3 mm (0.02 - 0.12") for coiled material; 20 mm (0.78") max. for strips with BF701, depending on material & feed speed.Panel thickness: 8 - 60 mm (0.315" - 2.36"); Workpiece height max. 65 mm (2.55"); workpiece length min. 140 mm (5.5"); feed speed: 10 - 25 MPM (33 - 82 FPM).Machine Infeed Configuration -- Premilling Station "FG701 MOT2 HSK32R": 2 x 2.0 kW (2.7 HP), 8,000 - 12,000 RPM motors, with Servo Height adjustment; "LEUCO diamond cutterheads with: LEUCO Patent HSK32R ProLock quick clamping system. Quick Lock adjustable infeed fence with digital indicator. -- Edge Magazine "MG701 SYNCRO": For coil & strip processing; utilizing motion detector to ensure: Accurate, trouble-free positioning of edge material; exclusive "Tractor-Belt feed System"; edge guide equipped with: Automatic guillotine lockout for safety; 3° approach angle allows easy feeding of solid wood edges. Synchronous Drive, with adjustable edge protrusion for cut length edging -- Pressure Section "DW 701" with: (1) Large driven (synchronized with feed speed) roller & (3) cantered idle rollers; Motorized adjustment for the machine control. -- Gluing System "GJ 302 Automatic" (Glue Jet). Processes: "EVA" or "PUR" Glue in Cartridge (qty-5) or Granulate (2 kg).Includes, automatic reloading of glue & changeover automatic rinse function from the NC control, automatic glue temp reduction according to the time. Upper glue line height positioning is set automatically with hold-down beam setting; heat up time to ready stage: Takes only (2 - 3) minutes!Additionally equipped with: "iTRONIC" Adaptive pressure & glue quantity control for Intelligent Automation. Includes: Adaptive trimming blade; automatic glue quantity control; adaptive pressure unit control; automatic cleaning routine; remaining glue quantity indicator.Workstations -- End Trimming Unit "KA 702": Front & rear 2 x 0.75 kW (1.0 HP) - 12,000 RPM motor each: Uni-Point, swivel-axis for no reindexing when changing from flush to bevel end trim (0° - 10° bevel); "PCS" programmable pneumatic changeover from flush to bevel. -- Flush Trimming Unit BF701 MOT3: Top & Bottom flush 20 mm unit; (2) x 2.0 kW (2.68 HP) - 12,000 RPM; each motor. Servo Controlled -- Fine/Bevel/Radius Combination Trimming Unit "FR 701": Radius 2 mm trimming; Servo controlled; (2) @ Servo motors: (1) For horizontal copy wheel & (1) for tool spindle position; programmable top & bottom unit: (2) x 0.65 kW (0.88 HP) - 12,000 RPM each motor.Uni-Point Design with: No second adjustment; pneumatic, programmable tilt action for changing the degree of bevel; digital counters for vertical copy wheel position; pneumatic air cylinder for in/out pre-positioning of trimming motor. Radius cutters for 1,2,3 mm & 10°Chamfer -- Corner Rounding Unit "FF 701 MOT6 Multi with Automatic Tool Revolver quatt

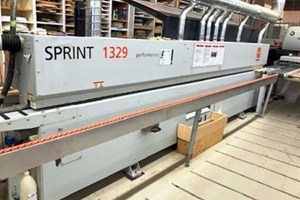

HOLZ-HER 1329 SPRINT PREMIUM EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): + GLU-JET EVA & PUR Gluing TechnologySpecifications -- Edgebanding Cap.: Edge thickness min./max.: 0.4 - 15 mm (0.016 - 0.59"); coiled material: 0.4 - 3 mm (0.016 - 0.157"); panel thickness: 8 - 60 mm (0.236 - 2.362"); workpiece width min.: 60 mm (2.36"); workpiece length min.: 160 mm (6.29"); feed speed: 10 - 18 MPM (33 - 59 FPM). -- Programmable Logic Control (PLC) for: Premilling, edge feed, glue application, end trimming, flush trimming, radius trimming, scraping, corner rounding, buffing. -- HOLZ-HER - PPC 315 "EDGE CONTROL TOUCH": Electronically controlled setup processes with ...100% repetition accuracy. 18-1/2" Flat Touchscreen with: Brilliant graphic display of machining process. Simple operation: Rotating & swiveling control panel at eye height.Programs can be easily created & recalled at will; graphic interface makes programming easy.Icon of each unit may be displayed on the screen to show the Operator the status of the unit and the parameters that can be programmed.Edgebander can be operated manually when required, without the necessity to write a program.Machine Infeed Configuration -- Premilling Station: (2) 2.0 kW (2.68 HP) - 12,000 RPM motors; equipped with "ProLock" - Quick-change flange including: Height adjustment for optimum utilization of cutters. -- Edge Feeder Magazine - "SYNCRO" drive: The magazine with its synchronous adaptation to the feed rate guarantees short intervals between workpieces & simultaneously optimizes edging protrusions.Small 3° feed angle (thanks to nozzle design) with: Easy feeding of coils, strips up to 3 mm; solid wood edging up to 15 mm (0.059").Exclusive "Tractor Belt Feed System". Edge guide equipped with: Automatic guillotine lockout for safety. -- Pressure Section: Servo controlled pressure section with: (1) Large driven roller; (2) cantered idle rollers.Straight & tapered pressure rollers for perfect glued joints -- GLUING SYSTEM - GluJet: Thin film technology processes "EVA" or "PUR" Glue in cartridge of granulate gorm; motorized, programmable glue nozzle (upper glue line) height positioning.Workstations -- End Trimming Unit (1918-P): Front & rear: (2) x 0.35 kW (1/2 HP) - 9,000 RPM each motor; uniPoint swivel axis for no reindexing when changing from flush to bevel end trim (0° - 10° bevel);"PCS" programmable pneumatic changeover from flush to bevel. -- Multifunction Trimming Unit (1826). Servo controlled; (2) Servo motors: (1) For horizontal copy wheel & (1) for tool spindle position; programmable top & bottom unit: (2) x 0.65 kW (0.87 HP) - 12,000 RPM each motor.UniPoint design with: No second adjustment; pneumatic, programmable tilt action for changing the degree of bevel; digital counters for vertical copy wheel position & pneumatic air cylinder for in/out prepositioning of trimming motor. -- Trimming & Corner Rounding Unit (1833 MOT4). For linear edge trimming or vertical corner rounding with: (4) Servo Max. feed spee

HOLZ-HER 1329 SPRINT PREMIUM EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): + GLU-JET EVA & PUR Gluing TechnologySpecifications -- Edgebanding Cap.: Edge thickness min./max.: 0.4 - 15 mm (0.016 - 0.59"); coiled material: 0.4 - 3 mm (0.016 - 0.157"); panel thickness: 8 - 60 mm (0.236 - 2.362"); workpiece width min.: 60 mm (2.36"); workpiece length min.: 160 mm (6.29"); feed speed: 10 - 18 MPM (33 - 59 FPM). -- Programmable Logic Control (PLC) for: Premilling, edge feed, glue application, end trimming, flush trimming, radius trimming, scraping, corner rounding, buffing. -- HOLZ-HER - PPC 315 "EDGE CONTROL TOUCH": Electronically controlled setup processes with ...100% repetition accuracy. 18-1/2" Flat Touchscreen with: Brilliant graphic display of machining process. Simple operation: Rotating & swiveling control panel at eye height.Programs can be easily created & recalled at will; graphic interface makes programming easy.Icon of each unit may be displayed on the screen to show the Operator the status of the unit and the parameters that can be programmed.Edgebander can be operated manually when required, without the necessity to write a program.Machine Infeed Configuration -- Premilling Station: (2) 2.0 kW (2.68 HP) - 12,000 RPM motors; equipped with "ProLock" - Quick-change flange including: Height adjustment for optimum utilization of cutters. -- Edge Feeder Magazine - "SYNCRO" drive: The magazine with its synchronous adaptation to the feed rate guarantees short intervals between workpieces & simultaneously optimizes edging protrusions.Small 3° feed angle (thanks to nozzle design) with: Easy feeding of coils, strips up to 3 mm; solid wood edging up to 15 mm (0.059").Exclusive "Tractor Belt Feed System". Edge guide equipped with: Automatic guillotine lockout for safety. -- Pressure Section: Servo controlled pressure section with: (1) Large driven roller; (2) cantered idle rollers.Straight & tapered pressure rollers for perfect glued joints -- GLUING SYSTEM - GluJet: Thin film technology processes "EVA" or "PUR" Glue in cartridge of granulate gorm; motorized, programmable glue nozzle (upper glue line) height positioning.Workstations -- End Trimming Unit (1918-P): Front & rear: (2) x 0.35 kW (1/2 HP) - 9,000 RPM each motor; uniPoint swivel axis for no reindexing when changing from flush to bevel end trim (0° - 10° bevel);"PCS" programmable pneumatic changeover from flush to bevel. -- Multifunction Trimming Unit (1826). Servo controlled; (2) Servo motors: (1) For horizontal copy wheel & (1) for tool spindle position; programmable top & bottom unit: (2) x 0.65 kW (0.87 HP) - 12,000 RPM each motor.UniPoint design with: No second adjustment; pneumatic, programmable tilt action for changing the degree of bevel; digital counters for vertical copy wheel position & pneumatic air cylinder for in/out prepositioning of trimming motor. -- Trimming & Corner Rounding Unit (1833 MOT4). For linear edge trimming or vertical corner rounding with: (4) Servo Max. feed spee

HOLZ-HER DYNESTIC 7505 10.5 PUSH FLAT TABLE MACHINE (W/RAKE/OFFLOADING): -- Specifications5' x 10-1/2' Phenolic MATRIX Table for: "Nested Base" Manufacturing. -- Working Area:"X" Axis 122" (3,100 mm); "Y" axis 62.2" (1,580 mm); "Z" axis stroke 12.4" (317 mm). -- Positioning Speed"X" & "Y" Axis 230 FPM (70 MPM); "Z" axis is 65 FPM (20 MPM). -- WorktableFlat table designed for "Nested Base Manufacturing".(4) Pneumatically controlled reference stop pins with: (3) In "Y" axis; (1) in "X" axis. -- Boring Unit2 HP (1.7 kW) motor for spindle speed from 1,000 to 6,000 RPM.(10) Independent vertical boring spindles with: (6) spindles in the "X" axis & (4) spindles in the "Y" axis;(2) Horizontal spindles with: (1 + 1) In "X" axis; (1) "X" axis Saw for max. 120 mm dia. blade. -- Machining Unit(1) 10.7 HP (8 kW) Electrospindle Router with: HSK F63 adaptor; 1,000 - 24,000 RPM.(1) 6-Position Linear ATC tool rack mounted to the machine base. -- Operator InterfacePC Front-End with: HOLZ-HER "CAMPUS V7" Operating system; 17" color monitor; standard keyboard; mouse; USB slots for data entry; (3) axes simultaneous control; feed rate & spindle speed override & axis movement.CAMPUS/NC Hops offers: "Real Time" 2D or 3D graphics; Campus aCADemy is a full-fledged, high-performance CAD/CAM software package with versatile import features. -- Complete with:(2) 140 m³/Hr BECKER Vacuum Pumps with ECOVac Intelligent Vacuum that: Automatically turns on/off vacuum units in reference to required static negative pressure; "forced" lubrication system for guides & ball screw; sound absorbing protective head enclosure. - Perimeter safety devices & fencing. -- Options Include: Pusher/rake offload system with: 5' x 12' Gravity roller conveyor with casters. Vacuum evacuation port for dust extraction & Spoil board from below. -- Actual Model: HOLZ-HER DYNESTIC 7505 10.5 PUSH
