Description:

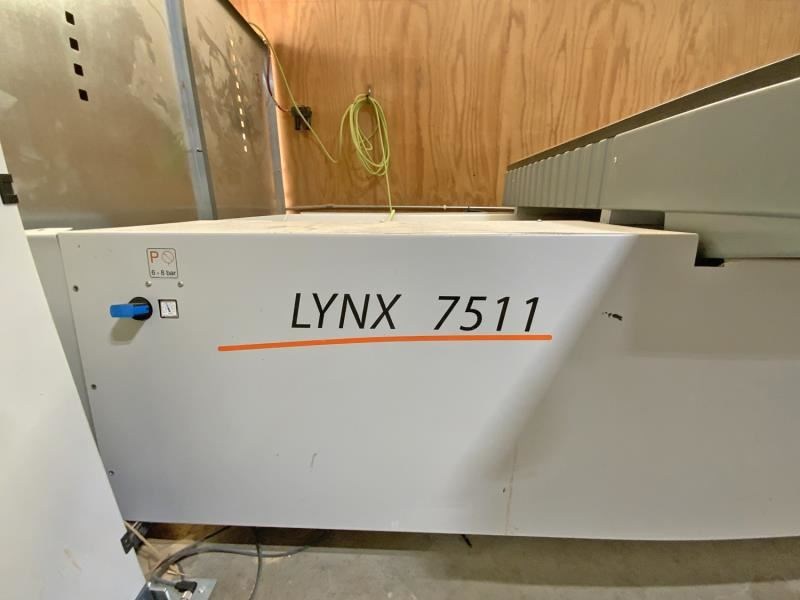

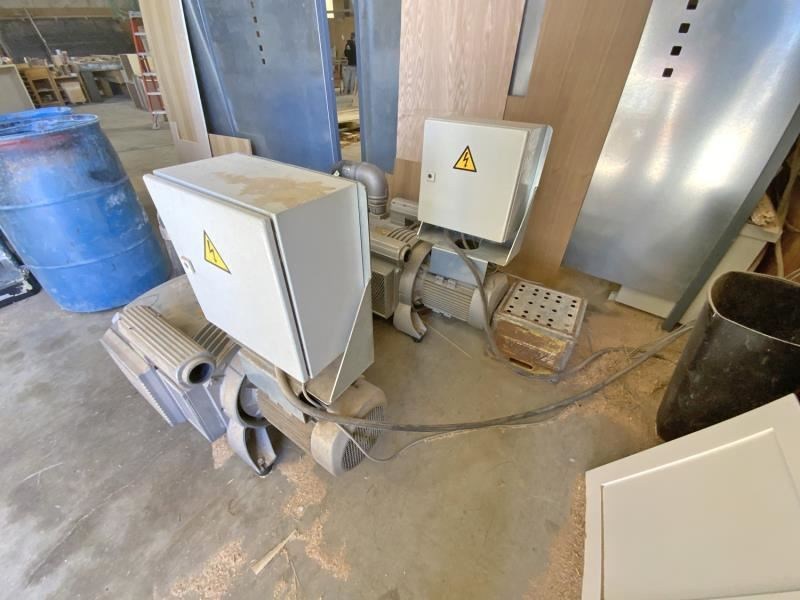

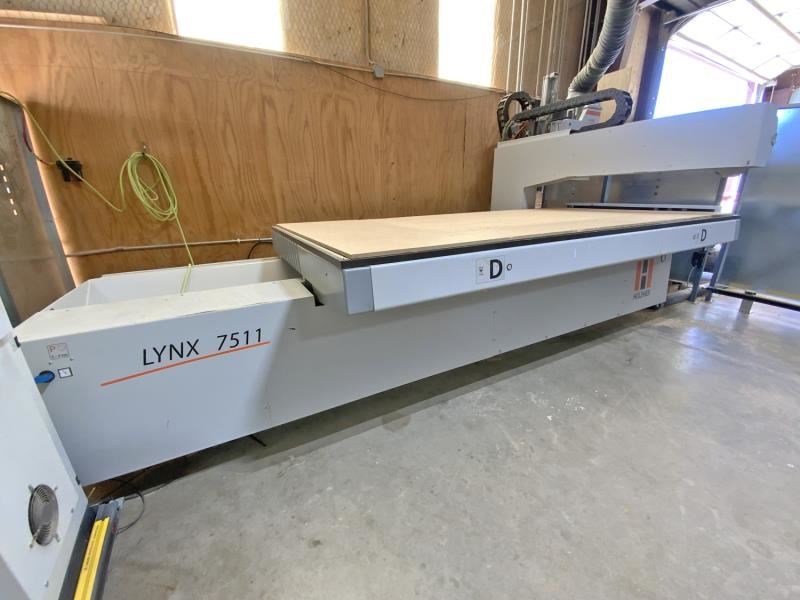

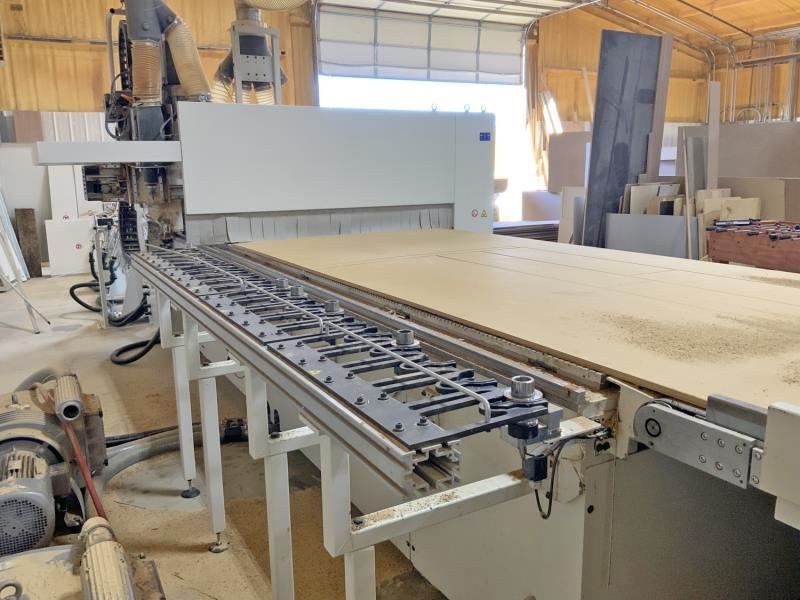

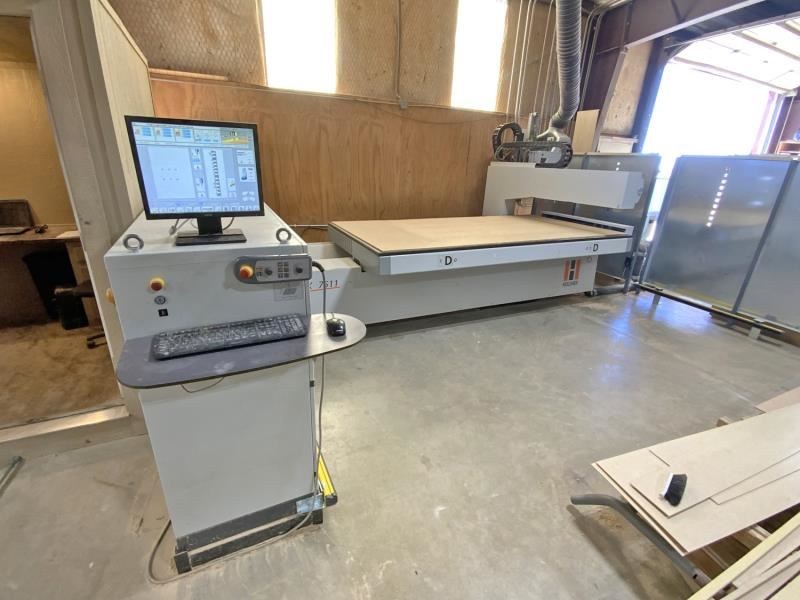

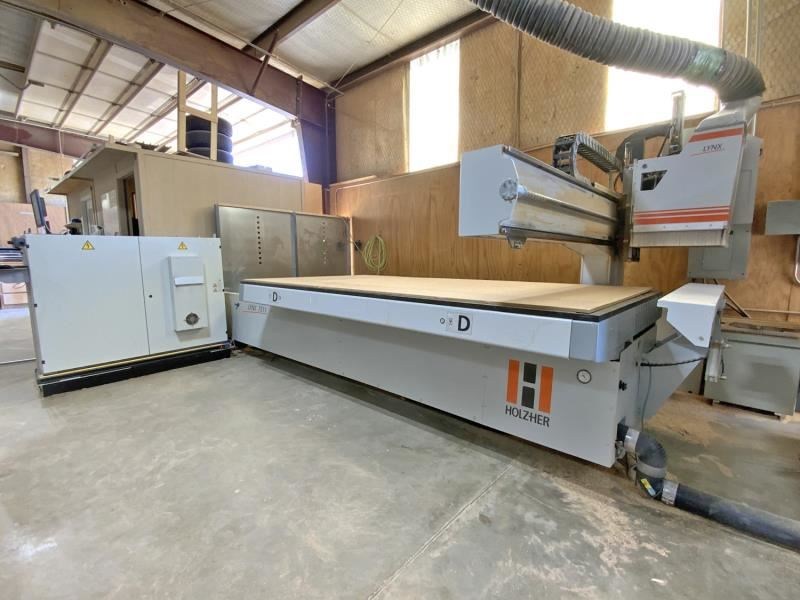

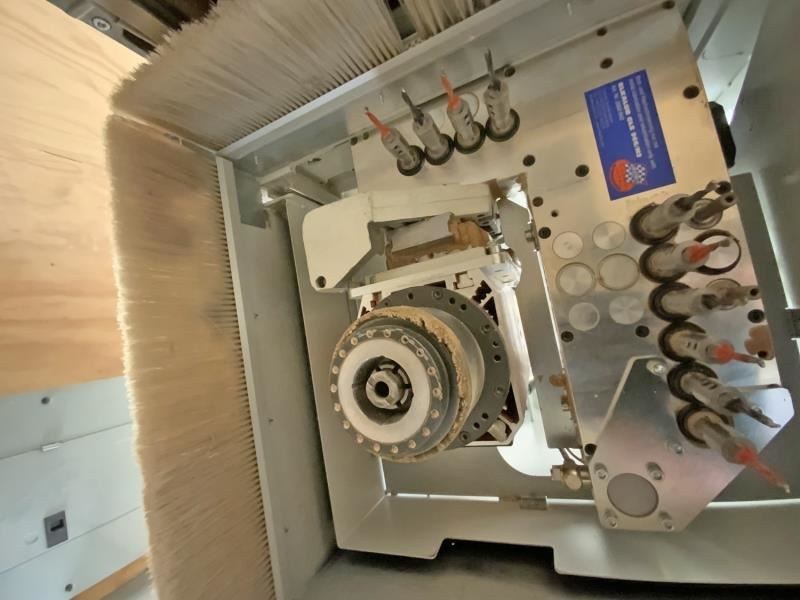

HOLZ-HER LYNX 7511 FT FLAT TABLE MACHINE (W/ATC/BORING) -- Specifications5' x 10' Phenolic "MATRIX" table for "Nested Base" Manufacturing. -- Working Field"X" Axis 120" (3,050 mm); "Y" axis 62" (1,575 mm); "Z" axis stroke is 16-1/2" (419 mm); max material thickness 7" (180 mm). -- Positioning Speed"X" & "Y" Axis 230 FPM (70 MPM); "Z" axis is 65 FPM (20 MPM). -- WorktableFlat Table designed for: "Nested Base Manufacturing" with: (3) "Y" Axis pneumatically controlled reference stop pins. -- Boring Unit2.3 HP (1.1 kW) motor for spindle speed from 1,000 to 6,000 RPM; (10) independent vertical boring spindles with: (6) Spindles in the "X" axis & (4) spindles in the "Y" axis. -- Machining(1) 15 HP (11 kW) Electro-spindle Router; HSK F63 adaptor; 1,000 - 20,000 RPM; (1) 12-position tool rack for ATC. -- Operator & Machine ControlPC Front-End with HOLZ-HER "CAMPUS" + Windows Operating System; 17" Color monitor; continuous graphical and barcode interface.BAUMULLER - PLC for: (3/4) Axes simultaneous control; feed rate & spindle speed override & axis movement. -- Complete with:(1) 250 Cbm/Hr BECKER Vacuum Pump; automatic "forced" lubrication system for guides & ball screw; sound absorbing protective head enclosure. -- Actual Model: HOLZ-HER LYNX 7511 FT.
