Knife Grinders For Sale

CM&E Chip Heads

CAM-WOOD TG-923 1:1 Profile Knife GrinderEconomical model built for shops with 1 or 3 Moulders or a series of Spindle Shapers.Features: -- Work table and cutterhead moves front to back and left and right. -- Table travels on linear bearing with cross roller rail sets. -- Table travel is designed for extreme accuracy. -- Template holder setup is fast and simple for copy tracer. -- Grinding angle is adjusted on dovetail ways. -- Grinding center DOES NOT change with knife angle adjustments. -- Includes stainless steel water splash guard, coolant tank; with pump and filter, easy and efficient to operate. -- Heavy steel cabinet and stand. -- Cast iron Grinder body. -- Built for high precision and durability.Specifications: -- Grinding Capacity: 12"; dia. x 10"; long. -- Grinding Wheel Size: 7.5" dia. with 60 mm bore. -- Grinding Head Travel: 13". -- Grinding Wheel Speed: infinitely variable from 1,500 to 4,500 RPM. -- Grinding Wheel Motor: 2 HP. -- Coolant Pump Motor: 1/8 HP. -- Net Weight: 1,100 Lbs.

Can-Car Knife Sharpener Serial# 1329-23-72

CANTEK JF-330A Profile Knife Grinder Clamping length of 12" (300 mm) for both straight and profile grind; dia. of knife swing 12" (300 mm). -- Grinding Arbor: 3 HP grinding motor with VFD (LED Readout) drive from 1.500 to 4.200 RPM. Quick change removable (140 mm) wheel adapter. Machine set for axial constant grinding and template set up on right-hand side.Over the wheel precision diamond dresser assembly for dressing and dimensioning of wheel. Manual positioning: of grinding wheel to tool; positioning of back clearance angle and side clearance angle 5°/10° and 15°. Quick change stylus turret for applications; (6) included with machine. -- Carriage: SCHNEEBERGER linear bearing table movement. Table movement 12" x 6". -- Coolant system: 1/8 HP motor from coolant pump located in the tank below; (3) coolant nozzles for smooth flow of coolant to knife rest during grinding. Additional hose with nozzle for cleanup. Stainless steel splash guards throughout! -- Includes: Set up tools, coolant, HD worklight, grinding wheels and (1) arbor of choice - (1.25", 1.5", 40mm, 1-13/16", 2.125" or 50 mm).

CM&E Knife Grinder for CM&E chipping head-rig using bent knives. Many knives are available with grinder.

CM&E Chipping Heads

Hanchett Grinder

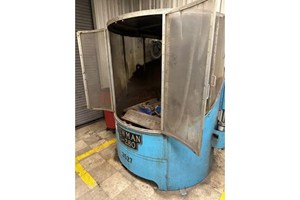

Newman G-200 Knife Grinder, (2) Available, Sharpens Both Planer & Chipper Knives, Good Condition

Newman G200 Knife Grinder

Newman G-200 Tub Knife Grinder s/n 200323

Newman G-200 Knife grinder

Newman G200 Knife Grinder

NEWMAN G-200 Knife Grinder - grinds 4 chipper knives up to 20" long or 8 planer knives.   Features automatic feed and flood coolant.

Reform 60" Magnetic Bed Knife Sharpener - Model AR15/51 high precision knife grinder.   Features magnetic knife clamping; 60" bed length; flood cooling; automatic feed; replaceable wear strips; self contained controls. See all of our other items at benjones.com Call or Email for Price: (706) 324-2604 [email protected]

Reform 2100 MM (82") Capacity Magnetic Bed Knife Sharpener - Features magnetic knife clamping; 82" bed length; flood cooling; automatic feed; replaceable wear strips; self contained controls.

Samuel Rogers 66" Knife Grinder

Used Simonds Model MK48 Vertical Spindle Traveling Head Knife Grinder, serial number 1622. 48" Length capacity with 5hp TEFC 240/480V Grinding head motor, currently wired for 240V. Can be easily changed to 480V operation. Acme style knife bar for planer or shaver knives up to 1/2" thick and 5" wide. Cooling pump for grinding head. Automatic down feed. Grinding head travels on Precision Thompson round-way shafts and bearings, available worldwide. Mounted on heavy duty floor stand. Approximate weight is 1,200 lbs. Floor space is 74" x 30" x 60" high. Appears in very good condition and will be checked and tested in our shop. See photos of on our web site. Inventory No. 12567. Located at our Portland, Oregon facility. Click on link for photos. http://www.machinerysales.com/equipment.php?item=12567 Price, FOB Portland, OR ------------------------------------------------ $ 5,250.

United Tool Grinder M-75-C-9 S/N 075380803

V-HOLD - MF-2230, ...Profile Grinder.Technical Specifications MF 2230: -- The max. dia. of the cutterhead is 300 mm. -- Max. profile length: 300 mm. -- Movement of a desktop: 45 mm. -- Sharpening angle: ± 30°. -- Grinding wheel dimensions: 225 x 32 mm. -- Grinding wheel rotation: 2,800 - 4,000 RPM. -- Total power: 1.59 kW. -- Dimensions: 1,260 x 1,250 x 1,830 mm. -- Weight: 560 kG.

WEINIG - Rondamat 934, ...Profile Knife GrinderSpecifications: -- 9-3/8" Max. arbor length, 4" - 9" tool dia. -- 6" - 8-7/8" Grinding wheel dia., grinding wheel speed inverter controlled with grinding wheel speeds 1,500 to 3,000 RPM; 1.1 kW (1.5 HP) Motor.Equipped with: -- Hydro-clamping of grinding wheel to arbor. -- Tool carriage movement with precision linear table bearings; setting gauges for axial constant; axial (side) clearance angle 0° - 20°. -- Onboard diamond wheel dressing, 13-Gallon Coolant tank with 1.2 HP Pump.Dimensions: 50" x 43" x 62" HWeight: 1,600 Lbs
