Equipment For Sale

HOLZ-HER - 1432, ...CP/B Edgebander (Compact) -- Cartridge glue system (single cartridge system); edge thickness cap.: 0.3 to 3 mm (1/8"); max. banding height: 2"; min. panel width: 60 mm; min. length: 180 mm.Equipped with: -- Semiautomatic feed magazine; coil stock feeds automatically with guillotine cutoff; all strip stock is fed manually with pusher bar to advance the edging.Workstations: -- Single motor end trim for leading & trailing edge (trim motor recently replaced). -- Top & bottom flush/bevel trim: 1 HP - 28,000 RPM Motor ea. (recently replaced with BOSCH Trimmer motors). -- Top & Bottom buffing unit: 0.3 HP - 1,620 RPM ea. motor; equipped with: Cotton flap wheels. -- Single feed speed: 16-1/2 FPM.Complete with: -- Sound/safety enclosure; outboard panel support. - Machine is on casters.

HOLZ-HER - CONTRIGA 1366: Edgebander (w/Premill & Corner Rounding) -- SpecificationsNC Controlled Edgebander. Ability to program all functions including: Panel thickness; edge feed; glue application; end trimming; radius/fine trimming; corner rounding; scraping; buffing. - Virtually eliminates: Setup time by selecting & loading program that automatically activates these functions simultaneously.Coil edgebanding up to: 3 mm PVC Cap.; 2-3/8" max. panel thickness; 7" min. panel length; powered pressure beam opening adjustments. Equipped with:"1961" Premilling Station: PC Controlled with up to 45 mm (1-3/4") milling height; (2) motors @ 2 kW (2.6 HP) - 9,000 RPM each. -- Features: Granulate glue system with: Hopper System, "floating" applicator nozzle & "quick melt" feature. -- Automatic magazine for Coil, strip & solid edgebanding model "1901" with: TRACTOR-BELT Feed System, Heavy-Duty guillotine for 3 mm PVC. -- "1914" Pressure Section for 12 mm thick edgebanding with: (3) Rollers; each w/individual pressure control; powered 1st roller with electronic speed control synchronized with chain feed speed; Servo motor adjustment for edgebanding thickness from PLC. Workstations"1819-1" Double motor (1 HP - 6,000 RPM motor ea.) end trim units with: "Uni-Point" Swivel system; "quick change" from flush to 0° - 15° bevel from Operator Panel. -- "1962" Top & Bottom flush trim unit: 2.6 HP - 200 Cy HF motors; 12,000 RPM cutter speed; NC Servo control, non-tilt. -- "1966" Top & Bottom fine trim unit with: Motorized 5-axis positioning; 1-1/2 HP - 200 Cy HF motors; 12,000 RPM cutterhead speed; bevels 0° - 45°; Servo control; all adjustments programmable through the PLC. -- "1933 & 1934" 4-Motor corner rounding unit for: Top & Bottom of leading & trailing corner when edgebanding all (4) sides; 0.7 HP - 200 Cy ea.; both motors with Servo positioning from control panel; Servo adjustment of entire unit (base). -- "1927" Scraper Unit: Finishing up to 5 mm thick PVC banding for radius range from 2 - 5 mm; vertical & horizontal tracing wheels, Servo positioning enabled through "PC"; Servo controlled in/out of base. -- "1964" Top & Bottom Glue scraper. -- "1851" Oscillating buffing unit: Cleaning & polishing of panel; (2) 1/4 HP - 1,440 RPM motors; tilts 0° - 45° vertically and 0° - 20° swivel on horizontal plane.Other Specifications & FeaturesVariable feed speeds up to: 25 MPM (81 FPM); Panel overhang beyond chain 35 mm (1.38"); features automatic track pad lubrication. Operator Interface"PPC-231" Controller for: Line control; glue temperature; flow; feed speed setting; motorized holddown pressure beam adjustment. -- Frequency inverter, outboard panel support, and sound enclosure w/interior lights over all milling units. -- Actual Model: HOLZ-HER - CONTRIGA 1366

HOLZ-HER - ACCURA 1556 4.0 Premium: Edgebander (w/Premill & Corner Rounding) + GLU-JET EVA & PUR Gluing TechnologySpecifications -- Working CapacityEdge thickness: Min./max. 0.4 - 3 mm (0.02 - 0.12") for coiled material; 15 mm (0.59") 1/2" + max. for strips.Panel thickness: 8 - 60 mm (0.315" - 2.36"); Workpiece width min. 60 mm (2.36"); workpiece length min. 140 mm (5-1/2"); feed speed: 10 - 20 MPM (33 - 66 FPM).Machine Infeed Configuration -- Premilling Station "1802": (2) x 1.2 kW (1.6 HP) - 12,000 RPM Motors; diamond cutterheads with: ProLock Quick clamping system. - Quick Lock adjustable infeed fence with digital indicator. -- Edge Magazine "1901": For coil & strip processing; utilizing motion detector to ensure: Accurate, trouble-free positioning of edge material; exclusive "Tractor-Belt Feed System"; edge guide equipped with: Automatic guillotine lockout for safety; 3° approach angle allows easy feeding of solid wood edges. -- Pressure Section "DW 701" with: (1) Large driven (synchronized with feed speed) roller & (2) cantered idle rollers; adjustable by handwheel & scale. -- Gluing System "GJ 301" (Glue Jet). Processes: "EVA" or "PUR" Glue in Cartridge or granulate gorm; granulate requires an "optional" hopper. Upper glue line height positioning is set automatically with holddown beam setting; heat up time to ready stage: Takes only (2 - 3) minutes!Additionally equipped with: "iTRONIC" Adaptive pressure & glue quantity control for Intelligent Automation. Includes: Adaptive trimming blade; automatic glue quantity control; adaptive pressure unit control; automatic cleaning routine; remaining glue quantity indicator.Workstations -- End Trimming Unit "KA 702": Front & rear (2) x 0.45 kW (0.6 HP) - 9,000 RPM motor each: Unipoint, swivel-axis for no reindexing when changing from flush to bevel end trim (0° - 10° bevel); "PCS" programmable pneumatic changeover from flush to bevel. -- Flush Trimming Unit: Top & Bottom flush 15 mm unit; (2) x 0.65 kW (0.88 HP) - 12,000 RPM; each motor. -- Fine/Bevel/Radius Combination Trimming Unit "FR 701": Radius 2 mm trimming; Servo controlled; (2) @ Servo motors: (1) For horizontal copy wheel & (1) for tool spindle position; programmable top & bottom unit: (2) x 0.65 kW (0.88 HP) - 12,000 RPM each motor.Unipoint Design with: No second adjustment; pneumatic, programmable tilt action for changing the degree of bevel; digital counters for vertical copy wheel position; pneumatic air cylinder for in/out pre-positioning of trimming motor. -- Corner Rounding Unit "FF 701": (4) Motors; 0.22 kW (0.30 HP) - 9,000 RPM; up to 3 mm edge thickness; workpiece thickness; min./max.: 12 - 60 mm (0.473 - 2.362"); max. feed speed: 10 MPM (33 FMP). -- Profile Scraping Unit "ZK 501": Top/Bottom; Servo motor controlled/programmable knife position; vertical copy wheel adjustment with: Quick setting spindle.For PVC edges: Reversible insert carbide knives; equipped with: Air jet blowers & chip collector box. -- Glue Scraping Unit " F

HOLZ-HER 1488 TRIATHLON EDGEBANDER W/PRE-MILLING & CORNER ROUNDING + LIGMATECH -ZR01 RETURN CONVEYOR: -- SpecificationsWorking Capacity: Max. 1" (25 mm) solid wood banding; thin PVC, Veneer, HPL & 3 mm PVC cap.; 60 mm (2.37") max. panel thickness; 140 mm (5-1/2") min. panel length.Frontend equipped with: -- Premilling Unit: (2) 2.2 kW (3.0 HP) - 12,000 RPM; (1) jump spindle with digital indicators for positioning. -- "ULTRA-GRANUPRESS" Gluing System with: Flat glue nozzle only 3° angle of approach ideal for solid wood edgebanding & "quick melt" feature. -- Automatic Edge Magazine: Coil, strip & solid wood edgebanding with TRACTOR-BELT feed system; Heavy-Duty guillotine for 4 mm PVC. -- Pressure Section: (3) Large dia. rollers, each w/individual pneumatic plunge and pressure control; programmable with Servo motor positioning; powered 1st roller with electronic speed control synchronized with chain feed speed.Edgebanding Workstations -- End Trimming Unit: (2) 0.75 HP - 6,800 RPM ea. "HF" Motors with: "Uni-Point Swivel", quick change from flush 0° - 15° bevel programmable from operator panel; Servo controls. -- Flush Trimming Unit: (2) 2.6 HP - 12,000 RPM - 200 Cy HF motors; Servo controls. -- Fine/Bevel/Radius Trimming Unit: (2) 1-1/2 HP- 12,000 RPM - 200 Cy HF motors; bevels 0° - 45°, Servo controls + SIKO digital readouts. -- Corner Rounding Unit: (2) "HF" Top motors & (2) "HF" bottom motors for trimming leading & trailing upper & lower edge/corners; trailing edge (4 x 3/4 HP - 12,000 RPM - 300 Cy HF motors; 2 mm or 3 mm radius cap. -- Profile Scraper Unit: "Super Duty" for positively smooth finishing thick PVC for radius range from 2 - 5 mm; vertical & horizontal tracing wheels, positioning enabled through (1) Servo motor function from Control Panel; SIKO readouts for easy setup. -- Buffing Unit: (2) Lateral buffing wheel positioning motors with Oscillating & Programmable Jump Action for cleaning & polishing of edges (two 0.25 HP - 3,600 RPM motors); tilts 0° - 5°, Servo controls.Equipped with and Includes: -- "PPC 231" Controller with 15" LCD color screen: 90% of all setups can be adjusted from the Control Panel; programmable for a large variety of edges like solid lumber, veneer strips or coils, HPL, thin & thick PVC; line control so there are no mechanical limit switches along the chain track. -- Variable feed speed from 8 - 20 MPM (26 - 65 FPM); panel overhang beyond chain 35 mm (1.38"); features automatic track pad lubrication. -- Factory Documentation: Operating & Spare Parts Manuals. -- Actual Model is: HOLZ-HER 1488 TRIATHLON + LIGMATECH ZR01

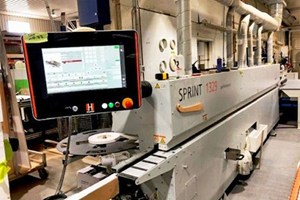

HOLZ-HER 1329 SPRINT PREMIUM EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): + GLU-JET EVA & PUR Gluing TechnologySpecifications -- Edgebanding Cap.: Edge thickness min./max.: 0.4 - 15 mm (0.016 - 0.59"); coiled material: 0.4 - 3 mm (0.016 - 0.157"); panel thickness: 8 - 60 mm (0.236 - 2.362"); workpiece width min.: 60 mm (2.36"); workpiece length min.: 160 mm (6.29"); feed speed: 10 - 18 MPM (33 - 59 FPM). -- Programmable Logic Control (PLC) for: Premilling, edge feed, glue application, end trimming, flush trimming, radius trimming, scraping, corner rounding, buffing. -- HOLZ-HER - PPC 315 "EDGE CONTROL TOUCH": Electronically controlled setup processes with ...100% repetition accuracy. 18-1/2" Flat Touchscreen with: Brilliant graphic display of machining process. Simple operation: Rotating & swiveling control panel at eye height.Programs can be easily created & recalled at will; graphic interface makes programming easy.Icon of each unit may be displayed on the screen to show the Operator the status of the unit and the parameters that can be programmed.Edgebander can be operated manually when required, without the necessity to write a program.Machine Infeed Configuration -- Premilling Station: (2) 2.0 kW (2.68 HP) - 12,000 RPM motors; equipped with "ProLock" - Quick-change flange including: Height adjustment for optimum utilization of cutters. -- Edge Feeder Magazine - "SYNCRO" drive: The magazine with its synchronous adaptation to the feed rate guarantees short intervals between workpieces & simultaneously optimizes edging protrusions.Small 3° feed angle (thanks to nozzle design) with: Easy feeding of coils, strips up to 3 mm; solid wood edging up to 15 mm (0.059").Exclusive "Tractor Belt Feed System". Edge guide equipped with: Automatic guillotine lockout for safety. -- Pressure Section: Servo controlled pressure section with: (1) Large driven roller; (2) cantered idle rollers.Straight & tapered pressure rollers for perfect glued joints -- GLUING SYSTEM - GluJet: Thin film technology processes "EVA" or "PUR" Glue in cartridge of granulate gorm; motorized, programmable glue nozzle (upper glue line) height positioning.Workstations -- End Trimming Unit (1918-P): Front & rear: (2) x 0.35 kW (1/2 HP) - 9,000 RPM each motor; uniPoint swivel axis for no reindexing when changing from flush to bevel end trim (0° - 10° bevel);"PCS" programmable pneumatic changeover from flush to bevel. -- Multifunction Trimming Unit (1826). Servo controlled; (2) Servo motors: (1) For horizontal copy wheel & (1) for tool spindle position; programmable top & bottom unit: (2) x 0.65 kW (0.87 HP) - 12,000 RPM each motor.UniPoint design with: No second adjustment; pneumatic, programmable tilt action for changing the degree of bevel; digital counters for vertical copy wheel position & pneumatic air cylinder for in/out prepositioning of trimming motor. -- Trimming & Corner Rounding Unit (1833 MOT4). For linear edge trimming or vertical corner rounding with: (4) Servo Max. feed spee

Holz-her Cut 85 Panel Saw; under power until 8/21 model 6210

Holz-her edgebander This machine is still under power and available for inspection.

HOLZ-HER DYNESTIC 7516 FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications: 5' x 10' MATRIX Table for "Nested Base" Manufacturing. -- Working Field: "X" Axis 122.2" (3,105 mm), "Y" axis 61.45" (1,561 mm), "Z" axis stroke is 16.5" (418 mm). -- Positioning speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable: Flat table designed for "Nested Base Manufacturing" with (4) pneumatically controlled reference stop pins. -- Boring Unit:2 HP (1.7 kW) motor for spindle speed from 1,000 to 4,400 RPM;(10) Independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis; -- Machining: (1) 15 HP (11 kW) Electro-spindle Router, HSK F63 adaptor, 1,000 - 24,000 RPM;(1) 8-Position ATC. (dynamic carrousel type) -- Operator & Machine Control: PC Front-End with: CAMPUS Version 6.3.0.3 (BECKHOFF CNC Version 2.3.7) machine control,17" Color Flat Panel Monitor; continuous graphical and barcode interface, (3) axes simultaneous control; feed rate and spindle speed override & axis movement. -- CAMPUS/NC Hops Software: This package provides the prerequisites for effective machining and convenient operation. Our ECO Mode automatic standby control is a standard feature on all HOLZ-HER CNC machining centers for software-controlled minimization of the power consumption.Campus aCADemy is a full-fledged, high-performance CAD/CAM software package with versatile import features. -- Complete With:(1) BECKER 250 m³/Hr vacuum pump; manual central lubrication pump for guides & ball screw; left & right-side safety enclosure; Hand Control, pendant for set-up and program try-outs -- Actual Model is HOLZ-HER DYNESTIC 7516 10.5.

Holzher Ergebender

HOLZ-HER 1321 SPRINT EDGEBANDER WITH PRE-MILLING & CORNER ROUNDING Specifications: 0.3 - 15 mm Thickness edgebanding capability (3 mm coil or 15 mm max. strip); 6 - 50 mm panel thickness, workpiece width min. of 60 mm; workpiece Length min. 180 mm; Feed speed 12.5 MPM (41 FPM). -- Programmable Logic Control (PLC) for Edge feed, glue application, end trimming, flush trimming, radius trimming, scraping, corner rounding, and buffing. -- Programs can be easily created and recalled at will; screen with graphic interface makes programming easy, icon of each unit may be brought up on the screen to show the operator the status of the unit and the parameters which can be programmed; Edgebander can be operated manually when required, without necessity to write a program.Machine configuration: -- Pre-milling station "1961", (2) 2.0 kW - 12,000 RPM motors; "1903" Edge strip Magazine; (1) Universal magazine for solid edges, strips, and coiled material.Utilizes motion detector to ensure accurate, trouble-free positioning of edge material; exclusive "Tractor-Belt feed System", edge guide equipped with automatic guillotine lock-out for safety, 3° approach angle allows easy feeding of large wood edges. -- "1906-M" Gluing Station - Cartridge System: Servo controlled pressure section with (1) large driven roller & (2) cantered idle rollers.Workstations: -- "1918 HF" Front & rear end trim unit (0.35 kW - 9,000 RPM motor each), Uni-Point axis for no re-indexing when changing from flush to bevel end trim (0° - 10° bevel),"PCS" Pneumatic Changeover from flush to bevel from control panel. -- Top & bottom flush trim unit "1823" (0.6 kW - 300 Cy HF motors 18,000 RPM Motor ea.), SIKO digital readouts. -- "1942-M" Servo controlled Top & Bottom combination flush/chamfer & radius unit (0.6 kW - 18,000 RPM each motor), Uni-Point design for no second adjustment when changing the degree of bevel, air jets for debris removal, digital counters, and includes 2-position "PCS" Pneumatic Changeover System from flush to radius from control panel. -- "1929" Servo controlled Top & bottom PVC scrape station: Reversible insert carbide knives, equipped with air-jet blowers; "PCS" Pneumatic Changeover System moves Scraper Unit in-and-out from control panel; Chip Collector Box. -- "1832" 1-Motor Corner Rounding unit: For edges up to 3 mm edge thickness; incl. Tooling R = 3 mm. -- Pneumatic controlled Top & Bottom glue scrape station -- "1940" Top & bottom buffing station: Possible to adjust in any direction (vertical tilt is 0° - 5°, horizontal Swivel is 0° - 20°); 1,440 RPM wheel rotation.Equipped with: -- Microprocessor for line control & glue temperature, 10 KVA frequency changer, outboard panel support, and sound enclosure w/interior lights over enclosed workstations of the machine, & used tooling on the stations.

HOLZ-HER CUT 85 FRONT LOAD, AUTOMATIC PANEL SAW: -- Specifications:4,250 mm (167") Max. rip cut cap., 3,800 mm (149") pull back pusher stroke; 97 mm (3.8") saw blade projection.15 HP (11 kW) Main saw motor, 3 HP (2.2 kW) scoring motor. -- Saw Carriage:Variable feed speed from 3 - 328 FPM (1 - 100 MPM ), return speed of 328 FPM (100 MPM).Automatic cutting length limiter adjusts the cutting length at the end of the workpiece, automatic saw carriage lubrication. -- Pusher Fence:(7) Material gripper clamps; 259 FPM (80 MPM) forward positioning speed, 259 FPM (80 MPM) return speed.Rack & pinion movement on both sides to assure the pusher remains parallel. -- Operator & Machine Control:PC Front-End with CUTCONTROL "Direct Cut" + "OPTIPRO" + Windows 2000 operating system,15" TFT Display with unlimited program storage via floppy disk, keypad for data entry, USB & RS-232 serial port, CD ROM & 1.44 MB disk drive for additional storage of programs.CUTCONTROL offers Real-Time Graphics, diagnostic for errors or machine malfunction by means of an error signal code, incremental or absolute programming in mm or inches."Direct Cut" allows the operator to easily input information for absolute, serial, format, grooves, perforations, & position cutting which allows the machine to easily adapt to various situations & materials."OPTIPRO" is a very user friendly on-board Optimizing System for all types of various cutting patterns, including angled cutting. -- Complete with: Rear roller support rails; automatic crosscut side aligner; automatic saw blade height adjustment.(3) Air support tables, ea. 78" x 24" (1,981 x 509 mm). -- Actual Model is HOLZ-HER CUT 85 4300.

HOLZ-HER - ARTEA 1020: Edgebander (w/Premilling) + "GLU JET" EVA/PUR Gluing Technology -- SpecificationsFeatures: HOLZ-HER Patented dual "GLU-JET" EVA & PUR Zero Joint Technology System.Working Capacity. Min./max.: 0.4 - 5 mm Edge cap; 8 - 50 mm panel thickness; min. panel length 160 mm; feed speed: 9 MPM (29.5 FPM) single-speed.Equipped with: -- Premilling. (2) Vertical spindles; counterrotating; manually adjustable infeed fence. -- HOLZ-HER "GLU JET": Cartridge System & flat glue nozzle applicator; glue heat up time: (2 - 3) minutes max! -- Pressure Section with: (1) Large dia. drive roller; (1) pneumatic pressure controlled idle rollers; horizontal adjustment w/digital indicator. -- Automatic Edge Magazine: For coil & strip feed.Workstations -- End Trimming Unit. Single-motor end trims; travels on 45° slides; tilt from 0° to 15°. -- Multifunction Trimming Unit. Top & Bottom trim station for: Flush/bevel/radius with digital readouts. -- Profile Scraping Unit. Top & Bottom radius scraping unit with mechanical digital readouts positioning. -- Flat Scraping Unit. Top & Bottom flat glue/finish scrapers. -- Buffing Unit. Top & Bottom. Operator Interface -- 15" Flat "Touchscreen" control. Programs can be easily created & recalled at will.The graphic interface makes programming easy; icons of each unit may be brought up on the screen to show the Operator: Status of the unit & the parameters that can be programmed.Edgebander can be operated manually when required, without the necessity to write a program. Complete with: -- Safety/Sound Hood over all workstations; fixed panel support outrigger; manually adjustable holddown beam. -- Original factory documentation; used tooling on the machine. -- Actual Model: HOLZ-HER ARTEA 1020

Holz-Her 1436SEL Primus Edgebander 230 Voltage 60 Cycle 3 Phase Large coil table and capability for coil and strip feeding

Holz-her Vertical 1265 Vertical Panel Saw

HOLZ-HER 1411 K-3 SPRINT EDGEBANDER -- Specifications: Cartridge Glue System for EVA & PUR pucks, 5 mm edge thickness cap. (up to 13 mm w/optional tooling), 1.77" max. panel thickness, and 7" min. panel length.Equipped with:Automatic magazine coil & strips, 3 mm PVC cap. pneumatic guillotine for coil cutoff. -- Pressure section with (1) large dia. drive roller & (1) idle. Workstations:Double-motor end trim model "1918" (tilting 0° - 10°), 0.5 HP - 18,000 RPM motor each. -- Top & bottom radius trim model "1942", 0.8 HP - 18,000 RPM motor each (trim motors are 0.6 kW HF). -- Top & bottom glue scraper unit "1929". -- Top & bottom buffing unit "1940" (tilting cap. 0 - 5°), 0.2 HP - 1,400 RPM Motors each. -- Variable feed speed from 36 - 52 FPM. - Fixed outboard panel support. Complete with:PLC (Programmable Logic Control) for easy setup and program storage. -- Frequency converter, sound enclosure, and used tooling.

HOLZ-HER - 1619, ...Boring Machine (Construction & Line Boring) -- Specifications:(19) Spindles on 32 mm centers; bores vertically from top and horizontally from the rear; repositions via manual air shock assisted tilting.2 HP Motor with: 2,800 RPM Gear driven boring head. -- Features:4-Position turret style depth stop for boring depth and a 4-3/4" max. stroke of boring head.24-3/4" Working width; 27-1/8" max. panel width; 19-1/2"; x 38"; x 32-1/2"; H table size. -- Equipped & Complete with:RH & LH Indexing fence with flip stops; (2) indexing pins (for continuous line boring); (3) 4" dia. pneumatic holddown clamps; foot pedal actuator; magnetic push button starter. -- Actual Model is: HOLZ-HER 1619Dimensions of this specific machine with pallet: 52" x 40" x 65" H.Dimensions of this specific machine when vertical: 52" x 37" x 60" H.Dimensions of this specific machine when horizontal: 52" x 51" x 46" H.

HOLZ-HER 1435-SE EDGEBANDERCartridge glue system, 5 mm edge thickness cap. (up to 8 mm w/optional tooling), automatic magazine coil & strips, 3 mm PVC cap. pneumatic guillotine for coil cutoff.Workstations: -- Double motor end trim (2) 0.3 HP - 9,000 RPM motor ea.), chamfers 0° - 10° -- Universal top & bottom fine trim (for bevels from 0° - 15°) allows simultaneous bevel & profile trimming, (2) 0.8 HP - 18,000 RPM motor each; all trim motors are 0.6 kW HF - 300 Cy. -- Top & bottom PVC scraper unit for 0.8 - 5 mm radius, with air jets for blowoff. -- Top & bottom "jump" buffing (0.3 HP - 1,620 RPM ea.). -- Single feed speed 35 FPM. --Complete with: --Built-in operator control panel, outboard panel support, frequency converter, used tooling, and sound enclosure.

HOLZ-HER 1327 SPRINT CLASSIC SPECIAL EDGEBANDER + GLU-JET EVA & PUR GLUING TECHNOLOGY: -- NOTE: This is a "Special Machine for THIN TAPE Only". -- Specifications:Features the: HOLZ-HER Patented dual "GLU-JET" EVA & PUR Zero Joint Technology System.Edgebanding capacity: Edge thickness min./max. 0.4 - 8 mm (0.02 - 0.31"); coiled material 0.4 - 3 mm (0.016 - 0.157").Workpiece thickness: 6 - 60 mm (0.23" - 2.36"); Workpiece width min. of 65 mm (2.56").Workpiece length: Min. 160 mm (6.29"); variable feed speed 10 - 18 MPM (33 - 59 FPM). Machine Infeed -- "Open Space" for Premilling Station "1802": (2) 2.0 kW (2.68 HP) - 12,000 RPM motors.NOTE: This machine is not equipped with the Premilling Station, but it can be added. -- Edge Magazine "1903":For coil & strip processing; utilizes motion detector to ensure accurate, trouble-free positioning of edge material.Exclusive "Tractor Belt Feed System": Edge guide equipped with automatic guillotine lockout for safety.3° Approach angle allows easy feeding of solid wood edges. -- Pressure Section "1913 Mot":1-Axis Servo controlled adjustment of the edge thickness.Pneumatic Plunge controlled pressure section with: (1) Large driven roller and (2) cantered idle rollers. -- Gluing System "GJ301Auto":Glue Jet Hybrid Technology; processes "EVA" or "PUR" glue in cartridge or granulate form.Motorized programmable glue nozzle (upper glue line); height positioning; approx. 3-minute heat up time. Workstations -- End Trimming Unit "1918P": Front & Rear; (2) x 0.45 kW (0.6 HP) - 9,000 RPM each motor.For Straight or Chamfer trimming with: "UNI-POINT Axis for "PCS" pneumatic changeover/swiveling up to 10° bevel. -- Combination Trimming Unit "1827": Top & Bottom; (2) x 0.65 kW (0.87 HP) - 12,000 RPM each motor; for T & B Flush/Bevel/Radius trimming. - "ProLock" Clamping System for rapid tool change.Manual edge radius adjustment up to 3 mm; chamfer adjustment up to 15° with a max. edge thickness of 6 mm. -- "Open Space" for: 2nd T & B Trimming Unit.NOTE-1: This machine is not equipped with the 2nd T & B Trimming Unit, but it can be added. -- "Open Space"for Profile Scraping Unit "1929P". NOTE-2: This machine is not equipped with the Profile Scraping Unit "1929P", but it can be added. -- "Open Space" for Finish Scraping "1964". NOTE-3: This machine is not equipped with the Finish Scraping "1964", but it can be added. -- "Open Space"for Buffing Unit "1940". NOTE-4: This machine is no not equipped with the Buffing Unit "1940", but it can be added. Operator Interface: -- HOLZ-HER "PPC 231" Power-PC + "Windows-like" Operating System. - 15" SVGA Flat "Touchscreen" control.USB Connection & Ethernet network connection ready; programs can be easily created and recalled at will. Graphic interface makes programming easy; icon of each unit may be brought up on the screen to show the Operator the status of the unit and the parameters that can be programmed.Edgebander can be operated manually when required, without necessity to

HOLZ-HER LYNX 7511 FT FLAT TABLE MACHINE (W/ATC/BORING) -- Specifications5' x 10' Phenolic "MATRIX" table for "Nested Base" Manufacturing. -- Working Field"X" Axis 120" (3,050 mm); "Y" axis 62" (1,575 mm); "Z" axis stroke is 16-1/2" (419 mm); max material thickness 7" (180 mm). -- Positioning Speed"X" & "Y" Axis 230 FPM (70 MPM); "Z" axis is 65 FPM (20 MPM). -- WorktableFlat Table designed for: "Nested Base Manufacturing" with: (3) "Y" Axis pneumatically controlled reference stop pins. -- Boring Unit2.3 HP (1.1 kW) motor for spindle speed from 1,000 to 6,000 RPM; (10) independent vertical boring spindles with: (6) Spindles in the "X" axis & (4) spindles in the "Y" axis. -- Machining(1) 15 HP (11 kW) Electro-spindle Router; HSK F63 adaptor; 1,000 - 20,000 RPM; (1) 12-position tool rack for ATC. -- Operator & Machine ControlPC Front-End with HOLZ-HER "CAMPUS" + Windows Operating System; 17" Color monitor; continuous graphical and barcode interface.BAUMULLER - PLC for: (3/4) Axes simultaneous control; feed rate & spindle speed override & axis movement. -- Complete with:(1) 250 Cbm/Hr BECKER Vacuum Pump; automatic "forced" lubrication system for guides & ball screw; sound absorbing protective head enclosure. -- Actual Model: HOLZ-HER LYNX 7511 FT.

HOLZ-HER DYNESTIC 7505 10.5 PUSH FLAT TABLE MACHINE (W/RAKE/OFFLOADING): -- Specifications5' x 10-1/2' Phenolic MATRIX Table for: "Nested Base" Manufacturing. -- Working Area:"X" Axis 122" (3,100 mm); "Y" axis 62.2" (1,580 mm); "Z" axis stroke 12.4" (317 mm). -- Positioning Speed"X" & "Y" Axis 230 FPM (70 MPM); "Z" axis is 65 FPM (20 MPM). -- WorktableFlat table designed for "Nested Base Manufacturing".(4) Pneumatically controlled reference stop pins with: (3) In "Y" axis; (1) in "X" axis. -- Boring Unit2 HP (1.7 kW) motor for spindle speed from 1,000 to 6,000 RPM.(10) Independent vertical boring spindles with: (6) spindles in the "X" axis & (4) spindles in the "Y" axis;(2) Horizontal spindles with: (1 + 1) In "X" axis; (1) "X" axis Saw for max. 120 mm dia. blade. -- Machining Unit(1) 10.7 HP (8 kW) Electrospindle Router with: HSK F63 adaptor; 1,000 - 24,000 RPM.(1) 6-Position Linear ATC tool rack mounted to the machine base. -- Operator InterfacePC Front-End with: HOLZ-HER "CAMPUS V7" Operating system; 17" color monitor; standard keyboard; mouse; USB slots for data entry; (3) axes simultaneous control; feed rate & spindle speed override & axis movement.CAMPUS/NC Hops offers: "Real Time" 2D or 3D graphics; Campus aCADemy is a full-fledged, high-performance CAD/CAM software package with versatile import features. -- Complete with:(2) 140 m³/Hr BECKER Vacuum Pumps with ECOVac Intelligent Vacuum that: Automatically turns on/off vacuum units in reference to required static negative pressure; "forced" lubrication system for guides & ball screw; sound absorbing protective head enclosure. - Perimeter safety devices & fencing. -- Options Include: Pusher/rake offload system with: 5' x 12' Gravity roller conveyor with casters. Vacuum evacuation port for dust extraction & Spoil board from below. -- Actual Model: HOLZ-HER DYNESTIC 7505 10.5 PUSH
