Description:

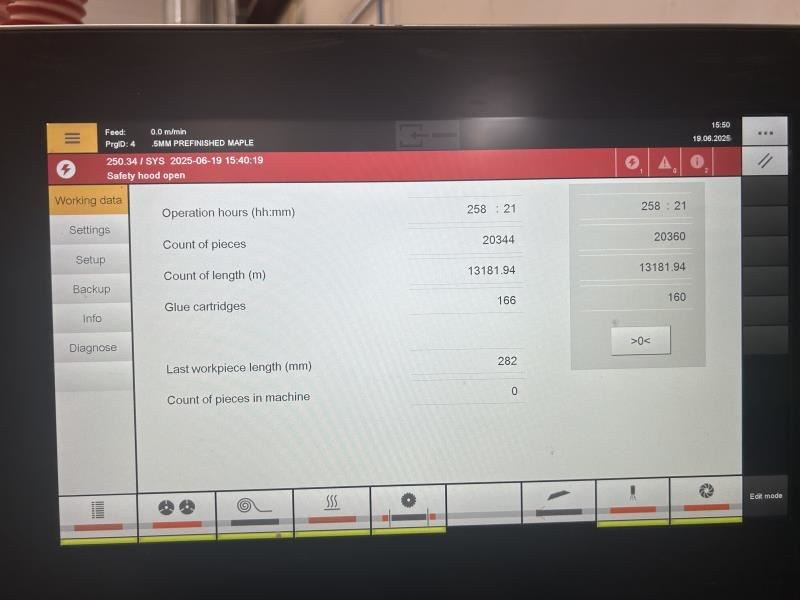

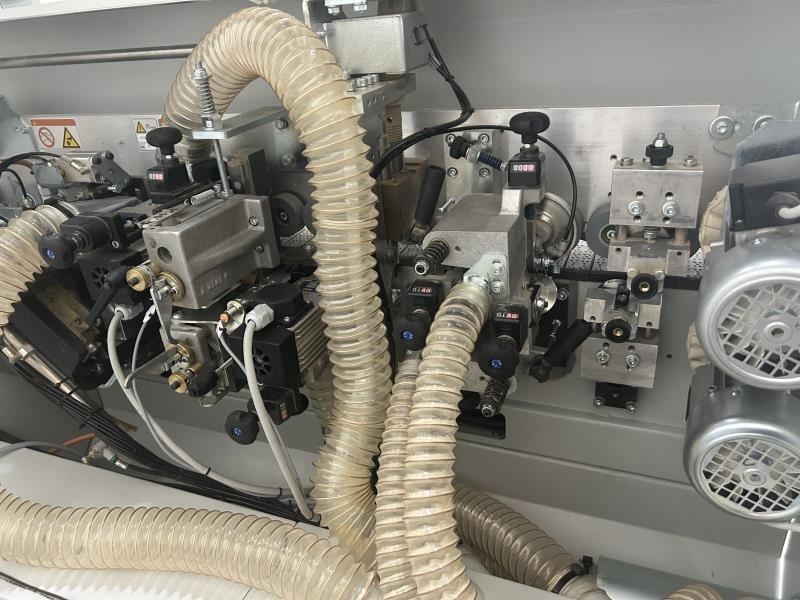

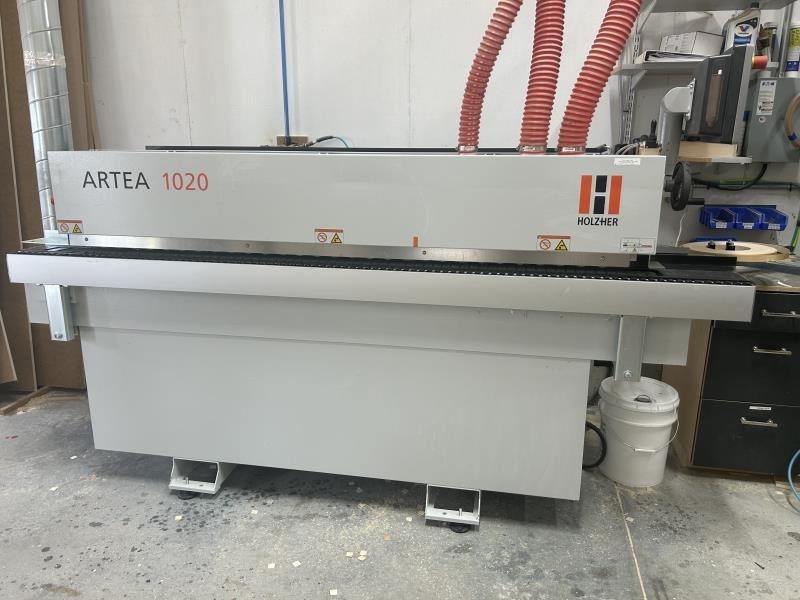

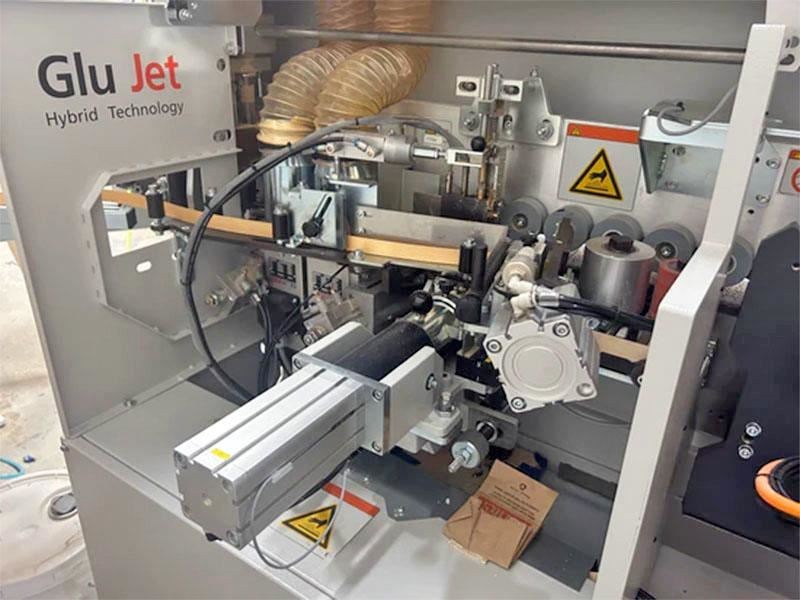

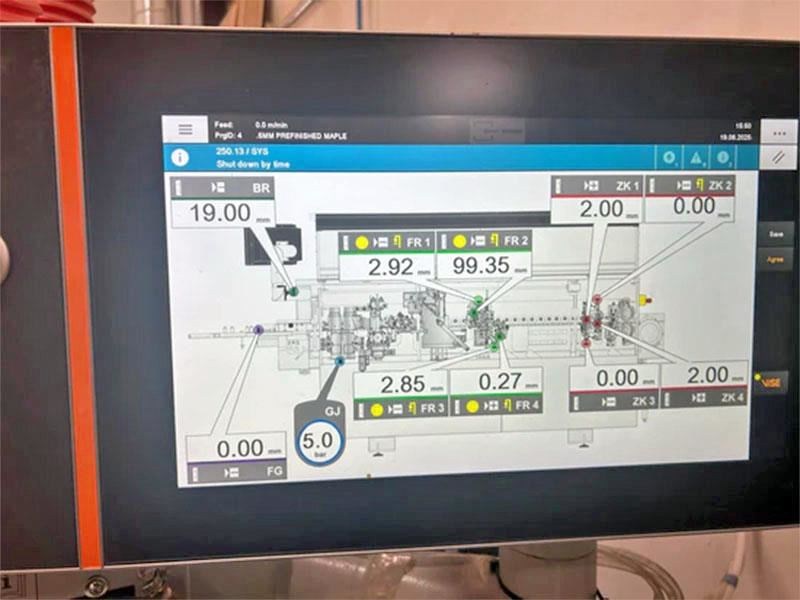

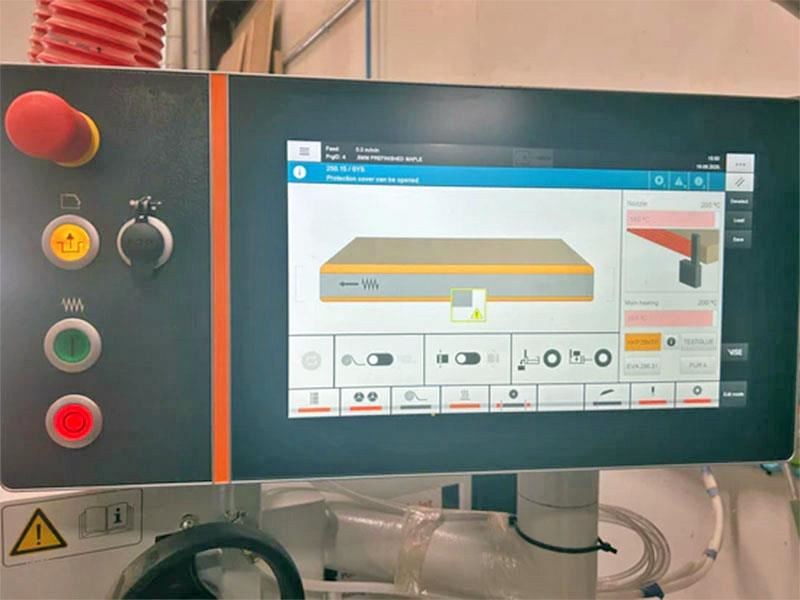

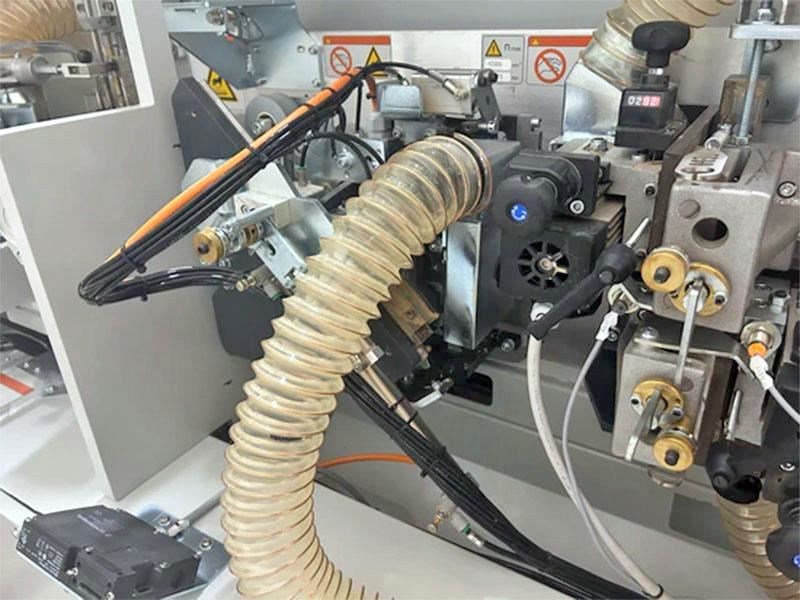

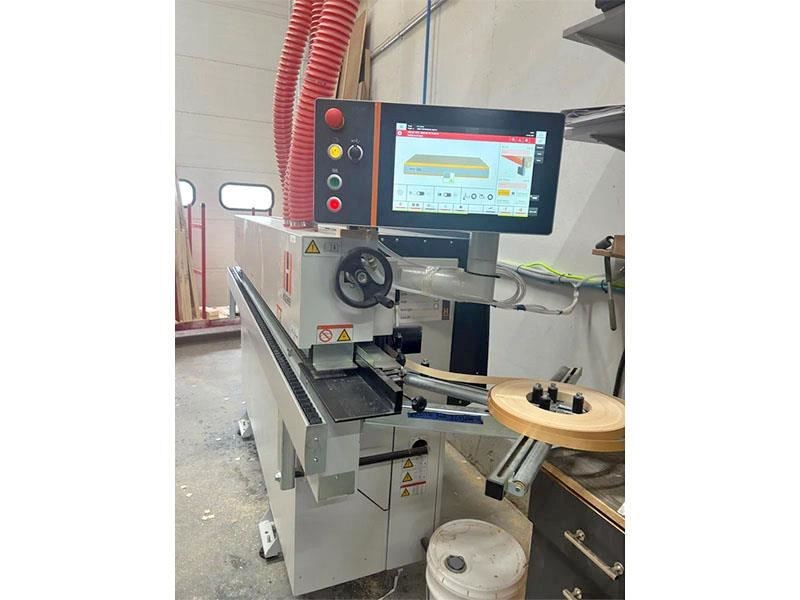

HOLZ-HER ARTEA 1020 EDGEBANDER (W/PRE-MILLING): + "GLU JET" EVA/PUR GLUING TECHNOLOGY: -- Specifications:Features the HOLZ-HER Patented Dual "GLU-JET" EVA & PUR Zero Joint Technology System.Working capacity: Min./Max. 0.4 - 5 mm edge cap; 8 - 50 mm panel thickness; min. panel length 160 mm; feed speed: 9 MPM (29.5 FPM) single speed.Equipped with: -- Pre-milling: (2) Vertical spindles, counter rotating, and manually adjustable infeed fence. -- HOLZ-HER "GLU JET": Cartridge System and flat glue nozzle applicator; Glue heat up time: (2 - 3) minutes max! -- Pressure Section with: (1) Large dia. drive roller and (1) pneumatic pressure controlled idle rollers; horizontal adjustment w/digital indicator. -- Automatic Edge Magazine: For coil and strip feed.Workstations: -- End Trimming Unit: Single-motor end trims, travels on 45° slides; tilt from 0° to 15°. -- Multifunction Trimming Unit: Top & Bottom trim station for flush/bevel/radius with digital readouts. -- Profile Scraping Unit: Top & Bottom radius scraping unit with mechanical digital readouts positioning. -- Flat Scraping Unit: Top & Bottom flat glue/finish scrapers. -- Buffing Unit: Top & Bottom. Operator Interface: 15" Flat "Touch Screen" control. Programs can be easily created and recalled at will.The graphic interface makes programming easy; icons of each unit may be brought up on the screen to show the operator the status of the unit and the parameters that can be programmed.Edgebander can be operated manually when required, without the necessity to write a program.. Complete with: -- Safety/Sound Hood over all workstations, fixed panel support outrigger, manually adjustable hold-down beam. -- Original factory documentation; used tooling on the machine. -- Actual Model is: HOLZ-HER ARTEA 1020.
