Equipment For Sale

DZ-450 - SMW Automatic Cut Off Saw - Cutting: 3/8"-4 3/4"H x 1"-8"W x 4"-8"T, 18"dia Saw Blade, 1/64" Cutting Tolerance, 4" Dust Collection Hole, 3000rpm Spindle Rotation Speed, 40 pieces/min, 16'-100' Feeding Speed, 6' 6"/13'/19' 6"L Feed Table, 47"L Discharge Table, Cylinder Press w/ 73"-102"psi, Schneider Electronic Components, Siemans PLC Touch Screen, 3 Phase 380V 50Hz, 1hp Servo Motor/11hp Cutting Motor. Also Available: DZ-600 - SMW Automatic Cut Off Saw - Cutting: 3/8"-5 1/2"H x 1"-12"W x 4"-12"T, 23 1/2"dia Saw Blade, 1/64" Cutting Tolerance, 4" Dust Collection Hole, 3000rpm Spindle Rotation Speed, 45 pieces/min, 16'-100' Feeding Speed, 6' 6"/13'/19' 6"L Feed Table, 47"L Discharge Table, Cylinder Press w/ 73"-102"psi, Schneider Electronic Components, Siemans PLC Touch Screen, 3 Phase 380V 50Hz, 1.5hp Servo Motor/15hp Cutting Motor.

PE-40003 - SMW 3HD Trim Saw - Cutting: 24"-13'L x 3/8"-4 3/4"T x 3/8"-15 3/4", 3 18"dia Saw Blades, Each with 10 HP Motor, ~320' per 8hr shift, ~4400#. Also Available in 4 Head and 5 Head.

2024 Sawmill World DMS1300 Mat Assembly Machine Wood Pallet Length 2ft - 4ft and Wood Pallet Width 3ft - 4ft, Automatic Feeding and Stacking, Touch Screen Operation Mode, Pneumatic Operation, 10hp Motor, Will 2 to 3 pcs/min, Number of Nail Guns 3P or 4P, One Set/Automatic Nail Press Roll, One Set/Automatic Palletizing System, One Set Discharge Roller. Dimensions of Machine 26' x 7' x 6'

2025 Sawmill World Pallet Board Stacker

SAWSTOP - ICS 73230, ....Table Saw w/Safety "Stop Feature"Specifications: -- 10" Blade cap.; 7-1/2 HP motor; 3-1/8" depth of cut @ 0°; 2-1/4" depth of cut @ 45°; 13/16" max. dado width; 5/8" arbor dia. -- Features: -- Enclosed cabinet; Heavy-Duty belt drive; cast iron trunnions; SAWSTOPS's revolutionary flesh detecting safety mechanism. -- Includes: -- 52" "T-Glide" rip fence system; side support table and laminated top; 4" dust collection port; magnetic contractor motor control; main power switch with removable lock-out key. Actual model is: "ICS 73230"

SCHELLING FM-430/410 CNC Front Load Panel SawSpecifications & Features: 169" (4292 mm) Cutting length & 165.3" (4,200 mm) pull back, 3.75" (95 mm) max. saw blade projection; 25 HP (19 kW) 4,100 RPM main & 3.4 HP (2.5 kW) 5,600 RPM scoring motor. -- Equipped with: Variable saw carriage travel speed from 0 - 278.8 FPM (85 MPM), constant return of 278 FPM (85 MPM). -- Electronically controlled overhead program fence with rack & pinion driven on both sides; forward speed from 0 - 278 FPM (85 MPM), return speed of 278.8 FPM (85 MPM); equipped with (8) gripper clamps (open up to 5" (130 mm). -- Features: SCHELLING "COMPOSER" IBM-AT Compatible Computer Control; aftermarket color monitor (displays cutting dimensions and patterns w/moving graphics) , self-diagnostic, data input by keyboard; onboard optimization program. -- Complete with: 2-3/4" to 87" (2,200 mm) Long side/cross-cut aligning zone, (1) aligner in front & (1) behind the cut line. -- (3) Front mounted air float tables for moving panel from rip section to the cross-cut section, (2) movable and (1) fixed; each with their own blower. -- Rear of machine fully enclosed for safety with man-height sheet metal panels & wire screen windows. T

Schneeberger 9 Sculptor Profile GrinderSwiss Made, Schneeberger Automated High Precision Grinder for Finger Joint, router bits, saw blades, straight and milling Cutters. Specifications: -- Grinding Motor: 1,500 - 3,000 RPM. -- Cooling Pump: 2,800 RPM. -- Grinding Wheel Speed: 3,000 - 6,000 RPM. -- Grinding Wheel Diameter: 50 - 200 mm. Grinding Wheel Bore: 30 mm. -- Cross Travel of Grinding Wheel: 200 mm. Vertical Travel of Grinding Wheel: 400 mm. -- Grinding Head: Swivel-able. -- Worktable Travel: 400 mm. -- Coolant Capacity: 25 liters.Dimensions: 1,226 mm length x 1,160 mm width x 1,180 mm height; Weight - 320 kG.10" Width cap., 11.5" dia., max. profile depth 5.5", radial clearance angle up to 35ø, lateral clearance angle up to 15°Equipped with & Features; -- 2 HP - 1,500 RPM motor, variable grinding speed 2,000 - 4,000 RPM, three-sided full jet cooling. -- All std. grinding equipment for HSS grinding, 1-1/2" spindle arbor, (2) wheel flanges, (1) knife holder, and dresser.

--In Auction--Starting bid: $100-- Schuetz Tool Bladder Press Specifications: (2) Shuttle tables, approx. 55” x 106” press capacity. Hot air design with 3mm silicone membrane to press veneer into profile, typical cycle time 3 minutes using proper glue that sets at 200°F. Can use PVA which would extend cycle time to approx. 15 > 45 minutes depending on the actual glue mix used to achieve 80%+ cure strength. Includes Hydraulic Pump. SPECIAL NOTE: Fully operational, however, need 4 or 5 heating rods replaced, new rod parts are included for you to install ( don't have the capability to remove them). The current average operational temperature is 150° F. NOTE: Above specs are taken from literature and thought to be accurate. As always please take advantage of the inspection period to verify. Items seen in the background are NOT a part of this Lot.

Schuetz Tool Bladder Press Specifications: (2) Shuttle tables, approx. 55” x 106” press capacity. Hot air design with 3mm silicone membrane to press veneer into profile, typical cycle time 3 minutes using proper glue that sets at 200°F. Can use PVA which would extend cycle time to approx. 15 > 45 minutes depending on the actual glue mix used to achieve 80%+ cure strength. Includes Hydraulic Pump. SPECIAL NOTE: Fully operational, however, need 4 or 5 heating rods replaced, new rod parts are included for you to install ( don't have the capability to remove them). The current average operational temperature is 150° F. NOTE: Above specs are taken from literature and thought to be accurate. As always please take advantage of the inspection period to verify. Items seen in the background are NOT a part of this Lot.

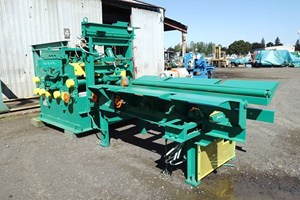

One (1) Used Schurman Top Arbor 2-Saw 4” X 24” Recovery Edger complete with 12’ infeed table, outfeed picker belt, and TEFC motors. Arbor drive is 100HP. Feed rolls are 2-speed 7½HP. Currently equipped as a fixed spacing (4” nominal) machine. Can be restored to 2-shifting saw configuration. No setworks now included. Appears in good condition. See photos of Schurman Top Arbor 2-Saw 4” X 24” Recovery Edger on our web site. Inventory No. 10202P. Located at our Portland, Oregon facility. Click on link for photos. http://www.machinerysales.com/equipment.php?item=10202

Schurman Gang Saw Infeed Positioner

9' Sherman Transfer Deck, 16' wide with H78A roof top chain, gear reduction drive, 16' jump up roll case, (9) 24"x6" rolls

6"x42" wide overall, includes infeed and outfeed rollers, working condition

Schurman 6TA48 Combination Edger SN: 2121 3 phase 480 volt (2) 200 HP motors

Infeed to 10" Schurman gang edger; this item belongs with stock #727, which is also listed in our equipment for sale. - Call Jeff for more info at 574-370-5050

10D G60 thin kerf double arbor schurman gang edger; this item belongs with stock #729, which is also listed in our equipment for sale. Call Jeff at 574-370-5050 for more info.

Shurman 6SBA 42 S/N 1171 Gang Edger with 150Hp Motor

SCHURMAN SINGLE ARBOR GANG SAW 6" x 60"

Schutte Pallet Hog - Model 56-35 heavy-duty horizontal hog. Features 50"w x 7-1/2"h horizontal feed opening with top and bottom powered rolls; 50 2-way, reversible swinging hammers with hardsurfaced tips 250 HP direct drive electric motor; 3/4" thick screen with 1-3/8" diameter holes; Rear discharge. Electrical cabinets included. Hammers are approximately 1-3/4" x 5" x 8". Serial #0506071.

Schutte model 280.100 Hammer Mill Includes: 125 HP Motor - 480v Includes: (3) Screens: Approx 1", 3/4", 3/8" (to be confirmed) Includes: Stand
