MATTISON - 404, ...Straight Line Rip SawSpecifications: -- 15 HP - 3,600 RPM Direct drive arbor motor; 14" dia. max. saw blade cap. (9" smallest dia.), 1-1/2" dia. arbor; 4" thickness capacity. -- Table size: 65" x 77" long. -- 30" Distance from saw to left edge of table. -- 24-1/4" Between saw & column, and 24" rip distance to right of gauge. -- Top roller holddown with 7-1/2" shortest stock handled under (1) roll; 15" under (2) rolls.Equipped with & Features: -- Overhead cutting design with single cast chain links. -- Chain with automatic oil lubrication.. --4-Speed Feed: 62 - 93 - 124, & 186 FPM.

MATTISON - 202, ...Straight Line Rip SawSpecifications: -- 15 HP - 3,400 RPM Saw arbor motor, 9" - 14" max. blade capacity, 1-1/2" diameter arbor, overhead arbor design. -- 4" Max. depth of cut, 13" min. stock length, 24" max. rip capacity to the right of the blade, 77" x 65" table size.Equipped with & Features: --Overhead holddown with: (6) Pressure rollers, (3) front and (3) back; 2 HP feed drive, (4) feed speeds of 56 - 84 - 112 & 168 FPM (fixed at 25 FPM ).

MATTISON 69-42 MATTI-MAX Heavy Duty Automatic Rotary, high production Turning Lathe.Microprocessor controlled for quality turnings and ease of setup; 42" long turning cap. with rotating rear arbor, 4" x 4" max. and 3/4" x 3/4" min. stock size. -- Drives & Speeds: Equipped with: 20 HP - 2,700 RPM Cutterhead Drive, 2-5/8" dia. arbor with variable speed, 2 - 45 RPM stock-rotational speed via 1.5 HP DC drive (reversing) & self-contained hydraulic unit for precise feed control.. -- Complete With: Automatic hopper feed; MATTI-MAX microprocessor-based PLC controller with keypad entry; machine functions & operations parameters are set directly from the control; RPM of workpiece and feed rate can be programmed to vary during the cut. Matching the feed rate to the stock-rotational speed produces an efficient cut -- Features: MATTI-MAX also allows rough cutting at higher speeds (especially rounding of corners) and fine finish cutting at slower speeds. . Pneumatic tailstock with dual pressure to insure penetration of spur center at high pressure and can be adjusted lower for small dia. turnings. -- Total electrical load 27 Amps.

MATTISON - 69- 54: Automatic Lathe -- 54" Length capacity with working dimensions: 4" x 4" Max. x 3/4" x 3/4" min. -- Hopper feed with: Automatic chucking and pop-up. -- Spindle drive: 25 HP Motor; spindle dia.: 2-5/8"; arbor speed: 2,700 RPM. -- Feed rates: 2 - 45 RPM; Variable feed speed and double-end drive.NOTE: Lot of additional knives & heads available at additional cost.

MATTISON - 69-42 MATTI-MAX: Heavy-Duty Automatic Rotary, high production Turning Lathe with Hopper FeedMicroprocessor controlled for quality turnings and ease of setup; 42" long turning cap. with rotating rear arbor; 4" x 4" max. and 3/4" x 3/4" min. stock size. -- Drives & Speeds: Equipped with: 25 HP - 2,700 RPM Cutterhead Drive; 2-5/8" dia. arbor with variable speed. -- 2 - 45 RPM Stock rotational speed with: 1.5 HP DC Drive (reversing) & self-contained hydraulic unit for precise feed control.Complete with: -- Automatic hopper feed; MATTI-MAX microprocessor-based PLC Controller with keypad entry; machine functions & operation parameters are set directly from the control; RPM of workpiece & feed rate can be programmed to vary during the cut.Matching the feed rate to the stock rotational speed produces an efficient cut.Features -- MATTI-MAX Allows rough cutting at higher speeds (especially rounding of corners) and fine finish cutting at slower speeds. -- Pneumatic tailstock with: Dual pressure to ensure penetration of spur center at high pressure and can be adjusted lower for small dia. turnings. -- Total electrical load: 26.5 HP. -- Setup Stand.NOTE: Large quantity of knife & heads available for additional cost.

MATTISON 229 Push Feed Moulder4-Head Push Feed Moulder, 4" x 10" capacity. -- Head sequence: 10 HP Top head, 10 HP left head, 10 HP right head, 10 HP bottom head. -- 20 HP feed motor. -- 2-1/8" dia. top and bottom spindles; 1-13/16" dia. left and right spindles. -- Includes (6) extra heads that go with the machine.Approximate dimensions of 11 feet long, 4.5 feet deep, and 5.5 feet tall. The machine weight is approx. 5 Tons.

MAX-PAK - HOE-2850-308AR, ...Horizontal Open-End Auto-Tie BalerSpecifications: -- Bale size: 30″ x 42″ x 72″ (variable) -- Bale weight: Up to 1,400 Lbs -- Cycle time: 15.23 Seconds -- Motor: 30 HP -- Cylinder bore: 8″ -- Rod: 5-1/2″ -- Stroke: 70" -- System pressure: 3,000 PSI -- Platen force: 143,256 Lbs - 120.49 PSIFeatures: -- Automatic Wire Tie System -- Heavy wall tubular steel frame -- AR 400 floor and platen -- Hydraulic regenerative circuit and air/oil cooler -- NEMA 12 Electrical panel and Control System -- Conforms to: OSHA &ANSI Z245.5 Standards

MAYER - PS 80P: Front Load, Automatic Panel Saw -- Specifications125.9" (3,200 mm) Cutting length & 122" (3,100 mm) pull back; 3.14" (80 mm) max. saw blade projection.12 HP (9 kW) Main saw motor; 320 mm main saw blade (3,800 RPM); 30 mm bore dia.; 1.5 HP (1.1 kW) score blade; 150 mm (8,680 RPM); 30 mm bore.Electronically controlled saw blade height adjustment; electronically controlled scoring blade horizontal (side-to-side) adjustment; "QUICK CHANGE" main & scoring blade system. -- Saw CarriageInfinitely variable forward cutting speed from: 5 - 262 FPM (1.5 - 80 MPM); constant return speed of: 262 FPM (80 MPM).Automatic cutting length adjustment; rack & pinion drive (not chain); AC Servo motor drives on the saw carriage with rack & pinion on hardened & ground guideways. -- Pusher FenceElectronically controlled overhead program fence; forward speed: 0 - 82 FPM (0 - 25 MPM); return speed:196 FPM (60 MPM); fence retracts: 122" (3,100 mm) Behind cutting line; AC Servo motor drives on the pusher fence with: Rack & Pinion on hardened & ground guideways.(6) Material gripper clamps open up to: 80 mm (3.1"); (3) Are closely spaced in crosscut area; the other (3) are at equal distance in rip cut area. -- Operator InterfaceMAYER "PC 5400" + Windows Operating System with: "REAL TIME" graphic display; 14" Color monitor mounted in a pivoting console.3-COM Network interface: 10/100 MBs with RF45 (TP) connection; (2) serial, (1) parallel interfaces, and SVGA graphics adapter; data input by keyboard or downloading from office PC is possible.PC 5400 Control System features: Automatic cutting length (material is scanned by sensor underneath the packet on the saw bed); electronically controlled automatic cutting height adjustment (also can be used for grooving by entering depth and width of groove at control).Automatic trim calculation: Constant display of remaining material in both axis during programming (eliminates need for operator calculations during programming). -- Complete with:Left angle crosscut fence: 78.7" (1,999 mm) long; automatic crosscut aligner from: 3/4" - 47.2" (19 - 1,199 mm) with automatic presetting.Rear slotted pressure beam to minimize offcut; (3) front mounted air flotation tables: 79" x 24" (2,000 x 600 mm); segmented transparent plastic safety guards on front of pressure beam; wire mesh screen enclosure around rear machine table. -- Actual model - MAYER PS/80P/3200

MB Roba-Tech - 1300/2: Denibbing Rotational Brush SanderSpecifications -- Feed Belt: 1,300 mm (51") working width. -- Feed Speeds: 3 - 12 MPM (9 - 36 FPM). -- Vacuum Bed System.Head Configuration -- Cleaning Brush for feed belt. -- Rotational Brush Sanding Unit. -- Working width: 1,300mm (51"). -- Sanding Speed: 30 -140 MPM (98 - 459 FPM). Equipped with & Features -- Touch Screen controls. -- Wired for: 480 V - 3 Ph.

MCDONOUGH Bandmill 62″ Bottom Wheel.

ME.SA M21 BORING MACHINE21-Spindle boring head on 32 mm centers, drills vertically from bottom up and head rotates to horizontal position for edge boring, head rotation is manual tilting with assistance from a strut.Specifications: -- 2-3/4" Max. drilling depth, 2 HP - 2,800 RPM motor, pneumatic drill head advance with speed control; head height adjustment with mechanical digital readout; 34" x 20" table size, max. workpiece width 31-1/2". -- Equipped with: Left & right side fences with stops for mirror-image fence setting for right- & left-hand boring, (2) pneumatic holddown clamps, pneumatic foot pedal control, and magnetic starter with overload protection.

ME.SA M21 BORING MACHINE21-Spindle boring head on 32 mm centers, drills vertically from bottom up and head rotates to horizontal position for edge boring, head rotation is manual tilting with assistance from a strut. -- 2-3/4" Max. drilling depth, 2 HP - 2,800 RPM motor, pneumatic drill head advance with speed control; head height adjustment with mechanical digital readout; 34" x 20" table size, max. workpiece width 31-1/2". -- Equipped with: Left & right side fences with stops for mirror-image fence setting for right- & left-hand boring, (2) pneumatic holddown clamps, pneumatic foot pedal control, and magnetic starter with overload protection.

MEADOWS MILLS 4 STRAND SAWMILL STOP-N-LOAD LOG DECK -- Deck strands constructed with 4" x 8" x 1/4" wall tubing -- Chains run in 4" channel lined with UHMW wear strips -- Hydraulic Cylinder: One 2" x 12" with 1 1/2" rod -- Chain is WR-78 -- Front and rear crossbars are constructed with 6" wide flange beam -- Sawmill style stop-n-load -- Hydraulic drive with Auburn (or equivalent gear box from alternate manufacturer) gear box -- Strand spacing is determined by buyer, standard is 6 feet -- Controls: not included in base price -- Legs may be included for an additional cost -- Log decks are disassembled and bundled for shipment

MEADOWS MILLS 36 DELUXE STATIONARY BOARD EDGER -- Handset board edger, all mechanical functions, and fixed feed speed -- Welded steel frame constructed with 6 inch channel and including legs -- Working height may be determined by buyer, standard is 36" -- Overall length of frame is 14 feet, bay is 36"; wide -- Four live bottom feed rolls and two overhead gravity pressure rolls -- Unison shifting saw collars, each with a 16"; diameter split carbide saw -- 30 HP electric motor mounted on edger -- 480 volt magnetic motor starter -- Belt drive with belt guard -- Infeed table with dead rolls -- Tailing device up to 16' long added to outfeed -- Laser lights aligned with each saw

OMGA RADIAL ARM SAW 900-7 -- Specifications: -- 7 HP Saw motor, 35-1/2" crosscut cap. at 90°; 24-15/16" @ 45°; 5-7/8" max. thickness cap. at 90°, 4-3/16" at 45°; 43-5/16" rip cap.; 18" dia. blade with 1" bore; 2" max. dado cap.; 3,400 RPM arbor speed. -- Features: -- Solid saw carriage with replaceable tempered steel sliding tracks; carriages that travel on (8) bearings with dust scrapers for smooth travel & extended track life; 180° swivel of entire saw carriage for mitered crosscuts; 45° saw head tilt for compound miter cuts. -- Complete with: -- Spring loaded return for safe return of saw head after completion of the cut; oversized replaceable wooden tabletop with full length back fence; fabricated open steel base; electro-magnetic brake to stop the blade within (2) seconds. -- Includes: -- Magnetic controls, push button controls & thermal overload switch. -- Options: Blade, Dado head guard, Dust collection system, & roller tables for infeed & outfeed.

OMGA RADIAL ARM SAW MODEL 900 Series RN Solid saw carriage with replaceable tempered steel sliding tracks. -- Carriage travels on (8) bearings with dust scrapers for smooth travel & extended track life. -- 180° Swivel of entire saw carriage for making mitered crosscuts. -- 45° Saw head tilt for compound miter cuts. -- Spring loaded return for safe return of saw head after completion of the cut. -- Oversized replaceable wooden tabletop with full length back fence. -- Fabricated open steel base. -- Electromagnetic brake to stop the blade within (2) Sec. -- Magnetic controls, push button controls & thermal overload switch. -- Options: Single-phase motor, Blade, Dado head guard, Dust collection system, and Roller tables for infeed & outfeed.

OMGA RN-700 RADIAL ARM SAW Specifications & features: -- 5 HP, 27-1/2" Crosscut cap. @ 90°; 19-7/16" @ 45°. -- Solid saw carriage with replaceable tempered steel sliding tracks. -- Carriage travels on (8) bearings with dust scrapers for smooth travel & extended track life. -- Self-centering locking in the positions of the main angles in (3) places, the saw arm (1), the motor & blade assembly swivel (2), and the motor carriage tilt (3); additionally manual locking at all intermediate angles. -- Easy and extremely practical unlocking of the arm for left/right swing on the front of the beam. -- Swiveling of the saw blade assembly and tilting of the blade on the vertical and horizontal axes. -- Standard overload protection with no-volt coil and motor brake. -- Spring-loaded return for safe return of saw head after completion of the cut. -- Oversized replaceable wooden tabletop with a full-length back fence. -- Fabricated open steel base. -- Magnetic controls, push-button controls & thermal overload switch. -- Options: Single-phase motors, Blade, Dado head guard, Dust collection system, & Roller tables for infeed & outfeed.

OMGA RADIAL 600 P3S Radial Arm Saw - 24" Crosscut Solid saw carriage with replaceable tempered steel sliding tracks. -- Carriage travels on (8) bearings with dust scrapers for smooth travel & extended track life. -- 180° Swivel of entire saw carriage for mitered crosscuts. -- 45° Saw head tilt for compound miter cuts. -- Spring loaded return for safe return of saw head after completion of the cut. -- Oversized replaceable wooden tabletop with full length back fence. -- Fabricated open steel base. -- Electromagnetic brake to stop the blade within (2) Seconds. -- Magnetic controls, push button controls & thermal overload switch. -- Options: Single-phase motor, Blade, Dado head guard, Dust collection system, and Roller tables for infeed & outfeed.

OMGA RN 450 Radial Arm SawSpecifications: -- 3 HP Saw motor; 12" blade; 17-3/4" crosscut cap.; 26-3/4" rip cap.; 3-1/2" @ 90° thickness cap., 2-1/2" at 45°; 1-1/2" dado cap.; solid saw carriage with replaceable tempered steel sliding tracks. Equipped with: -- Carriage that travels on (8) bearings with dust scrapers for smooth travel & extended track life.180° Swivel of entire saw carriage for making mitered crosscuts; 45° saw head tilt for compound miter cuts; spring-loaded return for safe return of saw head after completion of the cut. Complete with: -- Oversized replaceable wooden table top with full-length back fence; fabricated open steel base; electro-magnetic brake to stop the blade within (2) seconds. Includes: -- Magnetic controls, push button controls & thermal overload switch. -- Single-phase 2 HP motor available.

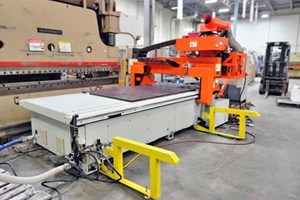

OMNITECH - Mate 4 x 8: CNC Router with Tool Changer & Boring4' x 8' (51.8" x 98.42") Stationary table; moving gantry; Z-Axis: 250 mm (9.8").Machine in a front-to-back configuration with: Single zone vacuum table & (1) BECKER "VFTL-250" 10 HP Vvacuum Pump. -- Specifications & Equipped with: (1) 10 HP HSK-63F Type ATC spindle, air cooled, variable spindle speed from 1,000 - 24,000 RPM, 8-station front mount tool carousel. -- (1) 2 HP - 9-Spindle Vertical Drill Bank. (4) On X-axis; (4) on Y-axis; and (1) in the Center; routing spindle has full table coverage. -- FANUC "OI" ControllerComplete with: Network compatible PC based front-end, color monitor; keyboard; mouse; full function handheld pendant.Matching Servo amplifiers & AC Servo motors; network compatible WINDOWS PC based front-end; color monitor; keyboard; mouse; absolute & incremental programming; cutter & tool length compensation; feed rate & spindle speed override; inch/metric operation; linear/circular & helical interpolation. -- Complete with: BECKER 10 HP Vacuum Pump, assorted toolholders & collets, handheld MPG, and Operator & technical manuals. Machine Hours:Power on: 83,757 Hrs; Operating time: 293 Hrs; Cutting time: 1,454 Hrs.
