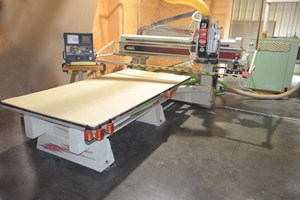

HOMAG OPTIMAT BAK 41/45/G FLAT TABLE MACHINE (W/EDGEBANDING): -- Specifications:Working capacity "X" Axis 177" (4,500 mm), "Y" axis 48" (1,220 mm), "Z" axis stroke is 7.8" (200 mm), max material thickness 2.3" (60 mm). -- Positioning Speed"X" & "Y" Axis 197 FPM (60 MPM), "Z" axis 98 FPM (30 MPM)AC Brushless Servo motors with digital drive and linear guides ensure high speeds with a smooth acceleration-and-deceleration. -- Work Table:Phenolic Flat-Table design with (14) double side "pick-n-place" vacuum pods;Laser aided positioning of the vacuum pods according to the selected program -- Edge Banding unit:Floating "hot melt" glue pot & application roller with separate thermostats apply glue on the panel edge. Pneumatically controlled pressure roller with manually adjustable guides for coil & strip feeding; numerically controlled with encoder that measures strip feeding process; preheated tape magazine with warning sensor when the end of the spool is near. Pneumatically activated saw blade performs the end trimming for precise fitting of overlapping joints on adjoining edges. Precisely applies 0.4 - 3 mm ABS, 1 - 3 mm PVC & 0.4 - 2 veneer with 45 mm max. edge height (65 mm without edging). Minimum internal radius 300 mm (11.8"), Minimum external radius 8 mm (0.3"), both depending on the banding material & thickness when edge banding.The edgebanding is automatically applied to square or irregularly shaped parts as the CNC manufacturing head rotates along the "X", "Y" & "Z" axis & simultaneously rotates the tooling on a high precision "C" axis. -- Machining:(1) 6 HP (4.5 kW) liquid cooled electro-spindle router with HSK F63 adaptor, variable speed fr 1,500 - 18,000 RPM,NC Controlled "C" axis for 360° horizontal processing & contour edge banding.(1) 4-position "on the fly" plate-type rotary tool changer, max. tool dia 7.08" (180 mm) -- Operator & Machine Control:"HOMAG" NC 83 + "WoodWOP" 4.0 + "WINDOWS NT 4.0 operating system; Icon driven with a graphical interface to allow the operator to quickly and efficiently create programs; Pentium processor, 8 MB RAM, 8 MB hard disk; VGA video card.17" color LCD monitor, 1.44MB & CD ROMx32 drives, connection to an office PC is possible (up to 300 meters). Multitasking operating system, input/output modules, axes override, 4-axis interpolation, diagnostic graphics aid for programming, machine data & tool management. WoodWOP Editor Module for PC with same look and functionality of software on the machine, allows transmission of programs and work lists from an office PC (PC not included): -- Complete with: (1) 100 m³/Hr vacuum pump; (1) 1-coil tape magazine; perimeter protection cage, safety mats, user & maintenance manuals, wiring diagrams and operation of Numerical Control. -- Options Include:(1) Combination Snipping and Corner Rounding Unit; (1) Corner Rounding Radius Cutter Head; (1) Combi-Flush Trimming Scraping Unit; (1) Flush Trimming Unit; (1) extra glue pot; An assortment of spare parts as pictu

HOMAG OPTIMAT BOF 211/30/R FLAT TABLE MACHINE (W/ATC/BORING/"C"AXIS) -- Specifications:4' x 10' Flat Matrix grid Phenolic working table. -- Working Field"X" Axis 120" (3.050 mm); "Y" axis 51" (1,300 mm); "Z" axis stroke 21" (535 mm); max material thickness 8.2" (210 mm). -- Positioning Speed"X" & "Y" Axis is 260 FPM (80 MPM); "Z" axis is 98 FPM (30 MPM). -- Boring Unit4.2 HP (3 kW) Variable speed from 1,500 - 7,500 RPM; (12) independent vertical spindles: (6) in "X" axis & (6) in "Y" axis. -- Machining(1) 19.4 HP (14.5 kW) Liquid-Cooled electrospindle router with: HSK 63F Adaptor; variable speed from 1,000 - 24,000 RPM. -- (1) NC Controlled C-axis for 360° horizontal processing. -- (1) 12-Positon automatic tool changer mounted at the back of the head for "on the fly" ATC. -- Operator Interface PC Front-End with: "Homatic" PC 85 Power Control + Windows "NT" + WoodWOP Operating System. -- 14" Color graphic monitor; industrial keyboard for data entry; 1.44 MB & CD RW disk drives; EtherNET interface for possible LAN connection to office PC. -- USB & RS-232 Serial interface for simple PC connection. -- NUM (PLC) With 3D Linear interpolation; 4-axis control for "X", "Y" "Z" & "C" axes. -- All mounted in separate free-standing control cabinet. -- Complete with:(1) 40 HP DEKKER "VMX055" Vacuum Pump; safety fencing; safety mats (will stop machine if operator enters work area); hand-held pendent control. -- Actual Model: HOMAG - OPTIMAT BOF 211/30/R

HOMAG CENTATEQ N 300 FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications: 5' x 12' Flat Table "Bridge Gantry" machine with User-Friendly "MATRIX" grooved phenolic vacuum table. -- Working Area:"X" Axis is 145.7" (3,700 mm), "Y" axis 61" (1,550 mm), "Z" axis stroke Routing is 12.8" (325 mm), "Z" axis stroke Boring is 7.3" (185 mm) max. material thickness of 3.9" (100 mm). -- Positioning speed: "X" Axis is 236 FPM (72 MPM); "Y" axis is 203 FPM (62 MPM); "Z" axis 82 FPM (25 MPM). Machine head travels on THK linear motion guides on all axes. -- Worktable: (1) Pneumatic locator/positioning rail in "X" Axis & (1) pneumatic locator/positioning rail in "Y" Axis. - (10) NC Controlled Vacuum Table work zone. -- Boring Unit:2 HP (1.5 kW) Motor, (7) independent vertical spindles with 4-spindles in "X" Axis & 3-spindles in "Y" Axis; programmable variable speed from 1,500 - 7,500 RPM. -- Machining:(1) 18 HP (13.4 kW) High-speed electro-spindle router with: "HSK F63" Adaptor; constant duty; variable speed from 1,250 - 24,000 RPM, RH or LH rotation.(1) 12-Position ATC Rack located at the LH side of the machine. -- Operator Interface:PC Front-End with: WEEKE "PC 85T" + Windows "10 PRO" + WoodWOP Operating System.21" TFT Color graphic monitor, keyboard for data entry, PC 85T hand control pendant; CD R/W & floppy drives, EtherNET interface for LAN connection to office PC, RS-232 serial interface, USB ports.BECKHOFF Programmable logic control for (3/4) axes, linear, circular & helical interpolation; the Controller is contained in a separate freestanding, dust-free control cabinet that can be placed at either the LH or RH side of the machine. -- Complete with: (2) 10 HP BUSCH Mink MV 0312 B Vacuum Pumps. Light curtain (machine will stop if the operator enters the work area). Perimeter safety devices. Separate control cabinet. Touch-off tool length measuring device. Handheld pendant control. -- Actual Model is: HOMAG CENTATEQ N 300/512.

HOMAG KAL 210 AMBITION 2260 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Specifications:Coiled stock min/max. Edge thickness 0.4 - 3 mm (0.016. - 0.118"), Strip material min/max Edge Thickness 0.4 - 6 mm (0.16 - 0.234"). -- Panel stock min/max. thickness12 - 40 mm (0.472" - 1.574"). Panel Over-Hang 30 mm (1.18"). -- In-feed Fence: Adjustable in-feed fence with manual digital indicator positioning. -- Pre-Milling Station: Two 3.0 kW (4.0 HP), 150 Hz, 9,000 RPM Motors; equipped with trimming column, (2) horizontal and cross slides with spindle adjustment, electro-pneumatic horizontal jump movement of the first motor;Includes electronic frequency inverter for control of motor speed and braking, two (2) dust extraction hoods, an air-jet panel blow-off device & SIKO digital counters for adjustments. -- Panel Pre-Heater: the Pre-heater brings the panel to an appropriate temperature for better adhesion; this is especially beneficial in cooler temperatures. -- Multi-Purpose Magazine: 2-Coil magazine expands capability by running coiled material & strips, magazine height adjustment allows for greater usage of varying panel heights by raising and lowering the magazine table, allowing the operator to center the panel on the edgebanding. -- Gluing System: (EVA - Hot Melt) QA 3 -Quick Melt Overhead Unit & heated roller applicator; digitally displayed thermostat for both upper and lower unit.34 mm Dia. Glue Roller allows for excellent control of temperature for optimum bonding results with individual adjustment for leading and trailing glue gates, lower melting unit equipped with automatic glue level control. Melting capacity: 12 KG/Hr (26 LBS/Hr). -- Pressure Section: Automatic pressure zone adjustment (Servo), (1) large 160 mm dia. driven & (6) 70 mm dia. idle rollers, pneumatic pressure control depending on edgebanding material used. -- WORKSTATIONSEnd Trimming Unit HL 81: 0.8 KW (1.0 HP) x 2 - 200 Hz, 12,000 RPM Motors. to cut excess edge on the front & back of the panel; pneumatic adjusting from chamfer 30° to straight cut. -- Top & bottom Flush Trimming Unit: Top & bottom, 0.4 kW (0.74 HP) x 2 - 12,000 RPM Motors; Height adjustment with the top pressure-beam and tilting range +/- 1°. -- Profile/Bevel/Corner Rounding Unit FF 12: Multi-function 0.4 KW (0.54 HP) x 2 - 12,000 RPM Motor to fine trim the edge overhangs at the work-piece upper & lower edge, as well as trimming around the front & rear vertical edge. Max. feed speed 20 MPM (65.6 FPM) -- Profile/Bevel Scraping Unit PN 10: Top & bottom for thick PVC/ABS, pneumatically activated/adjustment. -- Flat Glue Scraper Unit: Top & bottom, pneumatically activated to remove potential glue squeeze-out. -- Buffing Unit FA 11: Top & bottom edge buffing/polishing, pneumatically activated. -- Operator & Machine Control:HOMATIC PC 22 Power Control w/Touch Screen: Controller functions in Windows environment and features: Keypad w/LCD flat-screen display, fault diagnostic, OS9 real-time operating syst

HOMAG AMBITION 2274 (KAL 370/6/A3) EDGEBANDER (W/PRE-MILL): -- Specifications: Working Capacity: Coiled stock min/max Edge thickness 0.3 - 3 mm (0.011. - 0.118"), Strip material min/max Edge Thickness 0.4 - 1 mm (0.016 - 0.039"),Panel stock min/max thickness 8 - 60 mm (0.472" - 1.574"). Panel Over-Hang 30 mm (1.18").Minimum workpiece width: 2.36" (60 mm) with workpiece thickness ≤ 22 mm) & 4.13" (105 mm) with workpiece thickness > 22 mm). -- Cleaning Agent Spraying Units:Top/Bottom spraying device prior to workpiece pre-milling. Designed for applying a separating agent, for easier cleaning of any residual glue on the panel. -- In-Feed Fence: Pre-heated manually adjustable in-feed fence with digital indicators. -- Pre-Milling Station:(2) 2.2 HP (3.0 kW) - 150 Hz, 9,000 RPM vertical jointing spindle motors; equipped with panel blow-off device and SIKO digital counters for adjustments. -- Panel Pre-Heat Unit: Quartz lamp for heating substrate edge before glue application. -- Edge Magazine:A multi-purpose 2-coil magazine expands capability by running coiled material & strips. Maximum roll diameter: 400 mm & 830 mm.Magazine height adjustment allows for greater usage of varying panel heights by raising and lowering the magazine table, allowing the operator to center the panelon the edgebanding. -- Gluing System Homag Quickmelt: QA 3 - Quick Melt Overhead Unit & heated roller applicator digitally displayed thermostat for both upper and lower unit.34 mm Dia. Glue Roller allows for excellent control of temperature for optimum bonding results with individual adjustment for leading and trailing glue gatesLower melting unit equipped with automatic glue level control. Melting capacity: 12 kG/Hr (26 Lbs/Hr). Ultra-fast five-minute (5) heat-up time. -- Pressure Section: Programmable (Servo), automatic pressure zone adjustment, (1) large 150 mm dia. driven & (4) 70 mm dia. idle rollers, pneumatic pressure control depending on edgebanding material used.Workstations: -- End Trimming Unit:(2) 1 HP (0.8 kW) - 200 Hz, 12,000 RPM Motor ea. to cut excess edge on the front & back of the panel; pneumatic adjusting from chamfer to straight snip. Programmable (Servo). -- Rough/Pre-Trimming Unit:(2) 0.55 kW 0.74 HP (0.55 kW) - 12,000 RPM Motors, tilting range +/- 1° & counter-rotating to machine feed to prevent blowout & .Height adjustment synchronized with the top pressure-beam .With digital counters. -- Scraping Unit:Top & bottom for thick PVC/ABS, electro-pneumatic positioning & pneumatically activated. Pneumatically-controlled blow off nozzles. Height adjustment synchronized with top pressure beam. -- Flat Glue Scraper Unit:Top & bottom to remove potential glue squeeze-out, electro-pneumatic positioning in and out of the processing area & electro-pneumatically activated height adjustment synchronized with top pressure beam. -- Buffing Unit:Top & bottom edge buffing/polishing. Operator & Machine Control: -- Power Touch Control Multi-Touch Screen C

HOMAG AMBITION 2274 (KAL 370/6/A3) EDGEBANDER (W/PRE-MILL/HIGH PRODUCTION) (aka "TAPE ROCKET"): -- Specifications: Working Capacity: Coiled stock min/max Edge thickness 0.3 - 3 mm (0.012. - 0.125"), Strip material min/max Edge Thickness 0.4 - 1 mm (0.016 - 0.039"),Panel stock min/max thickness 8 - 60 mm (0.472" - 1.574"). Panel Over-Hang 30 mm (1.18"). Minimum Work piece length 610 mm (24").Minimum workpiece width: 2.36" (60 mm) with workpiece thickness ≤ 22 mm) & 4.13" (105 mm) with workpiece thickness > 22 mm). -- Cleaning Agent Spraying Units:Top/Bottom spraying device prior to workpiece pre-milling. Designed for applying a separating agent, for easier cleaning of any residual glue on the panel. -- In-Feed Fence: Pre-heated manually adjustable in-feed fence with digital indicators. -- Pre-Milling Station:(2) 2.2 HP (3.0 kW) - 150 Hz, 9,000 RPM vertical jointing spindle motors; equipped with panel blow-off device and SIKO digital counters for adjustments. -- Panel Pre-Heat Unit: Quartz lamp for heating substrate edge before glue application. -- Edge Magazine:A multi-purpose 2-coil magazine expands capability by running coiled material & strips. Maximum roll diameter: 400 mm & 830 mm.Magazine height adjustment allows for greater usage of varying panel heights by raising and lowering the magazine table, allowing the operator to center the panelon the edgebanding. -- Gluing System Homag Quickmelt GA 65 / QA 65: QA 65 - EVA Quick Melt Overhead Unit & heated roller applicator digitally displayed thermostat for both upper and lower unit.34 mm Dia. Glue Roller allows for excellent control of temperature for optimum bonding results with individual adjustment for leading and trailing glue gatesLower melting unit equipped with automatic glue level control. Melting capacity: 12 kG/Hr (26 Lbs/Hr). Ultra-fast five-minute heat-up time. -- Pressure Section: Programmable (Servo), automatic pressure zone adjustment, (1) large 150 mm dia. driven & (4) 70 mm dia. idle rollers, pneumatic pressure control depending on edgebanding material used.Workstations: -- End Trimming Unit PK 25:(2) 1 HP (0.8 kW) - 200 Hz, 12,000 RPM Motor ea. to cut excess edge on the front & back of the panel; pneumatic adjusting from chamfer to straight snip. Programmable (Servo). -- Fine Trimming Unit PF20:(2) 0.54 HP (0.4 kW) - 12,000 RPM, fine trimming unit for edge overhangs at the work-piece upper & lower edge.Operator Interface: -- Power Touch Control Multi-Touch Screen Controller on separate console with 21.5" Full HD flat screen display, keyboard and mouse. Functions in Windows environment, includes fault diagnostic, OS9 real-time operating system."WoodScout", included graphic diagnostic tool designed to increase throughput and decrease down time. Graphical PLC diagnosis display of the error location in the machineCustomer-specific data base system that allows the operator to enter the reason for the error as well as the corrective measures to assist with future tro

HOMAG KAL 310/4/A3/S2 Edgebander (w/Pre-Milling): -- Specifications:Working Capacity: 0.3 - 3 mm Edge thickness cap., min. panel width 22 mm; max. panel thickness 60 mm; Dual speed -- Equipped with: Pre-Milling Unit 3481: (2) motors, 3 kW, 9000 RPM each, pneumatic controlled/jump milling spindles and adjustable, manual with digital indicator in-feed fence. -- Hot Melt Glue System "QA 34" Quick-Melt Unit: with heated glue roller; -- Edge Magazine Unit 2456: Automatic (2) coil/strip magazine, coils 0.3 - 3.0 mm. -- Pressure Section: Pressure roll section with (3) rollers, (1) large dia. driven & (2) idle rollers; with pneumatic pressure control for straight edges -- HOMATIC "NC 21" Power Control System: Controller operates in Windows-XP environment; Keypad w/LCD display, fault diagnostic, etc.; diagnostic analysis from HOMAG service support via Modem. -- Workstations:End Trimming Unit: (2) motors, 0.18 kW - 12,000 RPM each, to cut excess edge on the front & back of the panel. -- Flush/Pre-Trimming Unit 3201: Top & bottom trim station, 0.55 kW - 12,000 RPM +/- 1° angle adjustment, manual positioning with digital counters. -- Fine/Bevel Trim Unit 3216: (2) motors 0.4kW - 12,000 RPM each, manual positioning with digital counters -- Profile Edge Scraping Unit: with electro-pneumatic adjustment -- Buffing Unit 4402: Top and bottom with oscillation. (2) motors, 0.25kW, 2850 RPM -- Complete with & Features:Electronic DC brakes on all trim motors; sound cabin for all workstations. -- Adjustable outboard panel support with swing out arms for up to 800 mm. -- 80 mm Feed track pads; manually adjusted V-groove belt on top pressure beam and Sound/Safety enclosure over workstations. -- Actual Model is HOMAG KAL 310/4/A3/S2Note: This machine has a new display and a new back up one as well!

HOMAG EDGETEQ S 300 4.5 SERVO QUICK MELT EDGEBANDER (W/PRE-MILL & CORNER ROUNDING) + EVA/PUR Gluing Technology: Specifications:RH Feed (Brandt) Configuration; 0.4 - 3 mm (0.016 - 0.125") Coil Cap.; 0.4 - 8 mm (0.016 - 0.315") edge strip cap.; 8 - 60 mm (0.32" - 2.4") panel thickness; 160 mm (6.3") min. panel length; 70 mm (2.76") min. panel width.Equipped with: Pre-Milling Station, (2) motors @ 2.25 kW (3.0 HP), 12.000 RPM, (1) clockwise & (1) counterclockwise rotation for chip-free and clean panel edges.Equipped with diamond cutter heads. -- In-feed Fence, with servo motor positioning. -- Infrared Radiant Quartz Heating Unit between glue roller and pressure section. -- Automatic Edge Magazine, for strip & coil stock, strips 0.4 mm - 8 mm (0.016 - 0.315"), coils up to 3 mm PVC and "HD" guillotine. -- QA-65N Gluing Unit for PUR & EVA Glue, with "Quick Change" pot for maintenance, glue purging/color change. -- Pressure Section, 1st. roller driven plus (2) idle rollers, timed pneumatic pressure controlled; Motorized positioning of the Pressure Zone. -- Feed Speed, variable 8 - 14 MPM. (26 - 46 FPM), 14 MPM (46 FPM) when contour trimming. -- HOMAG "Power Touch Control, Full HD wide screen multi-touch display, keyboard, mouse, Industrial PC.PLC control according to IEC 61131 standards, USB connection at the operating panel; Ethernet connection 10/100 MBIT RJ45Work Stations: Straight/Chamfer End Trimming: - (2) Motor @ 0.35 kW (1/2 HP) 12,000 RPM, automatic indexing for straight to bevel trimming from control panel. -- Multi-Stage Fine Trimming Unit MS 40: - Top/bottom (2) motors, 0.55 kW (0.75 HP) 12,000 RPM, equipped with (2) Multi-Profile Radius cutter heads, each with (4) Carbide insert knives. (4) Profile options, Profile1, Profile2, Bevel & Flush trimming, via the program control. Includes Auto tilt feature, servo controlled to edge thickness, Nesting top copy system. -- Multi-Function Contour Trimming/Corner Rounding Unit MF-50: (2) Motor 0.4 kW (1/2 HP) 12,000 RPM, dual purpose for CR & continuous Top & Bottom edge trimming with servo motor control of the cutter.2-Position automatic indexing for 1-mil, 2-mil & 3-mil thickness. For leading & trailing edges vertical corner rounding of panels; equipped with radius cutters, HSK 25 system; 3 mm max. edge thickness. -- Scraping, Multi-Stage Profile Scraping Unit MZ 40: Top/bottom with Multi-Profile for (2) Radii. 1 mm & 2 mm or 3 mm in place of 2 mm, servo control positioning of vertical & horizontal copy wheels. PVC scrape collection box. -- Finish Scraping Unit: - Flush top/bottom on panel surface with floating insert knives. -- Buffing Unit: - Top/bottom (2) motors, 0.10 kW (0.125 HP) 2,800 RPM. Complete with:Motorized, programmable Top hold-down pressure beam; padded sound enclosure, isolation transformer for multiple input voltages, used tooling and Original Factory machine documentation. -- Actual Model is HOMAG EDGETEQ S 300 4.5 SERVO QUICK MELT.NOTE: Pictured Return Conveyor is N

HOMAG AMBITION 2262 (KAL 210) PRODUCTION EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Specifications:Working Capacity: Coiled stock min/max Edge thickness 0.4 - 3 mm (0.016. - 0.118"), Strip material min/max Edge Thickness 0.4 - 6 mm (0.16 - 0.234"). -- Panel stock min/max thickness12 - 40 mm (0.472" - 1.574"). Panel Over-Hang 30 mm (1.18"). -- In-feed Fence: Adjustable in-feed fence with manual digital indicator positioning. -- Pre-Milling Station: Two3.0 kW(4.0 HP), 150 Hz, 9,000 RPM Motors; equipped with trimming column,(2) horizontal and cross slides with spindle adjustment, electro-pneumatic horizontal jump movement of the first motor; includes electronic frequency inverter for control of motor speed and braking, two (2) dust extraction hoods, air jet panel blow-off device &SIKO digital counters for adjustments. -- Panel Pre-Heater: Pre-heating the panel brings the panel to an appropriate temperature for better adhesion; this is especially beneficial in cooler temperatures. --Quartz lamp for heating substrate edge before glue application improved edge quality and optimum bonding. -- Multi-Purpose Magazine: A multi-purpose 2-coil magazine expands capability by running coiled material, strips, and solid wood bands. -- Magazine height adjustment allows for greater usage of varying panel heights by raising and lowering the magazine table, allowing the operator to center the panel on the edgebanding. -- Gluing System: (EVA - Hot Melt) QA 34 -Quick Melt Overhead Unit & heated roller applicator digitally displayed thermostat for both upper and lower unit. -- 34 mm Dia. Glue Roller allows for excellent control of temperature for optimum bonding results with individual adjustment for leading and trailing glue gates. -- Lower melting unit equipped with automatic glue level control. Melting capacity: 12 KG/Hr (26 Lbs/Hr) -- Pressure Section: Manual Adjustment with digital counter, (1) large 160 mm dia. driven & (6) 70 mm dia idle rollers, pneumatic pressure control depending on edgebanding material used. -- WORKSTATIONSEnd Trimming Unit HL 81: 0.8 kW(1.0 HP)x 2 - 200 Hz, 12,000 RPM Motors. to cut excess edge on the front & back of the panel; pneumatic adjusting from chamfer 30 deg. to straight cut. -- Rough/Pre-Trimming Unit: Top & bottom,0.55 kW (0.74 HP)x 2 - 12,000 RPM Motors; Height adjustment with the top pressure-beam and tilting range +/- 1°. -- Manually adjusted with digital counters. -- Profile/Bevel/Corner Rounding Unit FK 11: Multi function0.4 kW(0.54 HP) x 2)- 12,000 RPM Motor to fine trim the edge overhangs at the work-piece upper& lower edge, as well as trimming around the front & rear vertical edge; Servo controlled, Max. feed speed 20 MPM (65.6 FPM). -- Profile/Bevel Scraping Unit: Top & bottom for thick PVC/ABS, pneumatically activated. -- Flat Glue Scraper Unit: Top & bottom, pneumatically activated to remove potential glue squeeze-out. -- Buffing Unit: Top & bottom edge buffing/polishing. -- Spraying Units: Top/Bot

HOMAG EDGETEQ S-200 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): + "AIR TEC" EVA/PUR Gluing Technology Specifications: -- 0.3 - 3 mm (0.016 - 0.11") Edge; 8 - 60 mm (0,312 - 2.375") panel thickness; 160 mm (6.375") min. panel length, and 70 mm (2.75") min. panel width.Equipped with: -- Separating/cleaning agent spraying units. -- Premilling Station: (2) Motors @ 2.25 kW (3.0 HP), 12.000 RPM, LH & RH rotation w/pneumatic jump control for chip free and clean panel edges. --100 mm Dia. diamond cutter heads. -- Integrated heated glue roller. -- AirTec reactivation unit for zero-edge finish. -- Automatic Edge Magazine for strip & coil stock, up to 3 mm PVC. -- "Heavy-Duty" guillotine. -- EVA/PUR "Quick-Change" glue pot and roller application unit. -- Pressure Section: 1st. Roller driven plus (2) idle rollers; timed pneumatic pressure controlled. -- Feed Speed: 8 MPM. (26 FPM). Operator Interface: -- HOMAG "easyTouch" Operator Interface with: 7" Graphic color touch display & soft keypad; intuitive, user-oriented navigation.(20) Storable programs guarantee flexibility when processing a wide variety of edge materials and changing customer requirements.Clear overview of the help and assistant functions, including the glue pot temperature or troubleshooting in plain text.Workstations: -- End Trimming: (2) Motors each @ 0.35 kW (1/2 HP) 12,000 RPM; automatic chamfer from control panel 0°- 15°. -- Flush/Bevel-Fine/Radius Trimming Unit: (2) Motors: Top/bottom; 0.55 kW (3/4 HP) 12,000 RPM; 0° - 25°auto-tilt positioning from control panel with combination flush/radius/chamfer cutter heads.Includes: (3) Positioning options: Profile 1, Profile 2, and 3--flush trimming. -- Corner Rounding Unit: (1) Motor 0.35 kW (1/2 HP) 12,000 RPM with automatic adjustment from control panel for 1-mil, 2-mil & 3-mil thickness.For leading & trailing edges vertical corner rounding of panels: Ether radius or chamfer cutters can be mounted; 3 mm max. edge thickness. -- Scraping, Multi-Profile (PVC): Top/Bottom with (2) profiles. 1 mm & 2 mm or 3 mm in place of 2 mm positioning of vertical & horizontal copy wheels. PVC scrape collection box. -- Buffing Unit: Top/bottom (2) motors; 0.10 kW (0.125 HP) 2,800 RPM. Complete with: -- Motorized hold down pressure beam; padded sound enclosure, isolation transformer for multiple input voltages, used tooling, and Original Factory machine documentation. -- Actual Model is: HOMAG EDGETEQ S-200 AT (aka OPTIMAT KDF 1130 AT).

HOMAG DRILLTEQ V-200 CNC MACHINING CENTER (VERTICAL/W/BORING): -- Specifications: Flexible "Vertical" Machining Center with "BORING": Uses less than 5 sq. meter of valuable floor space in addition to an innovative panel handling system. -- Working Cap.Max. workable part size for "X" axis is 120" (3,050 mm); "Y" axis 33.4" (850 mm); max. part thickness 3.1" (80 mm).Min. worktable part size for "X" axis is 7.8" (200 mm); "Y" axis 2.75" (70 mm); min. part thickness of 0.31" (8 mm). - Automatic infeed & outfeed from the LH or RH side. -- Positioning SpeedThe "V-200" can reach movement speeds of 164 FPM (50 MPM) in "X" & "Y" axis & 50 FPM (15 MPM) in "Z" axis with total safety, providing an unmatched working capacity. -- Boring Unit(1) 3 HP (2.3 kW); Variable speed from 1,500 - 7,500 RPM motor; (13) independent spindles with: (8) spindles in "X" axis & (5) spindles in "Y" axis.(6) Horizontal spindles with (2+2) in "X" axis & (1+1) in "Y" axis; boring block has "QUICK CHANGE" spindle system. -- Operator Interface:HOMAG "POWERTOUCH" + Windows + WoodWOP Operating System; "IntelCore 2 DUO" Processor.21" TFT Monitor; international keyboard, soft touch keypad & industrial mouse; RS-232 Serial ports, USB ports; (1) 1.44 MB floppy disk drive, (1) CD RW drive, modem, Ethernet connection.Real-time multitask processing; programs can be transferred via diskette or downloading by wire is possible. -- Complete with:Pneumatic part clamping devices; sound enclosure and complete set of safety devices. -- Options Include:(1) "X" Grooving Saw; 9,000 RPM, max. saw blade dia. 100 mm.(1) 12 HP (9 kW) Electro Spindle router with manual Quick-Change adaptor; variable speed from 6,000 - 24,000 RPM. -- Actual Model is: HOMAG DRILLTEQ V-200 OPTIMAT BHX 055.

HOMAG BHT 500 CNC FEED-THRU MACHINING CENTER (2-HEAD) + BARGSTEADT STACKER: -- Specifications:Homag "BHT 500" CNC 2-Head Through-Feed PtP Machining Center: -- Working capacity: Single panel processing "X" Axis 98.4" (2,500 mm), "Y" axis 55.4" (1,406 mm); "Z" axis 0.5" - "2.36" (12 - 60 mm) min./max. panel thickness.(2) Panel processing "X" axis 98.4" (2,500 mm), Y" axis 23.6" + 23.6" (600 + 600 mm); 0.5" - "2.36" (12 - 60 mm) min./max. panel thickness. -- Positioning Speed:Vertical boring unit(s) positioning speed "X" Axis 328 FPM (100 MPM), "Y" axis 230 FPM (70 MPM), 'Z" axis 82 FPM (25 MPM);Panel transfer belt variable feed speed from 0 - 295 FPM (0 - 90 MPM). -- Horizontal Feed-Thru Boring Units:(2) 2 HP (1.5 kW) Motors (1-motor each side) with variable rotation speed up to 9,000 RPM. (2) 19-Spindle LH units (38) total LH spindles; (2) 19-spindle RH units (38) total RH spindles, spindle are on 32 mm centers,LH Horizontal drilling support is fixed, RH support motorized & equipped with LED indicator for precision positioning, pneumatic locking & individual adjustment for positioning according to the panel size. -- Horizontal PTP Boring Units:CNC controlled horizontal PtP boring units with (2+2 spindles in the "Y" axis on each boring head, (8) "Y" axis spindles total) -- Vertical PTP Boring Units:(2) 4 HP (3 kW) Motors (1-motor each head) with variable rotation speed up to 9,000 RPM;(2) Independently controlled top mounted CNC PtP boring/grooving heads; each head with (30) independent vertical spindles, spindle are on 32 mm centers -- Grooving Saws:(2) 2 HP (1.5 kW) Motors (1-motor each head) "X" axis grooving saw with variable rotation speed up to 12,000 RPM & 100 mm dia blade. -- Operator Interface:IPC with: HOMAG "Power Control 85T" + WoodWOP + Windows "XP" operating system; icon driven software with a graphical interface allows operator to quickly & efficiently create programs & diagnose malfunctions in simple terminology. 17" TFT Color monitor; multitask operating system, input/output modules, axes override, 4-axis interpolation, diagnostic graphics aide for programming, machine data & tool management. -- Options Include: BARGSTEADT "TBH 250/QL/25/12" Vacuum Stacker device.Work cap. "X" Axis 98.4" (2,500 mm), "Y" axis 55" (1,400 mm), 2.3" (60 mm) Max. panel thickness.High-speed workpiece stack exchange with a cycle time of 35 seconds; thin work piece device for panels from 8 mm thick. -- Actual Model is HOMAG BHT 500

Houfek Buldog 7-3M-1100-RRC 3 Head wide belt sander43" width cap, Roller / Roller / Combination-headHead Configuration1st Head – Rubber – 90 shore @ 200mm (7.9";) dia.2nd Head – Rubber - 90° shore @ 2000mm (7.9";) dia.3rd Head– Rubber - 45° shore @ 200mm (7.9";) dia. with adjustable platen.Specifications -- Sanding width 1100 mm 43" -- Work piece height 3-160 mm 0.118"~6.3" -- Sand belt size 1120 x 2620 mm 44" x 103" -- Conveyor feed speed 3~15 m/min 9.8~49 FPM -- Table motor 0.18 kW 1/4 HP Equipped with & Features -- Main motor 1st head 18 kW 24HP -- Motor 2nd head 15 kW 20HP -- Motor 3rd head 15 kW 20HP -- Voltage 460/3/60 -- Exhaust outlet (4) 180mm; (1) 100mm (4) 7"; (1) 4" -- CFM requirements 6700 m3/hr 3950 CFM -- Weight 3100 kg (approx) 6820 lbs -- Floor space 3885x1715x2260mm153"x68"x89"

HURST 600 HP Waste Fired Boiler; -- Specifications:Complete in-place system with the following features: -- Decommissioned July 2019. -- 150 PSI. (300 PSI max wp), -- 20,700 Lbs per hour. -- Fuel House, Boiler Building and all Controls -- System has been "pickled" to maintain tube integrity.

HURST 205 HP / 6.9mm BTU / 15 PSIG WET WOODY BIOMASS FIRED BOILER/STEAM PLANT: -- Specifications: Complete in-place system with the following features: -- 205 HP Biomass Wood Fired Boiler, 7,073 PPH, gross steam output @ 212° F. -- Low Pressure "Fire Tube" design fire box model FB-1332-15-UF, built in accordance with ASME Code. -- Operator Interface:Allen Bradley PLC with Power Supply Rack. Pentium-based computer with network & modem remote communication capabilities with operator interface software. -- RSView Runtime for automatic operating of the steam pressure, temperatures, fuel flow & combustion airflow. -- The control system incorporates a 4-20 milliamp steam pressure transmitter to sense any changes in steam flow, boiler pressure, & regulates the fuel feed & combustion airflow accordingly. -- Complete with:Additional details on file for the scope of this Complete System's original project.NOTE: Building that houses Boiler can be included with Boiler if desired by Buyer.

HURST - Series 45: 207.5 HP; 60 PSI Hot Water; Natural Gas Fired Firebox -- SpecificationsBuilt New in 2016; Complete, never installed & ready to deliver! -- Efficient 3-pass design NATURAL GAS FIRED FIREBOX. -- ASME Code constructed & stamped for 15 PSI Stream; 30 - 100 PSI Water. -- Registered with the National Board of Boiler Inspectors. -- Easily maintained, designed for efficiency; large Furnace volume for ultimate combustion efficiency -- Unified refractory base floor; steel skids; lifting eyes. -- Low heat release; Factory insulated. – 2"; Mineral wool, Factory jacketed & painted. -- Easy access to fireside surfaces; ample waterside clean-out openings -- Fully automatic operation; U.L. listed; forced draft Burners. -- Wet back construction. -- U.L. Listed controls & trim. -- Factory test fired, flame observation ports front & rear.Boiler Design. 3-Pass “FireBox"; design with: Stress relieving “Wetback"; firetube construction.Hot Water pressures models are from: 8.5 - 415 HP; 100 PSI max.; 500 - 813 HP; 60 PSI max. built to Section-IV ASME Code.Hot water temperature not to exceed 250° degrees F at or near the outlet of Boiler.Hot Water Model Trim. Safety relief valve; operating temperature control; high limit temperature control with manual reset; combination pressure & temperature gauge; low water cutoff control with manual reset.Hot Water Supply. 180 D/F Return: 160 D/F. -- Fireside Heating Surface: 830 Sq/ft. Furnace volume: 132 Cu/ft. Hot water outlet: 8"; hot water drain: 6"; drain connection: 2".Burner: Matched UL listed “forced draft"; power burners with factory pre-piped, wired and tested fuel configurations for natural gas, propane (LP) gas, No. 2 (diesel) oil, or combination of both gas/oil.All units are factory packaged with operating controls, relief valves, burner, and fuel train. Installation is made simple in that only service connections are needed to place in operation.High density 2"; mineral wool insulation assures lower radiant heat loss. In addition to meeting the requirements of U.L., Burner Systems are optionally available to meet the requirements of FM, IRI, Military, and others. -- Actual model is: HURST S45 – G – 207.5 – 60W

HUSTLER - FC-2, ...ScreenSpecifications: -- OD at the longest point: 104" -- Long at longest point: 122" -- Tall at the tallest point: 65"Equipped with: -- (2) Shutoff switches

HYDREX HPX510-1 Hot Press, Single daylight opening. Suitable for laminating veneer panels/doors, decorative paper, fireproof board, etc.Features (Overall): -- Board size up to 5' x10', -- Front Controls for easy setup & operating configuration, incl. temperatures and cycle time , emergency pedal, quad temperature protection device. -- (8) Cylinders (upstroke) -- 120 Tons of overall pressure, -- Recirculating Thermal Oil heated with package heaters housed in a boiler tank.Detailed Specs: -- 122" x 61" Thermal Oil heated Hot Press with drilled steel platens, 1.5" thick, 4" Max Working height.. -- (8) Hydraulic "upstroke cylinders", 85 mm dia.; rack & Pinion guide system for parallel closing of the platens. -- 120 Ton total pressure, 40 PSI specific pressure over the entire platen area; 4.5 KW (6 HP) hydraulic pump motor. Platen moving speed 5 FPM -- 1.5 kW (2 HP) Hot Oil circulation pump; approx. 120° C (248° F) max. operating temperature. -- Loading from (3) sides; 39-1/2" from floor with lower platen in the down position: heavy I-beam welded steel frame construction. -- "Safety" emergency Stop Cable around the operating sides of the machine, and E-STOP mounted on the control panel. -- Features: "Last" (2) cylinders can be turned off to press shorter panels. - Overall press weight is approx. 19,500 Lbs).

HYDREX HPX510-5 Hot Press 120 Tons with (5) Daylight openings. Suitable for laminating veneer panels/doors, decorative paper, fireproof board, etc.Features (Overall): -- Board size up to 5' x 10', -- Front Controls for easy setup & operating configuration, incl. temperatures and cycle time, emergency pedal, and quad temperature protection device. -- (8) Cylinders (upstroke) -- 120 Tons of overall pressure, -- Recirculating Thermal Oil heated with package heaters housed in a boiler tank.Detailed Specs: -- 122" x 61" Thermal Oil heated Hot Press with drilled steel platens, 1.5" thick; -- (8) Hydraulic "upstroke cylinders", approx. 85 mm dia.; Rack & Pinion guide system for parallel closing of the platens. -- 120 Ton total pressure; 54 kW of heating power. 40 PSI specific pressure over the entire platen area; 4.5 kW (6 HP) hydraulic pump motor. -- 1.5 kW (2 HP) Hot Oil circulation pump; approx. 120° C (248° F) max. operating temperature. -- Max Working height is 4"; Loading from (3) sides; 39-1/2" from the floor with lower platen in the down position: heavy I-beam welded steel frame construction. -- "Safety" emergency Stop Cable around the operating sides of the machine, and E-STOP mounted on the control panel. -- Features: "Last" (2) cylinders can be turned off to press shorter panels. - Overall press weight is approx. 24,000 Lbs. -- Overall dimensions: 3,800 length (+610mm -boiler + 610mm -pump/tank) x 1,790 wide x 2,450 mm high.

HYDREX HPX48-1 Hot Press, Single daylight opening. Suitable for laminating veneer panels/doors, decorative paper, fireproof board, etc.Features (Overall): -- Board size up to 4' x 8', -- Front Controls for easy setup & operating configuration, incl. temperatures and cycle time, emergency pedal, and quad temperature protection device. -- (6) Cylinders (upstroke) -- 80 Tons of overall pressure, -- Recirculating Thermal Oil heated with package heaters housed in a boiler tank.Detailed Specs: -- 98" x 51" Thermal Oil heated Hot Press with drilled steel platens, 1.5" thick, 4" Max Working height.. -- (6) Hydraulic "upstroke cylinders", 85 mm dia.; rack & Pinion guide system for parallel closing of the platens. -- 80 Ton total pressure, 40 PSI specific pressure over the entire platen area; 4 KW (5.5 HP) hydraulic pump motor. Platen moving speed 5 FPM -- 1.5 kW (2 HP) Hot Oil circulation pump; approx. 120° C (248° F) max. operating temperature. -- Loading from (3) sides; 39-1/2" from the floor with lower platen in the down position: heavy I-beam welded steel frame construction. -- "Safety" emergency Stop Cable around the operating sides of the machine, and E-STOP mounted on the control panel. -- Overall press weight is approx. 12,500 Lbs). Overall dimensions 129" x 65" x 102" high.Also available with (3) openings - 100 Tons and (5) openings - 100 Tons.
