GIBEN G4 512 CNC ROUTER (ATC & BORING): -- Specifications:5' x 12' "Matrix" grid Phenolic surface for "Nested Base Manufacturing". -- Working capacity:X-Axis 145.6" (3,700 mm), Y-axis 62.9" (1,600 mm), Z-axis stroke is 9.8" (250 mm), max. material thickness 4.7" (119 mm). -- Positioning Speed:X- & Y-Axis 262 FPM (80 MPM), Z-axis 98 FPM (30 MPM).X- & Y Axes use a precision Rack & Pinion system, Z-axis uses precision ball screws.All axes movement is on precision linear guides & ways and controlled by digital, brushless AC Servo motors.All motion components are maintained by an automatic lubrication system. -- Work area:Flat table design with "Matrix" grid phenolic surface for "Nested Base Manufacturing".(2) Side clamps + (4) external pneumatic pop-up stops for piece positioning at (4) corners of workstations; Automatic NC controlled 8-zone vacuum table.Prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; with "quick connect" vacuum outlet for custom vacuum pods & fixtures. -- Boring Unit:(1) 2.5 HP (1.7 kW) motor, speed 6,000 RPM, "HSD" Boring unit.(9) Independent vertical spindles with: (5) in X-axis & (5) in Y-axis. -- Machining:(1) 15 HP/18 HP peak Air-cooled "ANDERSON" Electro-spindle with: HSK F63 Adaptor, RH & LH rotation; variable speed from 1,000 - 22,000 RPM.(1) 8-Position ride-along ATC tool changer for "on the fly" ATC. NC Controlled "touch-off probe" tool presetting for the measurement of the tool length. -- Operator & Machine Control:PC Front End with ANDI/GIBEN "SYNTEC 21MA PC based Controller" + "WINDOWS" Operating System.19" LCD Flat screen monitor; Server, full keyboard, and mouse all mounted on a mobile cart.Intel(R) Core i CPU; 8 GB RAM memory; 500 GB (SSHD) hard disk; Dedicated graphic card; DVD reader; USB ports; Ethernet card for network connection capabilities. -- Complete with:(2) 250 cbm/Hr (9 HP) "BECKER" vacuum pumps, tool holders, Collets, tool changing stand and manuals. Automatic program update according to the tool length (touch-off probe).Automatic Lubrication system for linear guides, pads, and recirculating ball screw. Teleservice capabilities; perimeter Safety light bars & perimeter fencing; Manuals & Documents on CD. -- Actual Model is GIBEN - G4 512. Machine footprint Floor area 472"; x 197";

GIBEN MATIC 401 SPT REAR LOAD, AUTO. PANEL SAW: -- Specifications:157" (4,000 mm) Overall rip cutting capacity; 5.9" (150 mm) max. saw blade projection;30 HP (22 kW), 2,934 RPM Main saw motor, 22.2" (565 mm) dia. main blade;2.4 HP (1.8 kW), 6,095 RPM Scoring saw motor, 7" (180 mm) dia. scoring blade. -- Saw Carriage:Travel speed 3 - 230 FPM (1 - 70 MPM), 230 FPM (70 MPM) constant return, powered by Inverter drive. -- Pusher Fence:Programmable pusher fence with (10) material gripper clamps (clamps open to 6.3" / 160 mm); Pusher speed 1 - 98 FPM (1 - 30 MPM), return 230 FPM (70 MPM), powered by AC Servo motor on Rack & Pinion system. -- Operator & Machine Control:PC Controller with Windows + Giben "G-DRIVE 2D" operating system; 17" color monitor. Parametrically controlled saw carriage automatically adjusts the cutting speed when cutting narrow trims front-and-back. Editing feature allows programming during operation, downloading from remote PC to the machine controller is possible. -- Rear Load Lift Table:7’ x 13-1/2’ x 18-1/2"; H 4-Column rear load lift table; max. panel size 157" x 63" (5,700 x 1,600 mm);Lift table stroke 31.5" (800 mm); max. stack height without pit or risers 27" (680 mm);Raise & lower speed 2.3 FPM (7.5 MPM); (2) material front aligners located behind the cut line. -- Complete with:(5) Air floatation tables 79" x 20" x 48-1/4" H (2,000 x 510 mm); 62-1/2"; L x 6-1/4"; H Front & Rear fences; Modular rear machine table with non-marking rollers on rails; 5’ x 13-1/2’ x 18-1/2"; H Infeed conveyor with 40-1/2"; H Back stop;(2) Pneumatic side aligners w/automatic pre-positioning by "G-Drive" control, Aligner stroke 2.25" - 87" (70 - 2,200 mm), minimum material width 3.9" (100 mm).Front safety flaps on the pressure beam; rear & side of machine provided with protective guards.6,000 Lb. Cap 48" x 96" Electric/Hydraulic Scissor Lift Platform, with Raised height (Platform surface) 48", Lowered height (Platform surface) 11", 3/4 HP - 1,725 RPM Hydraulic motor, & (4) 3" x 3" Steel tubes welded to platform surface.Actual model is GIBEN MATIC 401 SPTNOTE: Saw carriage servo motor & Axis control card are both inoperable and need to be replaced.

GIBEN - SMART 75 SP: Front-Load, Automatic Panel Saw: -- Specifications149" (3,800 mm) Overall cutting length; 131.8" (3,350 mm) pull back 2.95" (75 mm) max. blade projection.15 HP (11 kW) Main & 1.5 HP (1.1 kW) scoring motor; 3,800 RPM main saw blade; 6,000 RPM scoring blade with external adjustment. -- Saw CarriageVariable saw carriage forward speed: 16 - 164 FPM (5 - 50 MPM); return speed: 197 FPM (60 MPM).Rack & pinion drive; driven by AC brushless Servo motors. -- Pusher FenceElectronically controlled overhead program fence with: (7) Pneumatic gripper clamps; max. clamp opening: 2.56" (65 mm).Variable forward pusher speed: 2-1/2 - 82 FPM (0.8 - 25 MPM); return speed: 131 FPM (40 MPM).Pusher driven on round bar-ways by AC brushless Servo motors. -- Operator & Machine ControlPC Front-End with: Windows "XP" + "Pentium" processor Operating System with: Multitasking & easy programming of very complex cutting patterns.15" CRT Monitor displays: REAL TIME Graphics of cutting dimensions & patterns; program cutting list; manual cuts; diagnostic & online help.Data input by adjustable keypad pendant; standard industrial: Keyboard, mouse & CD-ROM drive; direct downloading from office PC is possible."MOELLER" PLC Guarantees full management of all machine movements (pressure beam; saw carriage; side aligner pusher positioning, etc.).The numerical control: Adjusts the optimum saw blade projection for the stack of panels being cut; sets the most appropriate cutting speed in relation to the stack itself (when necessary to the width of trim cut, too.) -- Rear of Machine(9) Rear support rails with: 80 mm Dia. roller modules; rear of machine enclosed for safety. -- Front of MachineAutomatic side/crosscut aligning device with: 2.4" - 48" (60 - 1,220 mm) stroke; 90" (2,300 mm) long crosscut fence (front-to-back).(1) Front-mounted air floatation table: 20" x 78" (510 x 2,377 mm) & (3) front-mounted air floatation tables: 20" x 60" (510 x 1,524 mm). -- Complete with:G-Lock "Quick Change" saw blade system. -- Actual Model: GIBEN SMART 75 SP.

GIBEN G2 GENESIS 48 CNC ROUTER (ATC & BORING): 4' x 8' Fixed table; moving gantry machine with: Single zone vacuum table. -- Equipped with:(1) 12 HP, ANDI HSK-63F ATC spindle; air-cooled; ceramic bearings; variable spindle speed from: 6,000 - 24,000 RPM. -- 6-Station Automatic Tool Changer & 2 HP 9-spindle vertical drill bank (5 in X- & 4 in Y-Axis). -- Axis Stroke1,300 mm (51") In Y-Axis; 2,500 mm (98.4") in X-Axis; 200 mm (7.8") in Z-axis. -- Max. Feed Rate60 MPM (2,362 IPM) In X- & Y-axis; 30 MPM (1,180 IPM) in Z-axis. -- FeaturesTool Length Measuring System (Tool Touch Off device). -- ControlANDI/SYNTECH Controller with: Network compatible WINDOWS PC based front-end; color monitor; keyboard; mouse.Full function handheld pendant absolute & incremental programming; cutter & tool length compensation; feed rate & spindle speed override; inch/metric operation; linear/circular & helical interpolation. -- Complete with:10 HP BECKER Vacuum Pump; Tool Holder’s collets; Light safety fences. -- Maintenance supplies: Grease, grease guns; full manuals; product literature.

GOLD STAR - STARPRO AG 510: CNC Router w/ATC & Boring -- Specifications5' x 10' FLAT TABLE CNC ROUTER W/ATC & BORING: Great for "Nested Base Manufacturing" or just about any type of 3-Axis work. -- Working Table. 63" (1,600 mm) x 122" (3,100 mm). There are: (5) Sets of pop-up stops to aid in panel positioning & a 6-zone vacuum table system. -- X- & Y-Axis speed. 3,181 IPM (265 FPM / 83 MPM) and Z-Axis: 350 IPM (29 FPM / 12 MPM); for quick traverse positioning that reduces total CNC machining time between cutting cycles. (3) AC Servo Drives - 750 W power the axes movement. -- Industrial machine tool welded structurally engineered machine base provides: Solid foundation for superior cut quality; entire frame is stress relieved & heat treated. -- Moving Gantry Bridge. Travels on large thick hardened & precision ground rectangle linear guide slider-ways giving extra smooth movement for high-speed traverse & accurate cutting. -- Tool Gantry & Bridge Movement: By large, thick Rack & Pinion inclined teeth; vertical axis travels on a large dia. precision ball screw for smooth consistent movement. -- Boring Unit. (1) 9-Spindle Vertical Boring Block with: (5) Independent spindles in "X" axis & (4) independent spindles in "Y" axis. -- Machining. (1) 12 HP (8.9 kW) Air-Cooled Router spindle with: HSK 63F Adaptor; variable programming speeds from: 1,000 to 22,000 RPM. -- Tools are loaded into the spindle by: (1) 8-Position ATC Rack mounted at the end of the machine base. -- Tool heights can be set using the Tool Length setting gauge (included); machine requires ER-32 tool collets. -- CNC Control - Industrial Grade OPEN CNC Control with: Color monitor; includes: self-diagnosis, alarm history display, & background editing; up to (4) simultaneously controlled axes with: 3D simulation; helical interpolation; tool offset, length compensation; backlash compensation. -- Compatible with virtually all CAD/CAM programming software on the market: You choose the software that best suits your needs. -- Complete with: (1) 15 HP (11 kW) "Rotary Vane" dry-type Vacuum Pump. -- Includes: Dust hood with 6" manifold connection; tool Length setting gauge; "MPG" handheld wheel remote; safety bumper system on both sides of the moving bridge' safety bar around the back of the machine.

Gomad "DFDA-455" Sliding Table Single Spindle Shaper -- Specifications: 2-1/64" (55 mm) spindle currently, 7.5 HP belt drive motor, (4) speeds 4,000/6,000/8,000 & 10,000 RPM, 3-9/16" spindle travel, 3/4" up to 2-11/64" dia. interchangeable spindle, reversing spindle rotation; heavy duty 36" x 40" cast iron table, (3) pneumatic clamps, double end fence, 4.5" dia. dust chute. -- Complete with: 13" wide sliding table, (4) Hold down springs, mounting collars & bolts, miter gauge with stop rod, and foot brake, capable of doing arch molding work.NOTE: Don't go too much by the appearance. In running condition before disconnect in 2013, currently stored in the facility's basement.

GOODSPEED HF 412 AO Vertical Oscillating Chair Back Sander Specifications: Table size 30” x 30” x 34-1/4” H. Equipped with: 12" W x 25" L Horizontal abrasive belt, with 12” H x 4” Dia. Aluminum & Spiral rubber drums, 12” H x 3-1/2” Dia. Spiral rubber feed drum, with 2 HP Motor & Variable feed speed control. 60 W Feed & Oscillation motors.

INTOREX TXA-1200 Automatic Hydraulic Copy Lathe;Specifications: -- 1,200 mm (47-1/4") Max. turning length, 210 mm (8-1/4") max. turning diameter. -- Max. turning dia. with standard steady 90 mm (3.5"). -- (2) Hydraulic copiers. -- Max. size of square stock for turning with automatic feed 100 mm (3.9"). -- (3) Tool holder turrets. Hopper feed unit. -- (8) Head speeds in a range from 750 - 5,500 RPM. -- 6 HP or 7.5 HP Headstock spindle motor. -- 4 HP Hydraulic pump motor.

GRANUTECH-SATURN - 62-40, ...Dual Shaft ShredderSpecifications: -- Motors: (2) 100 HP. -- Feed Opening: 62" x 40". -- Dual Shaft with independent Driven Shafts -- Includes: Feed conveyor & discharge conveyor, extra feed hopper; an extra pulley roller that is magnetized for exit end of discharge conveyor (current pulley roller in use is nonmagnetic). -- includes: (2) Service manuals and catwalk structure.

GRANUTECH-SATURN - GRIZZLY 80, ...Grinder Granulator NO MOTOR, LID OR DRIVE TRAINSpecifications: -- Rotor size: 77-1/2" -- Cutting diameter: 34-1/2" -- Main motor: 300 HP -- Speed: 321 RPM -- Number of knives: 50 -- Number of stationary knives: 10 -- Rotor type: STAR

GRASS - ECOPRESS P: Boring Machine (Hinge) -- SpecificationsPneumatic tabletop unit mounted on welded frame base; hinge boring w/GRASS inserter block.(1) 3-Spindle boring head for hinges; 1 HP motor. -- Drill unit & insertion head and (2) spring loaded holddown cylinders operate pneumatically. Boring depth automatically sets to the material thickness being processed. -- Complete with: &#9679 450 x 730 mm Extruded aluminum framework table.&#9679 LH & RH material side stops. -- Actual Model: GRASS ECOPRESS P

GRASS - RAM, ...Drawer PressPneumatic Drawer Press used for pressing & inserting the GRASS SARGEN slide. -- Tabletop mount, foot pedal activation. -- NOTE: Machine is shown "as it is". Additional aluminum base frame was NOT shipped with this machine.

WEINIG - BF600: Batch Finger JointerHorizontal & Vertical Finger Joints -- 20 Ft. Press. -- 1010 Heads. -- APQUIP Glue System. -- Updated Electrical System.Material Capacity (approx.): -- Block length: 6" - 40" (150 - 1,000 mm). -- Block width: 2" - 8" (50 - 205 mm). -- Block thickness:3/4" - 2" (19 - 50mm). -- Press length: 9'-10" - 19'- 8" (3,000 - 6,000 mm). -- 10 HP VICKERS Hydraulic Unit.NOTE: Over ...$ 75 K invested in the last (2) years bringing electrical systems & PLC up to the latest electrical code. -- PLC Computer components were upgraded to SIEMENS in 2021.The machine is now a great mix of a Heavy-Duty machine and a modern PLC. -- Automated board flipper setup for running vertical Finger Joint batches automatically into the Press (reduces one worker role), while producing at least (3) 20 ft. presses a minute.

GRECON PJ 150/500 and PF 10-610 Finger Jointer and PressFinger jointer and Press systemSpecifications: -- Grecon Finger Joint System Including: Model PJ 150/500 Shaper -- Trim Saw 5 HP -- Shaper Head 30 HP -- Glue Application Head -- Timber Width 30 mm - 159 mm (1.2" - 6.25") -- Timber Thickness 12 mm - 80 mm (.5" - 3.15") -- Timber Length 250 mm - 1780 mm (9.84" - 70") -- Infeed Belt Conveyor 20" Wide X 34" LongAfter the Finger joint shaper: -- Manual Roll Conveyor with Rotation for Turning Workpieces 22" X 68" -- Outfeed Belt Conveyor 20" X 39" -- Driven Roll Conveyor 20" X 120" -- Powered Belt Conveyor Prior to Press 7" X 86"Model Press PJ 10/6100 Finger Joint Assembly Press: -- Maximum Pressing Length 240" -- Cut-Off Saw Motor 3HPNote: The machine will be reconditioned upon placement of order.

GREENMAX - EPS-AC-100, ...Cold Press DensifierSpecifications: -- EPS Polystyrene Foam Densifier -- Ratio: 50 to 1 -- Volume: 220 Lbs/Hr -- No Conveyor -- Loaded ont your Truck

GRIGGIO G 1100 Wide belt Sander2-Head, 1,100 mm (43") width cap. -- 1st Head: Rubber covered steel contact roll, duro 85, 220 mm diameter . -- 2nd Head: Rubber covered contact roll duro 50 -- 25 HP motor to drive both head. -- 43" x 85" abrasive belts, electropneumatic abrasive belt tracking, -- Conveyor belt feed, two speed from control panel at 15 and 30 FPM, 0.4/0.7 HP feed drive, automatic conveyor belt tracking, -- 1/8" - 6-1/2" motorized thickness adjustment with LED readout & 0.75Hp gearmotor drive. --Automatic positioning of the working table, rubber covered spring loaded pressure rollers, double infeed and outfeed rubber covered rolls, infeed panel "over-thickness" sensor. --Two suction dust hoods dia. 6" (150mm),

GRIGGIO SC-1500 Table Saw Specifications: -- 60" Cut cap.; 5 HP main motor & scoring motor with 3/4" dia. arbor and 9,000 RPM blade speed; external scoring blade adjustment. -- Features: -- 0° - 45° Tilting 1" dia. main saw arbor, 16" max. blade size, 5.1" max. depth of cut, single blade speed. -- Rip-cut fence assembly adjustable to 60" max.NOTE: Dimensions and weight are approximate.

GRIZZLY G9981 Heavy-Duty Overarm Pin Router Specifications: Throat 25-19/32". Table size 29-3/4” LR x 21-1/2” FB with Table tilt 0° - 45° Forward, Table height 36-1/2" - 42-3/4".Vertical table travel 8". Spindle speeds 10,000 & 20,000 RPM. Spindle travel 3-15/16". Equipped with: 5 HP - 3,450 RPM Motor. Foot pedal control.

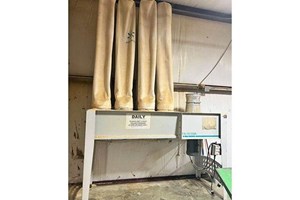

//This machine is in an Auction on exfactoryauctions.com// //Link to machine: http://exf.ac/i60 GRIZZLY G0673 5,360 CFM 4-Bag Portable Dust Collector Specifications: 10 HP, Cloth filtration bag size 23-5/8" Diameter x 70" L, 2.5 micron, plastic collection bag size 23-5/8 Diameter x 54" L, Total collection bag capacity 48 cu. ft. Airflow capacity: 5360 CFM, Intake port(s): 5 x 4 in., Sound rating 98 dB Includes: (4) Waste Barrels NOTE: The above specs are taken from literature and considered accurate. As always please take advantage of the inspection period to verify. Items seen in the background are NOT a part of this Lot.

//This machine is in an Auction on exfactoryauctions.com// //Link to machine: http://exf.ac/i62 GRIZZLY G7214Z Shaper Specifications: 1-1/4" Dia. interchangeable spindle, 7.5 HP - 3,450 RPM motor; 3,600, 5,100, 8,000 & 10,000 RPM spindle speeds via 4-step V-pulley. 5-1/8" Cap. under nut when using the 1-1/4" spindle, 3-1/4" spindle travel, 34-3/4" x 35-1/2" cast iron table, 43" working height. Table Counterbore: 7" dia. x 5/8" deep Complete with: Adjustable Fence with integrated 4" dust collection shroud, reversing switch & magnetic controls, 3-roll power feeder
