Description:

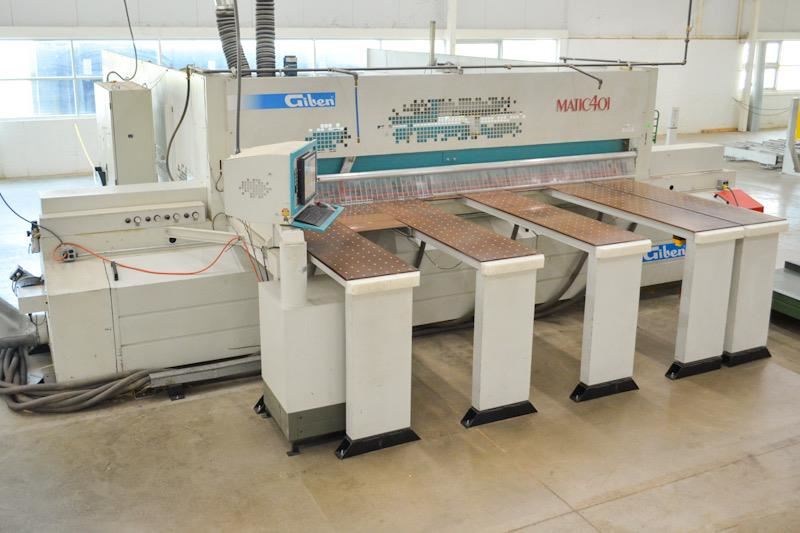

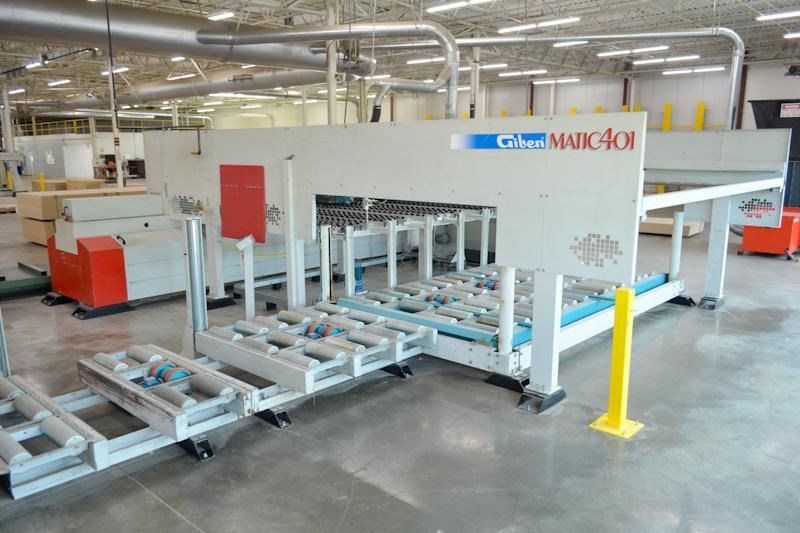

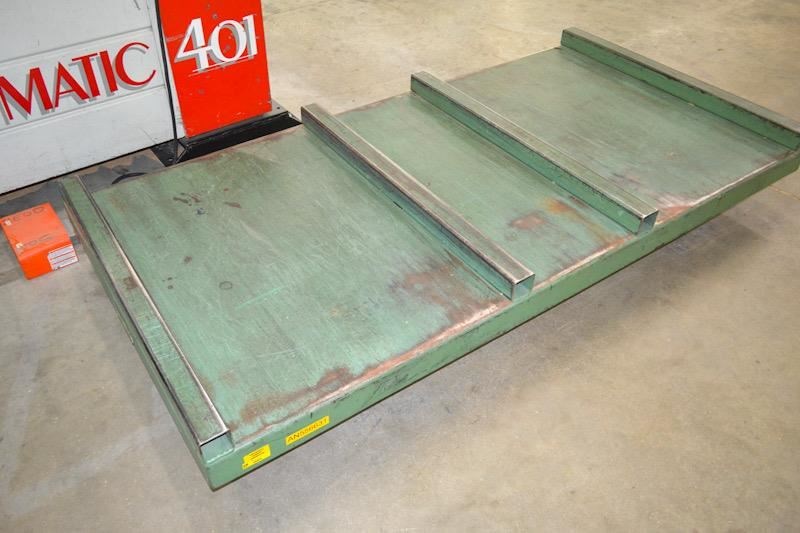

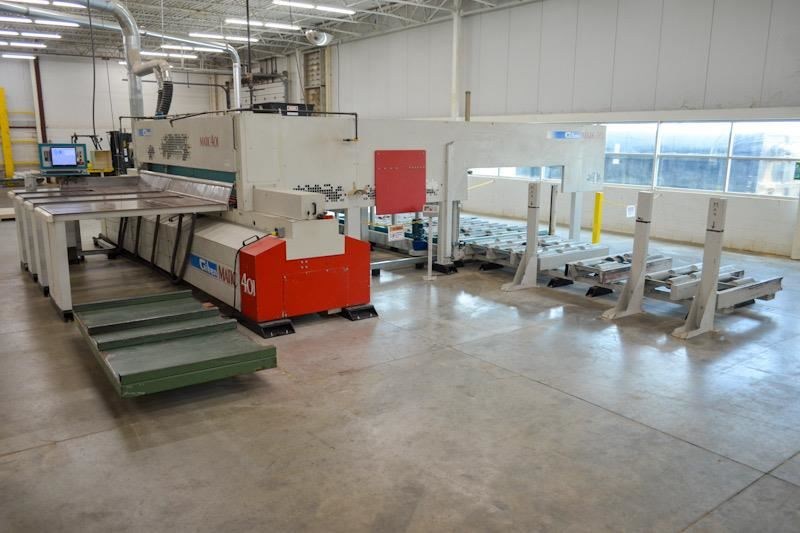

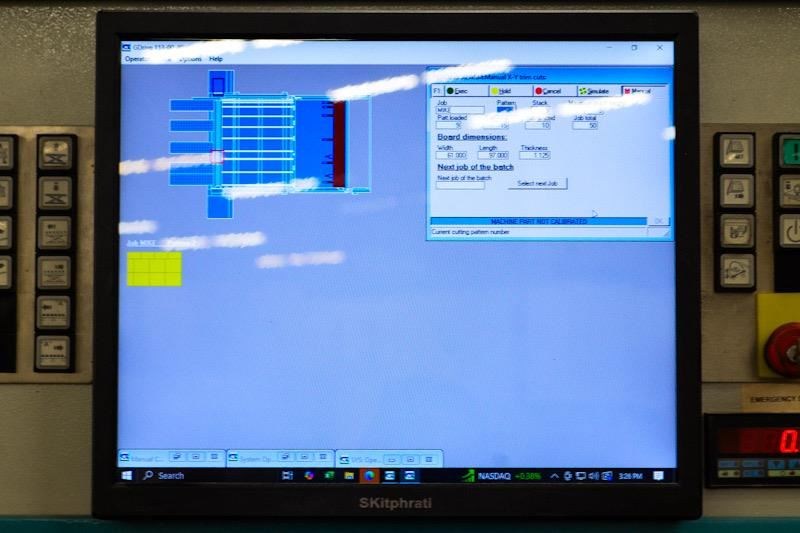

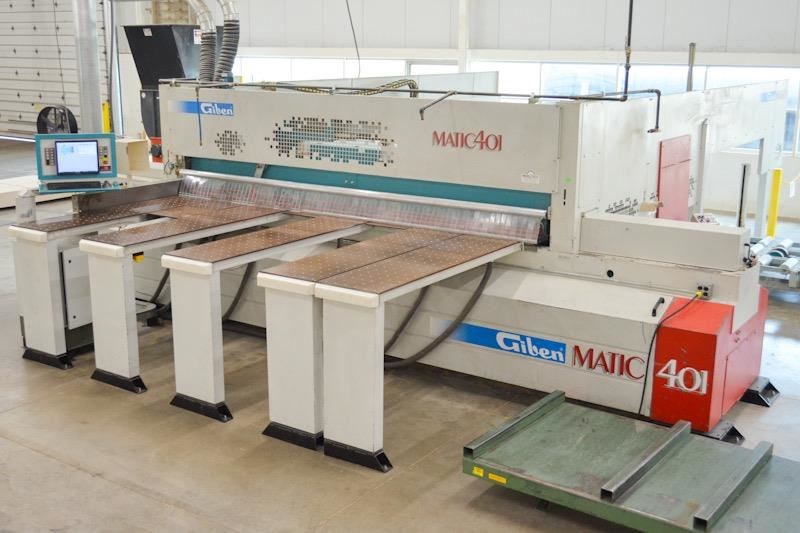

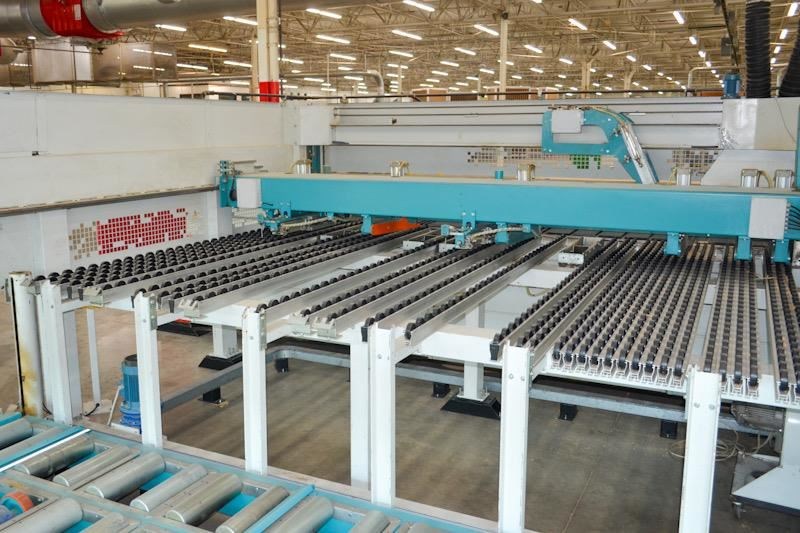

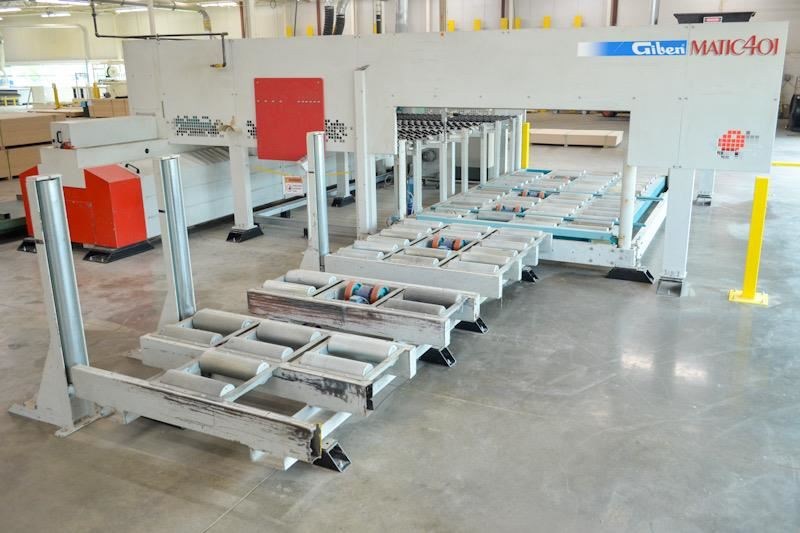

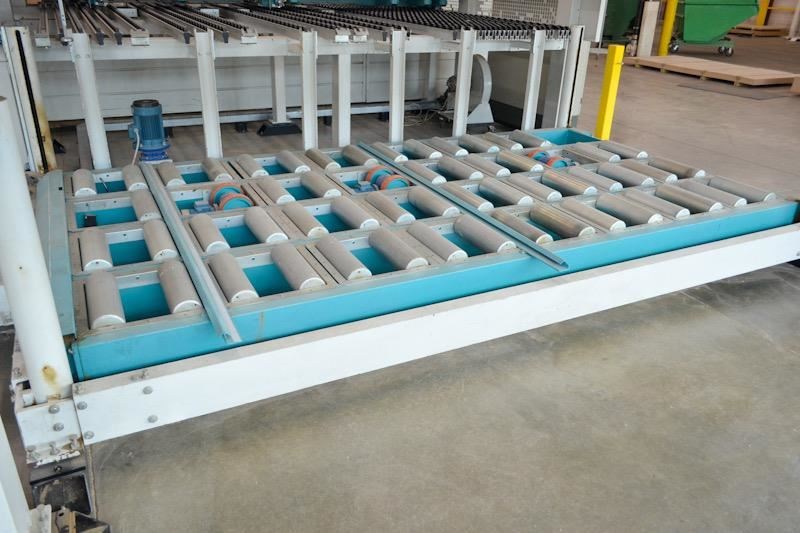

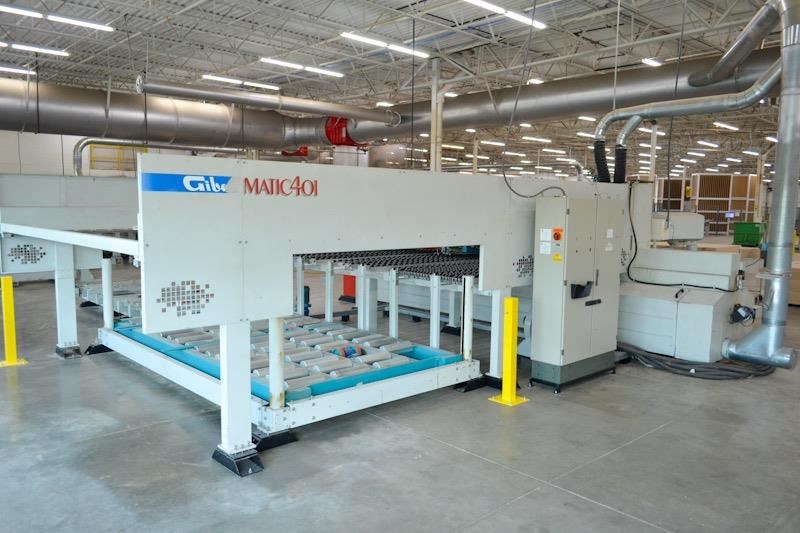

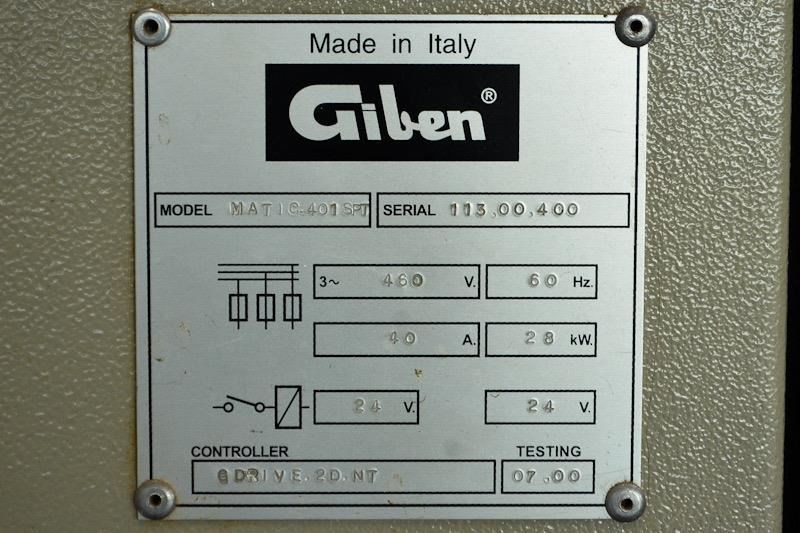

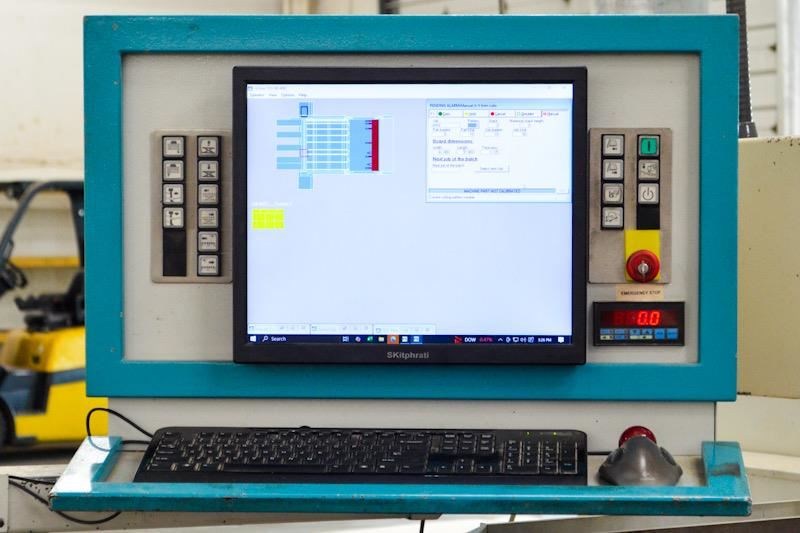

GIBEN MATIC 401 SPT REAR LOAD, AUTO. PANEL SAW: -- Specifications:157" (4,000 mm) Overall rip cutting capacity; 6.69" (170 mm) max. saw blade projection;30 HP (22 kW), 2,934 RPM Main saw motor, 22.2" (565 mm) dia. main blade;2.4 HP (1.8 kW), 6,095 RPM Scoring saw motor, 7" (180 mm) dia. scoring blade. -- Saw Carriage:Travel speed 3 - 230 FPM (1 - 70 MPM), 230 FPM (70 MPM) constant return, powered by Inverter drive. -- Pusher Fence:Programmable pusher fence with (10) material gripper clamps (clamps open to 6.3" / 160 mm); Pusher speed 1 - 98 FPM (1 - 30 MPM), return 230 FPM (70 MPM), powered by AC Servo motor on Rack & Pinion system. -- Operator & Machine Control:PC Controller with Windows + Giben "G-DRIVE 2D" operating system; "OPTISAVE" on-board pattern planner/optimizer & color graphic interface; 15" color monitor. Parametrically controlled saw carriage automatically adjusts the cutting speed when cutting narrow trims front-and-back. Editing feature allows programming during operation, downloading from remote PC to the machine controller is possible. -- Rear Load Lift Table:4-Column rear load lift table; max. panel size 157" x 63" (5,700 x 1,600 mm);Lift table stroke 31.5" (800 mm); max. stack height without pit or risers 27" (680 mm);Raise & lower speed 2.3 FPM (7.5 MPM); (2) material front aligners located behind the cut line. -- Complete with:(5) Air floatation tables 79" x 20" (2,000 x 510 mm); Modular rear machine table with non-marking rollers on rails;(2) Pneumatic side aligners w/automatic pre-positioning by "G-Drive" control, Aligner stroke 2.25" - 87" (70 - 2,200 mm), minimum material width 3.9" (100 mm).Front safety flaps on the pressure beam; rear & side of machine provided with protective guards.6,000 Lb. Cap 48" x 96" Electric/Hydraulic Scissor Lift Platform, with 3/4 HP - 1,725 RPM Hydraulic motor.Actual model is GIBEN MATIC 401 SPTNOTE: Please check back for video.
