Description:

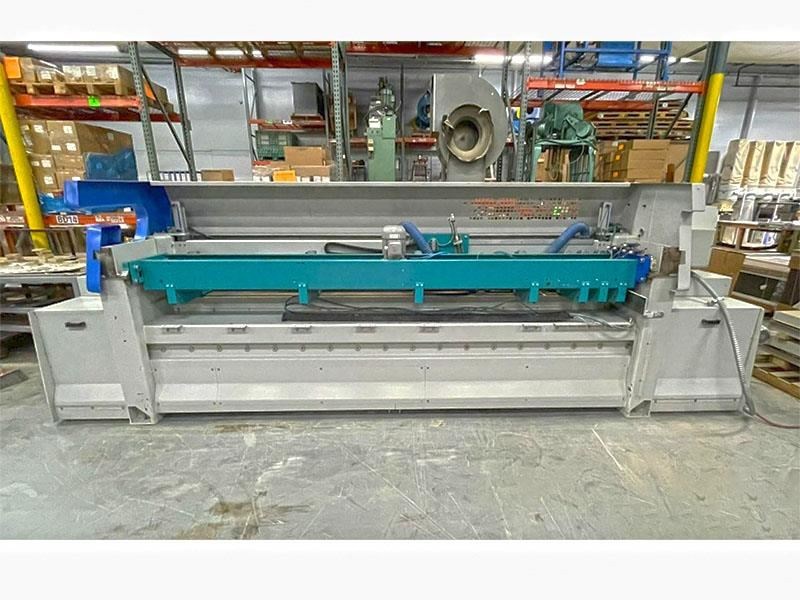

GIBEN SMART 75 SP FRONT LOAD, AUTOMATIC PANEL SAW: -- Specifications: 149" (3,800 mm) Overall cutting length, 131.8" (3,350 mm) pull back 2.95" (75 mm) max. blade projection.15 HP (11 kW) main & 1.5 HP (1.1 kW) scoring motor, 3,800 RPM main saw blade & 6,000 RPM scoring blade with external adjustment.. -- Saw Carriage:Variable saw carriage forward speed 16 - 164 FPM (5 - 50 MPM), return speed 197 FPM (60 MPM);Rack & pinion drive, driven by AC brushless Servo motors. -- Pusher Fence:Electronically controlled overhead program fence with (7) pneumatic gripper clamps, max clamp opening 2.56" (65 mm).Variable forward pusher speed 2.5 - 82 FPM (0.8 - 25 MPM), return speed 131 FPM (40 MPM);Pusher driven on round bar-ways by AC brushless Servo motors. -- Operator & Machine Control:PC front end with Windows "XP" + "Pentium" processor operating system with multitasking & easy programming of very complex cutting patterns.15" CRT monitor displays REAL-TIME graphics of cutting dimensions & patterns, program cutting list, manual cuts, diagnostic & on-line help.Data input by adjustable key pad pendant, standard industrial keyboard & mouse & CD-ROM drive; direct downloading from office PC is possible."Moeller" PLC guarantees full management of all machine movements (pressure beam, saw carriage and side aligner pusher positioning, etc.).The numerical control adjusts the optimum saw blade projection for the stack of panels being cut and sets the most appropriate cutting speed, in relation to the stack itself, and when necessary to the width of trim cut too. -- Rear of machine:(9) Rear support rails with 80 mm dia roller modules; rear of machine enclosed for safety. -- Front of machine:Automatic side/crosscut aligning device with 2.4" - 48" (60 - 1,220 mm) stroke. 90" (2,300 mm) Long crosscut fence (front-to-back);(1) Front mounted air floatation table 20" x 78" (510 x 2,377 mm) & (3) Front mounted air floatation table 20" x 60" (510 x 1,524 mm). -- Complete with:G-Lock "Quick Change" saw blade system. -- Actual Model is GIBEN SMART 75 SP
