Planers For Sale

YATES AMERICAN B-26 Top & Bottom Rough Lumber Planer24" x 4" Opening cap., 3/4" to 4" thickness capacity; 46" minimum unbutted length capacity;Specifications: -- (1) 75 HP DMD motor power hoisted top head, (1) 40 HP DMD motor bottom head, 8" dia. cutting circle at 3,450 RPM. -- 40 HP Hydraulic power unit for variable feed rate from 75 to 400 FPM, 12" dia. Urethane tire top feed rolls, 12" dia. non-powered lower rolls. Equipped with: -- Carbide spiral cutterheads, automatic pressure bar release (hydraulically operated), hydraulic top & bottom headlocks, anti-lap bar device, air tensioned & released chipbreaker. -- Complete with: Built-in top & bottom jointers, dust hoods, electrically interlocked safety guards, and small remote operator's console.

YATES AMERICAN - B-26: Top & Bottom Rough Lumber Planer24" x 4" Opening cap.; 3/4" - 4" thickness capacity; 46" min. unbutted length capacity.Specifications -- (1) 75 HP DMD Motor power hoisted top head; (1) 40 HP DMD motor bottom head; 8" dia. cutting circle at 3,450 RPM. -- 2 HP Hydraulic power unit; variable feed rate: 75 - 400 FPM; 12" dia. urethane tire top feed rolls; 12" dia. non-powered lower rolls. Equipped with: -- 10-Knife Carbide cutterheads; automatic pressure bar release (hydraulically operated); hydraulic top & bottom headlocks; anti-lap bar device; air tensioned & released chipbreaker.Complete with: -- Built-in top & bottom jointers. -- Dust hoods (not shown on picture). -- Electrically interlocked safety guards. -- Top infeed /outfeed rubber rollers.

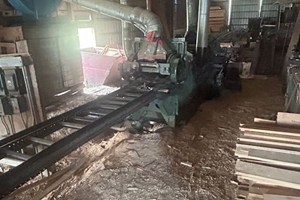

Yates-American Planer Mdl. 415M, S/N: 25264, $30,000

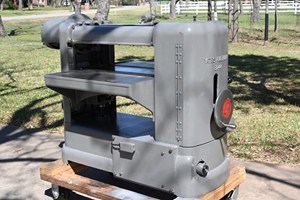

YATES-AMERICAN - B-244: 30" Planer30" x 8" Cap., 7-1/2 HP - 3,600 RPM direct drive motor; 4-knife 4-1/4" dia. cutterhead; 1/8" min. material thickness; 11" min. unbutted stock length; 3-1/4" min. butted stock length. -- 30" x 40" Cast iron table bed; manual raise-and-lower on (2) 1-3" /8 dia. hoist screws; belt drive feed system; variable speed 25 - 70 FPM; (2) 4" dia. powered upper rollers with: Sectional top in feed roll; (2) 4" dia. bed rollers; sectional chipbreaker. Fully restored in 2025 -- 240 VAC, 3 Phase, 3600 RPM; 7-1/2 HP direct drive cutterhead motor; 3/4 HP separate drive train motor. -- 4-Wheel drive: All (4) rollers are powered for stock feed. -- Segmented infeed roll & chip breaker: Both rebuilt with: New springs; spring caps; graphite lubricant. -- (2) New, hardened 52100 steel bearing shafts; heat treated at SW Metal Treating in Fort Worth; precision ground at Fort Worth Centerless grinding. -- Fully repaired & insulated leads on the motor stator. Stator was fully checked at "T-Gray Electric" in Dallas; all tests passed. Results report included. -- Upgraded threaded riser shafts from: 1-1/4" to 1-3/8". -- Improved REEVES Drive motor mount collar. -- Rebuilt drive train motor with: New bearings. -- New TIMKEN cutterhead bearings; new needle bearings where required. -- Dynamically balanced cutterhead and motor rotor assembly. -- New cutterhead knives. -- Rebuilt power transfer shaft housing. -- New transmission frame & speed adjustment linkage. -- Rebuilt speed control knob. -- (2) new drive train chains. -- Everything: Fully stripped, degreased, derusted, primed, painted. -- Custom start button console. -- Table & table rollers: Residual rust pitting that does not affect performance or surface finish. -- Custom dust chute with: 8" hose adapter.
