Planers For Sale

(3) Baker Wood Wizzes 6x, variable speed 5.5 HP motors, 480 volt with 6X cutter heads available, The Wood Wizz is a machine that is designed to surface and finish slabs, burls, tabletops and even recycled timber with a lower labor input. The machine is ideal for woodworkers who want to add value to their material and produce a perfect finish without any tearing, ridging, or burn marks. The Wood Wizz runs on a X, Y and Z axis. It includes a large 6" cutter, 10 square cutter inserts, speed controller, two inverters, sanding disk with pads & sand paper, dust tower, dust hosing and fittings. Also includes an edging/joining cutter to combine two or more pieces of material flawlessly. 3 machines very lightly used and in perfect shape. 6x wood wizz footprint is 7’7” wide x 19” 6” long, processing area is 6’ wide x 17” 10” long adjustable leveling legs, welded steel frame. $20,500, 21,000 and 21,500 each. Machines all have about the same hours and are approximately 4 to 6 years old. Contact Michael at [email protected] 828 779 7102 Machinery located in Jacksonville Fl.

Buss 55 Wood Planer does both sides at the same time 60", comes with trailer, good working condition. $35,000 814-221-3059

Selling a complete Planermill Line -Infeed, tilthoist, landing table, pineapple feed and transfer. -Stetson Ross 6-10-A1 Planer/Moulder c/w assortment of changeable 12 knife side heads can dress up to 6” thick, 8 knife top/bottom heads, 12” wide. Moulder heads with plenty of attachments. -Outfeed Belt, Slowdown Belt, accumulation transfer, lug loader, board turner, Canadian Trimmer with an assortment of trim length stops, trim block belts, green chain and stacking carts. Great planermill, ran 120,000fbm per shift when in production. 600V, 3phase, 60Hz system. Call/text for more details

Whitney S-205 Planer 30", 3PH, great operating condition from brother's estate, phase converter available. Price Reduced! $12,500 OBO. 301-501-6344

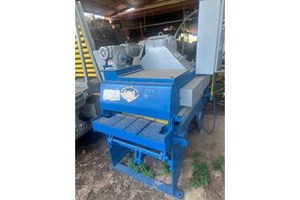

Brewer BR-425 Step Planer

Brewer Step Planer 24in, BR425, S/N 12286, 50HP Electric Motor Up to 6" thick

16” Width Capacity insert cutterheads Approx 15 HP Top Head Approx 10 HP Bottom Head Feed 23-65 FPM 220 Volt 3 Phase

BUSS - DL 30" x 8", ...Heavy-Duty Wood Planer with GrinderModel "DL" bed capacity: 30" W x 65" L x 8" H,Specifications -- (2) Large steel support rollers on bed; upper area: (1) Steel roller. -- (1) Cutterhead with: (4) Knives; (1) grip through roller. -- Heavy-Duty spring tension adjustment on top of machine. -- (2) 15 HP - 3 PH motors; one connected to 20-ratio gear reducer, variable feed speed drive; the other connected to the cutterhead system. -- Upper cross frame attachment for Knife Grinder System (comes with the Grinder).Equipped with & Features -- Oil cup & grease fitting lube system. -- Power raising and lowering of the Planer bed.

BUSS - 44, ...36" PlanerSpecifications: -- 36" x 8" Cap. -- 20 HP - 3,600 RPM Direct drive single Top Head. -- Spiral cutter-head with grinding attachment. -- Top sectional infeed rolls, sectional chip breaker. -- 1/16" Min. to 8" max. manual opening with indicator. -- Min. stock length of 14" and 4" butted.Equipped with & Features: -- Manual table raise-and-fall. -- Infeed variable speed from 28 - 85 FPM. -- Knife Grinding/Jointing equipment. -- Pressure lubricator. -- Push button magnetic control & shaving hood.

BUSS M 4L 30" STRAIGHT KNIFE PLANER30" X 8" Cap., 20 HP direct drive top motor, 1.5 - 2 HP for dual feed speed, 4-knife round top cutterhead, sectional infeed rolls and chipbreaker. Complete with: Shaving hood, magnetic starters.

CAM-WOOD INFEED AND OUTFEED PLANER TRANSFER LINE: 20"; Wide X 20’ Long Roller Conveyors with 6,000 lbs capacity and Consisting of the following: NON POWERED IDLE INFEED RIGHT ANGLE ROLLER TRANSFER CONVEYORS -- (4) Conveyor Sections, each 14"; Wide X 8’ Long (SEE DRAWING). -- 2-11/64"; Roller Diameter -- Rolls on 3"; Centers to Handle 2"; x 4"; and Wider -- Supports up to 6,000 lbsPOWERED INFEED CANTED ROLLER CONVEYOR -- With VFD Drive with speed feed 18' to 70 FPM -- 22"; Wide X 20’ Long -- Heavy Duty 3-11/32"; Roll Diameter -- (9) Rolls on 36"; Centers -- (5) Pneumatic jumped transfer roll -- Back Side Adjustable FencePOWERED OUTFEED STRAIGHT ROLLER CONVEYOR -- With VFD Drive with speed feed 18' to 70 FPM -- 22"; Wide X 20’ Long (Longer with Owner Provided Outboard Roller) -- Heavy Duty 3-11/32"; Roll Diameter -- Rolls on 36"; Centers -- Includes (4) Sections of Pneumatically Jumped Skate Rolls -- Heavy Duty Type, Sections are 6"; Wide X 20"; Long NON POWERED IDLE OUTFEED RIGHT ANGLE TRANSFER ROLLER CONVEYORS (SEE DRAWING) -- (4) Conveyor Sections, each 14"; Wide X 8’ Long. -- 2-11/64"; Roller Diameter. -- Rolls on 3"; Centers to Handle 2"; x 4"; and Wider -- Supports up to 6,000 Lbs.

CAM-WOOD PL-12SX 12" Wide Top & Bottom Straightening PlanerFeatures & Equipped with: -- Spiral Insert Cutterheads. -- Standard equipped with Automatic Thickness Controller, easy and quick setting for the cutting thickness. -- Top & bottom carbide cutter heads for accurate and powerful two-sided planing in one pass. -- Auto digital thickness control for quick and accurate setup. -- The worktable surface was precision ground and then electric chrome-plated and polished to a smooth mirror finish. The durable wear resistance surface is easy to clean and maintain. -- A heavy-duty feed conveyor with metal spikes firmly holds stock securely to the worktable and feeds positively giving a smooth finish for rough or final planing. -- Variable speed control by inverter for smooth adjustment of feed rate depending on the material hardness, depth of cut & width to provide the best finish surface and fast cutting performance. -- The in-feed conveyor is fitted with numerous pressure pins so the feeding process can be firmly stabilized. It will moderately press the stock, and then an accurate planing surface can be performed to prevent jumping during the processing of narrow or bent material. -- The (4) power feed rollers are driven with a geared transmission box linked with a heavy-duty drive chain and gears to provide a smooth even feeding during rough or finish planing. -- A twist torsion anti-kickback device provides additional safety. It’s designed to work in conjunction with the built-in conveyor stop. It safeguards mechanical parts in case of overload Specifications: -- 7-1/2 HP Top Head Motor -- 5 HP Bottom Head Motor -- 12-1/2"; Max. Working Width -- 4-3/4"; Max. Working Thickness -- 19/32"; Min. Working Thickness -- 13"; Min. Working Length -- 1/4"; Max. Cutting Depth per Head -- 2 HP Feed Motor -- Feed Speed (Inverter drive) from 15 to 52 FPM -- 5,000 RPM Cutter Head Speed -- 1/2 HP Elevation Motor -- With (2) 6" diameter dust outlets -- Spiral Insert Cutterheads with (45) 12 x 30 x 1.5 mm carbide insert knives with (2) cutting edges. Allows for fast, accurate insert changes and minimum downtime -- If required, change of electrics, will be quoted separately

CAM-WOOD PL-18 18" Wide Top & Bottom Straightening Planer. -- 18" Planer with straight knife heads with HSS knives for accurate and powerful two-sided planning in one pass.ADD for Spiral Heads with Carbide Insert Knives... $4,000.00Specifications: -- 17-3/4"; Max. Planning Width. -- 3/8 to 8" Max. Planning Thickness. -- 1/4"; Max. Cutting Depth. -- 10"; Min. Planning Length. -- 15 to 70 FPM Feeding Speed (Inverter Driven). -- 4,200 RPM Cutter Straight Knife Head Speed. (6,000 RPM for Spiral Cutter Head). -- (4) Knife Cutterheads. -- 15 HP Upper Motor. -- 10 HP Bottom Motor. -- 2 HP Feed Motor. -- 1/2 HP Elevation Motor. -- Table Size (L x W) 88" x 16". -- N.W. 6,500 Lbs.Features: -- Standard equipped with automatic thickness controller, easy, accurate and quick setting for the cutting thickness. -- Upper & lower straight knives or spiral cutterheads for accurate and powerful two-sided planing in one pass. -- The worktable surface is precision ground and then electric chrome-plated and polished to a smooth mirror finish. The durable wear resistance surface is easy to clean and maintain. -- A heavy-duty feed conveyor with metal spikes firmly holds stock securely to the worktable and feeds positively giving a smooth finish for rough or final planning. -- Stepless variable speed control for smooth adjustment of feed rate depending on the material hardness, depth of cut & width to provide the best finish surface and fast cutting performance. -- The infeed conveyor is fitted with numerous pressure pins so the feeding process can be firmly stabilized. It will moderately press the stock, and then accurate planing of the surface can be performed to prevent jumping during processing of narrow or bent material. -- The (4) power feed rollers are driven with a geared transmission box linked with heavy-duty drive chains and gears to provide a smooth even feeding during rough or finish planning. -- A twist torsion anti-kickback device provides additional safety. It’s designed to work in conjunction with the built-in conveyor stop. It safeguards mechanical parts in case of overload. -- The heavy-duty rigid cast iron frame supports the worktable, helps dampen vibration and ensures years of dependable service. -- Powerful industrial motor for maximum cutting capacity. -- All precision sealed long-life bearing for durability -- A swivel stand is designed for convenient knife changing on the bottom cutterhead. -- Changing the knife on the upper cutterhead only requires removal of the upper dust chute. -- The optional spiral insert head design allows for fast, accurate insert changes and minimum down time. -- Setup time is minimized to set cutterhead height using the auto material thickness device. -- The top and bottom cutterheads are precision balanced to provide consistently smooth chatter-free planing regardless of the feed rate or hardness of material being planed. -- A powerful motor is utilized to make adjustments quickly

CAM-WOOD PL-24 TOP & BOTTOM STRAIGHTENING PLANER8" x 24" Capacity Planer for accurate and powerful two-sided planing in one pass.Includes (1) set of Spiral Insert Cutterheads with (1) set of 15 x 15 x 2.5 mm Carbide Knives with (4) Cutting EdgesReplacement Knives: CT-SCH-15T 15 x 15 x 2.5 mm Spiral Knives - $3.60 EACHDeduction for HSS Knives in lieu of Carbide Insert Spiral Heads - Deduct $3,000 Specifications: -- 25"; Max. Planning Width, 3/8" to 8"; Max. Planning Thickness. -- 1/4";Max. Cutting Depth. -- 12"; Min. Planning Length. -- 15 to 70 FPM Feed Speeds (Variable). -- 4,200 RPM Cutter Head Speed. -- Spiral Carbide Insert Cutterheads with 15 x 15 x 2.5 mm carbide insert knives with (4) cutting edges -- 25 HP Top Head Motor. -- 20 HP Bottom Head Motor. -- 5 HP Feed Motor and 1/2 HP Elevation Motor. -- Net weight 7,200 Lbs. Equipped with: -- Standard equipment includes Automatic Thickness Controller for quick, accurate thickness adjustments. -- Top and bottom Spiral Carbide Insert Cutterheads with 15 x 15 x 2.5 mm Insert Knives for accurate and powerful two-sided planing in a single pass. -- The Planer’s table surface is precision ground then chrome-plated and polished to a mirror finish; wear resistance, easy to clean and maintain.Feed System: -- Heavy-duty upper feed carpet (conveyor) with spring-loaded steel “fingers"; holds stock firmly against the Planer’s table; prevents stock splitting while providing positive feed and smooth finish for rough and finish planing. -- The conveyor (carpet) is fitted with numerous pressure pins, or fingers, which firmly holds and stabilizes stock during the planing process. Fingers apply moderate pressure to the stock and provides accurate planing while preventing wide cupped boards from splitting and feeding problems while planing narrow material. -- (4) Powered feed rolls are driven via a gearbox linked to heavy-duty chains and sprockets; provides smooth even feeding during rough and finish planing. -- Stepless variable speed control (Inverter driven) for smooth adjustment of feed speed depending on the material hardness, depth of cut & width; allows for the best finish and feed speed. -- Anti-kickback device provides safety and is designed to work in unison with a conveyor stop. Safeguards mechanical parts in case of overload situations.Features: -- The heavy-duty CAST IRON frame supports the worktable, helps dampen vibration, and ensures years of dependable service. -- Powerful industrial motors for maximum cutting capacity. -- All precision sealed-for-life bearings for long and durable use. -- A built in cutterhead stand is designed for convenient knife changing at the bottom cutterhead. -- Changing knives on the upper cutter head only requires removal of the upper dust chute. -- Setup time is minimized to set cutter head height using the auto material thickness device. -- The top and bottom cutter heads are precision balanced to provide smooth, chatter-fre

CAM-WOOD PL-38 TOP & BOTTOM STRAIGHTENING PLANERIncludes (1) set of Spiral Insert Cutterheads with (1) set of 15 x 15 x 2.5 mm Insert Carbide Knives with (4) Cutting EdgesReplacement Knives: CT-SCH-15T 15 x 15 x 2.5 mm Spiral Knives - $3.60 EACHDeduction for HSS Knives in lieu of Carbide Insert Spiral Heads - Deduct $8,000Specifications: -- 3" to 38"; Max. Planning Width -- 3/8" to 7"; Max. Planning Thickness. -- 1/4"; Max. Cutting Depth. -- 12"; Min. Planning Length. -- 15 to 52 FPM Feed Speeds (Variable). -- 4,000 RPM Cutter Head Speed. -- Spiral Carbide Insert Cutterheads with 15 x 15 x 2.5 mm carbide insert knives with (4) cutting edges 40 HP Top Head Motor. -- 20 HP Bottom Head Motor. -- 5 HP Feed Motor -- 2 HP Elevation Motor. -- Net weight 9,800 Lbs. Equipped with: -- Standard equipment includes Automatic Thickness Controller for quick, accurate thickness adjustments. -- Top and bottom Spiral Carbide Insert Cutterheads with 15 x 15 x 2.5 mm Insert Knives for accurate and powerful two-sided planing in a single pass. -- The Planer’s table surface is precision ground then chrome-plated and polished to a mirror finish; wear resistance, easy to clean and maintain.Feed System: -- Heavy-duty upper feed carpet (conveyor) with spring-loaded steel “fingers"; holds stock firmly against the Planer’s table; prevents stock splitting while providing positive feed and smooth finish for rough and finish planing. -- The conveyor (carpet) is fitted with numerous pressure pins, or fingers, which firmly holds and stabilizes stock during the planing process. Fingers apply moderate pressure to the stock and provides accurate planing while preventing wide cupped boards from splitting and feeding problems while planing narrow material. -- (4) Powered feed rolls are driven via a gearbox linked to heavy-duty chains and sprockets; provides smooth even feeding during rough and finish planing. -- Stepless variable speed control (Inverter driven) for smooth adjustment of feed speed depending on the material hardness, depth of cut & width; allows for the best finish and feed speed. -- Anti-kickback device provides safety and is designed to work in unison with a conveyor stop. Safeguards mechanical parts in case of overload situations.Features: -- The heavy-duty CAST IRON frame supports the worktable, helps dampen vibration, and ensures years of dependable service. -- Powerful industrial motors for maximum cutting capacity. -- All precision sealed-for-life bearings for long and durable use. -- A built in cutterhead stand is designed for convenient knife changing at the bottom cutterhead. -- Changing knives on the upper cutter head only requires removal of the upper dust chute. -- Setup time is minimized to set cutter head height using the auto material thickness device. -- The top and bottom cutter heads are precision balanced to provide smooth, chatter-free planing regardless of the feed rate or hardness of planed material.

CAM-WOOD MODEL PL-40-SH 40" TOP AND BOTTOM SURFACER with Spiral CutterSPECIFICATIONS: -- 40"; Maximum Working Width. -- 12-1/4"; Maximum Working Thickness. -- 2"; Minimum Working Thickness. -- 1/2"; Max. Depth of cut (Per Side). -- 4,500 RPM Cutter Head Speed. -- 6-1/4"; Cutter Head Diameter. -- 15 x 15 x 2.5mm Spiral Cutter Head Carbide Insert Knives. -- 30 HP Top Cutter Head Motor -- 20 HP Bottom Cutter Head Motor -- 2 HP Elevation Motor -- (2) 5 HP Feed Motors -- Feed Speed (Variable by Inverter drive) from 12 to 55 FPM -- 5-3/4 Feed Roll Diameter. -- Universal Joint & Shaft Drive System. -- Machine Weight, 11,600 Lbs. -- Machine Size (L x W x H) 81" x 106" x 63". FEATURES: -- Roll feed eliminates slipping when running green and heavy wood. -- Universal Joint and Shaft Driven Feed Rolls ensure adequate feeding power for wet, rough lumber as well as warped, cupped and bowed material and provide needed power transmission against heavy cutting depths. -- Top and bottom feed rolls are directly driven by universal joints and drive shafts for full-power transmission. -- A movable control box provides additional convenience in operation and setup. -- Standard equipment includes automatic thickness control to aid in easy and quick setting for the thickness to be planed. -- Worktable surface is precision ground and electric chrome-plated and polished to a smooth mirror finish. The durable wear-resistance surface is easy to clean and maintain and promotes good feeding of all types of wood. -- Stepless variable speed control (VFD) for smooth adjustment of feed rate depending on the material hardness, depth of cut & width. Used to provide the best finish surface and fast feed performance. -- Twist torsion anti-kickback device provides additional safety. It’s designed to work in conjunction with the built-in conveyor stop. It safeguards mechanical parts in case of overload. -- Heavy, rigid cast iron frame supports the worktable, helps dampen vibration and ensures years of dependable service. -- Powerful industrial-duty motors for maximum power transmission. -- All precision sealed, long-life bearings for durability. -- A swivel stand is designed for convenient knife changing on the bottom cutterhead. -- Setup time is minimized to set cutterhead height using the auto material thickness device. -- The top and bottom cutterheads are precision balanced to provide consistently smooth, chatter-free planing regardless of the feed rate or hardness of material being planed.

CAM-WOOD MODEL PL-52 SHX TOP AND BOTTOM SURFACERSpecifications: -- 52"; Maximum Working Width -- 12-1/4"; Maximum Working Thickness -- 1/2"; Minimum Working Thickness (3/8" on request) -- 1/2"; Max. Depth of cut (Per Side) -- 4,000 RPM Cutter Head Speed -- 6-1/4"; Cutter Head Diameter -- 15 x 15 x 2.5 mm Spiral Cutter Head Carbide Insert Knives -- 40 HP Top Cutter Head Motor -- 30 HP Bottom Cutter Head Motor -- 2 HP Elevation Motor -- Feed Speed (Variable by Invertor drive) from 12 to 55 FPM -- 5-3/4 Feed Roll Diameter -- (2) 5 HP Feed Motors -- Machine Weight, 15,700 Lbs -- Machine Size (L x W x H) 81" x 112" x 63" Features: -- Roll feed eliminates slipping when running green and heavy wood. -- Universal Jointed Shaft Feed Rolls to ensure adequate feeding power for wet, rough lumber as well as warped, cupped and bowed material for heavy cutting depths -- Top and bottom feed rolls are directly driven by universal joints and drive shafts for full-power transmission. -- Movable control box provides additional convenience in operation and setup. -- Standard equipment includes automatic thickness control to aid in easy and quick setting for the thickness to be planned. -- Worktable surface is precision ground and then electric chrome-plated and polished to a smooth mirror finish. The durable wear-resistant surface is easy to clean and maintain and promotes good feeding of all types of wood. -- Stepless variable speed control for smooth adjustment of feed rate depending on the material hardness, depth of cut & width. Used to provide the best finish surface and fast feed performance. -- A twist torsion anti-kickback device provides additional safety. It’s designed to work in conjunction with the built-in conveyor stop. It safeguards mechanical parts in case of overload. -- Heavy, rigid cast iron frame supports the worktable, helps dampen vibration, and ensures years of dependable service. -- Powerful industrial-duty motors for maximum power transmission. -- All precision sealed, long-life bearings for durability. -- A swivel stand is designed for convenient knife changing on the bottom cutterhead. -- Setup time is minimized to set cutterhead height using the auto material thickness device. -- The top and bottom cutterheads are precision balanced to provide consistently smooth, chatter-free planing regardless of the feed rate or hardness of material being planed.

CAM-WOOD WP-1010H 40"; Heavy Duty Planer with S.C.H.Features & Specifications: -- Precision ground cast iron table with motorized worktable raising & lowering manual adjustment by hand wheel via (2) large lead screws. -- Digital thickness display with touchpad positioning control for accurate thickness adjustments. -- Maximum thickness capacity 8" -- 5" Spiral cutterhead with 4-sided carbide inserts provide precise, efficient planing with low noise levels. -- With (4) each 4" diameter dust outlets -- 20 HP Main drive motor. -- 3 HP Variable feed speed 10 to 50 FPM. -- Maximum depth of cut 1/4". -- Sectional steel infeed roller & segmented chip breaker. -- Independently adjustable feed rollers. -- (2) Externally adjustable bed rollers. -- Hinged top for easy access to cutterhead & gear assembly. -- Self-braking motor. -- Magnetic starter & thermal overload switch. -- Emergency stop. -- Operations manual, parts list & tool kit. Machining Specifications: -- Max. Cut Width 40" -- Max. Cut Thickness 8" -- Max. Cut Depth ¼" -- Min. Cut Length 9" -- Cutting Speed 3600 RPM -- Table Size (W x L) 43" x 55" -- Main Motor 20 HP, 3 Ph -- Feed Motor 3 HP -- Table Raising Motor 1 HP -- Feed Rate (Variable) FPM 10 ~ 50 -- Net Weight 4,750 Lbs -- Shipping weight 5,500 LbsFOR UPGRADE TO 25 HP ADD ...$900.00

CAM-WOOD WP-1400H 52"; Heavy Duty Planer with S.C.H.55" Cap. solid cast iron construction planer with powerful 25 HP motor.Features & Specifications: -- Precision ground cast iron table with motorized worktable raising & lowering, manual adjustment by hand wheel via (2) large lead screws. -- Digital thickness display with touchpad positioning control for accurate thickness adjustments. -- 5" Spiral cutterhead with 4-sided carbide inserts provide precise, efficient planning with low noise levels. -- With (4) each 4" diameter dust outlets. -- Sectional steel infeed roller & segmented chipbreaker. -- Independently adjustable feed rollers. -- (2) Externally adjustable bed rollers. -- Hinged top for easy access to cutterhead & gear assembly. -- Self-braking motor. -- Magnetic starter & thermal overload switch. -- Emergency stop. -- Operations manual, parts list & tool kit. Machining Specifications: -- Max. Cut Width 52". -- Max. Cut Thickness 8". -- Max. Cut Depth ¼". -- Min. Cut Length 9". -- Cutting Speed 3,600 RPM. -- Table Size (W x L) 55" x 55". -- Main Motor 25 HP, 3 Ph. -- Feed Motor 5 HP. -- Table Raising Motor 1 HP. -- Feed Rate (Variable) 0 ~ 50 FPM. -- Shipping weight 7,400 Lbs.

CAM-WOOD WP-16L- V5HX 4 Sided 5 Heads High Speed Planer Designed for furniture, cabinet, flooring, intermittent planning mill work, and other industrial uses. Perfect Planer for S2S and S4S planning, tongue & groove flooring, wall paneling, etc. up to approximately 180 FPM depending on depth of cuts and dimensions of partsSpecifications: -- Width: ¾"; to 16"; -- Height: 3/8"; to 4"; -- Length: Maximum Unlimited, Minimum 70";. -- Maximum Cutting Depth; 8 mm -- Feed Rate 40 to 180 fpmFeatures:Horizontal Top & Bottom with Slip-On Spiral Head or Optional Profile cutter head, Tooling Information. -- Standard supply with Slip-On HAR Series Profile / Spiral Cutter head, Profile Knives combined with Carbide Insert 15 x 15 x 2,5 mm. Max depth of cut 8 mm each side (Standard 7"; O.D. Shaft 46 mm): Vertical with Helical or Optional Profile cutter heads -- Left & Right Side/ Standard HAR Series Vertical profile heads. -- Max depth of cut 8mm, 7"; OD, Spindle arbor diameter: 40 mm, -- Left & Right-side Heads can be profile work with owner provided tooling. Fifth head for moulding or sawing -- 15 HP Top Saw Head, raise/lower power digital by HMIQuality Features: -- Simple touch screen with Digital Positioning Controllers for width, thickness adjustment and variable feed speed. -- Hard Chrome plated table for long life -- Automatic top spindle – cutter head height adjustments entered via HMI touch screen control with PLC. -- Floating bottom infeed rolls for smooth, positive feeding -- Variable feed speeds by VFD. Controlled from touch screen. -- Heavy-duty spindle assemblies for durability & smooth finishes. -- Overhead assembly travels up/down and positions via touch screen control, Assembly is support by (4) hard chromed, polished posts and precision screws. -- Tables, fences, etc. are precision ground, polished and hard chromed to provide long life and smooth feeding. -- Massive, heavy-duty sheet metal frame for vibration absorbing finishes and extra-long bearing life. Compact construction with exclusive see-through top guard. -- Motor Control Center with under voltage and overload protection. UL and CSA labeled electric components.Motor Sizes and Feed Works: -- Top and Bottom Cutter Heads Motors each: 30 HP, 5,000 RPM -- Right & Left Side Cutter Motors each: 25 HP, 5,000 RPM -- Second top head for Top saw head, raised and lowered motorized digitally by HMI, drive motor 15 HP -- Variable Feed speeds from 40 to 180 FPM by VFD (invertor) -- Feed is powered by (2) each 5 HP VFD feed motors, (1) motor drives the top infeed and (1) Motor drives the top outfeed feed rolls. Top powered feed rolls are air cylinder loaded / Floating. (4) idle bottom infeed feed rolls and (4) idle bottom outfeed rolls.Overall dimensions: 167" X 71" X 73".
