Equipment For Sale

GANNOMAT INDEX 230 TREND CNC BORE, GLUE & DOWEL INSERTER: -- SpecificationsCNC Controlled horizontal Point-to-Point Drilling, Gluing & Dowel Inserting Work Center for absolute, incremental, variable (parametric) programming of boring patterns. -- Working FieldStop system (side fences) consisting of: Right hand, left hand, and center stop (all removable).(4) Independent zones for individual processing of (1 to 4) pieces. -- "X" Axis:Positioning speed: 246 FPM (75 MPM); CNC controlled and driven by rack & pinion for fast acceleration/deceleration of working unit. -- "Y" Axis:Set by mechanical digital counters. -- "Z" Axis:CNC Centering height adjustment of boring/inserting from the control. -- Working Length:2,300 mm (90-1/2") x 1/2" - 3-1/8" Material thickness; use as 2-field, LH & RH @ 1,150 mm (45-1/4") wide or 4-field with center fence, LH/RH - LH/RH @ field 570 mm (22.4") wide to increase throughput on smaller parts like drawers, stretchers, etc. -- Hold-down Cylinders:Total of (8) pneumatic, "quick change". -- Dowel Driving & Horizontal Boring:Integrated into (1) station; the dowel driving unit is located alongside the boring station; both units are mounted on (1) support. -- Horizontal Drilling Spindle:Can be setup for 6 - 8 or 10 mm, dowel length from 25 - 50 mm. -- Doweling Station includes Vibrating Hopper with: (1) Single-drop device and (1) outlet tube; insertion head & dowel driving with air impulse; mechanical dowel diameter & dowel length control prevents the insertion of any oversized dowels; setup for 8 mm dia. x 35 mm long dowels. -- Glue Valve/Amount:Controlled via software and can be adjusted by milliseconds; (2) standard separate stainless steel 1-1/2-gallons pressurized tanks (one for glue, one for water for occasional rinsing cycle). -- Operator & Machine Control: Windows "XP Pro" Operating System interphase and BECKHOFF "C3640 Twincat" PLC; easy to program GANNOMAT production software.Equipped with 15" Color monitor, CD-ROM drive, network card (for online operation); serial, parallel & USB interphase & soft-foil covered keyboard. -- Complete With: The unit is in good working condition. Includes docs, manuals and software CD's -- Options include:A new backup PLC that is unused. -- Actual model is: GANNOMAT INDEX 230 TREND.

GANNOMAT COMBI 110 CONSTRUCTION LINE BORER(23) Spindle head, 2 HP - 2,800 motor, 31-1/2" max. working width, 3" drilling stroke, drills vertically from bottom and horizontally from rear, tilts pneumatically from lower to rear position with positive stop at 45° for angle drilling. -- Holddown clamp assembly tilts 90° for clamping short panels vertically for edge boring, no need to swivel boring head, hydraulic brake for through boring. -- Complete with: (4) Pneumatic holddowns, mirror imaging fences, 4,000 mm line boring fence w/stops and 1,500 mm butt joint fence with (2) flip stops.

GANNOMAT INDEX 280 TREND CNC BORE, GLUE & DOWEL INSERTER: -- Specifications:CNC Controlled horizontal Point-to-Point Drilling, Gluing & Dowel Inserting Work Center for absolute, incremental, variable (parametric) programming of boring patterns. -- Working Field(4) Independent zones for individual processing of (1 - 4) pieces. Pneumatically activated Stop system (side fences) consisting of: Right-hand, left-hand, and center stop. Max. single part Length 2,800 mm (110"). As a 2-zone: LH & RH is 1,400 mm (55") each part. As a 4-zone with center fence: LH/RH is 700 mm (27.5") each part.Min/Max. Material Thickness 0.50" - 3.125" "X" Axis Positioning Speed 246 FPM (75 MPM) and driven by rack & pinion for fast acceleration/deceleration of working unit. "Y" Axis is set by mechanical digital counters. "Z" Axis is NC controlled height adjustment for boring/inserting units. -- Hold-down Clamps:Total of (10) pneumatic, "quick change" Hold-down Clamps. -- Dowel driving & horizontal boring:Integrated into (1) station; the Dowel Driving Unit is located alongside the Boring Station; both units are mounted on (1) support. -- Horizontal Drilling Spindle:Can be setup for 6 - 8 or 10 mm; dowel length from 25 - 50 mm. -- Doweling Station includes:Vibrating hopper with: (1) Single drop device and (1) outlet tube; insertion head & dowel driving with air impulse.Mechanical dowel diameter & dowel length control prevents the insertion of any oversized dowels. -- Glue Valve/Amount:Controlled via software and can be adjusted by milliseconds; (2) standard separate stainless steel 1.5 gal. pressurized tanks (one for glue, one for water to clean/purge the glue tubes. -- Operator Interface:GANNOMAT + BECKHOFF "C3640 Twincat" PLC Operating System.15" Touch-Screen color monitor; network card (for online operation); serial, parallel, USB ports. -- Actual model is: GANNOMAT INDEX 280 TREND. NOTE: Machine is currently setup for 8 mm dia. x 35 mm long dowels.

GANNOMAT - CONCEPT 70 ECO PLUS: Case Clamp (Semi-Automatic): -- SpecificationsMultipurpose Case Clamp with: Interlocking vertical & horizontal pressure beams specially designed to save time & labor. -- Clamping pressure is applied across the entire vertical & horizontal beams for clamping of case goods, drawers, etc. -- Working CapacityLength: Min. 6" (150 mm); max. 98.4" (2,500 mm); height: Min.: 6" (150 mm); height max.: 51" (1,300 mm); depth max.: 27-1/2" (700 mm). (2) Potentiometer for stepless adjustable pressing force; adjustable clamping cycle time with automatic opening.Minimum pressing force: 300/500 kG; max. pressing force: 2,200 kG.(4) Pressing velocities & adjustment rates: 5 /10 / 25 / 50 mm per Sec (with fine positioning/creep feed). -- Operator InterfaceElectronic controller with Keypad for the following functions: Manual operation; (6) individual push-buttons for: (8) Motion sequences; pressure regulation; workpiece count; clamping dwell time. -- Actual model: GANNOMAT CONCEPT 70 ECO PLUS.

GANNOMAT - INDEX 130 LOGIC: CNC Bore, Glue & Dowel Inserter + Laser Measuring Device -- SpecificationsGANNOMAT "INDEX LOGIC" is: CNC Controlled Point-to-Point Drilling/Gluing/Dowel Insertion Machine for variable programming of boring patterns. -- "X" & "Y" Axis set by manual digital indicators; "Z" Axis adjusted via CNC controlled Servo drive. -- Working Width1,300 mm (51") x 3/4" - 7-3/4" Width x 1/2" - 3-1/8" material thickness with: (4) Independent working zones & LH/RH (mirror image).Table size: 4-1/2" x 52-3/4" x 35" H with 9" x 52" extension. -- (8) Vertical hold-down cylinders & zero center stop for horizontal part processing. -- Dowel Driving & Horizontal Boring: Integrated into (1) station; the dowel driving unit is located alongside the boring station; both units are mounted on (1) support. -- Horizontal Drilling & Boring Station: Head can be setup for 6 - 8 or 10 mm, dowel length from 25 - 50 mm (currently set up for 8 mm dia. x 50 mm long dowels). -- Doweling Station: Vibrating hopper; insertion head & dowel driving with air impulse; glue valves are controlled individually at the control cabinet; central adjustment for the amount of glue by means of a digital timer. -- Operator Interface: GANNOMAT Production software; 15" color touchscreen monitor interface; USB drive; bar code capable. -- Controller & Drive: BECKHOFF "C3620 TWINCAT V2.10". -- Complete with: (1) Glue tank; (1) water tank; auto lubrication system, and all original manufacturer's machine documentation. -- Actual Model is: GANNOMAT INDEX 130 LOGIC.

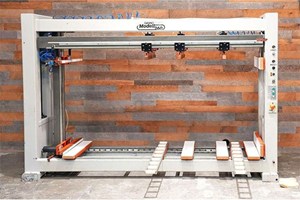

GANNOMAT 260 CASE CLAMP (SEMI-AUTOMATIC): -- Specifications: 100" x 50" x 26" Clamping Cap., (3) vertical combination air cylinders & shoes mounted on horizontal beam for top pressure, 0.33 HP motor for up/down travel. -- (2) Combination air cylinders & shoes mounted on adjustable vertical, side pressure beam. Vertical beam locks in place with (4) air cylinders and rides on bearings for quick and easy positioning. -- Push-button operated w/independent pressure control for top or side, air pressure up to 125 PSI (Clamp shoe assemblies are interchangeable from vertical to horizontal). -- Complete with: -- Pressure gauges and timer control with (0 - 30) Min setting. -- Options Include: Dual removable/adjustable infeed roller

Boring/Inserting aggregate travel on profile bearing guides with: 3 spindle boring unit – Horizontal 1 Spindle Routing unit – Horizontal 1 Blowing, gluing, dowel inserting unit for a single selected dowel 6 – 12mm diameter, 25 – 60 mm length – Horizontal Barcode reader Fully automatic electronically controlled central lubrication Closed gluing system with variable setting of glue amount by touch screen Selector switch GLUE/WATER for quick rinsing of entire system 1½ gallon glue Stainless steel container 1½ gallon water Stainless steel container Glue control warning light 1 Right-hand stop, 1 left-hand stop, and 1 center stop, all removable (3) Starting buttons for individual processing of 1-4 work pieces (8) Pneumatic clamping cylinders for work piece thickness max 80mm, work piece length minimum 70mm 1 Exhaust ducting, with connection diameter 80mm Programming by menu-based software; Beckhoff 15? Touchscreen display Operating system: WINDOWS 7

Gannomat Pro-Line 50 • Row of holes as well as line drilling in the SYSTEM 32 mm • 50 (2 x 25) holes in one drilling cycle

GANNOMAT - INDEX 130 LOGIC: CNC Bore, Glue & Dowel Inserter -- SpecificationsGANNOMAT "INDEX LOGIC": CNC Controlled Point-to-Point Drilling/Gluing/Dowel Insertion Machine for variable programming of boring patterns. -- "X", "Y" & "Z" Axis set by manual digital indicators. -- Working Width1,300 mm (51") x 3/4" - 7-3/4" Width x 1/2" - 3-1/8" material thickness with: (4) Independent working zones & LH/RH (mirror image).Table size: 4-1/2" x 52-3/4" x 35" H with 9" x 52" extension. -- (8) Vertical hold-down cylinders & zero center stop for horizontal part processing. -- Dowel Driving & Horizontal Boring: Integrated into (1) station; the dowel driving unit is located alongside the boring station; both units are mounted on (1) support. -- Horizontal Drilling & Boring Station: Head can be setup for 6 - 8 or 10 mm, dowel length from 25 - 50 mm (currently set up for 8 mm dia. x 50 mm long dowels). -- Doweling Station: Vibrating hopper; insertion head & dowel driving with air impulse; glue valves are controlled individually at the control cabinet; central adjustment for the amount of glue by means of a digital timer. -- Operator Interface: MS-XP & GANNOMAT Production software; 15" color touchscreen monitor interface; USB drive; bar code capable. -- Controller & Drive: BECKHOFF "C3620 TWINCAT V2.10". -- Complete with: (1) Glue tank; (1) water tank; auto lubrication system, and all original manufacturer's machine documentation. -- Actual Model is: GANNOMAT INDEX 130 LOGIC.

GANNOMAT 260 CASE CLAMP (SEMI-AUTOMATIC): -- Specifications: 100" x 50" x 26" Clamping Cap., (3) vertical combination air cylinders & shoes mounted on horizontal beam for top pressure, 0.33 HP motor for up/down travel. -- (2) Combination air cylinders & shoes mounted on adjustable vertical, side pressure beam. Vertical beam locks in place with (4) air cylinders and rides on bearings for quick and easy positioning. -- Push-button operated w/independent pressure control for top or side, air pressure up to 125 PSI (Clamp shoe assemblies are interchangeable from vertical to horizontal). -- Complete with: -- Pressure gauges and timer control with (0 - 30) Min setting.

Approx. 1999 GAP 960 3 Stringer Nailer with Stacker

Gap 960 3 Stringer Pallet Nailing Machine S/N 99929

Air compressor was used in food processing and is very clean, variable feed, 250 HP Seller will load on your truck, ref # 203, Call 931-797-6284 Motivated seller make a good offer

Gardner-Denver 200HP Screw Compressor S/N N2079

50HP Gardner Denver Screw Air Conpressor

Gardner-Denver 50HP Air Compressor

Gardner Denver Air Compressor - 25 HP - Gardner Denver Air Dryer - 250 Gallon reservoir and stand

Gardner Denver Electra Saver II 50HP Screw Air Compressor

Gardner Denver Electra-Saver II 75HP Screw Compressor

2005 | Stringer Feeder | 480v | Board Hoppers | Great Running Condition
