Equipment For Sale

SCM SI 350 N - 10-1/2', ...Sliding Table SawSpecifications: -- Cutting length 3,200 mm (126"); max. depth of cut: 118 mm (4.65") at 90°; 81 mm (3.19") at 45°. -- Main saw: 6.6 kW (9 HP) Motor; blade dia. 250 - 350 mm (9.84" - 13.78"); arbor dia. 1"; arbor tilt 0° - 45°; blade speed 4,000 RPM. -- Scoring saw: 0.75 kW (1 HP) Motor; max. blade dia. 120 mm (4.72"); arbor dia. 20 mm (3/4"); blade speed 8,500 RPM; external scoring blade adjustments.Equipped with: -- 14-1/4"; x 126"; x 35-1/2"; H Aluminum sliding table; 630 mm (24.80") x 1,040 mm (40.94") Fixed table. -- 2-Position table lock mechanism; manual raise, lower & tilt. -- Mechanical digital tilt indicator. -- Pivoting blade guard with dust outlet.Complete with: -- 47-1/4"; L x 3-1/2"; H Rip Fence with: 67" Cutting width cap. -- Crosscut Fence with: 84" Cutting cap.; (2) flip stops & Sliding outrigger support.

SCM TECNOMAX SC/4 WS 8-1/2' Sliding Table SawSpecifications: -- Max. depth of cut with 315 mm (12.40") Dia. blade: 100 mm (3.94") at 90°, 70 mm (2.76") at 45°. -- Main saw: 3.6 kW (4.82 HP) Motor, Blade dia. 315 mm (12.40"), Arbor tilt 0° - 45°, Blade speed 4,000 RPM. -- Scoring saw: Blade dia. 100 mm (3.94").Equipped with: -- 11-1/2"; x 102"; x 35-1/2"; H Aluminum sliding table, 840 mm (33.07") LR Fixed table. -- Manual raise, lower & tilt. -- Mechanical digital tilt indicator.Complete with: -- 39-1/4"; L x 3-1/2"; H Rip fence, with 51" Cutting width cap. & Cam-locking. -- 650 x 1,100 mm (29.59" x 43.32") Squaring frame, with Crosscut fence with 1,800 mm (70.87") Cutting cap., (2) Flip stops & Sliding outrigger support.Actual model is SC/4 WS-N.

SCM MINIMAX - FORMULA S1, ...Sliding Table SawSpecifications: -- 120" Cap. with: Scoring; 9 HP main motor & belt driven scoring blade; -- Manual tilting of the arbor 0° - 45°; Manual raise-and-lower of the main blade; -- 50" crosscut capacity with a movable fence.Features: -- "Easy-Set" scoring adjustment; heavy cast iron trunnion; 12" main saw blade dia. with 1" Arbor, 110 mm scoring blade dia.; -- Max. cutting height 3-1/2" at 90° & 2-3/4" at 45°; 1-speed arbor; 8,000 RPM on scoring blade. -- Complete with: 4" Main dust extraction outlet, miter fence & crosscut fence assembly with (2) flip stops.

SCM PRATIX S-15-B FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications:Single 5' x 12' traveling "Bridge Gantry" and stationary aluminum dual vacuum table with a MATRIX square grid pattern for fixturing parts.Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining".(8) Part location pop-up pins mounted on the table perimeter. -- Working field:"X" Axis is 145.11" (3,686 mm); "Y" axis is 61.2" (1,555 mm); "Z" axis stroke is 9.8" (250 mm); max. material thickness 4" (100 mm). -- Positioning Speed:"X" & "Y" Axis 115 FPM (35 MPM); "Z" axis at 82 FPM (26 MPM); closed loop AC Servo drive system.High precision "Rack & Pinion" system in "X" & "Y" axis & ground ball screws "Z" axis; all axes ride on extra large precision profile linear guideways. -- Boring Unit:3 HP (2.2 kW) - 6,000 RPM motor; (7) vertical spindles on 32 mm centers, (5) in "X" axis & (2) in "Y" axis. -- Machining:(1) 9 HP (6.7 kW) Air-cooled electro spindle with HSK F63 adaptor; variable spindle speeds from 1,500 - 24,000 RPM.(1) 14-Position ATC tool rack mounted to the machine base. -- Operator & Machine Control:PC Front End with: "XILOG Plus" + Windows "XP Pro" Operating System; 17" high resolution LCD; ergonomic keypad.USB Ports, serial ports RS-232 & RS-242 & Ethernet adaptor; programs can be transferred via disk or downloading by wire is possible.All computer components are mounted on a mobile stand.XILOG Plus Offers: Incredible list of functions from: (a) Auto-diagnostic to (z) zooming; controlled acceleration & deceleration, encoder feedback, dynamic tool correction via PLC due to active tool wear using space-and-time criteria. -- Additionally equipped with:Onboard mini-CAD with built-in programming for writing circles, ellipses & angles with only a few keystrokes; Onboard cycle optimization, onboard calculator, mirror-imaging, and repeat imaging. -- Complete with:(1) 300 m³/Hr Vacuum Pump; external transformer 208/230/480 Volt; safety enclosure around the spindle carriage; tool length probe sensor; manual centralized lubrication.Includes: (1) Universal Remote Pendant, 7" color display allows for the effective management of all machine functions from manual Jog Mode to loading & execution of a program.The pendant is fitted with a USB port to allow quick load & setup of new programs; safety "bump-stop" bumpers; emergency stop rope & manuals. -- Actual Model is SCM - PRATIX S-15-B.

SCM S 630 PLANER WITH TERSA HEADSpecifications: -- 24" Width cap.; 12 HP main motor, 2 HP feed motor; 4-3/4" dia. with reversible knife TERSA Planer Head rotates @ 4,500 RPM; -- 1/8" - 11-3/4" Thickness opening via motorized bed with LED readout for fine adjustment. -- Max. depth of cut 5/16"; 10" min. length of work piece; variable infeed speed from 20 - 56 FPM.Equipped with: -- 20-3/4" x 39" Cast iron table, sectional chip breaker, sectional grooved infeed & solid outfeed rollers, adjustable bed rollers. -- neoprene out feed rollersComplete with: -- Magnetic starter and dust hood w/6" dia. dust outlet.Owner states: Condition- like new 24" thickness planer- third owner in a one man shop. Machine has seen very few hours of operation.

SCMI - K201 HFE: Single Sided Edgebander1/8" Max. edge cap.; 1-1/2" max. panel thickness; semiautomatic strip & coil feed magazine (manual single strip feed); Teflon coated glue pot w/fast 8-Minute heat up time; 1.2 mm cap. guillotine. -- Workstations: Single motor front & rear end trim; 0.8 HP - 10,000 RPM motor; top & bottom flush trims, 0.8 HP - 27,000 RPM ea. motor; straight or 12° bevel cutters. -- Top & Bottom buffing unit, 0.25 HP - 2,800 RPM motors; 25 FPM fixed feed speed with 0.8 HP drive. -- Complete with: Sound enclosure, frequency converter, and used tooling.

Worktable dimensions: 145? x 61? Z -Axis stroke: 9.84? Spindle speed: 24,000 RPM Electrospindle (S1/S6 rating): 7.5 HP / 9HP Tool Changer: 10 position Spindle Taper: HSK 63 Boring Block (7) Spindles: 6,000 RPM Maximum positioning vectorial speeds: X/Y axis: 115 feet/minute Electrics: 208/230/460 volts, 3-phase, 60 cycles EQUIPPED WITH: Windows Based Operating system 17” Flat Panel Monitor Remote Pendant with 7? Display 7-Spindle Boring Block Touch Probe Spindle Air Blowers Built In Vacuum Pumps- 2 Zones

SCM OLIMPIC K 560 T-ER2 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- SpecificationsEdge Capacity: 0.4 to 6 mm (0.016 to 1/4") For strip feeding. -- Panel Capacity: Min. panel width: 60 mm (2.375"); min. panel length: 140 mm (5-1/2").Min./max. panel thickness: 8 - 54 mm (0.375" - 2.125"); min. distance between panels: 600 mm (24").Equipped with: -- Pre-milling Station: (2) 2.0 HP (1.5 kW) motors; rectifies/cleans panels already sized. -- Adjustable Infeed Fence: Manually preset with digital indicator; pneumatic in/out positioning. -- Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils. -- Gluing Station: "SGP" for EVA (Hot Melt) with quick change/disconnect Teflon glue pot for fast glue tanks change if needed; heat up time approx. (10) Min. -- Pressure Section: Manual digital positioning; Teflon coated pneumatic driven roller, and (2) spring loaded idle rollers.Workstations -- End Trimming Station: (2) Front & rear 0.5 HP - 12,000 RPM motors, mounted on THK guides; swivels 0° - 15° for straight & angle cutting. -- Top & Bottom Trimming Unit: (2) 0.7 HP - 12.000 RPM Motors; capable of tilting & pneumatic positioning for (3) settings: Flush/bevel/radius trimming for quick setup. -- Corner Rounding Unit "Round 2M" with: (2) 0.8 HP Independent motors that slide on THK guides. -- Top & Bottom Profile Scraping Unit with: Digital indicators; large dia. copy wheels for max. accuracy and pneumatic in/out positioning. -- Glue scraping Unit "RC-N": Eliminates any excess glue. -- Buffing Unit "SP-V": (2) Top/bottom 0.25 HP - 2,800 RPM motors; tilting up to 12°.Operator Interface -- "STARTOUCH" Controller with: 12" Touchscreen display; capable of storing (100) programs. -- Machine automation by PLC function and encoder positioned in the panel feed track pinion. -- Diagnostics for a quick solution to errors: Process statistics data (i.e., number of pieces/edges) and track feeding.Features & Complete with: -- 2-Speed feed speed of 40 & 60 FPM (12 & 18 MPM); (1) 2.5 HP feed drive motor. -- 200 Hz Frequency inverter for all trimming units. -- Electronic Positioning of the top hold-down pressure beam. -- Nesting Copying Device. -- Full sound enclosure cover and outboard panel support. -- Actual Model is: SCM OLIMPIC K 560 T-ER2

SCM Olimpic K360 Edgebander

SCM - Concept 2000, ...Double End Tenoner.Double End Tenoner with: Jump scoring, Hogging, Shaping with stacked tooling. -- 122" Opening cap., motorized opening with keypad entry & LED readout, 12" infeed chain area in front of holddowns. -- 0" - 4" Motorized thickness opening with mechanical digital readout. -- 6" Min. width, 2-post machine. Each side equipped with: -- 1st Station: Jump scoring. -- 2nd Station: Hogging unit. -- 3rd Station: Coping head with stacked tooling capacity (manually operated). -- 4.5 HP Drive for 10 - 60 FPM variable feed speed. -- Chain dogs on 15-3/4" centers, rubber top nonmarring chain pads. -- Heavy-Duty chain links with: Needle bearings, automatic oil mist chain oiler, automatic brake on feed motor with emergency stop.Complete with: -- Upper driven holddowns with: Continuous feed belts; feed beams can be disengaged for conventional part feeding in front of dogs. -- Mobile remote control for setup; dual lead screw for traversing beam; exhaust hoods on all heads.Note: Tear down and loading not included.

SCM - PRATIX S-12-B: Flat Table Machine (w/ATC/Boring) -- SpecificationsSingle 4' x 8' traveling "Bridge Gantry" and stationary aluminum dual-vacuum table with: "MATRIX" square grid pattern for fixturing parts.Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil-boards for "nested base machining".Part location pop-up pins mounted on the table perimeter. -- Working field:"X" Axis is 98" (2,486 mm); "Y" axis is 49.4" (1,255 mm); "Z" axis stroke is 9.8" (250 mm); max. material thickness 5.9" (150 mm). -- Positioning Speed:"X" & "Y" Axis 115 FPM (35 MPM), "Z" axis at 82 FPM (26 MPM); closed loop AC Servo drive system.High precision "Rack & Pinion" system in "X" & "Y" axis & ground ball screws "Z" axis; all axes ride on extra-large precision profile linear guideways. -- Boring Unit:3 HP (2.2 kW) - 6,000 RPM motor; (7) vertical spindles on 32 mm centers, (5) spindles in "X" axis & (2) spindles in "Y" axis. -- Machining:(1) 9 HP (6.7 kW) Air-cooled electrospindle with HSK F63 adaptor; variable spindle speeds from 1,500 - 24,000 RPM.(1) 7-Position ATC tool rack mounted to the machine base RH side. -- Operator & Machine Control:PC Front-End with: "XILOG Plus" + Windows "XP Pro" Operating System; 17" high resolution LCD; ergonomic keypad.USB Ports, serial ports RS-232 & RS-242 & Ethernet adaptor; programs can be transferred via disk or downloading by wire is possible.All computer components are mounted on a mobile stand.XILOG Plus Offers incredible list of functions from: (a) Auto-diagnostic to (z) zooming; controlled acceleration & deceleration, encoder feedback, dynamic tool correction via PLC due to active tool wear using space-and-time criteria. -- Additionally Equipped with:Onboard mini-CAD with built-in programming for writing: Circles, ellipses & angles with only a few keystrokes.Onboard cycle optimization, onboard calculator, mirror-imaging, and repeat imaging. -- Complete with:(2) 150 cbm Vacuum Pumps; safety enclosure around the spindle carriage. Tool length measuring device.(1) Universal remote Pendant; 7" color display allows for the effective management of all machine functions from manual Jog Mode to loading & execution of a program. The pendant is fitted with a USB port to allow quick load & setup of new programs.Safety "bump-stop" bumpers; emergency stop rope, doc's & manuals. --Actual Model: SCM PRATIX S-12-B

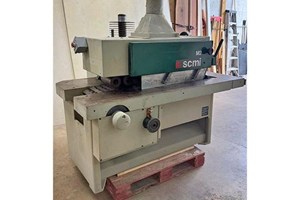

SCMI M-2 DIP CHAIN GANG RIPSAW Specifications: -- 7-7/8" Width cap., 36 HP - 3,600 RPM belt driven arbor (pulls 42 amps), dip chain feed. -- 70 mm Dia. arbor for 11-3/4" to 13-3/4" dia. saw blades, 4-1/2" max. depth of cut, 23-1/2" throat depth, 14" min. stock length. -- 1.8 HP Variable feed motor, 30 - 150 FPM,Equipped with & Features -- Automatic chain lubrication, -- 64" x 35" table. -- (2) Upper infeed and (2) upper outfeed rollers at 4" in dia., top & bottom -- Anti-kickback fingers. -- Dust hood with 7" dia. outlet, -- Long infeed adjustable fence, -- Motor load meter.Note Incudes approx. Includes extra spacers an sleeves

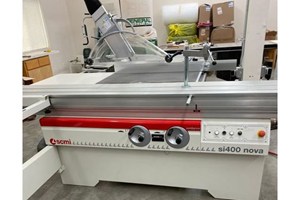

SCM SI 400 NOVA Sliding Table Panel SawSpecifications & Features: -- 126" Stroke and with scoring, telescoping crosscut fence with panel support, and back squaring fence (2) flip-stops; 3/4" dado capacity. -- Max. cutting height is 3-3/4" at 90° and 2-3/4" at 45°; 51" Rip cut cap. with movable fence, "EZ Dial" adjustable split scoring blade assembly. -- 35" x 21" Main fixed table.Equipped with: -- 9 HP Main blade motor, 1 HP scoring blade motor; tilting arbor 0° - 45°; 300 mm (11.8") main saw blade dia., 1" main blade arbor, 4,000 RPM. -- 100 mm (3.9") scoring blade dia., 3/4" scoring blade arbor; 8,000 RPM; 2-position table lock mechanism. Complete with: -- "EZ Dial" adjustable split scoring blade assembly - simply turn the dial to adjust the width of the score. This system eliminates the need for shims and is fully adjustable in 0.1mm increments. -- Handwheels in front for lifting and tilting of saw blades; blade guard on riving knife with dust outlet. Includes: 120 mm Main dust collection outlet.

SCM T 110 I Tilting Spindle Shaper -- Specifications: 6.6 HP Motor, 1-1/4" interchangeable spindle tilts -5° to +45°, (5) spindle speeds of 3,000 - 4,500 - 6,000 - 8,000 & 10,000 RPM. 39" x 29-1/2" Table, 13.4" max. insert opening, digital readout for spindle height setting, 6-1/8" working height under nut; adjustable fence guard assembly. -- Complete with: Mechanical spindle brake, hand spindle lock, reverse rotation switch, (5) table insert rings, and (2) 3" dust outlets. -- Includes: 3-Roll Magi Steff 2034 Power Feeder

SCM Minimax T-50 Tilting Spindle Shaper -- Specifications: -- 1-1/4" Dia. interchangeable spindle tilts -5° to +45°, -- 6.6 HP motor; 3-1/2" cap. under nut, (4) spindle speeds of 1,700 - 4,000 - 7,000 & 9,000 RPM. -- Table size 18" x 43" with adjustable side extension tables; 3" - 5" - 7" & 8" table insert openings -- 4-1/2" max. spindle height above table -- 2" max. tooling retraction under table with 7" max. tooling dia.; working height 37".Equipped with: Outrigger Sliding Table, micro-adjustable fence, spindle lock, magnetic starter w/overload protection, reversing switch, and 4-3/4" dia. dust outlet. Includes: Several New Cutter-heads

SCM M3 Multi-Blade Dip Chain Gang Rip SawSpecifications: -- 300 mm (11.81") Width cap. -- 110 mm (4.33") Max. depth of cut. -- 8-3/4" Throat depth. -- 390 mm (15.35") Min. stock length. -- 200 - 350 mm (7.87" - 13.78") Blade diameter. -- Arbor dia. 70 mm (2.76"). -- Table size 750 x 1,530 x 750 mm H (29-1/2" x 60.24" x 29-1/2" H). -- Blade speed 4,200 RPM. -- Feed speeds 6 - 48 MPM (19 - 157 FPM).Equipped with: -- 44 kW (60 HP) - 3,554 RPM Blade motor. -- Variable speed drive feed chain motor. (2) Upper infeed & (2) Upper outfeed 4" Dia. rollers, Automatic chain lubrication. -- Top & bottom anti-kickback fingers. -- Main dust hood, with 200 mm (7.87") Dia. outlet. -- 40"; x 2-3/4"; H Adjustable infeed fence. -- Motor load meter.Note: Some spec's need to be verified

SCM M3 Multi-Blade Dip Chain Gang Rip SawSpecifications: -- 300 mm (11.81") Width cap. -- 110 mm (4.33") Max. depth of cut. -- 8-3/4" Throat depth. -- 390 mm (15.35") Min. stock length. -- 200 - 350 mm (7.87" - 13.78") Blade dia. -- Arbor dia. 70 mm (2.76"). -- Table size 750 x 1,530 x 750 mm H (29-1/2" x 60.24" x 29-1/2" H). -- Blade speed 4,200 RPM. -- Feed speeds 6 - 48 MPM (19 - 157 FPM).Equipped with: -- 44 kW (60 HP) - 3,554 RPM Blade motor. -- Variable speed drive feed chain motor. (2) Upper infeed & (2) Upper outfeed 4" Dia. rollers, Automatic chain lubrication. -- Top & bottom anti-kickback fingers. -- Main dust hood, with 200 mm (7.87") Dia. Outlet. -- 40"; x 2-3/4"; H Adjustable infeed fence. -- Motor load meter.Complete with: -- Operation & Maintenance Manual. -- Tooling (As pictured).

SCM - FORMULA S35: Sliding Table SawSpecifications -- 10' Cap. with: Scoring; 9 HP motor for main & scoring blade; tilting arbor: 0° - 45°. -- 126" Table stroke; 51" rip cut capacity with movable fence. -- 350 mm (13-3/4") Main saw blade dia.; 120 mm (4-3/4") scoring blade dia.; max. cutting height: Approx. 120 mm at 90°; 4,000 RPM. Complete with: -- Overhead guard with: 4" Dust extraction outlet. -- Crosscut fence assembly with: (2) Flip stops.

SCM SANDYA 15S (3) Head Wide Belt Sander42" Width cap, Drum, Drum, Combination HeadHead Configuration:1st Head: Steel contact roll, 7" dia., 35 HP motor;2nd Head: Rubber-covered contact roll, 24 HP motor3rd head: Combination head, rubber-covered contact roll (45 Shore) and 3" wide finishing platen, 17.4 HP motor.Specifications: -- 43" x 103" Abrasive belts -- Electronic tracking & pneumatic belt tensioning, abrasive belt grit compensation. -- Conveyor belt feed with dual feed speed, 4 HP motor -- Automatic part thickness adjustment -- Motorized thickness opening via (4) precision conveyor bed jacksEquipped With & Features: -- LED readout, 0" - 6-1/4" opening. -- Infeed & outfeed spring loaded rubber covered hold-down rollers -- Motor load meters -- Infeed and outfeed roller conveyor extensions.

SCM - S520 E, ...Planer Specifications: -- 20" Width cap.; 9 HP main motor; 4-3/4" dia. 4-knife TERSA cutterhead at 4,500 RPM. -- 1/8" - 9-1/4" Powered opening with digital readout for fine adjustment; max. depth of cut 5/16"; 10" min. length of workpiece. -- (4) Feed speeds: 20 - 33 - 43 & 56 FPM; table size 20-3/4" x 39".Equipped with: -- Chip breaker; sectional grooved infeed & solid outfeed rollers; (2) adjustable bed rollers. -- Complete with: Magnetic starter & shaving hood.
