Equipment For Sale

WEINIG RONDAMAT 934 Profile Grinder: -- 9" Arbor length, 11-1/2" max. tool dia., 1.5 HP motor, tilting head assembly for back relief grinding, clearance angle on peripheral of tools 10° - 30° and to each side 0° - 20°. -- Variable feed speed 1,800 - 3,000 rpm via a vari-speed gearbox, on-board wheel dressing, 9" max. wheel dia.; 0.16 HP coolant pump with built-in coolant tank. -- Includes: Operators manual, clamping nut, and pull-off bolt, 1-1/2" arbor, and an extra set of grinding wheels and toolingWEINIG OCMS measuring stand -- With a working width of 300 mm. -- The allowable tool dimension of 3" to 11-3/4" head diameter. The measuring stand allows for electronic measuring and indicating of cutter head dimensions with electronic digital readouts; visually establishing the tool measurement, no setting errors, and no expensive CNC control. -- Magnifier screen viewer with 20:1 magnification; the cutterhead is placed in Powerlock tool post, all the operator does is view the scope and move the measuring carriage via precision dialing left to right. -- Measured values (radial) and (axial), tool dimensions both minimum and maximum are displayed. -- Includes: 1-1/2" arbor.

Weinig R950 Profile Grinder

Weinig Unimat 318 Moulder 6 head moulder Crating and shipping not included in price 1,172 hours 1,830,725 LF of material processed 2015 Serial 121763 Exhaust manifold included with tools and a few heads not shown. Upgraded to new machine. This machine is an excellent running machine.

Good Condition 230V 60Hz

WEINIG UNIIMAT 23E Moulder Feed Through;6-Head (B-R-L-T-T-B), working cap. 9-1/16" x 4-11/16". -- Head sequence: Bottom 20 HP, right & left by 20 HP, top 20 HP, top 20 HP and bottom 15 HP motor. -- Spindles; Dia.1-13/16" with cutterhead speed of 6,000 RPM; Digiset readouts for left and top spindles, mechanical readouts all other spindles including chipbreaker and pressure element. -- Feed System: Feed motor 5 HP, variable speed of 20 - 78 FPM. One(1) powered feed roller at outfeed end on the machine. Infeed: Straightening 2 M (6'6") table, side pressure roller mounted to infeed table. -- Features: Central lubrication system, table inserts for right/left vertical spindles and manual Waxilit pump. -- Full sound and safety enclosure, operator/spare parts manuals.

WEINIG HYDROMAT H 1000 MOULDER (FEED THROUGH):5-Head (B-R-L-T-B), working cap. 9-1/16" x 6-5/16" capacity. -- WEINIG H 1000 spindle sequence: Bottom 15 HP, right 10 HP, left 10 HP, top 20 HP, and bottom 15 HP motor. -- Spindles: Dia. of 1-13/16" with cutter-head speeds of first head 6,000 RPM, 2,3,4,5, at 8,000 RPMs; mechanical digital readouts on all spindle adjustments. Pneumatic pressure elements on left & top head chip-breakers. -- Feed drive, variable feed speed from 20 - 120 FPM, all feed wheels driven and with pneumatic pressure. -- Central lubrication, automatic table lubrication pump, machine prepped for lateral feeder, sound enclosure, safety hood with (1) inside lights.

WEINIG Profi Joint Short Stock Finger JointerThe ProfiJoint model is a flexible finger jointing line which is used for processing timber packages and manufacturing horizontal as well as vertical finger joints. -- This model is perfect for first-time buyers and can be modified to accommodate a shaper combination if need be. -- The ProfiJoint Eagle is easy to operate, has a compact design, and provides you with the same high-quality product you expect from the Weinig brand. High-capacity shaper and shaper table (19"; wide) carrying the packaged timber pieces to finger joint them either horizontally or vertically. -- Shaping unit includes axial adjustment providing 1/100mm of precision for the finger length. -- Scoring units (optional) for horizontal jointing and to avoid any tear-out. Technical Specifications: -- Utilizing the FlankenJet Glue System, only the exact amount of glue needed is automatically applied.GRECON Flanken-JetA Flanken jet is a system developed by GreCon for glue spreading in finger-jointing plants.Until the introduction of Flankenjet, glue spreading through ridged glue rollers used to be common. The biggest disadvantage of such system is a perpetual glue circulation.With Flankenjet a targeted glue dosage via slotted nozzles takes place. This way the glue spreading can be controlled and only takes place when the workpiece has absolutely passed the system.Advantages:Order quantity can be simply adjusted and variegated in a relatively big area.constant properties of the glue, because it can be in a closed system until the actual orderlow adhesive wastagedeployment possible by PUR glue. -- Single worker operation typical. -- Infeed Length: 5-7/8" - 27-1/2" -- Material Thickness: 7/8" - 1-15/16" -- Material Width: 1-9/16" - 5-7/8" -- Outfeed Press Length: 118" - 240" -- Saw Motor: 15kW (20HP) -- Hogger & Scoring Motor: 5.5kW (7.37HP)

1998 Weinig Moulder H23 MDL Hydromat 23. Call for pricing.

WEINIG - VALU-RIP: Infeed Conveyor System for Rip Saw Specifications -- 7-Chain Chain Deck; spaced at: 0", 25", 54", 75", 96", 120", 147". -- (5) Board Stops on Chain Deck. -- Roller Deck with: (7) Drop Chains. -- (8) 50" Rollers; powered by: 2 HP Motor. -- Drop Chains spaced at: 0", 36", 54", 72", 110", 147", 181.5". -- Automatic Saw Fence with: TISFOON Scanning System. -- Powered Pinch Roll before Saw: 2HP Motor.NOTE: This is part of a Total Plant Liquidation; please call for details.

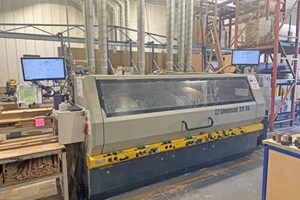

WEINIG UNIMAT 23EL Feed Through Moulder: 6-Head (B-R-L-T-T-B), working capacity 9-1/16" x 4-3/4". -- Head sequence: Bottom 15 HP, Right 15 HP, Left 15 HP, Top 25 HP, Top 25 HP and Bottom 15 HP motor. -- Spindles: dia. 40 mm with cutterhead speed of 8,000 RPM. WEINIG ATS (Auto-Tool Setting) for left and right spindle. All other settings with mechanical readouts. -- Feed System: 7.5 HP variable feed drive, feed speed 18 - 118 FPM. (4) Powered machine table rollers. -- Includes: Central lubrication at front side of machine and side pressure roller at mounted at infeed table. Infeed table 2 M (6'-6") with manual table lubrication pump. Infeed fence with rollers for addition of hopper feeder.Note: The electronic brake is not working on (1) side and and the feed motor

WEINIG - U 1000, ...Feed Through Moulder6-Head (B-R-L-T-T-B); working cap. of 9-1/16" x 4-3/4".Specifications -- Head sequence: Bottom 10 HP; right 15 HP; left 15 HP; top 25 HP; top 20HP, and bottom 20 HP motor. All spindle motors with mechanical brakes. -- WEINIG Memory Redial system allows for storage of over (200) separate profiles; electronic LED readouts for all spindles, chipbreakers and pressure elements. -- Spindle dia. of 1-13/16"; spindle #1 at 6,000 RPM, spindles #2 - #5 at 8,000 RPM with high precision bearings; adjustment of vertical spindles 3-1/8" axially. Feed: -- Motorized feed beam adjustment with independent adjustment of top head; cutting circles 8-7/8" on spindles #2 - #5. -- Variable feed speed from 20 - 118 FPM; 10 HP inverter controlled Cardan feed drive; overhead feed wheels with pneumatic pressure. -- Vertical spindles with adjustable table plates to cutting circles; hardened infeed bed plates before & after 1st bottom head. -- (1) Powered table rollers in bed at outfeed. -- Infeed straightening table 2 M (6-1/2') with adjustable fence and adjustable table at outfeed; chromed tables and fences. Central location of lubrication points; Electromagnetic interlocking of safety hood, manual WAXILIT pump. -- Complete with: Axial adjustment of feed roller opposite left spindle and (1) light inside sound enclosure; all setup tools, manuals and spacers.

Raimann Flexirip 6200 Saw System is still under power until the end of January 2025

WEINIG UNIMAT 10005-Head (B-R-L-T-B), 9-1/16" x 4-3/4" cap. -- Head sequence: Bottom 10 HP, right 15 HP, left 15 HP, top 25 HP and bottom 20 HP motor. -- WEINIG "Memory Re-Dial" system with storage of (100) separate profiles; electronic LED readouts for all spindles. -- Spindle dia. 1-13/16" with the following cutterhead speeds; Spindle #1 at 6,000 RPM, spindles #2 - #5 at 7,000 RPM with high precision bearings & mechanical spindle brakes; adjustment of vertical spindles 3-1/8" axially. -- Electronic LED readouts for chipbreaker & pressure elements for top spindles. -- Cutting circles 8-7/8" on spindles #2 - #5; vertical spindles with adjustable table plates to cutting circles, hardened infeed bed plates before-and-after 1st bottom head. -- Motorized feed beam adjustment; variable feed speed from 20 - 118 FPM, 10 HP inverter controlled Cardan feed drive, overhead feed wheels with pneumatic pressure. -- (1) Powered table roller in bed at outfeed. -- Infeed straightening table 2 M (6-1/2') with adjustable fence and adjustable table at outfeed. -- Equipped with: Central location of lubrication points, side pressure roller at infeed, manual waxilit pump, and (2) lights inside sound enclosure. -- Includes Set-Up Stand.Note - Machine is in good running condition, but electric brakes are not functional, but does not affect running or performance.

WEINIG P-22 Feed Through Moulder5-Head WEING Molder with a working cap. 9-1/16" x 4-3/4".Head sequence: -- Bottom 10 HP, right/left 10 HP, top 15 HP, and bottom 10 HP motor. -- Spindle dia. 1-1/2" with cutterhead speed of 6,000 RPM; mechanical spindle brakes all spindles. -- Mechanical digital readouts on all spindles; Digiset readouts on left & top spindles; mechanical readouts on chipbreaker & pressure elements of top spindles.Feed: -- Controlled feed speed from 16 - 78 FPM, 5.5 HP feed drive. -- Infeed straightening table 2 M (6-1/2"), fences, side holdover roller mounted to infeed table, manual Waxilit pump.Features: Reduced distance feed roller, protection against backlash when splitting, central location of lubrication points, and sound/safety enclosure. -- It comes with a large assortments of cutter heads 9 inch - 2 inch approximately (30) and it includes a lot of different knives for each of the heads

Manufacturers Specifications tool diameter: 100 - 300 mm tool width: max. approx. 230 mm motor / grinding disc drive: approx. 1,1 kW free angle, adjustable 15 - 35° drive for coolant pump: approx. 0,065 kW tank capacity: approx. 90 l

270 Ton WEMHONER - Hydraulic Press: Model KT-M-15/28-240 - 110"; Left-to-Right x 59"; Front-to-Back Down-Acting Clearance between frame: 126"; L to R x 37"; F to B. -- Nominal bed: 110"; x 59";. -- 4-Clamp Cylinders are single-acting: Approx. 8"; bore; 6"; dia. rods; approx. 10"; max. stroke. -- (1) Center traversing cylinder: Approx. 3" bore with 1-3/4" diameter rod (approx. 16 max. stroke). -- Max. daylight: Approx. 16";. -- Approx. 28-1/2"; Operator height. -- Guided with rollers at each corner and (2) gear & rack guides. -- Slide & bed: 4" Thick; self-contained Hydraulic System: -- (2) Reservoirs: Approx. (14) gallons each. -- 4 kW Motor: Approx. 5 HP; 1,800 RPM; 440 Volts; 9.15 Amps. -- Pump: Type "R60A; max. 350 Bar, etc. -- Speeds: Approx. 99 IPM fast down; 2.0 IPM Pressing adj; 99 IPM fast up. -- NO Electrical Controls. -- Overall Dimensions: Approx. 146"; x 65"; x 96"; high. -- Approx. 30,000 Lbs.

Wemhoner Variopress

Setworks: Computer setworks - 15 preset locations / Manual setworks - Handcrank adjustment Frame: Heavy duty 1/4" (6.35mm) x 4" (10.16cm) x 10" (25.4cm) tubular steel for vibration free cutting. Feed System: Steel slat bed feed chain. 200fpm max speed / 20fpm min speed. Bands: .042" x 4" / .083 Kerf / Swedge tooth or stelite tipped Guides: Interchangeable pressure guides Drive Wheels: 42" (106.65cm) custom drive wheels mde of high quality carbon steel and dynamicaly balanced. Hold Downs: CS - Double tire hold down / MS - Double sprocket hold down Cutting Specs: Max Length w/ out Return - Unlimited / Max Length w/ Return - per customer requirement Min Length - 18" / Max Width - 14" / Min Width - 3" / Max Height - 14" Motors: 40 H.P. TEFC 1800rpm per head. 3 H.P. to 7-1/2 H.P. variable speed drive Electrical: Includes all TEFC motors, starters, breakers, 440 volt standard. System is prewired, Customer responsible for electric wiring to equipment. Dust Removal: 6" (15.25cm) diameter outlet / Customer is responsible for air suction. Options: Automatic cant return, Breakdown equipment, Operators cab, 2 or 3 way cant/board seperator, Can't turner in crossover, Other voltages available.

Specifications: Setworks: Computer setworks - 15 preset locations (1/2" tp 9" sets) / Manual setworks - Handcrank adjustment Frame: Heavy duty 1/4" (6.35mm) x 4" (10.16cm) x 10" (25.4cm) tubular steel for vibration free cutting. Feed System: Steel slat bed feed chain. 200fpm max speed / 20fpm min speed. Bands: .042" x 5" / .092 Kerf / Swedge tooth or stelite tipped Guides: Interchangeable pressure guides Drive Wheels: 42" (106.65cm) custom drive wheels made of high quality carbon steel and dynamicaly balanced. Hold Downs: CS - Double tire hold down / MS - Double sprocket hold down Cutting Specs: Max Length w/ out Return - Unlimited / Max Length w/ Return - per customer requirement Min Length - 18" / Max Width - 16" / Min Width - 3" / Max Height - 16" Motors: 60 H.P. TEFC 1800rpm per head. 3 H.P. to 7-1/2 H.P. variable speed drive Electical: Includes all TEFC motors, Y Delta Soft Start starters, breakers, 440 volt standard. System is prewired, Customer responsible for electric wiring to equipment. Dust Removal: 6" (15.25cm) diameter outlet / Customer is responsible for air suction. Options: Automatic cant return, Breakdown equipment, Operators cab, 2 or 3 way cant/board seperator, Can't turner in crossover, Other voltages available.

2 Head | Manual Set Works | 440V
