Description:

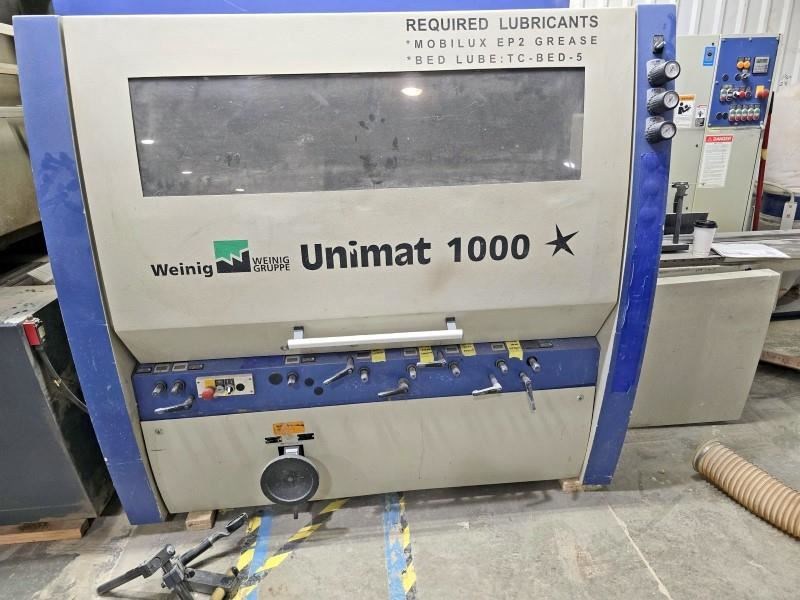

WEINIG UNIMAT 10005-Head (B-R-L-T-B), 9-1/16" x 4-3/4" cap. -- Head sequence: Bottom 10 HP, right 15 HP, left 15 HP, top 25 HP and bottom 20 HP motor. -- WEINIG "Memory Re-Dial" system with storage of (100) separate profiles; electronic LED readouts for all spindles. -- Spindle dia. 1-13/16" with the following cutterhead speeds; Spindle #1 at 6,000 RPM, spindles #2 - #5 at 7,000 RPM with high precision bearings & mechanical spindle brakes; adjustment of vertical spindles 3-1/8" axially. -- Electronic LED readouts for chipbreaker & pressure elements for top spindles. -- Cutting circles 8-7/8" on spindles #2 - #5; vertical spindles with adjustable table plates to cutting circles, hardened infeed bed plates before-and-after 1st bottom head. -- Motorized feed beam adjustment; variable feed speed from 20 - 118 FPM, 10 HP inverter controlled Cardan feed drive, overhead feed wheels with pneumatic pressure. -- (1) Powered table roller in bed at outfeed. -- Infeed straightening table 2 M (6-1/2') with adjustable fence and adjustable table at outfeed. -- Equipped with: Central location of lubrication points, side pressure roller at infeed, manual waxilit pump, and (2) lights inside sound enclosure. -- Includes Set-Up Stand.Note - Machine is in good running condition, but electric brakes are not functional, but does not affect running or performance.
