Dust Collection Systems For Sale

EXTREMA DCY-1425 L3 TYPHOON Cyclone Filtration Dust Collection System. Powerful two-stage dust collection drops out heavier dust particles through a Rotary Air Lock, allowing you to choose the disposal system, before passing finer particles through the fan and filter. -- Free air volume rated @ 10,500 CFM. -- Low noise operation. Equipped with: -- 25 HP Motor, with a Soft Start already wired in. -- Rotary air lock with a 1 HP motor @ 38 CFM. -- Standard support frame LEG 3 164" clear height x 149" clear width x 91" clear depth. Other Options available: Return Air Filters (DCF-5) plus the pipe to connect the Cyclone with the filter and 460V electric rather than 230 Volt.

EXTREMA DCY-750.3 TYPHOON Cyclone Dust CollectorCyclone & fabric filtration dust collection system. -- Powerful two-stage dust collection drops out heavier dust particles through a 1/2 HP Rotary Air Lock (included), allowing you to choose the disposal system, before passing finer particals through the fan and filter. -- (2) Fabric filter bags placed above plastic collection bags. -- Air volume output rated @ 4,850 CFM with 7.5 HP Induction motor with 12" inlet. -- 14-3/4" Steel blower fan impeller and is dynamically balanced. -- Collection bag snap-in ring for easy addition or removal of plastic bag. -- Filter bags filter dust particles down to (1) Micron in size. -- Low noise operation. -- Includes: Standard support frame to allow use with a waste hopper under the cyclone.

FELDER RL-350 Dust CollectorFelder clean-air extractors filter the air so that the dust remaining is less than 0.1mg/m cu. These exceptional air quality values are achieved by the position of the impeller. In other extracting systems, the impeller works by creating pressure between the machine and filter; with the Felder systems, the impeller is located on the clean-air side creating negative pressure throughout the system so no dust can escape. Specifications: -- 15 HP blower with 13-3/4" in-let -- Max. airflow 4,705 CFM, nominal air flow capacity 4,072 CFM -- Static pressure 9.4" WG -- Compressed air connection for automatic cleaning function. -- Dust emission quality less than mg/m cu. -- Filter surface area 71 m/sq. -- Acoustic pressure 75 dB -- Chip volume 2 x 55 gal. -- Dimension / Weight: 104" L x 45" W x 89" H, 1,785 lbs.

FLOW AIRE - DC-03, ...Cartridge Dust CollectorSpecifications: -- Holds (16) cartridge filters. -- Includes: New AirMax Premium Media Cartridge Filters - fire retardant. -- Total dilter media area: 3,616 sq/ft. -- Air-to-Media ratio @ 8,000 CFM: 2.21:1. -- Automatic Pulse Clean System with: Differential pressure gauge and sequencing control in enclosure. --Single Hopper outlet with Sealing Drum Cover Kit. -- Steel support structure. -- Includes: 20 HP Ground mount blower. -- Rated for :8,000 CFM. -- Motor starter & controls.Sold with a 6-Month Mechanical Warranty

Grizzly 10ph 4 Bag Dust Collector

GRIZZLY G0631 Downdraft Sanding Table28" x 79" Table area with a 1 hp motor using a squirrel cage fan pulling up to 1,437 CFM, to pull the dust away while sanding on Non-maring rubber grommets to suport your work. -- Table surface area 25 1/4" X 76 1/4", table height 31 1/2" -- 1 st stage filter 16" X 25" X 1"; 2nd stage filter 16" X 25" X 2" -- Filter micron: 1/0.3 -- Inlet size 8" Features; -- SHeet metal table construction, -- Easy access filter bay, quiet operation 68 Db, -- Two convenient dust drawers -- Table surface 39-1/2"x 28". -- Filter size 16"x 25"x 2" cleaning down to 0.5 micron. -- Working height of 37".

7.5 HP 220/440 volt 3-phase wired 220 volt 10” dust inlet Total filter serface 261 sq. Ft. 99.9% effective at .2-2.0 microns 3468 cfm @4.3” static pressure

- Motor: 5 HP - Airflow capacity: 2184 CFM @ 1.9 in. SP - Impeller size: 16 in. - Filtration: 0.2 – 2 Micron - Filter size: 19-11/16 in. x 39-3/8 in. canister - Intake port(s): 1 x 8 in. - Sound rating: 83 – 86 dB - Overall height: 111-1/2 in. - Shipping weight: 644

HAMMOND DK-1055-B Cyclone Dust Collector w/ After-FilterSelf-contained indoor cyclone type unit w/afterfilter bags, the blower wheel is located on the clean air side and is direct driven by 7.5 HP motor @ 3,600 RPM, performance ranges 3,470 CFM @ 5" H20, 2,727 CFM @ 8.6" H20, 2,200 CFM @ 11.4" H20. -- (1) 10" Dia. inlet and (1) 8.5" x 15" outlet; waste discharges via bottom of unit to (2) 55-gal. drums (drums not included). -- Includes: Multi-exhaust manifold with (4) after-filter bags, 167 sq. ft. cloth area, push button starter.

HOCKER POLYTECHNIK - MULTISTAR Series, ...Pulse Jet Baghouse 33,000 CFM (56,000 M³/Hr) based on 5.2 to 1 Air-to-cloth ratio (FPM - average air velocity thru filter media) with 6,345 square feet of filter area. -- Filtration: Filters are automatically cleaned by Pulse-Jet system based on supply of 1" dia. dried clean compressed air line from Plant. Cleaning automatically controlled via timed cycles or by the Delta-P, which is the differential pressure across the filter bags. -- Supplied with: (4) HOCKER DER - 040/45022 radial BI fan; each directly driven by 30 HP - TEFC 3,600 RPM High Efficiency motors; mounted on the clean air side. Rated for a total of 33,000 CFM at 16" SP (4,000 Pa). Fan inlets are 18" (450 mm) dia. each. Non-return flap camper on the outlet side. -- Includes Electrical panel with: PLC Controls; Explosion Relief Panels; Sprinkler heads in the clean air plenum; ATEX approved construction with 11-gauge electroplated galvanized steel shell with clean air outlet not returned to plant. -- Equipped with: (1) HP Rotary Air Lock. -- Control - SIEMENS - SIMATIC TPI200: PLC Controller housed in a floor-mounted central control panel with modem module for allowing HOCKER online access to assist in program changes, 12" TFT color, touchscreen display.All starters and contacts for included motors.Pictorial guided navigation and fault messages are displayed in text.Graphic images, curves, bar diagrams, parameter adjustment settings, and fault report.FI MF 22.0 kW SPS Ctrl.: Allows startup of several fans, one after the other. -- VFD drives on each motor with: Automatic motor tuning, automatic startup, min./max. speed limits, DC brakes, and operating hours meter. -- Includes: Access ladder to upper catwalk and exterior pipe. Heavy-Duty galvanized for outdoor operation. -- Professional dismantling and transportation available upon request.

7' x 23' Honeyville Bag House Dust Collecting System with Blower & Stand 86 10' Tubes, Ready to Ship.

Honeyville bag house, includes filters, very good condition

IMPERIAL CM-002 CMaxx Dust Collector The CMAXX™ was designed with revolutionary cleaning technology that insures maximum pulse cleaning power. The CMAXX™ housing is the largest in the industry with the lowest internal velocities. This large housing causes more dust to drop into the hopper before attaching to the filters. The low internal velocity combined with DeltaMAXX™ filters makes this the most efficient dust collector in the industry.Specifications: -- 700 s/f Filter Media 2.55-1 Air to Media Ratio -- Main Handle Operator -- Overload Protection -- NEMA 4 enclosure -- Push button start -- Emergency stop button -- Run indicator lightIncludes: -- 7.5HP Fan Motor Starter with 1,790 CFM -- Integrated Dwyer DCT1000 Control -- Window kit for easy access to dust collector settings

IMPERIAL CM-006 Cartridge Modular Pulse Jet Dust/Fume Collector. Designed to be the strongest, safest, and most efficient dust and fume collector in the industry. -- Overall Specs: 4,800 CFM with 2,800 sq. ft. of total filtration media operating at 2.0:1 Air-Cloth-Ratio (ACR). Factory provided compressed air (clean - dried) is supplied to manifold mounted valves providing efficient continuous pulse jet Filter Cleaning System. -- Fan/Motor: MS-180-HD-70-20 Fan driven by 20 HP premium E motor. Efficient backward-inclined fan wheel. Manual slide gate damper on fan discharge. Fan-Silencer at fan outlet. Fan capable of 4,800 CFM at 13" SP. -- Electrical Control Panel: Nema 12 (indoor) enclosure with main breaker houses fan Start, E/stop, continuous On-Demand selector switch, Local/Remote selector. Soft Start drive to reduce power peaks on start up. -- Construction/Housing/Features: Heavy 7 - 10 gage construction with no external bolt holes guaranteeing no leaks for life. Filter access door with lockable handle, heavy duty latches for one handed operation. Tool-free filter change out with 'Even-Lock technology positive stop double sealed ensures cartridges are always installed properly. Filters are fully grounded to dust collector housing. OSHA compliant full length platform and adder access. Bolted support stricture with 54" clearance for 55 Gal drum & adapter.. Discharge via 10" Rhino heavy duty collection drum sealed cover kit requires not airlock with slide gate closure, tool-free sliding coupler, and grounding wire. -- Comes with: High Entry inlet with staggered angle inlet baffle plate provides filter protection and allows material to enter at filter level causing the natural downflow material primary separation effect. Horizontal square to round transition. DWYER DCT1000 control manages the Filter Cleaning System with user-friendly software menu. Solenoid time/on-off/settings and high/low differential pressure control capability Auto/Manual control option. Compressed air pressure regulator and filter. -- Optional: Updated control panel to include a Variable Frequency Drive (VFD) to replace the Soft Start drive and keypad on cabinet door. Upgrade Controls to Include VFD. VFD reduces inrush current at startup saving energy. Also regulates system airflow by maintaining static pressure at the collector inlet. This reduces the load on the motor saving operating cost, instead of dampening the airflow with an outlet damper that is required on other starter options. On system shut down the VFD slows the fan down to a preset speed of 20 HZ for 5 minutes (the duration of the down time cleaning cycle), this prevents dust from backflowing out of the collector due to the cleaning system pressurizing the collector creating a back flow through the ductwork. Please inquire for price.

IVISION VCE 1570 Industrial Vacuum Chip CollectorThe VCE 1570 is ideal for Double Head Saws or Miter Saws with (2) outlets.Features: -- The excellence of design and construction technique creates extremely handling-friendly and virtually maintenance-free units with innovative technical solutions to get the best possible performances. -- The sturdy material used and the simple design are additional characteristics, specially designed for industrial purposes, and is equipped with a powerful motor and a state-of-the-art filtering system. -- ideal for heavy dust or collection of steel, aluminum, and or any metal chips, including plastics, fiberglass, PVC.Specifications: -- Power: 2.7 HP -- Max flow rate: 2,400 CFM -- Inlet size: 4" or 6.2" or a 4" + 6.2", number (2). -- Tank Volume: 42.27 Gallons

JET - JC-3CF: Cyclone Dust CollectorCyclone action separates the heavier chips & particles and disposes of them into a 55-gallon drum. -- 3 HP with 1,450 CFM -- Inlet size 8", Outlet size 8". -- Large 8-fin, 14" steel impeller creates high velocity air flow that allows the lighter dust to pass through and be trapped in the filter. -- Filter bag provides: Almost 40 sq/ft. of filtration surface area for all dust particles 5-micron and larger. -- Collection bags: "Snap-In" design for quick & easy installation and removal. -- Use of JET's "EXCLUSIVE" pressure tube allows the use of a plastic collection bag in the drum without the bag getting sucked into the Cyclone. -- Special rectangular inlet pipe adds separation and additional air flow. -- Steel construction with: Welded seams & powder coated paint ensures long, dependable performance.

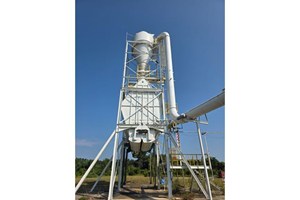

7’ Diameter Dust Silo With Cyclone And Laidig Unloading system. Good Condition.

KING CANADA KC-3105C 1,200 CFM Single-Bag Portable Dust CollectorSpecifications: -- Cloth filter bag size 20" Dia. x 34-1/2" L, Cloth collector bag size 20" Dia. x 34-1/2" L. -- Inlet dia. 6", Outlet dia. 5".Equipped with: -- (4) Swivel casters.Complete with: -- 6" - 4" Dia. Dust Hose Y-Fitting.

KEN MILLS ENGINEERING 12 BAG Dust Collector w/ Airlock and AugerSpecifications: -- 20 HP CORAL blower with 7,000 CFM -- 12" Inlet. -- (12) Filter bags. -- Air Lock w/ 1 HP auger for waste removal.

Reconditioned Koger rotary valves for low pressure applications. Call for pricing.
