Equipment For Sale

Weinig Profile Grinder MDL R929

Michael Weining Profile Grinder, Model R929 machine 929-808, 6" grinding wheel

Weinig Rondamat 934 Grinder

Weinig R950 Profile Grinder

Weinig R950 Profile Grinder

Weinig R960 Profile Grinder Measuring Stand Complete tooling room included!

Weinig Unimat Gold - 6-Head Machine Weinig Rondamat R960 Grinder Includes: Tooling and approx (200) profiles from tool room

WEINIG - U 1000, ...Feed Through Moulder6-Head (B-R-L-T-T-B); working cap. of 9-1/16" x 4-3/4".Specifications -- Head sequence: Bottom 10 HP; right 15 HP; left 15 HP; top 25 HP; top 20HP, and bottom 20 HP motor. All spindle motors with mechanical brakes. -- WEINIG Memory Redial system allows for storage of over (200) separate profiles; electronic LED readouts for all spindles, chipbreakers and pressure elements. -- Spindle dia. of 1-13/16"; spindle #1 at 6,000 RPM, spindles #2 - #5 at 8,000 RPM with high precision bearings; adjustment of vertical spindles 3-1/8" axially. Feed: -- Motorized feed beam adjustment with independent adjustment of top head; cutting circles 8-7/8" on spindles #2 - #5. -- Variable feed speed from 20 - 118 FPM; 10 HP inverter controlled Cardan feed drive; overhead feed wheels with pneumatic pressure. -- Vertical spindles with adjustable table plates to cutting circles; hardened infeed bed plates before & after 1st bottom head. -- (1) Powered table rollers in bed at outfeed. -- Infeed straightening table 2 M (6-1/2') with adjustable fence and adjustable table at outfeed; chromed tables and fences. Central location of lubrication points; Electromagnetic interlocking of safety hood, manual WAXILIT pump. -- Complete with: Axial adjustment of feed roller opposite left spindle and (1) light inside sound enclosure; all setup tools, manuals and spacers.

WEINIG UNIMAT 23 ATS, 6 HEAD MOULDER6-Head (B-R-L-T-T-B), working capacity 9-1/16" x 6" profiling. -- Head sequence: Bottom 10 HP, right & left by 15 HP, top 20 HP, top 15 HP and bottom 15 HP motor; Spindle dia. 40 mm with cutterhead speed of 6,000 RPM. -- WEINIG ATS (Automatic Tool Setting), Storage for up to (99) profiles; automatic positioning (radially) of left and top spindles (linked). -- Mechanical digital readouts on all other spindle adjustments for both axis, radial adjustment only on 1st bottom head. -- Motorized feed beam adjustment with independent adjustment of top heads, Receding chip breakers on left and top heads. -- Feed motor 7.5 HP, variable speed 18 - 118 FPM, overhead feed wheels with pneumatic pressure, (2) powered rollers in machine table. -- Large tool cutting circles, table plates adjustable to the cutting circle on vertical spindles with axial adjustment of 3-1/8" for multiple profiles. -- Infeed straightening table 2 M (6'6") with adjustable fence & adjustable outfeed table. Side pressure roller mounted to infeed table. -- Includes: Central lubrication, full sound/safety enclosure, manual bed lubrication pump.

Good Condition 230V 60Hz

Weinig Profile Sharpener

WEINIG Powermat 1000 7-Head Feed Trough Moulder(B-R-L-T-T- B-U); working cap. 9-1/16" x 4-3/4". Head sequence: -- Bottom 15 HP, Right 15 HP, Left 15 HP, Top 30 HP, Top 40 HP , Bottom 30 HP, and Universal 15 HP motor. All motors with electronic brakes. WEINIG Touch-Screen "Power Com" -- PowerCom Plus software system features: Profile drawing storage, profile dimensions, tool changes and production optimization. -- Electronic LED readouts for all tool holder settings, including chip breakers & pressure elements.Spindle arrangement: -- Spindle #1: 1-13/16" w/Cutterhead speed of 8,000 RPM; -- PowerLock tool holders on #2 - #5 with 12,000 RPM, universal tool holder variable from 4,000 to 12,000 RPM and with high precision bearings; -- Adjustment of vertical tools 2-3/16" axially. -- Motorized tool positioning; radial & axial on tool holders #2 - #5; motorized feed beam adjustment with independent adjustment top head; top head with independent adjustment of chip breaker & pressure element. -- Universal spindle with 270° of movement.Feed System: -- Variable feed speed from 20 - 118 FPM, 7.5 HP inverter-controlled Cardan feed drive, overhead feed wheels with pneumatic pressure. -- Vertical tools with adjustable table plates to cutting circles, hardened infeed bed plates before & after 1st bottom head. -- Chromed tables and fences, (2) powered table rollers in bed and (1) between left and top spindles and (1) at outfeed. -- Infeed straightening table 2 M (6-1/2').Equipped with: -- Pedestal for machine controls separate from the electrical cabinet, central location of lubrication points. -- The safety hood, automatic table lubrication pump, and (2) lights inside the reinforced sound enclosure are electromagnetically interlocked, as is the phone modem..

Wemhoner Variopress

270 Ton WEMHONER - 110"; L to R x 59"; F to B Down-Acting Hydraulic Press: Model KT-M-15/28-240. Clearance between frame is: 126"; L to R x 37"; F to B. -- Nominal bed: 110"; x 59";. -- 4-Clamp Cylinders are single-acting: Approx. 8"; Bore; 6"; dia. rods; approx. 10"; max. stroke. -- (1) Center traversing cylinder: Approx. 3" bore with a 1-3/4" diameter rod (approx. 16 max. stroke). -- Max. daylight: Approx. 16";. -- Approx. 28-1/2"; Operator height. -- Guided with rollers at each corner and (2) gear & rack guides. -- Slide and bed: 4" Thick; self-contained Hydraulic System: -- (2) Reservoirs: Approx. (14) gallons each. -- 4 kW Motor: Approx. 5 HP; 1,800 RPM, 440 Volts, 9.15 Amps. -- Pump: Type "R60A; max. 350 Bar, etc. -- Speeds: Approx. 99 IPM fast down; 2.0 IPM Pressing adj; 99 IPM fast up. -- NO Electrical Controls. -- Overall Dimensions: Approx. 146"; x 65"; x 96"; high. -- Approx. 30,000 Lbs.

FOR CAT 420-440 HOSES, CYLINDER, BRACKET INCLUDED HYDRAULIC MAIN PIN THUMB MESHES WITH 24" PIN LOCK BUCKET SOLD AS IS WERK-BRAU BACKHOE LOADER THUMB WORKS WITH 1/4 XLS SWG COUPLER

171MM FACE SPREAD 50MM Pins BUCKET SOLD AS IS Fits Takeuchi TB285 WERK BRAU 12" DIG BUCKET

FITS CAT 307E-308E NO COUPLER, DIRECT PIN-ON NO OEM MOUNT SOLD AS IS WERK-BRAU CONTRACTOR GRAPPLE

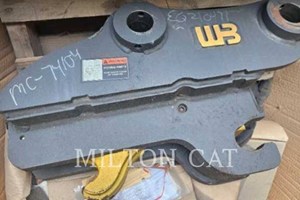

FOR USE WITH CAT 307-309 MACHINES AND WORK TOOLS HAS NOT BEEN USED INCLUDES BUCKET PINS INCLUDES HYDRAULIC KIT SOLD AS IS WERK BRAU HYDRAULIC PIN GRAB COUPLER WERK BRAU PART NUMBER HD080-50-5283

Specifications: Setworks: Computer setworks - 15 preset locations (1/2" tp 9" sets) / Manual setworks - Handcrank adjustment Frame: Heavy duty 1/4" (6.35mm) x 4" (10.16cm) x 10" (25.4cm) tubular steel for vibration free cutting. Feed System: Steel slat bed feed chain. 200fpm max speed / 20fpm min speed. Bands: .042" x 5" / .092 Kerf / Swedge tooth or stelite tipped Guides: Interchangeable pressure guides Drive Wheels: 42" (106.65cm) custom drive wheels made of high quality carbon steel and dynamicaly balanced. Hold Downs: CS - Double tire hold down / MS - Double sprocket hold down Cutting Specs: Max Length w/ out Return - Unlimited / Max Length w/ Return - per customer requirement Min Length - 18" / Max Width - 16" / Min Width - 3" / Max Height - 16" Motors: 60 H.P. TEFC 1800rpm per head. 3 H.P. to 7-1/2 H.P. variable speed drive Electical: Includes all TEFC motors, Y Delta Soft Start starters, breakers, 440 volt standard. System is prewired, Customer responsible for electric wiring to equipment. Dust Removal: 6" (15.25cm) diameter outlet / Customer is responsible for air suction. Options: Automatic cant return, Breakdown equipment, Operators cab, 2 or 3 way cant/board seperator, Can't turner in crossover, Other voltages available.
