Equipment For Sale

HOLYTEK HP-11P Horizontal Resaw -- Hydraulic Feeding conveyor, hydraulic pump with 3 HP motor -- Main saw motor 20 hp. Specifications: -- Working width capacity 12“ (300 mm) -- Variable Feed Speed 0- 17 m/min (0 to 55 FPM) -- Thickness capacity 4mm to 125 mm (.11/8" to 4.92") -- Conveyor tilting 0 ° to 7° -- Electroni display of cutting height -- Blade Capacity 4270 X 25 X 0.89 mm. -- Wheels Diameter 725 mm -- Return conveyor on machine top

Holytek 37DA Wide Belt Sander (2) Heads37" Width cap Drum, Combination Head1st Head: 7" Dia. spiral grooved rubber covered contact roller, 20 HP motor;2nd Head: Combination sanding head with 5" dia. spiral grooved rubber covered contact roll & 2" wide polishing platen, 15 HP motor.Specifications -- Abrasive belt size of 37" x 60" -- Pneumatic belt tensioning and electronic abrasive belt tracking -- 12" min. working length. -- 2 HP Conveyor belt motor, -- Variable feed speed from 13 - 52 FPM,Equipped with & Features -- Infeed & outfeed rubber covered holddown rolls; -- 0" - 4" motorized thickness adjustment by 0.5 HP motor. -- Safety stop bar, emergency rail stop across the front of conveyor -- Motor load meters.

HOLYTEK - HRS-12TK, ...Straight Line Rip SawSpecifications: -- Overhead saw arbor, 15 HP motor belt driven, 4,500 RPM arbor. -- 12" Dia. max. saw blade. -- 3-3/8" Max. depth of cut. -- 18" Max. throat depth. -- 2 HP Stepped feed speeds of 50 - 65 - 83 - 100. -- Automatic lubrication of chain. -- Magnetic controls. -- Saw is glue line rated.Equipped with & Features: -- Overhead holddown rolls. -- Double-row of antikickback fingers. -- (6) Pressure rollers. -- Infeed adjustable fence line. -- Cast Iron table with rip fence.

HOLYTEK - HRS-12TK, ...Straight Line Rip SawSpecifications: -- Overhead saw arbor, 15 HP motor belt driven, 4,500 RPM arbor. -- 12" Dia. max. saw blade. -- 3-3/8" Max. depth of cut. -- 18" Max. throat depth. -- 2 HP Stepped feed speeds of 50 - 65 - 83 - 100. -- Automatic lubrication of chain. -- Magnetic controls. -- Saw is glue line rated.Equipped with & Features: -- Overhead holddown rolls. -- Double-row of antikickback fingers. -- (6) Pressure rollers. -- Infeed adjustable fence line. -- Cast Iron table with rip fence.

HOLYTEK - KL-36PC, ...2-Head Sander 2-Head Planer Sander 36" with planer head & combination head.Description: -- Planing Head (P): 6'' Dia. made of steel with spiral design for heavy stock removal. 228 TCT Tips: 15 x 15 x 2.5 mm; each disposed on (6) rows. Each knife has: (4) Usable cutting edges; easy access to planing head for tips rotation or replacement. -- Precise dial indicator showing the exact positioning of the sanding pad; quiet & smooth oscillation! Pneumatic oscillation system controlled electronically by an infrared system, which is not affected by dust. -- Combination Head: (1) Drum & (1) sanding pad (C) for superior quality of finishing. Sanding belt with: 120 or 150 Grit; allows finishing sanding in a single pass. -- Elevation Table: (4) Screws. -- Infeed roller table extension: 15-3/4". -- Outfeed roller table: 15-3/4" with (2) Rollers. -- Centralized Control Panel with: Electronic digital readout (Metric or Imperial) for elevation; precise positioning at the elevation requested. -- Ammeter indicating: Electrical intensity on the spiral cutterhead and the combination head motors. -- Electrical box with: CSA Approved electrical components ensuring maximum dependability and an outstanding long-lasting performance.Specifications -- Spiral cutterhead motor: 20 HP - 600 V; 60 Hz - 3 Ph. -- Combination head motor: 15 HP - 600 V; 60 Hz - 3 Ph. -- Table elevation motor: 1/4 HP - 600 V; 60 Hz - 3 Ph. -- Feed motor: 2 HP - 600 V; 60 Hz - 3 Ph. -- Spiral cutterhead dia.: 6''. -- TCT Tips dim.: 15 x 15 x 2 mm (228); (6) rows. -- Max. working width: 36". -- Min. working length: 12". -- Max. working thickness: 5". -- Sanding belt dim.: 37" x 75". -- Dust hoods dia.: 4'' x 2 & 5" x 2. -- Machine dim.: 71" L x 76" W x 77'' H. -- Net weight: 1,450 kG or 3,190 Lbs.

HOLYTEK SS-512 TS Shaper with Tilting Spindle, and Power FeederSpecifications: -- 1-1/4" Interchangeable spindle, 7.5 HP motor with (5) spindle speed settings of 3,000 - 4,000 - 6,000 - 8,000, & 10,000 RPM. -- Approx. 6" max. cap. under nut, 31" x 39" cast iron table. -- Insert ring diameters 2.8", 4/3", 6" and 8". -- Tilting spindle +10° and -45° -- Vertical movement of the spindle 7" -- sliding tableComplete with: -- Reverse rotation switch, adjustable fence assembly, and dust hood. -- 3-Roll Power Feeder

HOLYTEK MHB 242 Top/Bottom Wide Belt SanderHeavy-duty and powerful double surface sander providing significant time saving and improved productivity.Smooth and quiet oscillation. Belts oscillation controlled electronically by an infrared system which resists dust.Pneumatic sanding belts tensioning ensuring fast and easy belt replacement.Independent motor for each sanding belt.Pneumatic disc brake system automatically activated if power supply is interrupted, thus preserving the sanding belts from being damaged. Top and bottom 24" wide belt sanderFeatures: -- Spiral grooved 8" (D) rollers (R) and 3-1/2" (D) rollers (K) keep the sanding belts cool. -- Sanding belts: 75" Long. -- Elevation of table with digital readout and activated by independent motor. -- Control panel with: Ammeters indicating main motors current. Specifications: -- Upper Drum motor: 15 HP; 600 V; 60 Hz - 3-Ph. -- Upper Combination head motor: 10 HP; 600 V; 60 Hz - 3-Ph. -- Lower Drum motor: 15 HP; 600 V; 60 Hz - 3-Ph. -- Lower Combination head motor: 10 HP, 600 V, 60 Hz - 3-Ph. -- Feeding motors: 2 HP (x2). -- Table elevation motor: 0.5 HP. -- Electrical intensity: 53 A. -- Drums: 8" (D) - 75 DUROS. -- Max. working width: 24". -- Min. working length: 13-3/4". -- Working thickness: 3/16" ~ 5" -- Sanding belts dimensions: 25" x 75". -- Variable feeding speed: 8 - 16 MPM. -- Dust hoods Top: 4 x 4"(D); Bottom: 3 x 4"(D). -- OAL 127" x 70" x 75" high. -- Weight: 9,460 Lbs.

HOLZ-HER DYNESTIC 7516 FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications: 5' x 10' MATRIX Table for "Nested Base" Manufacturing. -- Working Field: "X" Axis 122.2" (3,105 mm), "Y" axis 61.45" (1,561 mm), "Z" axis stroke is 16.5" (418 mm). -- Positioning speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable: Flat table designed for "Nested Base Manufacturing" with (4) pneumatically controlled reference stop pins. -- Boring Unit:2 HP (1.7 kW) motor for spindle speed from 1,000 to 4,400 RPM;(10) Independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis; -- Machining: (1) 15 HP (11 kW) Electro-spindle Router, HSK F63 adaptor, 1,000 - 24,000 RPM;(1) 8-Position ATC. (dynamic carrousel type) -- Operator & Machine Control: PC Front-End with: CAMPUS Version 6.3.0.3 (BECKHOFF CNC Version 2.3.7) machine control,17" Color Flat Panel Monitor; continuous graphical and barcode interface, (3) axes simultaneous control; feed rate and spindle speed override & axis movement. -- CAMPUS/NC Hops Software: This package provides the prerequisites for effective machining and convenient operation. Our ECO Mode automatic standby control is a standard feature on all HOLZ-HER CNC machining centers for software-controlled minimization of the power consumption.Campus aCADemy is a full-fledged, high-performance CAD/CAM software package with versatile import features. -- Complete With:(1) BECKER 250 m³/Hr vacuum pump; manual central lubrication pump for guides & ball screw; left & right-side safety enclosure; Hand Control, pendant for set-up and program try-outs -- Actual Model is HOLZ-HER DYNESTIC 7516 10.5.

HOLZ-HER DYNESTIC 7516 FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications: 5' x 10' MATRIX Table for "Nested Base" Manufacturing. -- Working Field: "X" Axis 122.2" (3,105 mm), "Y" axis 61.45" (1,561 mm), "Z" axis stroke is 16.5" (418 mm). -- Positioning speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable: Flat table designed for "Nested Base Manufacturing" with (4) pneumatically controlled reference stop pins. -- Boring Unit:2 HP (1.7 kW) motor for spindle speed from 1,000 to 4,400 RPM;(10) Independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis; -- Machining: (1) 15 HP (11 kW) Electro-spindle Router, HSK F63 adaptor, 1,000 - 24,000 RPM;(1) 8-Position ATC. (dynamic carrousel type) -- Operator & Machine Control: PC Front-End with: CAMPUS Version 6.3.0.3 (BECKHOFF CNC Version 2.3.7) machine control,17" Color Flat Panel Monitor; continuous graphical and barcode interface, (3) axes simultaneous control; feed rate and spindle speed override & axis movement. -- CAMPUS/NC Hops Software: This package provides the prerequisites for effective machining and convenient operation. Our ECO Mode automatic standby control is a standard feature on all HOLZ-HER CNC machining centers for software-controlled minimization of the power consumption.Campus aCADemy is a full-fledged, high-performance CAD/CAM software package with versatile import features. -- Complete With:(1) BECKER 250 m³/Hr vacuum pump; manual central lubrication pump for guides & ball screw; left & right-side safety enclosure; Hand Control, pendant for set-up and program try-outs -- Actual Model is HOLZ-HER DYNESTIC 7516 10.5.

HOLZ-HER LYNX 7511 FT FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications:5' x 10' Phenolic "MATRIX" table for "Nested Base" Manufacturing. -- Working Field: "X" Axis 120" (3,050 mm), "Y" axis 62" (1,575 mm), "Z" axis stroke is 16-1/2" (419 mm), max material thickness 7" (180 mm). -- Positioning Speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable:Flat table designed for "Nested Base Manufacturing" with (3) "Y" axis pneumatically controlled reference stop pins. -- Boring Unit:2.3 HP (1.1 kW) motor for spindle speed from 1,000 to 6,000 RPM; (10) independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis; -- Machining: (1) 15 HP (11 kW) Electro-spindle Router, HSK F63 adaptor, 1,000 - 20,000 RPM; (1) 12-position tool rack for ATC. -- Operator & Machine Control: PC Front-End with Holz-Her "CAMPUS" + Windows operating system, 17" Color monitor; continuous graphical and barcode interface,BAUMULLER - PLC for (3/4) axes simultaneous control, feed rate and spindle speed override & axis movement. -- Complete with:(1) 250 m³/Hr BECKER Vacuum Pump; automatic "forced" lubrication system for guides & ball screw; sound absorbing protective head enclosure. -- Actual Model is HOLZ-HER LYNX 7511 FT.

Holzher Ergebender

HOLZ-HER - 1619, ...Boring Machine (Construction & Line Boring) -- Specifications:(19) Spindles on 32 mm centers; bores vertically from top and horizontally from the rear; repositions via manual air shock assisted tilting.2 HP Motor with: 2,800 RPM Gear driven boring head. -- Features:4-Position turret style depth stop for boring depth and a 4-3/4" max. stroke of boring head.24-3/4" Working width; 27-1/8" max. panel width; 19-1/2"; x 38"; x 32-1/2"; H table size. -- Equipped & Complete with:RH & LH Indexing fence with flip stops; (2) indexing pins (for continuous line boring); (3) 4" dia. pneumatic holddown clamps; foot pedal actuator; magnetic push button starter. -- Actual Model is: HOLZ-HER 1619Dimensions of this specific machine with pallet: 52" x 40" x 65" H.Dimensions of this specific machine when vertical: 52" x 37" x 60" H.Dimensions of this specific machine when horizontal: 52" x 51" x 46" H.

Holz-her 1255 Panel Saw Digital Readout capacity 169” x 74” 2.36 depth of cut 3 KW motor rotates 90^

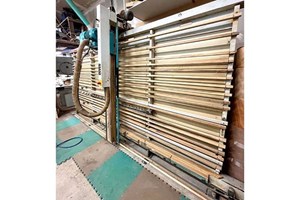

Holz-her Vertical 1265 Vertical Panel Saw

Holzher 1265S Vertical Panel Saw

HOLZ-HER 1270 Automatic Panel Saw w/Supercut Scoring75" x 169" Cap., 4 HP motor, 2" depth of cut, 220 mm (8-5/8") dia. saw blade at 6,640 RPM.Features: -- Saw head traverses automatically when rip or crosscutting and returns to starting position; (2) cycle lengths for long or short panels. -- 36 & 72 FPM saw carriage travel speed, 0.75 HP feed drive; -- Automatically moving back grid w/interlocks. Complete with: -- Rip gauge with (3) cam settings. -- (2) Gauging bars throughout frame length with (2) flip stops. -- Bottom rollers for easy movement of larger panels.Includes: -- Spare Blades.

Year: 2008 Excellent Condition HolzHer Triathlon 1488 Edge Bander Ligmatec Return Conveyor Manual Included Description: PreMill Front & Rear Trim Saws Top & Bottom Rough Cutter Top & Bottom Combination Finish Cutter 3mm Corner Rounding Edge Scraping Edge Buffing Variable Speed 8-18 mpm 8-60mm panel thickness Electrical: 230V 3Phase

HOLZ-HER - 1435-SE EDGEBANDER"1906" Cartridge Glue System; 5 mm edge thickness cap. (up to 8 mm w/optional tooling); automatic magazine coil & strips; 3 mm PVC cap. pneumatic guillotine for coil cutoff. Workstations: -- Double-motor end trim, (2) 0.3 HP - 9,000 RPM motor ea.; chamfers 0° - 10°. -- Universal top & bottom fine trim (for bevels from 0° - 15°); allows simultaneous bevel & profile trimming; (2) 0.8 HP - 18,000 RPM motor ea.; all trim motors are 0.6 kW HF - 300 Cy. -- Top & Bottom PVC scraper unit for 0.8 - 5 mm radius; air jets for blowoff. -- Top & Bottom "jump" buffing (0.3 HP - 1,620 RPM ea.). -- Single feed speed: 35 FPM.Complete with: Built-in Operator Control Panel; outboard panel support; frequency converter; used tooling; and sound enclosure.

HOLZ-HER 1488 TRIATHLON EDGEBANDER (W/PRE-MILLING & CORNER ROUNDING) + LIGMATECH -ZR01 Return Conveyor -- Specifications:Working Capacity: Max. 1" (25 mm) solid wood banding. thin PVC, Veneer, HPL & 3 mm PVC cap.; 60 mm (2.37") max. panel thickness, and 140 mm (5-1/2") min. panel length.Front-End equipped with: -- Pre-milling Unit: (2) 2.2 kW (3.0 HP) - 12,000 RPM; (1) jump spindle with digital indicators for positioning. -- Gluing System: "ULTRA-GRANUPRESS" System with: Flat glue nozzle only 3° angle of approach ideal for solid wood edgebanding & "quick melt" feature. -- Automatic Edge Magazine for: Coil, strip & solid wood edgebanding with TRACTOR-BELT feed system; Heavy-Duty guillotine for 4 mm PVC. -- Pressure Section with: (3) Large dia. rollers, each w/individual pneumatic plunge and pressure control; programmable with Servo motor positioning; powered 1st roller with electronic speed control synchronized with chain feed speed.Edgebanding Workstations: -- End Trimming Unit: (2) 0.75 HP - 6,800 RPM ea. "HF" Motors with: "Uni-Point Swivel", quick change from flush 0° - 15° bevel programmable from operator panel; Servo controls. -- Flush Trimming Unit: (2) 2.6 HP - 12,000 RPM - 200 Cy HF motors; Servo controls. -- Fine/Bevel/Radius Trimming Unit: (2) 1-1/2 HP- 12,000 RPM - 200 Cy HF motors; bevels 0° - 45°, Servo controls + SIKO digital readouts. -- Corner Rounding Unit: (2) "HF" Top motors & (2) HF Bottom motors for trimming leading-and-trailing upper-and-lower edge/corners; trailing edge (4 x 3/4 HP - 12,000 RPM - 300 Cy HF motors; 2 mm or 3 mm radius cap. -- Profile Scraper Unit: "Super Duty" for positively smooth finishing thick PVC for radius range from 2 - 5 mm; vertical & horizontal tracing wheels, positioning enabled through (1) Servo motor function from Control Panel; SIKO readouts for easy setup. -- Buffing Unit: (2) Lateral buffing wheel positioning motors with Oscillating & Programmable Jump Action for cleaning & polishing of edges (two 0.25 HP - 3,600 RPM motors); tilts 0° - 5°, Servo controls.Equipped with and Includes: -- PPC 231 Controller with 15" LCD color screen: 90% of all set-ups can be adjusted from the Control Panel; programmable for a large variety of edges like solid lumber, veneer strips or coils, HPL, thin & thick PVC; line control so there are no mechanical limit switches along the chain track. -- Variable feed speed from 8 - 20 MPM (26 - 65 FPM); panel overhang beyond chain 35 mm (1.38"); features automatic track pad lubrication. -- Factory Documentation: Operating and Spare Parts Manuals. -- Actual Model is: HOLZ-HER 1488 TRIATHLON + LIGMATECH ZR01

HOLZ-HER - 1516, ...Case Clamp (Single-Bay) -- Specifications:1-Bay Clamp, 100" x 50" x 24" clamping cap.; (1) movable, vertically positioned clamping beam with (3) horizontal clamps, (4) adjustable vertical clamps. -- Total of (14) pressure cylinders with 3-7/8" stroke & (4) adjustable counter-pressure bars; 700 Lbs/cylinder pressure at 100 PSI compressed air; built-in controls with pressure gauge.
