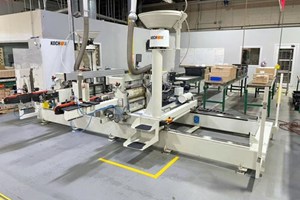

HOLZ-HER - CONTRIGA 1366, ...Edgebander (w/Premill & Corner Rounding) -- Specifications: NC Controlled Edgebander has the ability to program all functions including: Panel thickness, edge feed, glue application, end trimming, radius/fine trimming, corner rounding, scraping, and buffing. - Virtually eliminates setup time by selecting & loading program that automatically activates these functions simultaneously.Coil edgebanding up to 3 mm PVC cap.; 2-3/8" max. panel thickness; 7" min. panel length; powered pressure beam opening adjustments. Equipped with:"1961" Premilling Station: PC Controlled with up to 45 mm (1-3/4") milling height; (2) motors @ 2 kW (2.6 HP) - 9,000 RPM each. -- Features: Granulate glue system with: Hopper System with "floating" applicator nozzle & "quick melt" feature. -- Automatic magazine for coil, strip & solid edgebanding model "1901" with: TRACTOR-BELT Feed System, Heavy-Duty guillotine for 3 mm PVC. -- "1914" Pressure Section for 12 mm thick edgebanding with: (3) Rollers, each w/individual pressure control, powered 1st roller with electronic speed control synchronized with chain feed speed; Servo motor adjustment for edgebanding thickness from PLC. Workstations:"1819-1" Double motor (1 HP - 6,000 RPM motor ea.) end trim units with: "Uni-Point" Swivel system; "quick change" from flush to 0° - 15° bevel from operator panel. -- "1962" Top & Bottom flush trim unit: 2.6 HP - 200 Cy HF motors; 12,000 RPM cutter speed; NC Servo control, non-tilt. -- "1966" Top & Bottom fine trim unit with: Motorized 5-axis positioning; 1.5 HP - 200 Cy HF motors;, 12,000 RPM cutterhead speed; bevels 0° - 45°, Servo control; all adjustments programmable through the PLC. -- "1933 & 1934" 4-Motor corner rounding unit for top & bottom of leading & trailing corner when edgebanding all (4) sides; 0.7 HP - 200 Cy ea.; both motors with Servo positioning from control panel; Servo adjustment of entire unit (base). -- "1927" Scraper Unit: Finishing up to 5 mm thick PVC banding for radius range from 2 - 5 mm; vertical & horizontal tracing wheels, Servo positioning enabled through "PC"; Servo controlled in/out of base. -- "1964" Top & Bottom Glue scraper. -- "1851" Oscillating buffing unit: Cleaning & polishing of panel; (2) 0.25 HP - 1,440 RPM motors; tilts 0° - 45° vertically and 0° - 20° swivel on horizontal plane.Other Specifications & Features:Variable feed speeds up to 25 MPM (81 FPM); panel overhang beyond chain 35 mm (1.38"); features automatic track pad lubrication. Operator Interface:PPC-231 Controller for line control, glue temperature & flow, feed speed setting, and motorized holddown pressure beam adjustment. -- Frequency inverter, outboard panel support, and sound enclosure w/interior lights over all milling units. -- Actual Mode is HOLZ-HER CONTRIGA 1366

HOLZ-HER - 1516, ...Case Clamp (Single-Bay) -- Specifications:1-Bay Clamp, 100" x 50" x 24" clamping cap.; (1) movable, vertically positioned clamping beam with (3) horizontal clamps, (4) adjustable vertical clamps. -- Total of (14) pressure cylinders with 3-7/8" stroke & (4) adjustable counter-pressure bars; 700 Lbs/cylinder pressure at 100 PSI compressed air; built-in controls with pressure gauge.

HOLZ-HER 1488 TRIATHLON EDGEBANDER (W/PRE-MILLING & CORNER ROUNDING) + LIGMATECH -ZR01 Return Conveyor -- Specifications:Working Capacity: Max. 1" (25 mm) solid wood banding. thin PVC, Veneer, HPL & 3 mm PVC cap.; 60 mm (2.37") max. panel thickness, and 140 mm (5-1/2") min. panel length.Front-End equipped with: -- Pre-milling Unit: (2) 2.2 kW (3.0 HP) - 12,000 RPM; (1) jump spindle with digital indicators for positioning. -- Gluing System: "ULTRA-GRANUPRESS" System with: Flat glue nozzle only 3° angle of approach ideal for solid wood edgebanding & "quick melt" feature. -- Automatic Edge Magazine for: Coil, strip & solid wood edgebanding with TRACTOR-BELT feed system; Heavy-Duty guillotine for 4 mm PVC. -- Pressure Section with: (3) Large dia. rollers, each w/individual pneumatic plunge and pressure control; programmable with Servo motor positioning; powered 1st roller with electronic speed control synchronized with chain feed speed.Edgebanding Workstations: -- End Trimming Unit: (2) 0.75 HP - 6,800 RPM ea. "HF" Motors with: "Uni-Point Swivel", quick change from flush 0° - 15° bevel programmable from operator panel; Servo controls. -- Flush Trimming Unit: (2) 2.6 HP - 12,000 RPM - 200 Cy HF motors; Servo controls. -- Fine/Bevel/Radius Trimming Unit: (2) 1-1/2 HP- 12,000 RPM - 200 Cy HF motors; bevels 0° - 45°, Servo controls + SIKO digital readouts. -- Corner Rounding Unit: (2) "HF" Top motors & (2) HF Bottom motors for trimming leading-and-trailing upper-and-lower edge/corners; trailing edge (4 x 3/4 HP - 12,000 RPM - 300 Cy HF motors; 2 mm or 3 mm radius cap. -- Profile Scraper Unit: "Super Duty" for positively smooth finishing thick PVC for radius range from 2 - 5 mm; vertical & horizontal tracing wheels, positioning enabled through (1) Servo motor function from Control Panel; SIKO readouts for easy setup. -- Buffing Unit: (2) Lateral buffing wheel positioning motors with Oscillating & Programmable Jump Action for cleaning & polishing of edges (two 0.25 HP - 3,600 RPM motors); tilts 0° - 5°, Servo controls.Equipped with and Includes: -- PPC 231 Controller with 15" LCD color screen: 90% of all set-ups can be adjusted from the Control Panel; programmable for a large variety of edges like solid lumber, veneer strips or coils, HPL, thin & thick PVC; line control so there are no mechanical limit switches along the chain track. -- Variable feed speed from 8 - 20 MPM (26 - 65 FPM); panel overhang beyond chain 35 mm (1.38"); features automatic track pad lubrication. -- Factory Documentation: Operating and Spare Parts Manuals. -- Actual Model is: HOLZ-HER 1488 TRIATHLON + LIGMATECH ZR01

JESCO 211451 Self-Dumping Hopper.Super Heavy Duty Construction. -- Huge 10,000 Lbs. Cap. and 10 cu. yd. Hopper. -- 7-Gauge all-welded body for long equipment life. -- Dimensions 91" L x 135" W x 70" H with 3" H x 10" W x 50" L fork openings. -- Engineered to dump when the locking mechanism is tripped and to return to the upright position when empty. -- Safety retaining chain. -- Unit weight 3,500 lbs.

JESCO 211551 Self-Dumping Hopper.Super Heavy Duty Construction. -- 4,000 Lbs. Cap. and 2 cu. yd. Hopper. -- 10-Gauge all-welded body, 8-Gauge base for long equipment life. -- Dimensions 64" L x 59" W x 46" H with 2-1/2" H x 14" W x 48" L fork openings. -- Engineered to dump when the locking mechanism is tripped and to return to the upright position when empty. -- Safety retaining chain. -- Unit weight 705 lbs.

JESCO 211751 Self-Dumping Hopper.Super Heavy Duty Construction. -- 2,000 Lbs. Cap. and 2 cu. yd. Hopper. -- 12-Gauge all-welded body with 8-Gauge base for long equipment life. -- Dimensions 64" L x 59" W x 46" H with 2-1/4" H x 14" W x 48" L fork openings. -- Engineered to dump when the locking mechanism is tripped and to return to the upright position when empty. -- Safety retaining chain. -- Unit weight 600 lbs..

JET - JC-3CF: Cyclone Dust CollectorCyclone action separates the heavier chips & particles and disposes of them into a 55-gallon drum. -- 3 HP with 1,450 CFM -- Inlet size 8", Outlet size 8". -- Large 8-fin, 14" steel impeller creates high velocity air flow that allows the lighter dust to pass through and be trapped in the filter. -- Filter bag provides: Almost 40 sq/ft. of filtration surface area for all dust particles 5-micron and larger. -- Collection bags: "Snap-In" design for quick & easy installation and removal. -- Use of JET's "EXCLUSIVE" pressure tube allows the use of a plastic collection bag in the drum without the bag getting sucked into the Cyclone. -- Special rectangular inlet pipe adds separation and additional air flow. -- Steel construction with: Welded seams & powder coated paint ensures long, dependable performance.

JET EHVS-80 EDGE SANDER (NON-OSCILLATING)(Single-Phase) ---Price Negotiable---Make an Offer!--- - 6” x 89" Non-Oscillating Horizontal/Vertical Edge Sander - Table size 12-1/2” x 37” x 3/4” Thick, Table tilt 0° - 90° - Platen size 7" x 34" - Belt speed 3,900 SFPM - 6" x 89" Abrasive belt - 1-1/2 HP 3,600 RPM Direct drive motor - Palletized Dimensions: 50" x 31" x 44" H

JET EHVS-80 6"; x 89" Non-Oscillating Horizontal/Vertical Edge SanderSpecifications: -- Table size 12-1/2"; x 37"; x 3/4"; Thick, Table tilt 0° - 90°. -- Platen size 7" x 34". -- Belt speed 3,900 SFPM.Equipped with: -- 6" x 89" Abrasive belt. -- 1-1/2 HP 3,600 RPM Direct drive motor.Palletized Dimensions: 50" x 31" x 44" H.

JLT CLAMPS 180A-M2 Pneumatic Panel Flattener. -- Complete with; Air System and Docking attachment with 40" reach and up to 2-1/2" material thickness.Additional Thickness Capacities Available (4" & 6")...add $100

JLT - 79K-10: Entry Panel & Door ClampVersatility: Leave the center squaring bar to do multiple doors at once or remove the bar to take advantage of the full capacity of the machine. -- Capacity for solid wood doors: 48" x 120". -- Quick release latches on the jaws; moveable squaring bar. -- Squaring mechanism can be recalibrated, if necessary. -- (2) Horizontal pneumatic clamps. -- (4) Vertical pneumatic clamps. -- 1-Lever operation. -- 1,000 Lbs Clamping force per cylinder. -- 3" Stroke from each cylinder.

JLT CLAMPS 718A-M2-12-M Panel and Door ClampBuddy System includes #79F-12-PC & #717CUnique all-in-one Panel Clamp & Cabinet Door Clamp. -- The DDC has a larger clamping area of 38" Deep x 98" Wide with a splitter for two (2) door clamping. -- Double door design, air operated assembly clamp specifically designed for entry doors, cabinet doors or windows. -- (2) Heavy Duty quick adjusting pneumatic clamping cylinders & (1) quick adjusting cross-clamp on the side. -- (1) Quick adjusting cross-clamp for the rails with (3) draw clamps for the stiles. -- 2" Deep squaring fence along left and bottom sides. -- Single-lever cylinders for quick & accurate clamping pressure. -- Shelf area to hold the pieces of the frame prior to clamping for all squaring components. -- 5-Tier self-supporting rack unit; each tier is 12' wide; total of (18) clamps on the rack. -- 32" or 40" Opening clamps available; must be specified when placing order. -- Clamps with 2-1/2" high jaws and manual movement & tightening. -- Additional clamps are available. -- 40 Sq. ft. footprint.

JLT CLAMPS 79F-M2-8-PC Panel and Door Clamp. An Industry standard for Cabinet doors and so much more. -- (5) Levels of 8' wide x 40" deep cap. -- Heavy tubular frame with (18) clamps. -- Manually adjustable bar clamps that easily set in place and move from side-to-side. -- 40" Clamp opening with a 3-1/2" high x 4" wide jaw. -- Additional opening clamps available.

JLT CLAMPS 79F-M2-6-PC Panel and Door ClampAn Industry standard for Cabinet doors and so much more. -- (5) Levels of 6' wide x 40" deep cap. -- Heavy tubular frame with (8) clamps. -- Manually adjusted bar clamps that easily set in place and move from side-to-side. -- 40" Clamp opening with a 3-1/2" high x 4" wide jaw. -- Additional clamps are available.

Complete with (28) Clamps & Panel Flattener! JLT CLAMPS 79F-12-PC 12' W Panel & Door Clamp Specifications: Clamping cap. 12' W x 40" D. Clamping angle 20°. Clamping force 4,000 Lbs. Weight cap. 3,000 Lbs. Max. no. of clamps: 50 (10 Per level). Equipped with: (5) Clamping levels. Vertical clamp hanger. Complete with: Manual. (28) 39" L Cap. Manual Tightening T-Handle Bar Clamps, Each with 3-1/2" H x 4-5/8" W Jaws. JLT CLAMPS "180A-40" Pneumatic Panel Flattener, with Manual. Dimensions with Panel Flattener: 159" x 60" x 71" H. NOTE: Seller purchased new and states machine has light use. CURRENCY NOTE: Negotiable Price is listed in U.S. Dollars.

JLT 717C-DC Cabinet Door Clamp:Pneumatically operated Cabinet Door Clamp to square & clamp door in (1) Second. -- 26" Front-to-back x 62" left-to-right clamping capacity. -- Single row door clamp with (1) horizontal pneumatic clamp & (2) vertical pneumatic clamps. -- Special mount on a 30° angle for ease of loading & less operator fatigue. -- (3) Large diaphragm cylinders for quick clamping pressure with single lever operation. -- 40 PSI Air pressure to produce 500 Lbs of force on each clamp. -- Shelf to hold the pieces of the frame before pressing on all squaring components. -- 40 Sq. ft. floor space requirement.(Replaces: #717A-DC)

JLT CLAMPS 717C-M Panel and Door ClampPneumatically operated Cabinet Door Clamp to square & clamp a door in (1) Sec. -- 26" Front-to-back x 62" left-to-right clamping cap. -- Special design for mitered doors. -- Single row Door Clamp with (2) horizontal pneumatic clamp & (2) vertical pneumatic clamps. -- Special mount on a 30° angle for ease of loading & less operator fatigue. -- (4) Large diaphram cylinders for quick clamping pressure with single lever operation. -- 40 PSI Air pressure to produce 500 Lbs of force on each clamp. -- Shelf to hold the pieces of the frame before pressing on all squaring components. -- 40 Sq. ft. footprint.(Replaces #717A-M)

JLT CLAMPS 717C-DDC CLAMP, PANEL AND DOOR.Pneumatically operated Cabinet Door Clamp to square & clamp a door in (1) Sec. -- 38" Front-to-back x 98" left-to-right clamping capacity. -- Single row 2-station Door Clamp with (2) horizontal pneumatic clamps and (4) vertical pneumatic clamps. -- Special mount on a 30° angle for ease of loading & less operator fatigue. -- (6) Large diaphragm cylinders for quick clamping pressure with single-lever operation. -- 40 PSI Air pressure to produce 500 Lbs of force on each clamp. -- Shelf to hold the pieces of the frame before pressing for all squaring components. -- 60 Sq/ft footprint.(Replaces #717A-DDC)

JLT 79F-M2-12-PC Panel and Door Clamp An Industry standard for Cabinet doors that offers so much more. -- (5) Levels of 12' width x 40" depth cap. -- Heavy tubular frame with (6) clamps per level x (5) levels for a total of (30) clamps. -- Manually adjusted bar clamps that are easily set in place and can move from side-to-side. -- 40" Clamp opening with a 3-1/2" high jaw. -- Additional clamp openings available.

JLT CLAMPS 718A-M2-8 Panel and Door Clamp Buddy System includes #79F-8-PC & 717C Unique all-in-one Panel Clamp & Cabinet Door Clamp. Specifications: -- 26" Deep x 62" wide clamping cap. -- Single row door clamp, air operated assembly on a 70° angle for entry doors, cabinet doors or windows. -- (2) Heavy Duty quick adjusting pneumatic clamping cylinders. -- (1) Quick adjusting cross-clamp for the rails with (3) draw clamps for the stiles. -- 45° Working angle for easy access & less fatigue. -- 2" Deep squaring fence along left & bottom sides. -- Single lever cylinders for quick & accurate clamping pressure. -- Shelf area to hold the pieces of the frame prior to clamping for all squaring components. -- 5-Tier self-supporting rack unit; each tier is 8' wide; total of (18) clamps on rack unit. -- 32" or 40" Opening clamps available; must be specified when placing order. -- Clamps with 2-1/2" high jaws with manual movement and tightening. -- 40 Sq. ft. footprint.
