Holytek 37DA Wide Belt Sander (2) Heads37" Width cap Drum, Combination Head1st Head: 7" Dia. spiral grooved rubber covered contact roller, 20 HP motor;2nd Head: Combination sanding head with 5" dia. spiral grooved rubber covered contact roll & 2" wide polishing platen, 15 HP motor.Specifications -- Abrasive belt size of 37" x 60" -- Pneumatic belt tensioning and electronic abrasive belt tracking -- 12" min. working length. -- 2 HP Conveyor belt motor, -- Variable feed speed from 13 - 52 FPM,Equipped with & Features -- Infeed & outfeed rubber covered holddown rolls; -- 0" - 4" motorized thickness adjustment by 0.5 HP motor. -- Safety stop bar, emergency rail stop across the front of conveyor -- Motor load meters.

HOLYTEK - HRS-12TK, ...Straight Line Rip SawSpecifications: -- Overhead saw arbor, 15 HP motor belt driven, 4,500 RPM arbor. -- 12" Dia. max. saw blade. -- 3-3/8" Max. depth of cut. -- 18" Max. throat depth. -- 2 HP Stepped feed speeds of 50 - 65 - 83 - 100. -- Automatic lubrication of chain. -- Magnetic controls. -- Saw is glue line rated.Equipped with & Features: -- Overhead holddown rolls. -- Double-row of antikickback fingers. -- (6) Pressure rollers. -- Infeed adjustable fence line. -- Cast Iron table with rip fence.

HOLYTEK GES 920 RK Wide Belt Sander(2) Heads drum and combination head -- (2) Head, 36" width cap., -- 1st Head: Heavy duty rubber covered contact drum, 15 HP motor; -- 2nd Head: Combination head with 6" dia. contact roll, 20 HP motor, -- 2 HP feed motor, 16 - 55 FPM variable feed speed, -- 37" x 75" abrasive belts, electronic oscillating belt system. -- Motorized table elevation with .25 HP motor, maximum height 125 mm (4.9")Equipped with: -- Digital read-out & infeed and outfeed spring loaded hold down rolls.

HOLYTEK HP-11P Horizontal Resaw -- Hydraulic Feeding conveyor, hydraulic pump with 3 HP motor -- Main saw motor 20 hp. Specifications: -- Working width capacity 12“ (300 mm) -- Variable Feed Speed 0- 17 m/min (0 to 55 FPM) -- Thickness capacity 4mm to 125 mm (.11/8" to 4.92") -- Conveyor tilting 0 ° to 7° -- Electroni display of cutting height -- Blade Capacity 4270 X 25 X 0.89 mm. -- Wheels Diameter 725 mm -- Return conveyor on machine top

HOLYTEK - KL-36PC, ...2-Head Sander 2-Head Planer Sander 36" with planer head & combination head.Description: -- Planing Head (P): 6'' Dia. made of steel with spiral design for heavy stock removal. 228 TCT Tips: 15 x 15 x 2.5 mm; each disposed on (6) rows. Each knife has: (4) Usable cutting edges; easy access to planing head for tips rotation or replacement. -- Precise dial indicator showing the exact positioning of the sanding pad; quiet & smooth oscillation! Pneumatic oscillation system controlled electronically by an infrared system, which is not affected by dust. -- Combination Head: (1) Drum & (1) sanding pad (C) for superior quality of finishing. Sanding belt with: 120 or 150 Grit; allows finishing sanding in a single pass. -- Elevation Table: (4) Screws. -- Infeed roller table extension: 15-3/4". -- Outfeed roller table: 15-3/4" with (2) Rollers. -- Centralized Control Panel with: Electronic digital readout (Metric or Imperial) for elevation; precise positioning at the elevation requested. -- Ammeter indicating: Electrical intensity on the spiral cutterhead and the combination head motors. -- Electrical box with: CSA Approved electrical components ensuring maximum dependability and an outstanding long-lasting performance.Specifications -- Spiral cutterhead motor: 20 HP - 600 V; 60 Hz - 3 Ph. -- Combination head motor: 15 HP - 600 V; 60 Hz - 3 Ph. -- Table elevation motor: 1/4 HP - 600 V; 60 Hz - 3 Ph. -- Feed motor: 2 HP - 600 V; 60 Hz - 3 Ph. -- Spiral cutterhead dia.: 6''. -- TCT Tips dim.: 15 x 15 x 2 mm (228); (6) rows. -- Max. working width: 36". -- Min. working length: 12". -- Max. working thickness: 5". -- Sanding belt dim.: 37" x 75". -- Dust hoods dia.: 4'' x 2 & 5" x 2. -- Machine dim.: 71" L x 76" W x 77'' H. -- Net weight: 1,450 kG or 3,190 Lbs.

HOLYTEK MHB 242 Top/Bottom Wide Belt SanderHeavy-duty and powerful double surface sander providing significant time saving and improved productivity.Smooth and quiet oscillation. Belts oscillation controlled electronically by an infrared system which resists dust.Pneumatic sanding belts tensioning ensuring fast and easy belt replacement.Independent motor for each sanding belt.Pneumatic disc brake system automatically activated if power supply is interrupted, thus preserving the sanding belts from being damaged. Top and bottom 24" wide belt sanderFeatures: -- Spiral grooved 8" (D) rollers (R) and 3-1/2" (D) rollers (K) keep the sanding belts cool. -- Sanding belts: 75" Long. -- Elevation of table with digital readout and activated by independent motor. -- Control panel with: Ammeters indicating main motors current. Specifications: -- Upper Drum motor: 15 HP; 600 V; 60 Hz - 3-Ph. -- Upper Combination head motor: 10 HP; 600 V; 60 Hz - 3-Ph. -- Lower Drum motor: 15 HP; 600 V; 60 Hz - 3-Ph. -- Lower Combination head motor: 10 HP, 600 V, 60 Hz - 3-Ph. -- Feeding motors: 2 HP (x2). -- Table elevation motor: 0.5 HP. -- Electrical intensity: 53 A. -- Drums: 8" (D) - 75 DUROS. -- Max. working width: 24". -- Min. working length: 13-3/4". -- Working thickness: 3/16" ~ 5" -- Sanding belts dimensions: 25" x 75". -- Variable feeding speed: 8 - 16 MPM. -- Dust hoods Top: 4 x 4"(D); Bottom: 3 x 4"(D). -- OAL 127" x 70" x 75" high. -- Weight: 9,460 Lbs.

HOLYTEK SS-512 TS Shaper with Tilting Spindle, and Power FeederSpecifications: -- 1-1/4" Interchangeable spindle, 7.5 HP motor with (5) spindle speed settings of 3,000 - 4,000 - 6,000 - 8,000, & 10,000 RPM. -- Approx. 6" max. cap. under nut, 31" x 39" cast iron table. -- Insert ring diameters 2.8", 4/3", 6" and 8". -- Tilting spindle +10° and -45° -- Vertical movement of the spindle 7" -- sliding tableComplete with: -- Reverse rotation switch, adjustable fence assembly, and dust hood. -- 3-Roll Power Feeder

HOLYTEK HK 610 Double Sided Planer with THOMAS MANUFACTURING Return ConveyorHOLYTEK HK 610 Double Sided Planer specifications - -- 24" x 8" Cap. Double Surface Planer, spiral carbide cutterheads belt driven by 20 HP top and 15 HP bottom motors at 4,000 RPM. -- Spriral cutter head 125 mm diam. with 96 inserts 30mm X 12 mm X 1.5 mm -- Variable feed motor delivers a range of 7 M./min to 20 M./min. (19.5 FPM to 82 FPM) -- Feed motor 3 HP, corrugated sectional infeed rollers and (4) table rollers provide superior feeding regardless of the type of wood being processed; hard-chromed table surface precision ground to provide smooth performance and maximum wear resistance at high speeds. -- Machines are currently wired for 220 Voltage.Technical Specifications:• Maximum width 610 mm (24")• Minimum length: 300 mm (11.9")• Maximum thickness 170 mm (6.69")• Minimum thickness 8 mm (.31")• Table size: 686 mm X 2616 mm (27" X 103")• Dovetailed slideways on the table elevation ensures stability and rigidity; a mechanical readout provides accurate details of table positioning adjustment; thickness limit guard is provided at the infeed end as a safety feature. • Machine Dimensions - 109" Long x 46" Wide x 68" High, Machine weight 7,280 lbsTHOMAS MANUFACTURING Return Conveyor specifications -37" Wide x 144" Long Receiving Table that transfers to a 20" Wide x 240" Long Return Conveyor1 HP - 3 Phase Variable-Speed DrivePhotoelectric SensorRemote ControlSolid State TimerSwing-Out Section that is 20" Wide x 90" Long

HOLZ-HER LYNX 7511 FT FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications:5' x 10' Phenolic "MATRIX" table for "Nested Base" Manufacturing. -- Working Field: "X" Axis 120" (3,050 mm), "Y" axis 62" (1,575 mm), "Z" axis stroke is 16-1/2" (419 mm), max material thickness 7" (180 mm). -- Positioning Speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable:Flat table designed for "Nested Base Manufacturing" with (3) "Y" axis pneumatically controlled reference stop pins. -- Boring Unit:2.3 HP (1.1 kW) motor for spindle speed from 1,000 to 6,000 RPM; (10) independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis; -- Machining: (1) 15 HP (11 kW) Electro-spindle Router, HSK F63 adaptor, 1,000 - 20,000 RPM; (1) 12-position tool rack for ATC. -- Operator & Machine Control: PC Front-End with Holz-Her "CAMPUS" + Windows operating system, 17" Color monitor; continuous graphical and barcode interface,BAUMULLER - PLC for (3/4) axes simultaneous control, feed rate and spindle speed override & axis movement. -- Complete with:(1) 250 m³/Hr BECKER Vacuum Pump; automatic "forced" lubrication system for guides & ball screw; sound absorbing protective head enclosure. -- Actual Model is HOLZ-HER LYNX 7511 FT.

HOLZ-HER DYNESTIC 7516 FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications: 5' x 10' MATRIX Table for "Nested Base" Manufacturing. -- Working Field: "X" Axis 122.2" (3,105 mm), "Y" axis 61.45" (1,561 mm), "Z" axis stroke is 16.5" (418 mm). -- Positioning speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable: Flat table designed for "Nested Base Manufacturing" with (4) pneumatically controlled reference stop pins. -- Boring Unit:2 HP (1.7 kW) motor for spindle speed from 1,000 to 4,400 RPM;(10) Independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis; -- Machining: (1) 15 HP (11 kW) Electro-spindle Router, HSK F63 adaptor, 1,000 - 24,000 RPM;(1) 8-Position ATC. (dynamic carrousel type) -- Operator & Machine Control: PC Front-End with: CAMPUS Version 6.3.0.3 (BECKHOFF CNC Version 2.3.7) machine control,17" Color Flat Panel Monitor; continuous graphical and barcode interface, (3) axes simultaneous control; feed rate and spindle speed override & axis movement. -- CAMPUS/NC Hops Software: This package provides the prerequisites for effective machining and convenient operation. Our ECO Mode automatic standby control is a standard feature on all HOLZ-HER CNC machining centers for software-controlled minimization of the power consumption.Campus aCADemy is a full-fledged, high-performance CAD/CAM software package with versatile import features. -- Complete With:(1) BECKER 250 m³/Hr vacuum pump; manual central lubrication pump for guides & ball screw; left & right-side safety enclosure; Hand Control, pendant for set-up and program try-outs -- Actual Model is HOLZ-HER DYNESTIC 7516 10.5.

HOLZ-HER DYNESTIC 7516 FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications: 5' x 10' MATRIX Table for "Nested Base" Manufacturing. -- Working Field: "X" Axis 122.2" (3,105 mm), "Y" axis 61.45" (1,561 mm), "Z" axis stroke is 16.5" (418 mm). -- Positioning speed: "X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM). -- Worktable: Flat table designed for "Nested Base Manufacturing" with (4) pneumatically controlled reference stop pins. -- Boring Unit:2 HP (1.7 kW) motor for spindle speed from 1,000 to 4,400 RPM;(10) Independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis; -- Machining: (1) 15 HP (11 kW) Electro-spindle Router, HSK F63 adaptor, 1,000 - 24,000 RPM;(1) 8-Position ATC. (dynamic carrousel type) -- Operator & Machine Control: PC Front-End with: CAMPUS Version 6.3.0.3 (BECKHOFF CNC Version 2.3.7) machine control,17" Color Flat Panel Monitor; continuous graphical and barcode interface, (3) axes simultaneous control; feed rate and spindle speed override & axis movement. -- CAMPUS/NC Hops Software: This package provides the prerequisites for effective machining and convenient operation. Our ECO Mode automatic standby control is a standard feature on all HOLZ-HER CNC machining centers for software-controlled minimization of the power consumption.Campus aCADemy is a full-fledged, high-performance CAD/CAM software package with versatile import features. -- Complete With:(1) BECKER 250 m³/Hr vacuum pump; manual central lubrication pump for guides & ball screw; left & right-side safety enclosure; Hand Control, pendant for set-up and program try-outs -- Actual Model is HOLZ-HER DYNESTIC 7516 10.5.

HOLZ-HER PRO-MASTER 7122 K 4X CNC MACHINING CENTER (W/ATC/BORING/"C" AXIS): -- Specifications: Working capacity: "X" Axis 142" (3,607 mm); "Y" axis is 59" (1,500 mm); "Z" axis stroke is 22.2" (565 mm); max. material thickness: 8.26" (210 mm) from the top of the vacuum pod. -- Positioning Speed: "X" Axis is 393 FPM (120 MPM); "Y" axis is 328 FPM (100 MPM), "Z" axis 82 FPM (25 MPM)."X" Axis travel on high precision prismatic STAR guides & ground helical rack; "Y" & "Z" axes travel via hardened ground ball screw. -- Worktable:(6) Support rails, (2) adjustable vacuum pods per rail.Laser positioning system for quick positioning of pods and with value input from Controller according to part size and machining required.(6) Pneumatic pin stops located in the rear of the machine; (6) pneumatic pin stops located in the front of the machine.(2) Side stops & (2) central stops for mirror imaging; (2) independent working areas.Stops can be fitted with "quick fit" mushroom clamps for clamping of small or awkward shaped parts. -- Boring Head:4 HP (3 kW) Motor; variable spindle speed from 1,000 - 6,800 RPM; (18) independent vertical boring spindles with: (12) Spindles in "X" axis & (6) spindles in "Y" axis.(6) Horizontal spindles with: (2+2) in "X" Axis & (1+1) in the "Y" axis.(1) "X" Axis grooving saw for max 120 mm dia. blade. The boring head is arranged to accommodate (2) operating units. -- Machining Units:(1) 13 HP (9.7 kW) Vertically mounted liquid cooled electro-spindle with: HSK 63F Adaptor; inverter driven 1,000 - 24,000 RPM with max. torque from 12,000 - 24,000 RPM.(1) NC Controlled "C" axis for 360° horizontal processing.(1) 18-Position ride-along rotary tool changer plate for "on the fly" ATC.Max. tool dia. 85 mm (if fully loaded) or 200 mm (with free spaces). -- Operator & Machine Control: SIEMENS PC Front-End + "CAMPUS" + Windows "7" operating system with 3D simulation.15" Color monitor; standard PC Keyboard & mouse; CD-ROM drive. - Card ports: (1) AGP, (1) PCI, and (1) ISA; (2) serial ports & (2) parallel ports; (2) PS/2 ports & (4) USB ports; (2) PCI Bus-Master IDE ports; (3) Com 905B-Combo fast Ethernet cards.Hand-held pendant for remote control start/stop of working cycle, speed control, reset function, etc."CAMPUS" is user-friendly CNC software with office and machine license; extensive 3D simulation module as standard feature; integrated CAD module and versatile macros for easy programming. -- Complete with:(1) 100 cbm/Hr Vacuum Pump; tool length "Touch-Off" Probe; emergency stop rope & pressure sensitive safety mats that will instantly place machine in "pause cycle" when stepped on.Sound absorbing protective head enclosure with debris curtain around bottom edge. -- Actual Model is: HOLZ-HER - PRO-MASTER 7122 K 4X.

HOLZ-HER CUT 6120 FRONT LOAD, AUTOMATIC PANEL SAW: -- Specifications: 3,900 mm (153.5") Max. rip cut cap., 3,900 mm (153.5") pull back pusher stroke; 82 mm (3.2") saw blade projection.15 HP (11 kW) Main saw motor, 1.5 HP (1.1 kW) scoring motor. -- Saw Carriage:Variable feed speed from 3 - 320 FPM (1 - 100 MPM ), return speed of 416 FPM (130 MPM).Motorized bi-directional grooving capabilities with electronic adjustment for 0 mm - 35 mm.Automatic cutting length limiter adjusts the cutting height & cutting length at the end of the workpiece. -- Pusher Fence:(7) Material gripper clamps, (1) Double Finger mounted at the cross-cut fence location for narrow strip cutting & (6) standard clamps. 82 FPM (25 MPM) forward positioning speed, 328 FPM (100 MPM) return speed.Variable pressure settings for delicate materials. Pressure beam has an integrated "Last Cut" operation to achieve a "0" mm panel dimension.Rack & pinion movement on both sides to assure the pusher remains parallel. -- Operator & Machine Control:PC Front-End with "CUTCONTROL 2" + "EASY-PLAN" + Windows operating system,19" TFT Display with unlimited program storage; keypad for data entry, USB & RS-232 serial port, "CUTCONTROL 2" offers Real-Time 3D Moving Graphics, diagnostic for errors or machine malfunction by means of an error signal code, incremental or absolute programming in mm or inches."CUTCONTROL 2" allows the operator to easily input information for absolute, serial, format, grooves, perforations, & position cutting which allows the machine to easily adapt to various situations & materials."Opti-Cut" & "EASY-PLAN" is a very user friendly on-board Optimizing System for all types of various cutting patterns, including angled cutting -- Complete with: Non-Marking rear roller support rails: Solid Air Cushion Table before & after the cutting line, ensures easy panel handling. Pneumatic crosscut side aligner, adjustable from 0" - 82.6" (0 - 2,100 mm). Side aligner is "Fully Automatic" adjustment when panel is less than 1,300 mm (51")"Quick Change" Blade system with automatic saw blade height adjustment; Electronic positioning of the scoring blade through the NC control.(3) Adjustable via "pneumatic locking" air support tables, ea. 70.8" x 23.6" (1,800 x 600 mm); -- Actual Model is HOLZ-HER CUT 6120 Dynamic

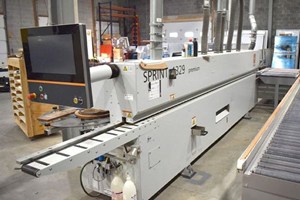

HOLZ-HER 1329 SPRINT PREMIUM EDGEBANDER (W/PRE-MILL & CORNER ROUNDING) & Features the HOLZ-HER Patented Dual "GLU-JET" EVA & PUR Zero Joint Technology System; + "DOUCET" return Conveyor -- Specifications:Edgebanding Capacity: edge thickness min./max. 0.4 - 15 mm (0.016 - 0.59"), coiled material 0.4 - 3 mm (0.016 - 0.157"); Panel thickness 8 - 60 mm (0.236 - 2.362"), workpiece width min. of 60 mm (2.36"); workpiece length min. 160 mm (6.29"); Feed speed 10 - 18 MPM (33 - 59 FPM). -- Programmable Logic Control (PLC) for Pre-Milling, edge feed, glue application, end trimming, flush trimming, radius trimming, scraping, corner rounding, and buffing. -- Holz-Her PPC 315 "EDGE CONTROL TOUCH" Electronically controlled set-up processes with 100% repetition accuracy. 18.5" Flat Touch Screen with Brilliant graphic display of machining process. Simple operation – rotating and swiveling control panel at eye height.,Programs can be easily created and recalled at will; Graphic interface makes programming easy,Icon of each unit may be brought up on the screen to show the operator the status of the unit and the parameters which can be programmed;Edgebander can be operated manually when required, without necessity to write a program.Machine In-Feed Configuration: -- Pre-Milling Station : (2) 2.0 KW (2.68 HP) - 12,000 RPM motors; Equipped with "ProLock" quick-change flange including height adjustment for optimum utilization of cutters. -- Edge Feeder Magazine: "SYNCRO" drive. The new magazine with its synchronous adaptation to the feed rate guarantees short intervals between work pieces & simultaneously optimizes edging protrusions. Small 3° feed angle thanks to nozzle design with easy feeding of coils, strips &up to 3 mm & solid wood edging up to 15 mm (.059"). Exclusive "Tractor-Belt feed System", edge guide equipped with automatic guillotine lock-out for safety, -- Pressure Section: Servo controlled pressure section with (1) large driven roller and (2) cantered idle rollers. Straight and tapered pressure rollers for perfect glued joints -- GLUING SYSTEM: "GUL Jet" thin film technology processes "EVA" or "PUR" Glue in Cartridge of Granulate Form, motorized, programmable glue nozzle (upper glue line) height positioning.Workstations: -- End Trimming Unit (1918-P): Front & rear 2 x 0.35 KW (0.5 HP) - 9,000 RPM motor each, uni-point swivel-axis for no re-indexing when changing from flush to bevel end trim (0° - 10° bevel),"PCS" programmable pneumatic change-over from flush to bevel. -- Multi-function Trimming Unit (1826 ): Servo controlled, 2 @ servo motors (1) for horizontal copy wheel & (1) for tool spindle position) programmable top & bottom unit 2 x 0.65 KW (0.87 HP) - 12,000 RPM each motor. Uni-Point design with no second adjustment, pneumatic, programmable tilt action for changing the degree of bevel, digital counters for vertical copy wheel position and pneumatic air cylinder for in/out pre-positioning of trimming motor. -- Trimming & Corner Rounding

HOLZ-HER 1329 SPRINT PREMIUM EDGEBANDER (W/PRE-MILL & CORNER ROUNDING) & Features the HOLZ-HER Patented Dual "GLU-JET" EVA & PUR Zero Joint Technology System; Specifications: -- Edgebanding Capacity: edge thickness min./max. 0.4 - 15 mm (0.016 - 0.59"), coiled material 0.4 - 3 mm (0.016 - 0.157"); Panel thickness 8 - 60 mm (0.236 - 2.362"), workpiece width min. of 60 mm (2.36"); workpiece length min. 160 mm (6.29"); Feed speed 10 - 18 MPM (33 - 59 FPM). -- Programmable Logic Control (PLC) for Pre-Milling, edge feed, glue application, end trimming, flush trimming, radius trimming, scraping, corner rounding, and buffing. -- Holz-Her PPC 315 "EDGE CONTROL TOUCH" Electronically controlled set-up processes with 100% repetition accuracy. 18.5" Flat Touch Screen with Brilliant graphic display of machining process. Simple operation – rotating and swiveling control panel at eye height.,Programs can be easily created and recalled at will; Graphic interface makes programming easy,Icon of each unit may be brought up on the screen to show the operator the status of the unit and the parameters which can be programmed;Edgebander can be operated manually when required, without necessity to write a program.Machine In-Feed Configuration: -- Pre-Milling Station : (2) 2.0 KW (2.68 HP) - 12,000 RPM motors; Equipped with "ProLock" quick-change flange including height adjustment for optimum utilization of cutters. -- Edge Feeder Magazine: "SYNCRO" drive. The new magazine with its synchronous adaptation to the feed rate guarantees short intervals between work pieces & simultaneously optimizes edging protrusions. Small 3° feed angle thanks to nozzle design with easy feeding of coils, strips &up to 3 mm & solid wood edging up to 15 mm (.059"). Exclusive "Tractor-Belt feed System", edge guide equipped with automatic guillotine lock-out for safety, -- Pressure Section: Servo controlled pressure section with (1) large driven roller and (2) cantered idle rollers. Straight and tapered pressure rollers for perfect glued joints -- GLUING SYSTEM: "GUL Jet" thin film technology processes "EVA" or "PUR" Glue in Cartridge of Granulate Form, motorized, programmable glue nozzle (upper glue line) height positioning.Workstations: -- End Trimming Unit (1918-P): Front & rear 2 x 0.35 KW (0.5 HP) - 9,000 RPM motor each, uni-point swivel-axis for no re-indexing when changing from flush to bevel end trim (0° - 10° bevel),"PCS" programmable pneumatic change-over from flush to bevel. -- Multi-function Trimming Unit (1826 ): Servo controlled, 2 @ servo motors (1) for horizontal copy wheel & (1) for tool spindle position) programmable top & bottom unit 2 x 0.65 KW (0.87 HP) - 12,000 RPM each motor. Uni-Point design with no second adjustment, pneumatic, programmable tilt action for changing the degree of bevel, digital counters for vertical copy wheel position and pneumatic air cylinder for in/out pre-positioning of trimming motor. -- Trimming & Corner Rounding Unit (1833 MOT4): For linea

HOLZ-HER 1402 HF Compact EdgebanderFeatures: -- Cartridge glue system, 3 mm edge thickness cap., -- Semi-automatic feed magazine, coil stock feeds automatically with guillotine cutoff, all strip stock is fed manually with pusher bar to advance the edging.Digital glue height indicator.Workstations: -- Double motor end trim (1 HP - 10,500 RPM motor ea.) -- Universal top & bottom fine trim (1942M) for bevels from 0° - 15³; allows simultaneous bevel & profile trimming (1 HP - 18,000 RPM motor ea.; trim motors are 0.6 kW HF - 300 Cy). -- Top & bottom PVC scraper unit (1929) for 0.8 - 3 mm radius. -- Top & bottom buffing (1940), 0.3 HP - 1,620 RPM motor ea. -- Single feed speed of 35 FPM.Complete with: -- Fixed outboard panel support, frequency converter, sound enclosure, and used tooling.

HOLZ-HER ARCUS 1335 EDGEBANDER (W/PRE-MILLING): -- Specifications: Edgebanding Cap. Edge thickness min./max. 0.4 - 15 mm (0.016 - 0.59"); coiled material 0.4 - 3 mm (0.016 - 0.157"); panel thickness 6 - 60 mm (0.236 - 2.362").Workpiece width min. of 60 mm (2.36"); workpiece length min. 160 mm (6.29"); variable feed speed from 10 - 18 MPM (33 - 59 FPM).Machine Infeed Configuration: -- Pre-milling Station: (2) 2.0 kW (2.68 HP) - 12,000 RPM motors; equipped with "ProLock" quick-change flange including height adjustment for optimum utilization of cutters. -- Edge Feeder Magazine: Small 3° feed angle thanks to nozzle design with easy feeding of coils; strips up to 3 mm & solid wood edging up to 15 mm (5/8"). Exclusive "Tractor-Belt Feed System": Edge guide equipped with automatic guillotine lockout for safety. -- 3 mm Guillotine: For up to 3 mm coiled & strip materials. -- Gluing Section: HOLZ-HER patented cartridge puck system with unrivaled properties with 95% less energy consumption & 70% shorter heat up time of 205° Celsius in just 3-1/2 minutes.Changing glue types takes just a minute and no special tools are required for glue and color. All that is changed is the cartridge. The time-consuming cleaning procedure of the glue pot, previously essential, is no longer necessary. The patented HOLZ-HER Cartridge System is a practical solution. -- Pressure Section (1) large & (3) cantered driven pressure rollers for perfect glued joints.Workstations: -- Front & Rear End Trimming: 2 x 0.35 kW (0.5 HP) - 9,000 RPM each motor for edge thicknesses up to 20 mm. -- Multifunction Top & Bottom Trimming Unit: Manual adjustment 2 x 0.65 kW (0.87 HP) - 12,000 each motor.Digital counters for vertical copy wheel position and pneumatic air cylinder for manual in/out pre-positioning of trimming motor. -- Top & Bottom Fine Trimming Unit: Manual Adjustment, 2 x 0.65 kW (0.87 HP) - 12,000 each motor.Digital counters for vertical copy wheel position and pneumatic air cylinder for manual positioning of fine trimming motors. -- Top & Bottom Profile Scraping Unit: For PVC edges.Reversible insert carbide knives. -- Top & Bottom Glue Scraping Unit: Flat, top/bottom, ball bearing guided. -- Top & Bottom Buffing Station: Top & bottom buffing motors with 150 mm ( 6.0") cloth buffing wheel diameter, 1,440 RPM wheel rotation.Operator Interface: -- HOLZ-HER "Edge Control" Electronically controlled set-up processes with ...100% repetition accuracy.Flat Screen 8.4" VGA Color Monitor: Dustproof soft key input panel surface; programs can be easily created and recalled at will; graphic interface makes programming easy.Icon of each unit may be brought up on the screen to show the Operator the status of the unit and the parameters that can be programmed; Edgebander can be operated manually when required, without the necessity to write a program. Programmable Logic Control (PLC) for Pre-milling: Edge feed, glue application, end trimming, flush trimming, radius trimming, scrapi

HOLZ-HER - 1516, ...Case Clamp (Single-Bay) -- Specifications:1-Bay Clamp, 100" x 50" x 24" clamping cap.; (1) movable, vertically positioned clamping beam with (3) horizontal clamps, (4) adjustable vertical clamps. -- Total of (14) pressure cylinders with 3-7/8" stroke & (4) adjustable counter-pressure bars; 700 Lbs/cylinder pressure at 100 PSI compressed air; built-in controls with pressure gauge.

HOLZ-HER - CONTRIGA 1366, ...Edgebander (w/Premill & Corner Rounding) -- Specifications: NC Controlled Edgebander has the ability to program all functions including: Panel thickness, edge feed, glue application, end trimming, radius/fine trimming, corner rounding, scraping, and buffing. - Virtually eliminates setup time by selecting & loading program that automatically activates these functions simultaneously.Coil edgebanding up to 3 mm PVC cap.; 2-3/8" max. panel thickness; 7" min. panel length; powered pressure beam opening adjustments. Equipped with:"1961" Premilling Station: PC Controlled with up to 45 mm (1-3/4") milling height; (2) motors @ 2 kW (2.6 HP) - 9,000 RPM each. -- Features: Granulate glue system with: Hopper System with "floating" applicator nozzle & "quick melt" feature. -- Automatic magazine for coil, strip & solid edgebanding model "1901" with: TRACTOR-BELT Feed System, Heavy-Duty guillotine for 3 mm PVC. -- "1914" Pressure Section for 12 mm thick edgebanding with: (3) Rollers, each w/individual pressure control, powered 1st roller with electronic speed control synchronized with chain feed speed; Servo motor adjustment for edgebanding thickness from PLC. Workstations:"1819-1" Double motor (1 HP - 6,000 RPM motor ea.) end trim units with: "Uni-Point" Swivel system; "quick change" from flush to 0° - 15° bevel from operator panel. -- "1962" Top & Bottom flush trim unit: 2.6 HP - 200 Cy HF motors; 12,000 RPM cutter speed; NC Servo control, non-tilt. -- "1966" Top & Bottom fine trim unit with: Motorized 5-axis positioning; 1.5 HP - 200 Cy HF motors;, 12,000 RPM cutterhead speed; bevels 0° - 45°, Servo control; all adjustments programmable through the PLC. -- "1933 & 1934" 4-Motor corner rounding unit for top & bottom of leading & trailing corner when edgebanding all (4) sides; 0.7 HP - 200 Cy ea.; both motors with Servo positioning from control panel; Servo adjustment of entire unit (base). -- "1927" Scraper Unit: Finishing up to 5 mm thick PVC banding for radius range from 2 - 5 mm; vertical & horizontal tracing wheels, Servo positioning enabled through "PC"; Servo controlled in/out of base. -- "1964" Top & Bottom Glue scraper. -- "1851" Oscillating buffing unit: Cleaning & polishing of panel; (2) 0.25 HP - 1,440 RPM motors; tilts 0° - 45° vertically and 0° - 20° swivel on horizontal plane.Other Specifications & Features:Variable feed speeds up to 25 MPM (81 FPM); panel overhang beyond chain 35 mm (1.38"); features automatic track pad lubrication. Operator Interface:PPC-231 Controller for line control, glue temperature & flow, feed speed setting, and motorized holddown pressure beam adjustment. -- Frequency inverter, outboard panel support, and sound enclosure w/interior lights over all milling units. -- Actual Mode is HOLZ-HER CONTRIGA 1366

JLT CLAMPS 180A-M2 Pneumatic Panel Flattener. -- Complete with; Air System and Docking attachment with 40" reach and up to 2-1/2" material thickness.Additional Thickness Capacities Available (4" & 6")...add $100
