BRANDT - KDF-550 C, ...Edgebander with Premill & Corner RoundingEdge & workpiece capacity. Edge: 0.4 - 8 mm (0.016 - 0.31"); panel thickness: 8 -60 mm (0.31" - 2-3/8"); min. panel length: 60 mm (6.29"); min. panel width: 70 mm (2-3/4").Equipped with: -- Premilling Station with: Diamond cutterheads; (2) motors @ 2.25 kW (3.0 HP) - 12.000 RPM; LH & RH rotation w/pneumatic jump control for chip free & clean panel edges. -- Infeed fence with: Servo motor positioning. -- Automatic Edge Magazine. For strip & coil stock; strips: 0.4 mm - 8 mm (0.016" - 0.31"); coils up to 3 mm PVC and "HD" guillotine. -- Pressure Section. 1st Roller driven; plus (3) idle rollers; timed pneumatic pressure controlled; Servo motor positioning for programmable edge thickness changeover. -- Feed Speed: Variable; 8 - 14 MPM (26 - 46 FPM); 11 MPM (36 FPM) when using contour trimming. -- BRANDT "PowerControl PC 16"; memory: 256 MB RAM; 1 GB Flash Card Drive; Operator control panel with: 22" Color HD wide screen; soft keypad; internal modem for remote diagnostic link.Workstations -- End Trimming; (2) Motors @ 0.35 kW (1/2 HP) 12,000 RPM; automatic chamfer from the control panel: 0°- 15°. -- Flush/Bevel-Fine/Radius Trimming Unit: Top/bottom (2) motors; 0.55 kW (3/4 HP) 12,000 RPM; auto tilt positioning 0° - 25°; combination flush/radius/chamfer cutterheads; horizontal and vertical tracing wheels. -- Includes: (3) Positioning options: Profile 1, profile 2, and flush trimming. -- Corner Rounding Unit: (1) Motor; 0.35 kW (1/2 HP) - 12,000 RPM for leading & trailing edges; vertical corner rounding of panels; either radius or chamfer cutters can be mounted; 3 mm max. edge thickness. -- Scraping, Multi-Profile (PVC) Top/Bottom with (2) profiles: 1 mm & 2 mm or 3 mm Instead of 2 mm; Servo control positioning of vertical & horizontal copy wheels; PVC scrape collection box. -- Scraping Glue Unit: Flush top/bottom on the panel surface with floating insert knives. -- Buffing Unit: Top/bottom (2) motors; 0.10 kW (0.125 HP) - 2,800 RPM.Complete with: Motorized, programmable holddown pressure beam; padded sound enclosure. -- Actual Model: BRANDT, OPTIMATKDF 550 C

--MAKE AN OFFER!--VERY GOOD CONDITION-- BRANDT KDF 650 (1650 HIGHFLEX) Edgebander, with 3,339 Hrs. (As of 10/31/23), Pre-Mill & Corner Rounding Specifications: 0.4 - 12 mm (1/2") Edge cap., panel thickness 5/16" - 2-3/16", min. panel length 160 mm (6-3/8") and 65 mm (2-1/2") min. width; line control (NO limit switches) for workstation function. Automatic height adjustment with top pressure beam for all work stations, equipped with digital height indicator. "PC-16" Program Control with: 21-1/2” Display, signal infeed light to ensure proper spacing between panels. Equipped with: Pre-milling station for cleaning edges of the panel; "Quick change" glue tank for maintenance & glue color change. 32” Dia. Coil table. Automatic magazine for strip & coil stock, 3 mm PVC guillotine, (1) drive plus (3) idle roll "pneumatically controlled" pressure sections with digital indicator for quick edge thickness changeover. Workstations: End trim (0.33 HP - 12,000 RPM motors), chamfers 0° - 15°; Top & bottom flush/bevel/radius trim, bevels 0° - 15° (0.5 HP - 12,000 RPM motors) with insert knives for 2 mm PVC radius. Vertical copy wheels are servo-controlled for quick changeover, programmable from the control panel. 2-Motor (4 corners) contour trim for profile corner rounding (two 0.5 HP - 12,000 RPM motors), with insert knives for 2 mm PVC radius. Top & bottom scraping for 2 - 6 mm radius, pneumatically controlled blowoff nozzles; Top & bottom buffing (0.25 HP - 1,400 RPM motors). End trim, flush/bevel/radius trim & corner rounding stations have HF motors with electronic brakes; feed chain track speed 42 FPM, 2 HP feed drive. Complete with: Operator control panel, PLC (Programmable Logic Control) keypad, and LED readouts; used tooling. NOTE: Actual Model "KDF 650". NOTE: Specifications must be confirmed. Machine Dimensions: 254” x 50” x 68” H. Machine Dimensions with Outboard Panel Support Extended: 254” x 66” x 68” H. CURRENCY NOTE: Negotiable Price is listed in U.S. Dollars.

BRANDT KDF 660 Edgebander w/Premilling & Corner RoundingSpecifications -- 0.4 - 15 mm (5/8") Edge cap.; panel thickness 5/16" - 2-3/8"; min. panel length 160 mm (6-3/8") and 65 mm (2-3/8") min. width; -- Line Control (NO limit switches) for workstation function. -- Pressure beam height adjustment for all workstations via digital height indicator. -- PC-20 Program Control with: 12" Industrial PC screen; 256 MB RAM; 1 gB Flash card with USB Port & remote diagnostic link. -- Signal infeed light to insure proper spacing between panels.Equipped with: -- 2-Motor Premill unit; (2) 3 HP motors (12,000 RPM) with straight and chamfer capability; program controlled indexing from straight to bevel. -- Quick heat up glue system (approx. 10 minutes); hopper feeder & glue tank for maintenance & quick glue color change.Glue temperature indicator for both the glue pot and glue roller with LED thermostat and automatic temperature reduction if the machine is idle for (15) minutes or more. -- The glue applicator roller is reversible and retractable from the fence line. -- Automatic magazine for strip & coil (large coil table; 800 mm dia. to accommodate large coils of 3 mm PVC stock); 3 mm PVC guillotine; (1) drive plus (3) secondary rollers "pneumatically controlled" pressure sections. Workstations: -- Double-end trim with: (2) 0.5 HP - 12,000 RPM motors; chamfers 0°- 15° via programmable Controller. -- Top & Bbottom flush/radius trim; bevels 0° - 15° (0.75 HP - 12,000 RPM motor); insert knives for 3 mm PVC radius. -- Corner Rounding Unit. -- Top & Bottom scraping for 3 mm PVC radius; pneumatically controlled indexing system. -- Top & Bottom oscillating buffing (0.25 HP - 2,800 motors). -- Variable feed speed 36 - 65 FPM (3 HP feed motor).

BRANDT KDF 780 2C EDGEBANDER WITH PRE-MILL AND CORNER ROUNDINGBasic Specifications: -- 0.4 - 15 mm (5/8") Edge cap., panel thickness 5/16" - 2-3/8", min. panel length 160 mm (6-3/8") and 65 mm (2-3/8") min. width; line control (NO limit switches) for workstation function.Features: -- Pressure Beam with motorized height adjustment for all work stations includes digital height indicator. -- PC-20 Program Control; with 12" Industrial PC flat screen 256 MB RAM, 1 GB Flash Card, with USB Port & remote diagnostic link. -- Signal infeed light to ensure proper spacing between panels. -- Quick heat-up glue system,(approx. 10 minutes) w/hopper feeder & w/glue tank for maintenance & quick glue color change. Glue temperature indicator for both the glue pot and glue roller with LED thermostat and automatic temperature reduction if the machine is idle for 15 minutes or more. -- The glue applicator roller is also reversable and retractable from the fence line. -- Automatic magazine for strip & coil (large coil table 800 mm diameter to accommodate large coils of 3 mm PVC) stock, 3 mm PVC guillotine, (1) drive plus (3) secondary rollers "pneumatically controlled" pressure section. -- Variable Feed speed 36 - 65 FPM (3 HP feed motor) -- Corner rounding station operates at 16 m/Min (52 FPM).Workstations: -- (2) Motor Pre-milling Unit; (2) 3 HP motors (12,000 RPM) to clean-up potential chipped edges. -- End Trimming: (2) 1/2 HP - 12,000 RPM motors) chamfers 0° - 15° via programmable controller. -- Pre-Trimming: Top & bottom flush/bevel trim, bevels 0° - 15° (3/4 HP - 12,000 RPM motor), with (4) postion manual index turret and pneumatic air cylinder for pre-set tool positioning. -- Fine-Trimming: Top & bottom flush/bevel/radius trim, bevels 0° - 15° (3/4 HP - 12,000 RPM motor), with (4) postion manual index turret and pneumatic air cylinder for pre-set tool positioning. -- Corner Rounding (Contour) Trimming Unit: (2) motor 1/2 HP - 12,000 RPM each motor for corner rounding for front & trailing corners on the fly. -- Profile Scraping Unit: Top & bottom for 1 - 3 mm PVC radius, depending on tooling. -- Open Space: For the ability to add a top & bottom flat/glue scraper. -- Buffing Station: Top & bottom oscillating buffing (0.25 HP - 2,800 motors). -- Hot Air Unit: (1) Hot air blower to reactivate top/bottom edge after profile scraping and buffing, restoring original edge color luster.Complete With: -- Operator control panel w/PLC (Programmable Logic Control) keypad & LED readouts. -- End trim, flush trim & fine trim and corner rounding stations have HF motors with electronic brakes. -- Original Factory machine documentation.

BRANDT PROFILINE KDF 970 2C HD EDGEBANDER WITH PRE MILL & CORNER ROUNDING & 7,504 Hrs. (As of 6/2/22)Specifications: -- Edgebanding thickness 0.4 - 20 mm (0.02" - 0.79"), Including 3 mm (0.12") PVC banding. -- Panel thickness 8 - 60 mm (0.31" - 2.38"), Min. panel width 65 mm (2.56"), Min. panel length 160 mm (6.30"). -- Variable feed speeds 36 - 65 FPM (11 - 20 MPM), Max. feed speed using corner rounding units or applying solid wood 52 FPM (16 MPM). -- Working height 900 mm (35.43").Equipped with: -- Pre-milling unit, with (2) 3 kW (4 HP) - 11,580 RPM Vertical milling/jointing heads with FS Whisper Heads, Electro-pneumatic jump control, Head counter-rotation, & SIKO digital units for vertical & horizontal adjustments. -- 32-1/2" Dia. Coil table. -- Motorized infeed fence. -- Extended magazine for strips & coiled material. -- Reinforced guillotine for coiled edgebanding material, 0.4 - 3.5 mm (0.2" - 0.14") Thickness & 8 - 55 mm (0.31" - 2.17") Height. -- "Quick-Melt" Hot melt glue unit, with Heat-up time: Approx. 12 min., Pre-melt hopper feed, Quick-change hopper & tank for color changes, Reversible glue applicator roller rotation, Retractable glue roller, Infrared heating unit positioned between glue roller & pressure section to improve edge quality, and Pneumatic positioning & Locking. -- Programmable pressure section, with (1) Large driven & (4) Small pneumatically-controlled idler rolls and SIKO Digital units for adjustments. "POWER CONTROL PC 20+" Control, with 600 MHz, 256 MB RAM, USB Port, 1 GB Flash card, Internal modem for remote diagnostic access link, & 12" TFT Flat screen monitor. -- Line control (no limit switches) for workstation functions. -- Heavy-duty feed chain, with 2.2 kW (3 HP) Motor, Rubber pads, & Automatic chain track lubrication. -- Motorized top pressure beam with 0.14 HP (0.10 kW) Motor. -- Outboard panel support, with Roller guide & 1,000 mm (39.37") Adjustment. -- Sound enclosure.Workstations: -- Front & rear end trim unit, with (2) 1 HP - 12,000 RPM High frequency motors, 0° - 15° Chamfer, & Programmable pneumatic control for straight or chamfer trimming. -- Top & bottom rough trim unit, with (1) 1.86 kW (2-1/2 HP) High frequency motor. -- Top & bottom fine trim unit, with (2) 0.55 kW (3/4 HP) - 11,300 RPM High frequency motors with Electronic brakes, Servo control bevel, 0° - 25° Tilt, Vertical & Horizontal tracing, Servo control (in/out), & DFC Radius cutters. -- Corner rounding unit, with (2) 0.35 kW (1/2 HP) - 10,940 RPM High frequency motors, & Automatic 2-position edge thickness. -- Quick-change top & bottom profile scraping unit for rigid PVC edges, with Digital quick-set system for 2 - 6 mm (0.08" to 0.24") Radius, Pneumatic indexing, Servo control (in/out), & Pneumatically-controlled blow-off nozzle. -- Top & bottom buffing unit, with (2) 0.3 HP - 2,800 RPM Motors and Vertical & Horizontal tilt.Complete with: -- Original Production Instructions Manual. -- Transformer.NOTE: Air lines o

BRANDT KDN 520 EDGEBANDER0.4 - 8 mm (5/16") Edge cap., panel thickness 15/32" - 2-5/32", min. panel length 160 mm (6-3/8") and 65 mm (2-1/2") min. width; line control (NO limit switches) for workstation function. Automatic height adjustment with top pressure beam for all work station, equipped with digital height indicator.Specifications: PC-16 Program Control; with 7-1/2" VGA screen 8 MB IDE flash disk, 8 MB RAM, Internal Modem for remote diagnostic link; Signal infeed light to insure proper spacing between panels.Equipped with: -- Quick heat-up glue system,(approx. 12 Min) w/glue tank for maintenance & glue color change. Glue temperature indicator for both the glue pot and glue roller with LED thermostat and automatic temperature reduction if the machine is idle for 15 Min or more. -- The glue applicator roller is also reversible and retractable from the fence line. -- Automatic magazine for strip & coil (Large coil table 800 mm dia. to accommodate large coils of 3 mm PVC) stock, 3 mm PVC guillotine, (1) drive plus (1) split secondary roller "pneumatically controlled" pressure sections.Workstations: -- Double end trim (0.33 HP - 12,000 RPM motor), chamfers 0° - 15° via programmable controller. -- Top & bottom flush/radius trim, bevels 0° - 15° (0.5 HP - 12,000 RPM motors), -- Top & bottom scraping for 3 mm radius, pneumatically controlled indexing system; -- Top & bottom buffing (0.25 HP - 2,800 motors).Features: -- End trim & flush trim stations have HF motors w/electronic brakes; feed chain track speed 36 FPM, 2 HP feed drive. -- Complete with: Operator control panel w/PLC (Programmable Logic Control) keypad & LED readouts, and used tooling. -- Machine still in use and available time to be confirmed.

BRANDT - KDN 770-2C: EdgebanderSpecifications -- Hot Melt granulate quick heat up glue system; overhead glue tank for easy maintenance & glue color change. -- Automatic magazine for strip & coil: Large 800 mm dia. coil table to accommodate large coils of 3 mm PVC stock; 3 mm PVC guillotine. -- (1) Drive plus: (3) Idle rolls "pneumatically controlled" pressure sections. -- End Trimming: 0.33 HP - 12,000 RPM Motors; chamfers 0° - 15°. -- Flush Trimming. Top & bottom bevels 0° - 15° with: (4) Revolver type index presets; (2) 1/2 HP - 12,000 RPM motors; cutterheads with insert knives.Features -- Fine/Radius Trimming. Top & Bottom; bevels 0° - 15° with: (4) Revolver-type index presets; 1/2 HP - 12,000 RPM motors; cutterheads with: Insert knives for 3 mm PVC radius. -- 2-Motor corner rounding. -- Scraping Unit. Top & Bottom for: 2 - 6 mm Radius; pneumatically controlled blowoff nozzles. -- Buffing Unit: Top & bottom buffing; 1/4 HP - 1,400 RPM motors. -- Variable feed chain track speed from: 8 - 20 MPM (26 - 65 FPM); 2 HP feed drive.NOTE: Description based on: Model Type, manufacturer's plate, and information from Seller. Please inspect to confirm the required specifications. Dimensions & weight data are based on 3rd party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.

BRANDT KTD 72 ... Contour Edgebander; Features & Specifications: -- Designed for straight & curved edgebanding. 0.5 - 3 mm edge thickness capacity, max. edge height 10 - 60 mm, for 3 mm PVC banding max. edge height 30 mm. Automatic advance of banding material from 13 - 29 FPM, 25 mm min. radius. 7" Minimum workpiece length. -- Small glue pot for quick heat-up, edgebanding turntable for coiled or straight strips, guillotine cut-off. Manual advance of the panel through glue roller. -- Work-piece elevating spacers allow for edgebanding material overhang on the bottom and eliminate the need for templates for contoured parts, simplifying the edgebanding process. -- Edge length cut-off, by foot pedal activation for short runs or pre-selected by digital counter for larger production runs...NOTE: owner states "It needs a new trim knife"

BRANDT KTD 720 CONTOUR EDGEBANDER0.4 - 3 mm (1/8") Edge cap., panel thickness 5/8" - 1-5/8", min. panel length 100 mm (4") and 100 mm (4") min. width. Variable feed speeds 2-14 FPM. -- Gluing/taping unit applies glue to the edging material, presses it onto the workpiece and moves via a motorized system which is guided by the operator. -- Quick heat-up glue system,(approx. 12 minutes) w/glue tank for maintenance & glue color change. Glue temperature indicator for both the glue pot and glue roller with LED thermostat and automatic temperature reduction if the machine is idle for 15 minutes or more. Pre-heating devise for thicker PVC eding is standard equipment to allow material to more pliable. -- Automatic coil cut off devise is supplied to pre-cut the banding material to lenth. -- Vacuum table equipped with (5) pods to secure panels to worktable. -- Also equipped with BRANDT OPTIMAT F13 top and bottom trimmer Sold per pair.

--make offer--excellent condition-- BRANDT OPTIMAT KTD 820 Contour Edgebander Specifications: Designed for straight, curved (contour), or beveled edgebanding. Edgebanding thickness 0.4 - 3 mm (0.02” - 0.12”). Coil cutoff 0.4 - 3 mm (0.02” - 0.12”) (Max. edge height 45 mm/1.77”). Panel thickness 16 - 40 mm (0.63” - 1.57”). Min. radius 25 mm (0.98”). Min. panel length 180 mm (7.09”), Min. panel width 100 mm (3.94”). Feed speeds 0.7 - 4.2 MPM (2.30 - 13.80 FPM). Equipped with: 33” Dia. Vertical coil table. Small glue pot for quick heat-up. Magazine for coil or solid strips. Guillotine. Handheld gluing unit, with Tool balancer & Rotating jib with 8’ Travel. (2) 23-1/2” x 27-1/2” x 35 H Work tables. Large panels can be glued by guiding handheld gluing unit around panel mounted to vacuum suction table. Small panels can be glued by guiding panel along gluing unit mounted to table. CURRENCY NOTE: Negotiable Price is listed in U.S. Dollars.

BRANDT - FP 10: Corner Rounding Unit -- SpecificationsFreestanding unit for: Profiling, shaping, chamfering, or rounding most common type & shape of corner/edge on an edgebanded panel. -- Capacity: 55 mm (2-1/8") Max. panel thickness; 90 x 140 mm min. panel size; 3 mm max. edge thickness (depending on radius & edge material).Plunge in & plunge out points for tooling are: Programmable on Operator Control Panel with digital readout. -- Automatically scans profile with: SPS control; handles 90° & 180° symmetric profiles; tracing wheel & shoe follow exact shape contour of edgeband of corner. -- Equipped with: 3/4 HP - 27,000 RPM Motor; pneumatic clamping cylinder; optional 1/4 HP table mounted Buffing Wheel; electro-pneumatic operation with foot pedal control.

BREWCO - BBBH, ...6-Head Horizontal ResawComplete with the following Features & Specifications: -- Working Dimensions: 6" Wide x 8" high capacity and length 21" to 72". -- Band: 13'-2" x 1-1/4" x 0.035 Blade provides thin kerf savings; Quick & easy blade height adjustments. -- Wheel diameter: 28" Dia.; CNC machined; dynamically balanced; all steel. -- Belting: Rough top feed belt combines with opposing side feed rolls. -- Saw Motors: 20 HP High Efficiency, 3-Phase electric motor on each head. -- Variable feed speed conveying: 5 HP Hydraulic drive from 20 - 120 FPM (6 - 36 MPM).

--This machine is in Auction @ https://exfactoryauctions.com/Detail/PM-231011/event/A122024$1. --NO RESERVE! BRIANZOLA SIMCOR 10" W Rotary Embossing Press Specifications: Max. thickness 4" (Depending on head diameter). Equipped with: Slotted table, with 11-1/2” x 3/4” Adjustable left & right material guides. Fixed arbor, with 1 HP - 1,700 RPM - 260/440 V Motor & Adjustable arbor support. 19-1/4” L x Approx. 10” Dia. Motorized smooth steel feed roller synchronized with arbor, Electronically-controlled feed speeds. Complete with: 8” Dia. x 1” W Embossing Head.

BUILDERS AUTOMATION MFSR CNC 5-Axis Multi-Function Stair Routing Machine, fully programmable.Specifications: -- Axis Configuration: 1.) X axis; 2.) Y axis; 3.) Top Z (top router depth control); 4.) Bottom Z (bottom router depth control); 5.) Axis A (advancing of board) -- Features: Programmable Touch Screen for simpler stair characteristic input by operator; Touch Screen for landing cut both top & bottom for open box & contemporary; Two (2) high frequency routers with 7.5 HP @ 24,000 RPM fan-cooled spindles that can accommodate shanks of ½" or 3/8" diameter.Accepts one or two stringers at a time -¾", 1", 1½" thick for a total of 3" maximum thickness and 7¾" to 15¾" wide; Extra wide ¾" guide rails for more bearing surface with a 3¼" high fence. -- Includes: (5) Cylinder clamps - 3 fixed and 2 adjustable for up to 2,950 Lbs of vertical stringer clamping force. Additional 1,180 Lbs horizontal clamp force for a total of 4,130 Lbs.; Self-centering feed system on linear bearings for better support and elimination of wear on the brass parts; Accommodates staircase angles from 20° to 45° and riser kickback from 5° to 11° with landing cut; Cuts up to ½" deep in yellow pine at the maximum rate of 20" per second and an open stringer in a single cut;Programmable to cut any combination of box, contemporary, or open stairs with landing cut; Completes the top and bottom landing cut without additional handling or manual sawing. Adjustable setting for wedge fit or material variances. -- Production rate: Approx. cycle time 10 Seconds per 7/11 tread in 1 or 2 stringers. -- Comes with: Dust collection cups on each router for clean efficient operation.Manufacturer's standard 1 year. -- Overall Dimensions/Weight: Measures approx. 8′ x 6′ 5″ x 7′ high; Gross weight approx. 3,500 pounds. -- Services required: Air requirements 15 CFM @ 110 psi, (minimum ¾" diameter unrestricted line);Electrical requirement 230 V, 3-phase at 70 Amps. -- Available Option: Extra wide, custom version that cuts down the middle of up to a 24" wide stringer, yielding two sets with no waste (except sawdust).

BUILDERS AUTOMATION (BAM) 2220 Stair Wedge Cutter. Automatically cuts wood wedges used to lock stair treads and risers into slots in stair stringers.. -- Equipped with: 10" Dia. saw blade with 1.5 HP direct drive motor, hopper feeds material automatically, air operated with 6 CFM compressed air requirement, 1.8 Sec/stroke. -- Features: Auto-shutoff feature and capability to cut glue blocks. -- Upright guide expandable to hold up to 40 pieces of wood at one time -- Rapid changeover to cut glue blocks for more efficient operation -- Once cycle started, hands-free use for labor-saving utilization -- Enables you to easily change size or angle without tools saving time and improving productivity -- Utilizes a 1.5 HP saw that automatically cuts pieces up to 9-1/2" W x 11-1/2" L -- Operator panel includes key start and e-stop controls for the saw motor and start/stop control for the pneumatic system that coordinates all machine motions -- Capable of producing wedges of varying thickness on alternate strokes of the saw -- Scrap material is ejected under the machine, and the wedges are discharged into user-supplied hoppers -- An included discharge chute diverter separates automatically and directs wedges of different thicknesses (produced on alternate saw strokes) into separate hoppers (user-supplied) -- Sawdust carried away from the saw guard pick-up through a 3" diameter hose -- Comes with manufacturer's standard 1-year warranty -- Complete with: Self-diagnostics, built-in starter, automatic shutoff feature, air filter & lubricator.

BURKLE - VBM 1688, ...Stain Wiping MachineSingle sided machine, 1,600 mm wide; 2-Brush Panel Cleaner (TAMPICO brushes). Features: Heads can be positioned as needed spacing between the brushes by sliding brackets. Brush raising & lowering accomplished by means of handwheel adjustment. Brushes are removed at side of machine by sliding out of shroud/channel support rail. Safety bar checks part thickness for overthickness parts. SIEMENS Control to set rotation speeds & feed belt speed. Rigid Aluminum bolted base construction. Solid feed belt (NO vacuum holddown)

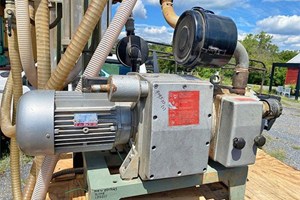

BUSCH MINK MM 1322 A VV8 VACUUM PUMP, ROTARY (DRY CLAW): -- Specifications:360 m³/Hr., Dry Rotary Claw Vacuum Pump, Model: MM 1322 A VV8. Nominal pumping speed displacement 212 ACFM; Ultimate pressure 112.5 TORR; Nominal motor rating 10.9 HP; Nominal motor speed 3,600 RPM.Noise level (ISO 2151) 82 dB(A); Weight approx. 655 Lbs.; Dimensions (L x W x H) 46.9 x 21.5 x 17.9 inches; Gas inlet/outlet, 2" / 1¼" NPT. -- Industry Uses:Woodworking Handling devices, Drying, handling robots, Clamping on CNC routers, Pneumatic conveying.

BUSELLATO JET 100 CNC MACHINING CENTER (W/ATC/BORING): -- Specifications:Working field: "X" Axis 120" (3,048 mm); "Y" axis 49" (1,244 mm); "Z" axis 3.9" (100 mm). -- Positioning Speed:"X & Y" Axes 328 FPM (100 MPM) each; "Z" axis 98 FPM (30 MPM); sll units ride on precision guides & ways."X" Axis uses a helical rack-and-pinion system; "Y & Z" axes use ball screws; all axes are driven by digital, brushless AC Servo motors. -- Worktable:(6) Panel supports with: (4) Lifting bars & digital readouts for manual rail & pod locations according to the program. (4) Vacuum pods per support rail; (2) independent working areas. -- Boring Unit:TF 20 Boring head with (14) vertical spindles: (8) Spindles in "X" axis & (6) spindles in "Y" axis.(4) Horizontal spindles with: (1 + 1) in "X" & (1 + 1) in "Y"; (1) "X" axis grooving saw for max 120 mm blade. -- Machining:(1) ISO-30 Spindle(1) 15-Position ATC tool changer mounted at the rear of the machine. -- Operator & Machine Control:PC-Based control with "GENESIS" + Windows "2000" Operating System.Includes Color CRT monitor, full keyboard & mouse; 256 MB RAM, 10 GB hard disk, CD ROM (52X), 1.44 MB floppy drive; (4) serial ports, (1) parallel port, (2) USB ports. "GENESIS" Operating System with: Large onboard program storage, ethernet connection, specific function controls, and internet troubleshooting capabilities. -- Complete with:(1) 100 m³/Hr Vacuum Pump, Bar Code Scanner, Belt Conveyor for scrap removal. -- Actual Model is BUSELLATO JET 100

BUSELLATO JET 3006 FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications:4' x 10' "Matrix" grid phenolic surface table for "Nested Based Manufacturing". -- Working cap.:"X" Axis is 121.2" (3,080 mm), "Y" axis is 49.2" (1,250 mm), "Z" axis stroke is 8.1" (205 mm); max. panel thickness is 5.9" (140 mm); -- Positioning Speed:Max. programmable speed: "X" & "Y" axis is 328 FPM (100 MPM), "Z" axis is 111 FPM (34 MPM). -- Work Table:(2) independent working areas with locating stop pins on the front & rear - LH & RH sides for positioning of parts on the worktable; prepared for (optional) elevated pods that allow profile & horizontal machining. -- Boring Unit:(16) Independent vertical boring spindles with (8) spindles in "X" axis & (8) spindles in "Y" axis, (4) horizontal spindles with (1+1) spindle in "X" axis & (1+1) in "Y" axis; 120 mm "X" axis grooving saw; inverter controlled variable spindle speed up to 4,000 RPM. -- Machining:(1) 14 HP (10 kW) Vertical electro-spindle router with HSK-F63 adaptor, inverter driven 1,000 - 24,000 RPM with max. torque from 12,000 - 24,000 RPM;(1) 10-position "Ride Along" automatic rotary tool changer for "on-the-fly" ATC. -- Operator & Machine Control:"PC" Front-End with "GENESIS" + Windows '95, '98 & NT operating system; 32-bit Pentium - 400 MHz processor; 4 GB hard drive,15" Color monitor, international keyboard, soft touch keypad & industrial mouse, RS-232 serial port and (1) 1.44 MB floppy disk drive.Real-time multitask processing; programs can be transferred via diskette or downloading by wire is possible;built-in 1,500 W air conditioner for constant temperature & dust-free environment. -- GENESIS Operating system for real-time multitask processing; programs can be transferred via diskette or downloaded by wire; -- Complete with:(1) 25 HP Dekker V-max vacuum pump, automatic "forced" lubrication system for guides & ball screw; emergency stop rope & pressure sensitive safety mats that will instantly place machine in "pause cycle" when stepped on; sound absorbing protective head enclosure with debris curtain around bottom edge. built-in 1,500 W air conditioner for constant temperature & dust-free environment - Complies with CE norm specifications. -- Actual Model is BUSELLATO JET 3006 RT

BUSELLATO JET 4002 XL CNC MACHINING CENTER (W/ATC/BORING): -- Specifications: Working Field "X" Axis of 168.1" (4,270 mm); "Y" axis of 47.2" (1,200 mm); "Z" axis stroke 9.8" (250 mm); 6.8" (175 mm) max. material thickness. -- Positioning Speed:"X" Axis at 230 FPM (70 MPM); "Y" axis at 197 FPM (60 MPM); "Z" axis 49 FPM (15 MPM). -- Worktable:(8) Pneumatic locking panel supports, (3) vacuum pods per support.(8) Pneumatic backstops, (2) pneumatic side stops & (2) pneumatic central stops.(4) Independent working zones; jig locking device on (2) work areas. -- Boring Head:(1) 4 HP (3 kW) Motor - 4,000 RPM; (20) vertical spindles with: (12) Spindles in "X" axis & (8) spindles in "Y" axis. -- Machining:(1) Vertically mounted 10 HP (7.5 kW) electro spindle with: ISO-30 Adaptor (0 - 18,000 RPM) with RH or LH rotation; (1) 6-position automatic tool changer.(1) Additional 5 HP (3.8 kW) vertical router; routers are driven by an 11 kW Digital Inverter -- Operator & Machine Control:PC Front-End with: "GENESIS EVOLUTION" 2.2.1 + Windows "NT" Operating System; 15" color monitor; 1.44 MB floppy & 32X CD ROM drives; 8.4 GB hard disk; 64 MB RAM; (2) RS 232 serial ports; integrated modem; Ethernet card, all built into a protective cabinet enclosure.GENESIS Software is continuously online providing real-time information on tool position & error messages, visualization of RPM, current load meter, and more; positioning of panel supports and vacuum cups.Software features: Automatic generation of G & M code, stop & restart, machine diagnostics, automatic optimization, and full graphic display with the possibility to associate up to (11) parameters and programming of up to (2,000) work lines per single program. -- Complete with:Front safety mats that will instantly place machine in "Pause Cycle" when operator steps onto the mats. Safety Perimeter Fencing. Transformer for 480 V. -- Actual Model is: Busellato Jet 4002 XL.
