HOLZ-HER 1411 K-3 SPRINT EDGEBANDER -- Specifications: Cartridge Glue System for EVA & PUR pucks, 5 mm edge thickness cap. (up to 13 mm w/optional tooling), 1.77" max. panel thickness, and 7" min. panel length.Equipped with:Automatic magazine coil & strips, 3 mm PVC cap. pneumatic guillotine for coil cutoff. -- Pressure section with (1) large dia. drive roller & (1) idle. Workstations:Double-motor end trim model "1918" (tilting 0° - 10°), 0.5 HP - 18,000 RPM motor each. -- Top & bottom radius trim model "1942", 0.8 HP - 18,000 RPM motor each (trim motors are 0.6 kW HF). -- Top & bottom glue scraper unit "1929". -- Top & bottom buffing unit "1940" (tilting cap. 0 - 5°), 0.2 HP - 1,400 RPM Motors each. -- Variable feed speed from 36 - 52 FPM. - Fixed outboard panel support. Complete with:PLC (Programmable Logic Control) for easy setup and program storage. -- Frequency converter, sound enclosure, and used tooling.

HOLZ-HER 1327 SPRINT CLASSIC EDGEBANDER (W/PER-MILL & CORNER ROUNDING) + GLU-JET EVA & PUR GLUING TECHNOLOGY: -- Specifications: Servo Machine with Pre-mill, Corner Rounding and Riepe Spray Cleaners. -- Edgebanding Capacity: Edge thickness min./max. 0.4 - 8 mm (0.016 - 0.315"), coiled material 0.4 - 3 mm (0.016 - 0.157").Panel thickness 6 - 60 mm (0.236 - 2.362"), workpiece width min. of 65 mm (2.559").Workpiece length min. 160 mm (6.299"); Feed speed 10 - 18 MPM (33 - 59 FPM). Operator Interface: 15" Flat "Touch Screen" control. Programs can be easily created and recalled at will.The graphic interface makes programming easy; icons of each unit may be brought up on the screen to show the operator the status of the unit and the parameters that can be programmed.Edgebander can be operated manually when required, without the necessity to write a program.Machine In-Feed Configuration: Pre-Milling Station "1802": (2) 2.0 kW (2.68 HP) - 12,000 RPM motors. -- Edge Magazine "1901": For coil and strip processing, utilizing motion detector to ensure accurate, trouble-free positioning of edge material.Exclusive "Tractor-Belt feed System", edge guide equipped with automatic guillotine lock-out for safety,3° Approach angle allows easy feeding of solid wood edges. -- Pressure Section "1913": Pneumatic Plunge controlled pressure section with (1) large driven roller and (2) cantered idle rollers. -- Gluing System "JG301" Glu Jet Hybrid Technology; Processes "EVA" or "PUR" Glue in Cartridge or Granulate form.Motorized programmable glue nozzle (upper glue line) height positioning. Approx. 3-Minute Heat Up TimeWorkstations: End Trimming Unit "1918P": Front & rear 2 x 0.35 kW (0.5 HP) - 9,000 RPM motor each,For Straight or Chamfer trimming with pneumatic change-over/swiveling up to 10° bevel. -- Flush/Bevel/Radius Combination Trimming Unit "1827-Mot 4": Top & bottom, 2 x 0.65 kW (0.87 HP) - 9,000 RPM each motor.Manual Edge Radius adjustment up to 3 mm & chamfer adjustment up to 15°. -- Corner Rounding Unit "1832": (1) Motor 0.22 kW (0.30 HP) - 9000 RPM Up to 3 mm edge thickness, min./max. work-piece thickness 12 - 45 mm (0.473 - 1.772"),When CR unit is activated, the max. feed speed allowed is 10 MPM (33 FMP). -- Profile Scraping Unit "1929P": Top/Bottom pneumatic controlled knife position for PVC edges,Reversible insert carbide knives, equipped with air-jet blowers and chip collector box. -- Buffing Station "1940": Top & bottom buffing motors with 150 mm (6.0") cloth buffing wheel diameter,Adjusts in any direction (vertical tilt is 0° - 5°, horizontal swivel is 0° - 20°); 1,440 RPM wheel rotation.Complete with: Motorized Top Pressure Beam. Outboard panel support Manual Central Lubrication of the Transport Chain Sound enclosure w/interior lights over enclosed workstations of the machine Used tooling on the stations Machine documentation. -- Actual Model is HOLZ-HER 1327 SPRINT CLASSIC

HOLZ-HER 1402 HF Compact EdgebanderFeatures: -- Cartridge glue system, 3 mm edge thickness cap., -- Semi-automatic feed magazine, coil stock feeds automatically with guillotine cutoff, all strip stock is fed manually with pusher bar to advance the edging.Digital glue height indicator.Workstations: -- Double motor end trim (1 HP - 10,500 RPM motor ea.) -- Universal top & bottom fine trim (1942M) for bevels from 0° - 15³; allows simultaneous bevel & profile trimming (1 HP - 18,000 RPM motor ea.; trim motors are 0.6 kW HF - 300 Cy). -- Top & bottom PVC scraper unit (1929) for 0.8 - 3 mm radius. -- Top & bottom buffing (1940), 0.3 HP - 1,620 RPM motor ea. -- Single feed speed of 35 FPM.Complete with: -- Fixed outboard panel support, frequency converter, sound enclosure, and used tooling.

HOLZ-HER - ARCUS 1335: Edgebander (w/Premilling) -- Specifications Edgebanding cap. edge thickness: Min./max. 0.4 - 15 mm (0.016 - 0.59"); coiled material: 0.4 - 3 mm (0.016 - 0.157"); panel thickness: 6 - 60 mm (0.236 - 2.362").Workpiece width min.:60 mm (2.36"); workpiece length: min. 160 mm (6.29"); variable feed speed: 10 - 18 MPM (33 - 59 FPM).Machine Infeed Configuration -- Premilling Station: (2) 2.0 kW (2.68 HP) - 12,000 RPM motors; equipped with "ProLock" quick-change flange including height adjustment for optimum utilization of cutters. -- Edge Feeder Magazine: Small 3° feed angle thanks to nozzle design with easy feeding of coils; strips up to 3 mm & solid wood edging up to 15 mm (5/8"). Exclusive "Tractor-Belt Feed System": Edge guide equipped with automatic guillotine lockout for safety. -- 3 mm Guillotine: For up to 3 mm coiled & strip materials. -- Gluing Section: HOLZ-HER Patented cartridge system with unrivaled properties with: 95% Less energy consumption & 70% shorter heat up time of 205° Celsius in just 3-1/2 minutes.Changing glue types takes just a minute and no special tools are required for glue and color. All that is changed is the cartridge. The time-consuming cleaning procedure of the glue pot, previously essential, is no longer necessary. The patented HOLZ-HER Cartridge System is a practical solution. -- Pressure Section: (1) Large & (3) cantered driven pressure rollers for perfect glued joints.Workstations: -- Front & Rear End Trimming: (2) 0.35 kW (0.5 HP) - 9,000 RPM each motor for edge thicknesses up to 20 mm. -- Multifunction Top & Bottom Trimming Unit Manual adjustment: (2) x 0.65 kW (0.87 HP) - 12,000 each motor.Digital counters for vertical copy wheel position and pneumatic air cylinder for manual in/out pre-positioning of trimming motor. -- Top & Bottom Fine Trimming Unit Manual Adjustment: 2 x 0.65 kW (0.87 HP) - 12,000 each motor.Digital counters for vertical copy wheel position and pneumatic air cylinder for manual positioning of fine trimming motors. -- Top & Bottom Profile Scraping Unit: For PVC edges.Reversible insert carbide knives. -- Top & Bottom Glue Scraping Unit: Flat, top/bottom, ball bearing guided. -- Top & Bottom Buffing Station: Top & bottom buffing motors with 150 mm (6.0") cloth buffing wheel diameter; 1,440 RPM wheel rotation.Operator Interface: -- HOLZ-HER "Edge Control" Electronically controlled setup processes with ...100% repetition accuracy.Flat Screen 8.4" VGA Color Monitor: Dustproof soft key input panel surface; programs can be easily created and recalled at will; graphic interface makes programming easy.Icon of each unit may be brought up on the screen to show the Operator the status of the unit and the parameters that can be programmed; Edgebander can be operated manually when required, without the necessity to write a program. Programmable Logic Control (PLC) for Pre-milling: Edge feed, glue application, end trimming, flush trimming, radius trimming, scraping, corner

HOLZ-HER - CONTRIGA 1366: Edgebander (w/Premill & Corner Rounding) -- SpecificationsNC Controlled Edgebander. Ability to program all functions including: Panel thickness; edge feed; glue application; end trimming; radius/fine trimming; corner rounding; scraping; buffing. - Virtually eliminates: Setup time by selecting & loading program that automatically activates these functions simultaneously.Coil edgebanding up to: 3 mm PVC Cap.; 2-3/8" max. panel thickness; 7" min. panel length; powered pressure beam opening adjustments. Equipped with:"1961" Premilling Station: PC Controlled with up to 45 mm (1-3/4") milling height; (2) motors @ 2 kW (2.6 HP) - 9,000 RPM each. -- Features: Granulate glue system with: Hopper System, "floating" applicator nozzle & "quick melt" feature. -- Automatic magazine for Coil, strip & solid edgebanding model "1901" with: TRACTOR-BELT Feed System, Heavy-Duty guillotine for 3 mm PVC. -- "1914" Pressure Section for 12 mm thick edgebanding with: (3) Rollers; each w/individual pressure control; powered 1st roller with electronic speed control synchronized with chain feed speed; Servo motor adjustment for edgebanding thickness from PLC. Workstations"1819-1" Double motor (1 HP - 6,000 RPM motor ea.) end trim units with: "Uni-Point" Swivel system; "quick change" from flush to 0° - 15° bevel from Operator Panel. -- "1962" Top & Bottom flush trim unit: 2.6 HP - 200 Cy HF motors; 12,000 RPM cutter speed; NC Servo control, non-tilt. -- "1966" Top & Bottom fine trim unit with: Motorized 5-axis positioning; 1-1/2 HP - 200 Cy HF motors; 12,000 RPM cutterhead speed; bevels 0° - 45°; Servo control; all adjustments programmable through the PLC. -- "1933 & 1934" 4-Motor corner rounding unit for: Top & Bottom of leading & trailing corner when edgebanding all (4) sides; 0.7 HP - 200 Cy ea.; both motors with Servo positioning from control panel; Servo adjustment of entire unit (base). -- "1927" Scraper Unit: Finishing up to 5 mm thick PVC banding for radius range from 2 - 5 mm; vertical & horizontal tracing wheels, Servo positioning enabled through "PC"; Servo controlled in/out of base. -- "1964" Top & Bottom Glue scraper. -- "1851" Oscillating buffing unit: Cleaning & polishing of panel; (2) 1/4 HP - 1,440 RPM motors; tilts 0° - 45° vertically and 0° - 20° swivel on horizontal plane.Other Specifications & FeaturesVariable feed speeds up to: 25 MPM (81 FPM); Panel overhang beyond chain 35 mm (1.38"); features automatic track pad lubrication. Operator Interface"PPC-231" Controller for: Line control; glue temperature; flow; feed speed setting; motorized holddown pressure beam adjustment. -- Frequency inverter, outboard panel support, and sound enclosure w/interior lights over all milling units. -- Actual Model: HOLZ-HER - CONTRIGA 1366

HOLZ-HER - LUMINA 1598 4.0 PROFORMANCE: Edgebander (w/Premill & Corner Rounding) + GLU-JET EVA & PUR Gluing TechnologySPECIFICATIONS -- Working CapacityEdge thickness: Min./max.: 0.4 - 3 mm (0.02 - 0.12") for coiled material; 20 mm (0.78") max. for strips with BF701, depending on material & feed speed.Panel thickness: 8 - 60 mm (0.315" - 2.36"); Workpiece height max.: 65 mm (2.55"); workpiece length min.: 140 mm (5-1/2"); feed speed: 10 - 25 MPM (33 - 82 FPM).Machine Infeed Configuration -- Premilling Station "FG701 MOT2 HSK32R": 2 x 2.0 kW (2.7 HP), 8,000 - 12,000 RPM motors; Servo Height adjustment; "LEUCO diamond cutterheads with: LEUCO Patent HSK32R ProLock quick clamping system; Quick Lock adjustable infeed fence with digital indicator. -- Edge Magazine "MG701 SYNCRO": For coil & strip processing; utilizing motion detector to ensure: Accurate, trouble-free positioning of edge material; exclusive "Tractor-Belt Feed System"; edge guide equipped with: Automatic guillotine lockout for safety; 3° approach angle allows easy feeding of solid wood edges. Synchronous Drive with adjustable edge protrusion for cut length edging. -- Pressure Section "DW 701" with: (1) Large driven (synchronized with feed speed) roller & (3) cantered idle rollers; motorized adjustment for the machine control. -- Gluing System "GJ 302 Automatic" (Glue Jet). Processes: "EVA" or "PUR" Glue in Cartridge (qty of 5) or Granulate (2 kG).Includes: Automatic reloading of glue & changeover automatic rinse function from the NC control; automatic glue temp reduction according to the time. Upper glue line height positioning is set automatically with: Holddown beam setting; heat up time to ready stage: Takes only (2 - 3) minutes!Additionally equipped with: "iTRONIC" Adaptive pressure & glue quantity control for Intelligent Automation. Includes: Adaptive trimming blade; automatic glue quantity control; adaptive pressure unit control; automatic cleaning routine; remaining glue quantity indicator.Workstations -- End Trimming Unit "KA 702": Front & rear (2) x 0.75 kW (1.0 HP) - 12,000 RPM Motor each: Uni-Point, swivel-axis for no reindexing when changing from flush to bevel end trim (0° - 10° bevel); "PCS" programmable pneumatic changeover from flush to bevel. -- Flush Trimming Unit "BF701 MOT3': Top & Bottom flush 20 mm unit; (2) x 2.0 kW (2.68 HP) - 12,000 RPM; each motor; Servo Controlled. -- Fine/Bevel/Radius Combination Trimming Unit "FR 701": Radius 2 mm trimming; Servo controlled; (2) Servo motors: (1) For horizontal copy wheel & (1) for tool spindle position; programmable top & bottom unit: (2) x 0.65 kW (0.88 HP) - 12,000 RPM each motor.Uni-Point Design with: No second adjustment; pneumatic, programmable tilt action for changing the degree of bevel; digital counters for vertical copy wheel position; pneumatic air cylinder for in/out prepositioning of trimming motor. Radius cutters for: 1, 2, or 3 mm & 10° Chamfer. -- Corner Rounding Unit "FF 701 MOT6 Multi" with Automatic Tool

HOLZ-HER - 1329 Sprint Premium: Edgebander (w/Premill & Corner Rounding) + GLU-JET EVA & PUR Gluing TechnologySpecifications -- Edgebanding Cap.: Edge thickness min./max.: 0.4 - 15 mm (0.016 - 0.59"); coiled material: 0.4 - 3 mm (0.016 - 0.157"); panel thickness: 8 - 60 mm (0.236 - 2.362"); workpiece width: Min.: 60 mm (2.36"); workpiece length min.: 160 mm (6.29"); feed speed: 10 - 18 MPM (33 - 59 FPM). -- Programmable Logic Control (PLC) for: Premilling; edge feed; glue application; end trimming; flush trimming; radius trimming; scraping; corner rounding; buffing. -- HOLZ-HER - PPC 315 "Edge Control Touch": Electronically controlled setup processes with ...100% repetition accuracy. 18-1/2" Flat touchscreen with: Brilliant graphic display of machining process. Simple operation: Rotating & swiveling control panel at eye height.Programs can be easily created & recalled at will; graphic interface makes programming easy.Icon of each unit may be displayed on the screen to show the Operator the status of the unit & the parameters that can be programmed.Edgebander can be operated manually when required, without the necessity to write a program.Machine Infeed Configuration -- Premilling Station: (2) 2.0 kW (2.68 HP) - 12,000 RPM motors; equipped with:"ProLock" - Quick-change flange including: Height adjustment for optimum utilization of cutters. -- Edge Feeder Magazine - "SYNCRO" drive: The magazine with its synchronous adaptation to the feed rate guarantees short intervals between workpieces & simultaneously optimizes edging protrusions.Small 3° feed angle (thanks to nozzle design) with: Easy feeding of coils; strips up to 3 mm; solid wood edging up to 15 mm (0.059").Exclusive "Tractor Belt Feed System". Edge guide equipped with: Automatic guillotine lockout for safety. -- Pressure Section: Servo controlled pressure section with: (1) Large driven roller; (2) cantered idle rollers.Straight & tapered pressure rollers for perfect glued joints -- GLUING SYSTEM - GluJet: Thin film technology processes "EVA" or "PUR" Glue in cartridge of granulate form; motorized, programmable glue nozzle (upper glue line) height positioning.Workstations -- End Trimming Unit (1918-P): Front & rear: (2) x 0.35 kW (1/2 HP) - 9,000 RPM each motor; uniPoint swivel axis for no reindexing when changing from flush to bevel end trim (0° - 10° bevel);"PCS" programmable pneumatic changeover from flush to bevel. -- Multifunction Trimming Unit (1826). Servo controlled; (2) Servo motors: (1) For horizontal copy wheel & (1) for tool spindle position; programmable top & bottom unit: (2) x 0.65 kW (0.87 HP) - 12,000 RPM each motor.UniPoint design with: No second adjustment; pneumatic, programmable tilt action for changing the degree of bevel; digital counters for vertical copy wheel position & pneumatic air cylinder for in/out prepositioning of trimming motor. -- Trimming & Corner Rounding Unit (1833 MOT4). For linear edge trimming or vertical corner rounding with: (4) Servo Max. feed spee

HOLZ-HER - 1329 Sprint Premium: Edgebander (w/Premill & Corner Rounding) + GLU-JET EVA & PUR Gluing TechnologySpecifications -- Edgebanding Cap.: Edge thickness min./max.: 0.4 - 15 mm (0.016 - 0.59"); coiled material: 0.4 - 3 mm (0.016 - 0.157"); panel thickness: 8 - 60 mm (0.236 - 2.362"); workpiece width min.: 60 mm (2.36"); workpiece length min.: 160 mm (6.29"); feed speed: 10 - 18 MPM (33 - 59 FPM). -- Programmable Logic Control (PLC) for: Premilling; edge feed; glue application; end trimming; flush trimming; radius trimming; scraping; corner rounding; buffing. -- HOLZ-HER - PPC 315 "EDGE CONTROL TOUCH": Electronically controlled setup processes with ...100% repetition accuracy. 18-1/2" Flat touchscreen with: Brilliant graphic display of machining process. Simple operation: Rotating & swiveling control panel at eye height.Programs can be easily created & recalled at will; graphic interface makes programming easy.Icon of each unit may be displayed on the screen to show the Operator the status of the unit and the parameters that can be programmed.Edgebander can be operated manually when required, without the necessity to write a program.Machine Infeed Configuration -- Premilling Station: (2) 2.0 kW (2.68 HP) - 12,000 RPM motors; equipped with "ProLock" - Quick-change flange including: Height adjustment for optimum utilization of cutters. -- Edge Feeder Magazine - "SYNCRO" drive: The magazine with its synchronous adaptation to the feed rate guarantees short intervals between workpieces & simultaneously optimizes edging protrusions.Small 3° feed angle (thanks to nozzle design) with: Easy feeding of coils, strips up to 3 mm; solid wood edging up to 15 mm (0.059").Exclusive "Tractor Belt Feed System". Edge guide equipped with: Automatic guillotine lockout for safety. -- Pressure Section. Servo controlled pressure section with: (1) Large driven roller; (2) cantered idle rollers.Straight & tapered pressure rollers for perfect glued joints -- GLUING SYSTEM - GluJet. Thin film technology processes "EVA" or "PUR" Glue in cartridge of granulate gorm; motorized, programmable glue nozzle (upper glue line) height positioning.Workstations -- End Trimming Unit (1918-P): Front & rear: (2) x 0.35 kW (1/2 HP) - 9,000 RPM each motor; uniPoint swivel axis for no reindexing when changing from flush to bevel end trim (0° - 10° bevel);"PCS" programmable pneumatic changeover from flush to bevel. -- Multifunction Trimming Unit (1826). Servo controlled; (2) Servo motors: (1) For horizontal copy wheel & (1) for tool spindle position; programmable top & bottom unit: (2) x 0.65 kW (0.87 HP) - 12,000 RPM each motor.UniPoint design with: No second adjustment; pneumatic, programmable tilt action for changing the degree of bevel; digital counters for vertical copy wheel position & pneumatic air cylinder for in/out prepositioning of trimming motor. -- Trimming & Corner Rounding Unit (1833 MOT4). For linear edge trimming or vertical corner rounding with: (4) Servo Max. feed spe

HOLZ-HER 1321 SPRINT EDGEBANDER WITH PRE-MILLING & CORNER ROUNDING Specifications: 0.3 - 15 mm Thickness edgebanding capability (3 mm coil or 15 mm max. strip); 6 - 50 mm panel thickness, workpiece width min. of 60 mm; workpiece Length min. 180 mm; Feed speed 12.5 MPM (41 FPM). -- Programmable Logic Control (PLC) for Edge feed, glue application, end trimming, flush trimming, radius trimming, scraping, corner rounding, and buffing. -- Programs can be easily created and recalled at will; screen with graphic interface makes programming easy, icon of each unit may be brought up on the screen to show the operator the status of the unit and the parameters which can be programmed; Edgebander can be operated manually when required, without the necessity to write a program.Machine configuration: -- Pre-milling station "1961", (2) 2.0 kW - 12,000 RPM motors; "1903" Edgestrip Magazine; (1) Universal magazine for solid edges, strips, and coiled material -- Utilizes motion detector to ensure accurate, trouble-free positioning of edge material; exclusive "Tractor-Belt feed System", edge guide equipped with automatic guillotine lock-out for safety, 3° approach angle allows easy feeding of large wood edges. -- "1906-M" Gluing Station - Cartridge System: Servo-controlled pressure section with (1) large driven roller & (2) cantered idle rollers.Workstations: -- "1918 HF" Front & rear end trim unit (0.35 kW - 9,000 RPM motor each), Uni-Point axis for no re-indexing when changing from flush to bevel end trim (0° - 10° bevel),"PCS" Pneumatic Changeover from flush to bevel from control panel. -- Top & bottom flush trim unit "1823" (0.6 kW - 300 Cy HF motors 18,000 RPM Motor ea.), SIKO digital readouts. -- "1942-M" Servo-controlled Top & Bottom combination flush/chamfer & radius unit (0.6 kW - 18,000 RPM each motor), Uni-Point design for no second adjustment when changing the degree of bevel, air jets for debris removal, digital counters, and includes 2-position "PCS" Pneumatic Changeover System from flush to radius from control panel. -- "1929" Servo-controlled Top & bottom PVC scrape station: Reversible insert carbide knives, equipped with air-jet blowers; "PCS" Pneumatic Changeover System moves Scraper Unit in-and-out from control panel; inc. Chip Collector Box. -- "1832" 1-Motor Corner Rounding unit: For edges up to 3 mm edge thickness; incl. Tooling R = 3 mm. -- Pneumatic-controlled Top & Bottom glue scrape station -- "1940" Top & bottom buffing station: Possible to adjust in any direction (vertical tilt is 0° - 5°, horizontal Swivel is 0° - 20°); 1,440 RPM wheel rotationEquipped with: -- Microprocessor for line control & glue temperature, 10 KVA frequency changer, outboard panel support, and sound enclosure & used tooling on the stationsNOTE: The above specifications are taken from the Seller & literature and are considered accurate. As always, please take advantage of the inspection period to verify. Items seen in the background are NOT a part

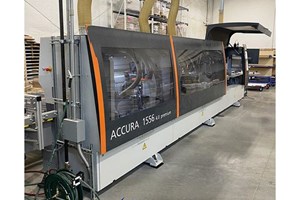

HOLZ-HER - ACCURA 1556 4.0 Premium: Edgebander (w/Premill & Corner Rounding) + GLU-JET EVA & PUR Gluing TechnologySpecifications -- Working CapacityEdge thickness: Min./max. 0.4 - 3 mm (0.02 - 0.12") for coiled material; 15 mm (0.59") 1/2" + max. for strips.Panel thickness: 8 - 60 mm (0.315" - 2.36"); Workpiece width min. 60 mm (2.36"); workpiece length min. 140 mm (5-1/2"); feed speed: 10 - 20 MPM (33 - 66 FPM).Machine Infeed Configuration -- Premilling Station "1802": (2) x 1.2 kW (1.6 HP) - 12,000 RPM Motors; diamond cutterheads with: ProLock Quick clamping system. - Quick Lock adjustable infeed fence with digital indicator. -- Edge Magazine "1901": For coil & strip processing; utilizing motion detector to ensure: Accurate, trouble-free positioning of edge material; exclusive "Tractor-Belt Feed System"; edge guide equipped with: Automatic guillotine lockout for safety; 3° approach angle allows easy feeding of solid wood edges. -- Pressure Section "DW 701" with: (1) Large driven (synchronized with feed speed) roller & (2) cantered idle rollers; adjustable by handwheel & scale. -- Gluing System "GJ 301" (Glue Jet). Processes: "EVA" or "PUR" Glue in Cartridge or granulate gorm; granulate requires an "optional" hopper. Upper glue line height positioning is set automatically with holddown beam setting; heat up time to ready stage: Takes only (2 - 3) minutes!Additionally equipped with: "iTRONIC" Adaptive pressure & glue quantity control for Intelligent Automation. Includes: Adaptive trimming blade; automatic glue quantity control; adaptive pressure unit control; automatic cleaning routine; remaining glue quantity indicator.Workstations -- End Trimming Unit "KA 702": Front & rear (2) x 0.45 kW (0.6 HP) - 9,000 RPM motor each: Unipoint, swivel-axis for no reindexing when changing from flush to bevel end trim (0° - 10° bevel); "PCS" programmable pneumatic changeover from flush to bevel. -- Flush Trimming Unit: Top & Bottom flush 15 mm unit; (2) x 0.65 kW (0.88 HP) - 12,000 RPM; each motor. -- Fine/Bevel/Radius Combination Trimming Unit "FR 701": Radius 2 mm trimming; Servo controlled; (2) @ Servo motors: (1) For horizontal copy wheel & (1) for tool spindle position; programmable top & bottom unit: (2) x 0.65 kW (0.88 HP) - 12,000 RPM each motor.Unipoint Design with: No second adjustment; pneumatic, programmable tilt action for changing the degree of bevel; digital counters for vertical copy wheel position; pneumatic air cylinder for in/out pre-positioning of trimming motor. -- Corner Rounding Unit "FF 701": (4) Motors; 0.22 kW (0.30 HP) - 9,000 RPM; up to 3 mm edge thickness; workpiece thickness; min./max.: 12 - 60 mm (0.473 - 2.362"); max. feed speed: 10 MPM (33 FMP). -- Profile Scraping Unit "ZK 501": Top/Bottom; Servo motor controlled/programmable knife position; vertical copy wheel adjustment with: Quick setting spindle.For PVC edges: Reversible insert carbide knives; equipped with: Air jet blowers & chip collector box. -- Glue Scraping Unit " F

HOLZ-HER 1305-1 COMPACT EDGEBANDER 3 mm edge thickness cap., Cartridge glue system (1906M), automatic magazine coil & Strips (1903), 3 mm PVC cap. pneumatic guillotine for coil cutoff. -- Workstations: Double motor end trim (1822), chamfers 0° - 10° (0.22 kW - 9000 RPM motor, HF - 300 Cy); Universal Top & bottom fine trim (1942M), for bevels from 0° - 15°; (1 HP (0.6 KW) - 22,000 RPM motor ea., HF - 300 Cy). -- Single feed speed 26 FPM (8 MPM). -- PLC (Programable Logic Control) for easy setup & program storage. - INCLUDES: (1) used saw blades on end trim station, & used insert knives on each of the cutterheads on flush trimmer. - ACTUAL MODEL: "SPRINT 1305".

HOMAG KAL 210 AMBITION 2260 EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): -- Specifications:Coiled stock min/max. Edge thickness 0.4 - 3 mm (0.016. - 0.118"), Strip material min/max Edge Thickness 0.4 - 6 mm (0.16 - 0.234"). -- Panel stock min/max. thickness12 - 40 mm (0.472" - 1.574"). Panel Over-Hang 30 mm (1.18"). -- In-feed Fence: Adjustable in-feed fence with manual digital indicator positioning. -- Pre-Milling Station: Two 3.0 kW (4.0 HP), 150 Hz, 9,000 RPM Motors; equipped with trimming column, (2) horizontal and cross slides with spindle adjustment, electro-pneumatic horizontal jump movement of the first motor;Includes electronic frequency inverter for control of motor speed and braking, two (2) dust extraction hoods, an air-jet panel blow-off device & SIKO digital counters for adjustments. -- Panel Pre-Heater: the Pre-heater brings the panel to an appropriate temperature for better adhesion; this is especially beneficial in cooler temperatures. -- Multi-Purpose Magazine: 2-Coil magazine expands capability by running coiled material & strips, magazine height adjustment allows for greater usage of varying panel heights by raising and lowering the magazine table, allowing the operator to center the panel on the edgebanding. -- Gluing System: (EVA - Hot Melt) QA 3 -Quick Melt Overhead Unit & heated roller applicator; digitally displayed thermostat for both upper and lower unit.34 mm Dia. Glue Roller allows for excellent control of temperature for optimum bonding results with individual adjustment for leading and trailing glue gates, lower melting unit equipped with automatic glue level control. Melting capacity: 12 KG/Hr (26 LBS/Hr). -- Pressure Section: Automatic pressure zone adjustment (Servo), (1) large 160 mm dia. driven & (6) 70 mm dia. idle rollers, pneumatic pressure control depending on edgebanding material used. -- WORKSTATIONSEnd Trimming Unit HL 81: 0.8 KW (1.0 HP) x 2 - 200 Hz, 12,000 RPM Motors. to cut excess edge on the front & back of the panel; pneumatic adjusting from chamfer 30° to straight cut. -- Top & bottom Flush Trimming Unit: Top & bottom, 0.4 kW (0.74 HP) x 2 - 12,000 RPM Motors; Height adjustment with the top pressure-beam and tilting range +/- 1°. -- Profile/Bevel/Corner Rounding Unit FF 12: Multi-function 0.4 KW (0.54 HP) x 2 - 12,000 RPM Motor to fine trim the edge overhangs at the work-piece upper & lower edge, as well as trimming around the front & rear vertical edge. Max. feed speed 20 MPM (65.6 FPM) -- Profile/Bevel Scraping Unit PN 10: Top & bottom for thick PVC/ABS, pneumatically activated/adjustment. -- Flat Glue Scraper Unit: Top & bottom, pneumatically activated to remove potential glue squeeze-out. -- Buffing Unit FA 11: Top & bottom edge buffing/polishing, pneumatically activated. -- Operator & Machine Control:HOMATIC PC 22 Power Control w/Touch Screen: Controller functions in Windows environment and features: Keypad w/LCD flat-screen display, fault diagnostic, OS9 real-time operating syst

HOMAG AMBITION 2274 (KAL 370/6/A3) EDGEBANDER (W/PRE-MILL): -- Specifications: Working Capacity: Coiled stock min/max Edge thickness 0.3 - 3 mm (0.011. - 0.118"), Strip material min/max Edge Thickness 0.4 - 1 mm (0.016 - 0.039"),Panel stock min/max thickness 8 - 60 mm (0.472" - 1.574"). Panel Over-Hang 30 mm (1.18").Minimum workpiece width: 2.36" (60 mm) with workpiece thickness ≤ 22 mm) & 4.13" (105 mm) with workpiece thickness > 22 mm). -- Cleaning Agent Spraying Units:Top/Bottom spraying device prior to workpiece pre-milling. Designed for applying a separating agent, for easier cleaning of any residual glue on the panel. -- In-Feed Fence: Pre-heated manually adjustable in-feed fence with digital indicators. -- Pre-Milling Station:(2) 2.2 HP (3.0 kW) - 150 Hz, 9,000 RPM vertical jointing spindle motors; equipped with panel blow-off device and SIKO digital counters for adjustments. -- Panel Pre-Heat Unit: Quartz lamp for heating substrate edge before glue application. -- Edge Magazine:A multi-purpose 2-coil magazine expands capability by running coiled material & strips. Maximum roll diameter: 400 mm & 830 mm.Magazine height adjustment allows for greater usage of varying panel heights by raising and lowering the magazine table, allowing the operator to center the panelon the edgebanding. -- Gluing System Homag Quickmelt: QA 3 - Quick Melt Overhead Unit & heated roller applicator digitally displayed thermostat for both upper and lower unit.34 mm Dia. Glue Roller allows for excellent control of temperature for optimum bonding results with individual adjustment for leading and trailing glue gatesLower melting unit equipped with automatic glue level control. Melting capacity: 12 kG/Hr (26 Lbs/Hr). Ultra-fast five-minute (5) heat-up time. -- Pressure Section: Programmable (Servo), automatic pressure zone adjustment, (1) large 150 mm dia. driven & (4) 70 mm dia. idle rollers, pneumatic pressure control depending on edgebanding material used.Workstations: -- End Trimming Unit:(2) 1 HP (0.8 kW) - 200 Hz, 12,000 RPM Motor ea. to cut excess edge on the front & back of the panel; pneumatic adjusting from chamfer to straight snip. Programmable (Servo). -- Rough/Pre-Trimming Unit:(2) 0.55 kW 0.74 HP (0.55 kW) - 12,000 RPM Motors, tilting range +/- 1° & counter-rotating to machine feed to prevent blowout & .Height adjustment synchronized with the top pressure-beam .With digital counters. -- Scraping Unit:Top & bottom for thick PVC/ABS, electro-pneumatic positioning & pneumatically activated. Pneumatically-controlled blow off nozzles. Height adjustment synchronized with top pressure beam. -- Flat Glue Scraper Unit:Top & bottom to remove potential glue squeeze-out, electro-pneumatic positioning in and out of the processing area & electro-pneumatically activated height adjustment synchronized with top pressure beam. -- Buffing Unit:Top & bottom edge buffing/polishing. Operator & Machine Control: -- Power Touch Control Multi-Touch Screen C

HOMAG AMBITION 2274 (KAL 370/6/A3) EDGEBANDER (W/PRE-MILL/HIGH PRODUCTION) (aka "TAPE ROCKET"): -- Specifications: Working Capacity: Coiled stock min/max Edge thickness 0.3 - 3 mm (0.012. - 0.125"), Strip material min/max Edge Thickness 0.4 - 1 mm (0.016 - 0.039"),Panel stock min/max thickness 8 - 60 mm (0.472" - 1.574"). Panel Over-Hang 30 mm (1.18"). Minimum Work piece length 610 mm (24").Minimum workpiece width: 2.36" (60 mm) with workpiece thickness ≤ 22 mm) & 4.13" (105 mm) with workpiece thickness > 22 mm). -- Cleaning Agent Spraying Units:Top/Bottom spraying device prior to workpiece pre-milling. Designed for applying a separating agent, for easier cleaning of any residual glue on the panel. -- In-Feed Fence: Pre-heated manually adjustable in-feed fence with digital indicators. -- Pre-Milling Station:(2) 2.2 HP (3.0 kW) - 150 Hz, 9,000 RPM vertical jointing spindle motors; equipped with panel blow-off device and SIKO digital counters for adjustments. -- Panel Pre-Heat Unit: Quartz lamp for heating substrate edge before glue application. -- Edge Magazine:A multi-purpose 2-coil magazine expands capability by running coiled material & strips. Maximum roll diameter: 400 mm & 830 mm.Magazine height adjustment allows for greater usage of varying panel heights by raising and lowering the magazine table, allowing the operator to center the panelon the edgebanding. -- Gluing System Homag Quickmelt GA 65 / QA 65: QA 65 - EVA Quick Melt Overhead Unit & heated roller applicator digitally displayed thermostat for both upper and lower unit.34 mm Dia. Glue Roller allows for excellent control of temperature for optimum bonding results with individual adjustment for leading and trailing glue gatesLower melting unit equipped with automatic glue level control. Melting capacity: 12 kG/Hr (26 Lbs/Hr). Ultra-fast five-minute heat-up time. -- Pressure Section: Programmable (Servo), automatic pressure zone adjustment, (1) large 150 mm dia. driven & (4) 70 mm dia. idle rollers, pneumatic pressure control depending on edgebanding material used.Workstations: -- End Trimming Unit PK 25:(2) 1 HP (0.8 kW) - 200 Hz, 12,000 RPM Motor ea. to cut excess edge on the front & back of the panel; pneumatic adjusting from chamfer to straight snip. Programmable (Servo). -- Fine Trimming Unit PF20:(2) 0.54 HP (0.4 kW) - 12,000 RPM, fine trimming unit for edge overhangs at the work-piece upper & lower edge.Operator Interface: -- Power Touch Control Multi-Touch Screen Controller on separate console with 21.5" Full HD flat screen display, keyboard and mouse. Functions in Windows environment, includes fault diagnostic, OS9 real-time operating system."WoodScout", included graphic diagnostic tool designed to increase throughput and decrease down time. Graphical PLC diagnosis display of the error location in the machineCustomer-specific data base system that allows the operator to enter the reason for the error as well as the corrective measures to assist with future tro

HOMAG KAL 310/7/A3/S2 EDGEBANDER (W/PRE-MILLING & CORNER ROUNDING)Working Capacity: -- Edgebanding thickness in rolls (min/max) 0.3 - 3 mm. -- Panels thickness (min/max) mm 12 - 60 (1/2" through 2-3/8"). -- Feed speed (adjustable) 18 - 25 MPM (59 to 82 FPM). Front-End Equipped: -- In-feed fence, manual digital positioning. -- Pre-Milling Unit (vertical joint trimmers) (2) x 3 Kw each. -- Lamps to pre-heat the work pieces edge. -- Edge Magazine, vertical coil cart with 2 positions. -- Gluing Unit QA 34, EVA (Hot Melt) -- Side Pressure Zone, (3) rollers, adjustable by N.C. servo motor. Working Units: -- End Trimming Unit HL 81 Motors, 2 x Kw 0.22 (0.50 HP) -- Pre-Rough Trimming Unit: Top/Bottom, 2 x 0.55 Kw. (0.75 HP) 12,000 RPM motors, none tilt with digital indicator positioning. -- Multi Function Unit FK 11: Profile Contour Trimming, 2 x 0.4 Kw, 12000 RPM motors, for linear top/bottom edge trimming and vertical front/back corner rounding. -- Profile Edge Scraping Unit:Pneumatic in/out and manual digital indicator positioning. -- Glue Scraper:Top/Bottom, flat panel surface glue scraper. -- Buffing Unit: Top/Bottom oscillating buffing motors 2 x 0.25 Kw (0.35 HP).Operator & Machine Control: -- HOMATIC NC 21 controller, flat color LCD screen with keyboard and mouse input. Complete With: -- Top pressure system with rubber belt. -- Panel Support Outrigger. -- Sound and safety hoods over all working stations. Actual Model is HOMAG KAL 310/7/A3/S2

HOMAG - EDGETEQ S 300 4.5 Servo Quick Melt: Edgebander (w/Premill & Corner Rounding) + EVA/PUR Gluing Technology and includes AIR-TEK SpecificationsRH Feed (BRANDT) Configuration: 0.4 - 3 mm (0.016 - 0.125") Coil cap.; 0.4 - 8 mm (0.016 - 0.315") edge strip cap.; 8 - 60 mm (0.32" - 2.4") panel thickness; 160 mm (6.3") min. panel length; 70 mm (2.76") min. panel width.Equipped with: Premilling Station: (2) Motors @ 2.25 kW (3.0 HP) - 12,.000 RPM; (1) clockwise & (1) counterclockwise rotation for chip-free & clean panel edges.Equipped with diamond cutterheads. -- Infeed fence with: Servo motor positioning. -- Infrared "radiant quartz" Heating Unit: Between glue roller & pressure section. -- Automatic Edge Magazine for: Strip & coil stock; strips 0.4 mm - 8 mm (0.016 - 0.315"); coils up to 3 mm PVC; "HD" guillotine. -- QA-65N Gluing Unit. PUR & EVA Glue with: "Quick-Change" Pot for maintenance, glue purging/color change. -- Pressure Section. 1st Roller driven plus: (2) Idle rollers; timed pneumatic pressure controlled; motorized positioning of the Pressure Zone. -- Feed Speed: Variable 8 - 14 MPM (26 - 46 FPM); 14 MPM (46 FPM) when contour trimming. -- HOMAG "Power Touch" Control: Full HD widescreen multitouch display; keyboard; mouse; Industrial PC.PLC Control according to IEC 61131 standards; USB connection at the operating panel; Ethernet connection 10/100 MBIT RJ45.WorkstationsStraight/Chamfer End Trimming: (2) Motors; each 0.35 kW (1/2 HP) - 12,000 RPM; automatic indexing for straight to bevel trimming from control panel. -- Multistage Fine Trimming "MS 40" Unit: Top/Bottom: (2) Motors; 0.55 kW (3/4 HP) - 12,000 RPM; equipped with: (2) Multi-Profile Radius cutterheads; each with: (4) Carbide insert knives. (4) Profile Options: Profile1, Profile2, Bevel, Flush trimming via the Program Control. Includes: Auto tilt feature; Servo Controlled to edge thickness; nesting top copy system. -- Multi-Function Contour Trimming/Corner Rounding Unit MF-50. (2) Motors with: 0.4 kW (1/2 HP) - 12,000 RPM; dual purpose for CR; continuous Top & Bottom edge trimming with soft touch for high gloss panels. Servo motor control of the cutter: 2-Position automatic indexing for 1 mm, 2 mm & 3 mm thickness for: Leading & trailing edges' vertical corner rounding of panels.Equipped with: Radius cutters; HSK 25 System; 3 mm max. edge thickness. -- Scraping, multistage Profile Scraping Unit "MZ 40". Top/bottom with Multi-Profile for: (2) Radii - 1 mm, 2 mm, or 3 mm in place of 2 mm; Servo control positioning of vertical & horizontal copy wheels.PVC Scrape Collection Box -- Finish Scraping Unit: Flush top/bottom on panel surface with floating insert knives. -- Buffing Unit: Top/bottom (2) motors; 0.10 kW (0.125 HP) - 2,800 RPM. -- Front/Rear Spray Stations.Complete with:Motorized, programmable Top hold-down pressure beam; padded sound enclosure; isolation transformer for: Multiple input voltages; used tooling; Original Factory machine documentation. -- Actual

HOMAG - EDGETEQ S-380/1660 6.6 Edition: Edgebander w/Premill & Corner Routing + EVA/PUR Gluing TechnologySpecifications0.4 - 12 mm (0.016 - 0.47") Edgeband thickness; 8 - 60 mm (0.31" - 2.36") panel thickness for EVA/PUR; 40 mm.60 mm (6-1/4") Min. panel length; 70 mm (2-3/4") min. panel width.Equipped with: Premilling Station. (2) Motors @ 2.25 kW (3.0 HP) - 12.000 RPM; LH & RH rotation with: Pneumatic jump control for chip free & clean panel edges.Includes: Diamond cutterheads. -- Infeed fence with: Servo motor positioning. -- Infrared Radiant Quartz Heating Unit: Between glue roller & pressure section. -- Automatic Edge Magazine. Strip & coil stock: Strips 0.4 mm - 12 mm (0.016 - 0.47"); coils up to 3 mm PVC & "HD" guillotine. -- "QA-65N" Quick Melt EVA/PUR, pre melter gluing technology with: Auto-Purge function; "Quick Change" Glue Tank for maintenance & glue color change. -- Pressure Section1st Roller driven, plus: (3) Idle rollers; lube spray unit on last pressure zone roller for high gloss peel coat processing; timed pneumatic pressure controlled; Servo motor positioning for programmable edge thickness changeover. -- Feed Speed: Variable 8 - 20 MPM (26 - 66 FPM); 14 MPM (46 FPM) when using contour trimming. -- Operator InterfaceHOMAG "Power Touch Control": Memory 256 MB RAM; 1 GB flash card drive. 22" Color HD widescreen; soft keypad; internal modem for remote diagnostic link.Workstations End Trimming: (2) Motors @ 0.35 kW (1/2 HP) - 12,000 RPM; automatic chamfer from control panel: 0°- 15°. -- MS-40 Multistage. Flush/Bevel-Fine/Radius Trimming Unit: Top/Bottom (2) motors; 0.55 kW (3/4 HP) - 12,000 RPM; auto tilt positioning 0° - 25° with: Combination flush/radius/chamfer cutterheads.Horizontal & Vertical tracing wheels equipped w/brushless multi axis Servo motors for: Positioning of work unit & horizontal copy wheels for quick changeover. Includes: (4) Positioning options: Profile-1, Profile-2 = bevel & flush trimming.Auto Tilt & Servo control for: Edge thickness; nested top copy system. -- MF-50 Multifunction Contour/Corner Rounding Unit. (2) Motors: 0.35 kW (1/2 HP) - 12,000 RPM w/"Soft Touch" Magnetic Linear Drive System for: 1-Mil, 2-mil & 3-mil thickness.For leading & trailing edges vertical corner rounding of panels: Either radius or chamfer cutters can be mounted; 3 mm max. edge thickness. -- MZ-40 Multistage Scraping; Multi profile (PVC). Top/bottom with: (2) Radii profiles: 1 mm & 2 mm or 3 mm instead of 2 mm; Servo control positioning of vertical & horizontal copy wheels. Nested Top Copy System. PVC Scrape collection box. -- Scraping Glue Unit. Flush top/bottom on panel surface with: Floating insert knives. -- Buffing Unit. Top/Bottom: (2) Motors: 0.10 kW (0.125 HP) - 2,800 RPM. Complete with:Separating spraying/cleaning agents; motorized, programmable hold-down pressure beam; padded sound enclosure; isolation transformer for multiple input voltages; used tooling; Original Factory Machine Documentation. -- Actual M

HOMAG - KAL 210 AMBITION 2262: Edgebander (w/Premill & Corner Rounding) -- SpecificationsCoiled stock min./max. Edge thickness: 0.3 - 3 mm (0.012. - 0.118"); strip material min./max. edge thickness: 0.4 - 6 mm (0.16 - 0.234"). -- Panel stock min./max. thickness:12 - 40 mm (0.472" - 1.574"); panel overhang: 30 mm (1.18"). -- Infeed Fence. Adjustable infeed fence with: Manual digital indicator positioning. -- Premilling Station: (2) 3.0 kW (4.0 HP) 150 Hz - 9,000 RPM Motors; equipped with: Trimming column, (2) horizontal & cross slides with: Spindle adjustment; electropneumatic horizontal jump movement of the 1st motor.Includes: Electronic frequency inverter for control of motor speed & braking; (2) dust extraction hoods; air jet panel blow off device, & SIKO digital counters for adjustments. -- Panel Preheater: Brings the panel to an appropriate temperature for better adhesion; this is especially beneficial in cooler temperatures. -- Multipurpose Magazine: 2-Coil magazine expands capability by running coiled material & strips; magazine height adjustment allows for greater usage of varying panel heights by raising & lowering the magazine table, allowing the Operator to center the panel on the edgebanding. -- Gluing System (EVA - Hot Melt): QA 3 -Quick Melt Overhead Unit & heated roller applicator; digitally displayed thermostat for both upper & lower unit.34 mm Dia. Glue Roller": Allows excellent control of temperature for optimum bonding results with individual adjustment for: Leading & trailing glue gates; lower melting unit equipped with: Automatic glue level control. Melting capacity: 12 kG/Hr (26 Lbs/Hr). -- Pressure Section: Automatic pressure zone adjustment (Servo); (1) large 160 mm dia. driven & (6) 70 mm dia. idle rollers; pneumatic pressure control depending on edgebanding material used. -- WORKSTATIONSEnd Trimming Unit HL 81: 0.8 kW (1.0 HP) x (2) 200 Hz - 12,000 RPM Motors to cut excess edge on the front & back of the panel; pneumatic adjusting from chamfer 30° to straight cut. -- Top & Bottom Flush Trimming Unit. Top & Bottom: 0.4 kW (0.74 HP) x 2 - 12,000 RPM Motors; height adjustment with the top pressure beam and tilting range +/- 1°. -- Profile/Bevel/Corner Rounding Unit: FF 12. Multifunction 0.4 kW (0.54 HP) x (2) - 12,000 RPM motor to fine trim the edge overhangs at the workpiece upper & lower edge, as well as trimming around the front & rear vertical edge. - Max. feed speed: 20 MPM (65.6 FPM). -- Profile/Bevel Scraping Unit PN 10. Top & Bottom for: Thick PVC/ABS; pneumatically activated/adjustment. -- Flat Glue Scraper Unit. Top & Bottom: Pneumatically activated to remove potential glue squeezeout. -- Buffing Unit FA 11. Top & Bottom: Edge buffing/polishing; pneumatically activated. -- Operator & Machine ControlHOMATIC - PC 22: Power Control w/Touchscreen. Controller functions in Windows environment and features: Keypad w/LCD flatscreen display, fault diagnostic, OS9 real-time Operating System.Handheld remote c

SNX - nVISION C 1.5: Contour Edgebander -- Specifications The "nVision C1.5" Curved (Contour) Edgebander allows: 360° Dedgebanding to contoured (shaped) panels. Standard banding machine includes banding &trimming stations with: (1) Set of cutting tools; (1) articulated vacuum arm; edgeband coil stand; (1) 8″ aluminum vacuum pod. - Includes: On-site installation & training; free phone support; operation manual; 1-year limited warranty.The machine uses: Standard EVA hot melt glue; can apply 0.5 mm - 3 mm thick edgebanding.Edgebanding is applied automatically: Part is advanced past the edgebanding workstations via turntable.Reduced learning curve/expertise for operation: Operator simply loads part to vacuum turntable, then activates the edgebanding cycle. -- Working Capacity"nVision C 1.5": Bands minimum material size: 150 mm (6") Diameter.Max. material size: 2,400 x 2,400 mm (94" x 94"); max. material weight: up to 104.5 kG (230 Lbs).Material thickness from: 10 - 60 mm (0.4" - 2.36"); Banding thickness from: 0.5 mm thin tape w/low temp. adhesive: 3 mm Tape. -- Radii CapacityMin. internal (inside) radius: 11.1 mm (0.4375 - 7/16"); Mini. external (outside) radius: 30 mm (1.18") Based on 1 mm thick edge tape. IMPORTANT: ALL min. & max. radii are affected by tape thickness, quality of adhesive, and edgebanding being applied. Radius size dramatically affected by adhesive temperature and quality of edge tape: Semi or rigid.NOTE: Panels can be irregular in shape but must conform to the min. tolerances of inner & outer radii and fit within the work area.Equipped with:Thermal regulated glue pot heated via (1) 800-Watt heating elements with: Electronic temperature controls; holds up to 1 kG (2.2 Lbs) of granules. (2) Pressure rollers to copy the shape of the piece; automatic guillotine for coiled material 0.5 mm - 3 mm (0.02" - 0.11") thickness & 57 mm height (2-1/4"). Operator Interface -- Faster processor and a more accurate encoder for more consistent tight butt joints; 15"; touchscreen monitor; training & maintenance videos on PC; connect to the Internet for service & updates; more user-friendly interface. - Bar code capable (optional).15"; Touchscreen monitor provides: Intuitive control panel, while features like training & maintenance videos make it easier than ever to maintain and operate the machine.Optional bar code capability allows: Seamless integration into modern production workflows, reducing the potential for operator errors.Features -- Tape height guide; aluminum infeed guides; solid shoe holder; adjustable pod height spindle; digital readouts; pneumatic enclosure; laser upgrade.New PLC interface enhances: Usability, while the machine is capable of edgebanding & trimming an inside radius as small as 7/16″. It features: 18,000 RPM - ER20 collet-type spindles (top/bottom), and the same proven articulating vacuum support arm."nVision C1.5" can: Band & trim open-ended parts up to 8’ in length; apply edgebanding from 0.5

SNX nVISION SYSTEM G1 CONTOUR EDGEBANDER: -- SpecificationsCurved (Contour) Edgebander allows 360° edgebanding to contoured (shaped) panels.Edgebanding is applied automatically as part is advanced past the edgebanding workstations via turntable.Reduced learning curve/expertise for operation as Operator simply loads part to vacuum turntable, then activates the edgebanding cycle. -- Working Capacity"nVision 1" Bands minimum material size: 150 mm (6") diameter.Max. material size: 2,400 x 2,400 mm (94" x 94"); Max. material weight: Up to 104.5 kG (230 Lbs).Material thickness from: 10 - 60 mm (0.4" - 2.36"); Banding thickness from: 0.5 mm thin tape w/low temp adhesive to 3 mm tape. -- Radii CapacityMin. internal (inside) radius: 80 mm (3.14"); min. external (outside) radius: 30 mm (1.18"), based on 1 mm thick edge tape. Edgebanding thickness: 1 mm; min. = R 30 mm. Edge thickness: 2 mm; min. = R 50 mm. Edge thickness: 3 mm; min. = R 80 mm. Panel thickness: 10 - 60 mm w/Edge thickness 1 mm. Panel thickness: 10 - 60 mm w/Edge thickness 2 mm. Panel thickness: 10 - 45 mm w/Edge thickness 3 mm. IMPORTANT: ALL minimum & maximum radii are affected by: Tape thickness, quality of adhesive, and edgebanding being applied. Radius size dramatically affected by adhesive temperature and quality of edge tape: Semi or rigid.Equipped with:Thermal-regulated glue pot. Heated via (2) 800-Watt heating elements with: Electronic temperature controls; holds up to 1 kG (2.2 Lbs) granules. (2) Pressure rollers: Copies the shape of the piece; automatic guillotine for coiled material up to 3 mm (0.11") thickness & 57 mm height (0.125" - 2-1/4"). Features -- Laser for easy length identification with: Closed parts without the need for additional length measurement.Laser detects: Tight radius; automatically slows the speed + resume the set speed when the detected radius has passed.Machine equipped with: Foot pedal for manual control/intervention. Motorized turntable for: Automated edgebanding application to large panels.Holding or support arm with: Large interchangeable vacuum pod to secure panels for edging and trimming.NOTE: Panels can be irregular in shape but must conform to the min. tolerances of inner & outer radii and fit within the work area.Complete with: Top & Bottom Trimming Unit. Centralized Control Panel with: Individual controls for all stations to enable manual feeding of panels if desired. Banding station. Edge band coil stand. Standard size vacuum pod for articulated arm. 80 mm Dia. (3") Dust extraction outlet. Foot pedal activation/deactivation control. Larger feed roller. QC Glue tank with sensor. -- Actual Model: SNX nVISION SYSTEM G1
