Description:

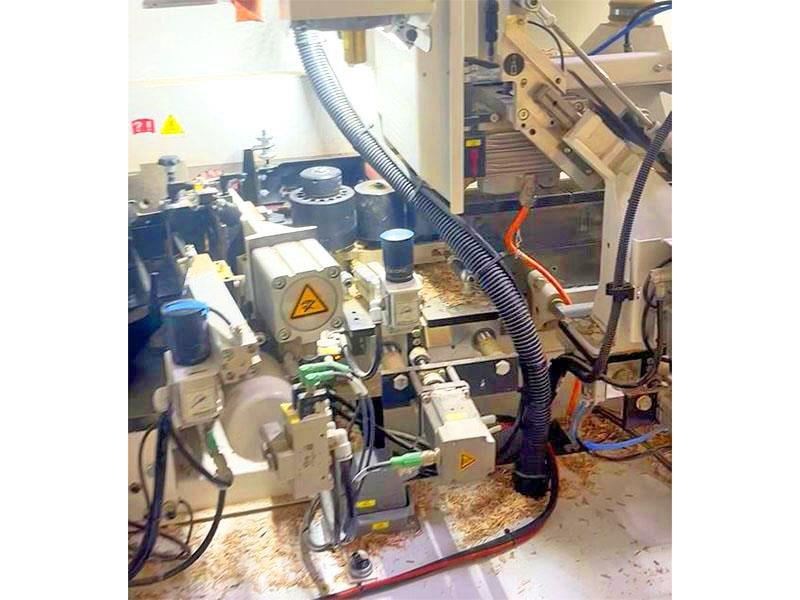

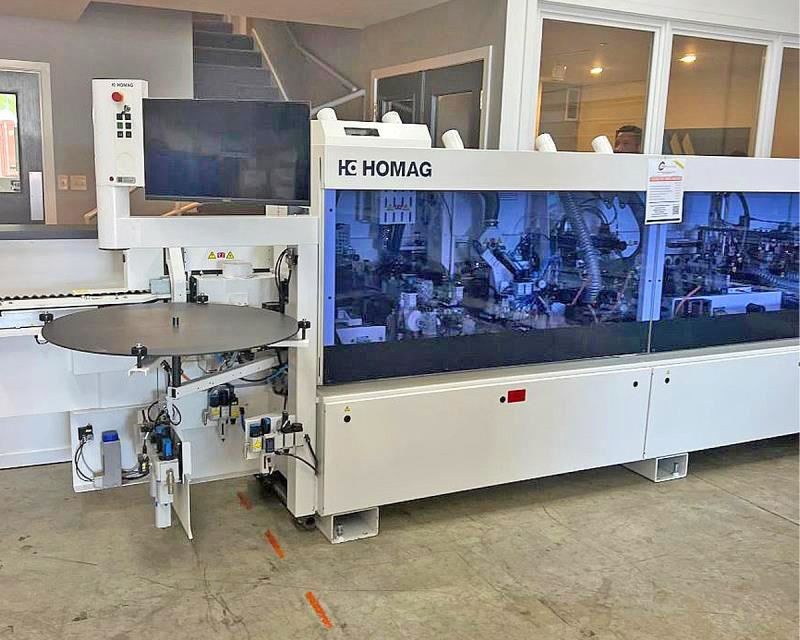

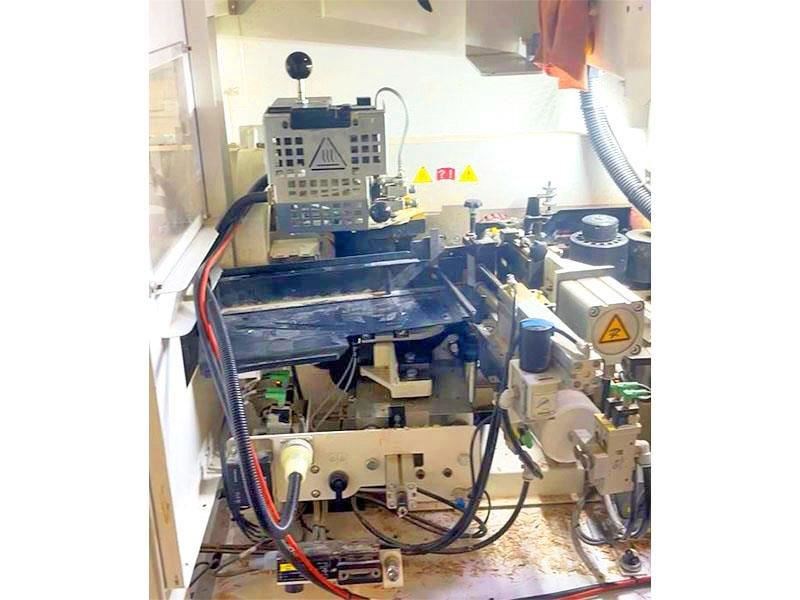

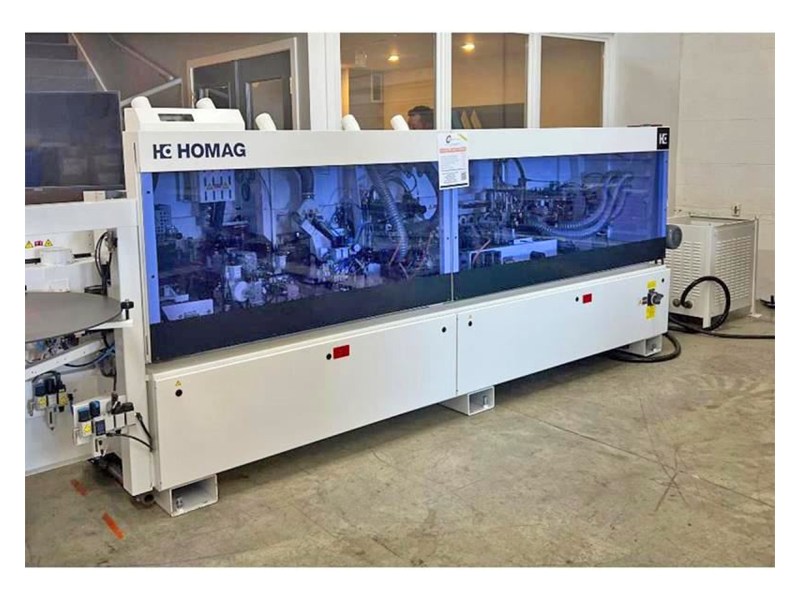

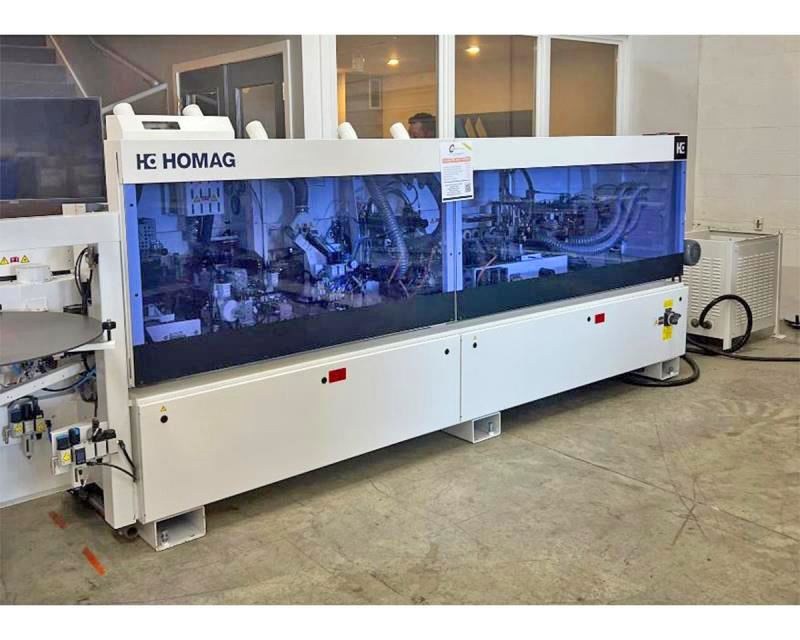

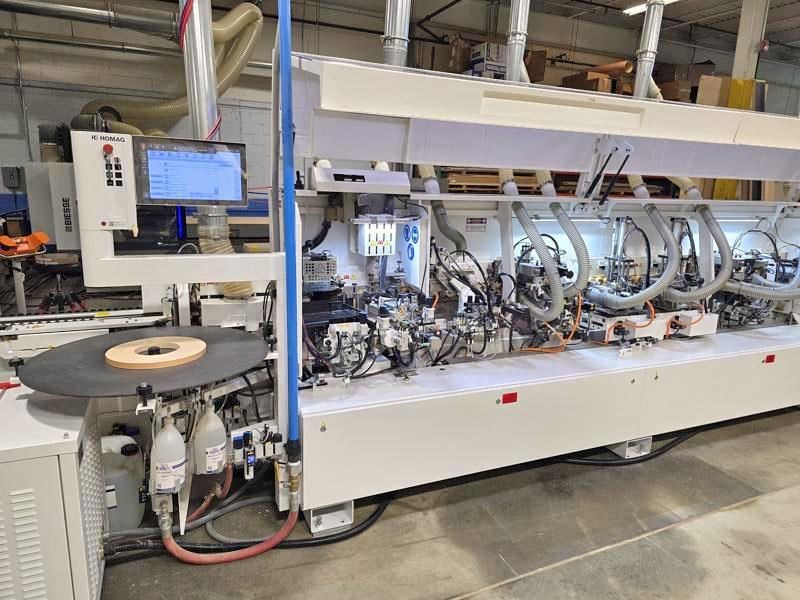

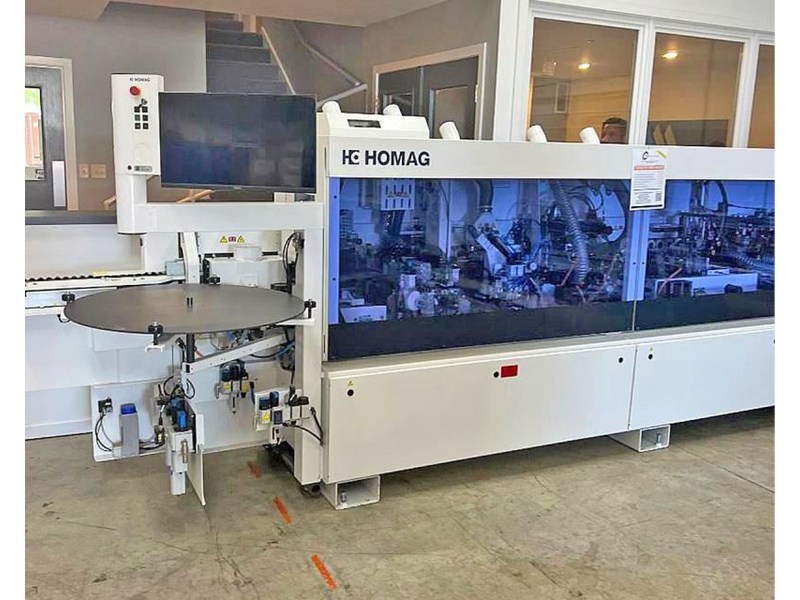

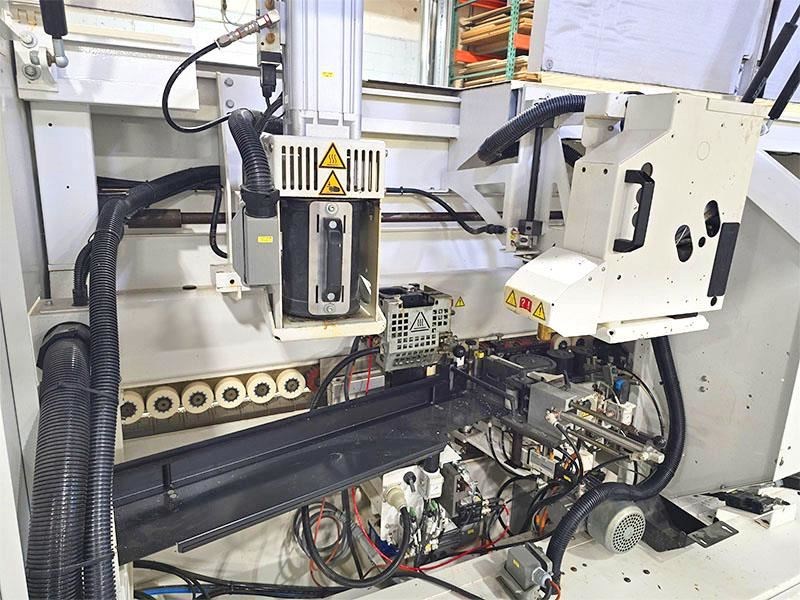

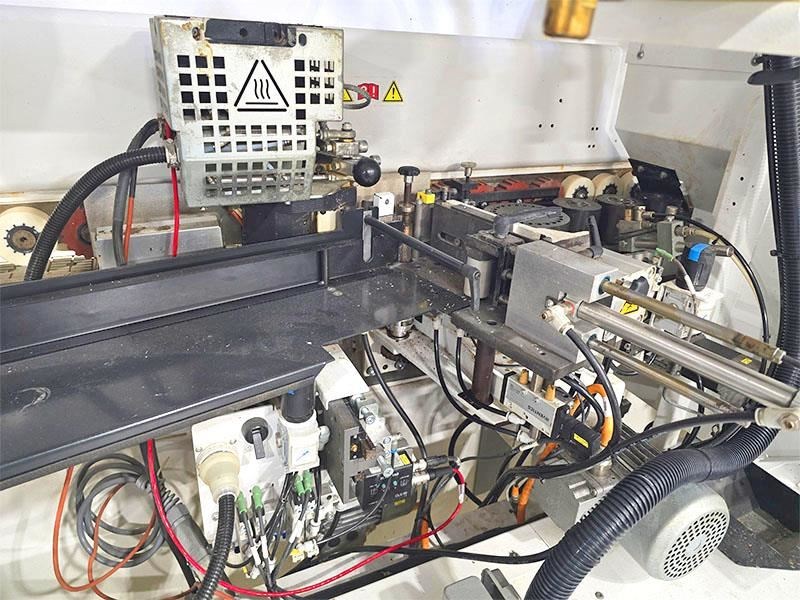

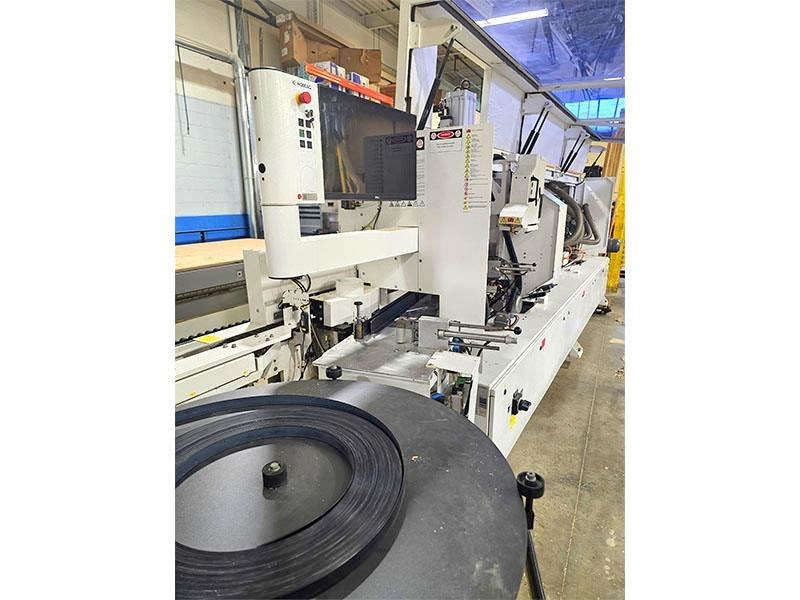

HOMAG EDGETEQ S-380/1660 6.6 Edition EDGEBANDER (W/PRE-MILL & CORNER ROUNDING) + "AIR TEC" EVA/PUR GLUING TECHNOLOGY: Specifications:0.4 - 12 mm (0.016 - 0.47") edgeband thickness; 8 - 60 mm (0.31" - 2.36") panel thickness for EVA/PUR & 40 mm (1.57" )max for Air Tec" processing; 160 mm (6.25") min. panel length and 70 mm (2.75") min. panel width.Equipped with: Pre-Milling Station, (2) motors @ 2.25 kW (3.0 HP), 12.000 RPM, LH & RH rotation w/pneumatic jump control for chip-free and clean panel edges.Equipped with diamond cutter heads. -- In-feed Fence, with servo motor positioning. -- Infrared Radiant Quartz Heating Unit between glue roller and pressure section. -- Automatic Edge Magazine, for strip & coil stock, strips 0.4 mm - 12 mm (0.016 - 0.47"), coils up to 3 mm PVC and "HD" guillotine. -- QA-65N Quick Melt "AirTec" EVA/PUR pre-melter gluing technology with auto purging function, "Quick Change" Glue Tank for maintenance & glue color change. -- Pressure Section, 1st. roller driven plus (3) idle rollers, Lube spray unit on last pressure zone roller for high gloss peel coat processing; timed pneumatic pressure controlled; Servo motor positioning for programmable edge thickness changeover. -- Feed Speed, variable 8 - 20 MPM. (26 - 66 FPM), 14 MPM (46 FPM) when using contour trimming. -- HOMAG "Power Touch Control, Memory: 256 MB Ram, 1 GB Flash Card Drive.Operator control panel w/22" color HD wide screen, soft keypad & internal modem for remote diagnostic link.Workstations: End Trimming: - (2) Motor @ 0.35 kW (1/2 HP) 12,000 RPM, automatic chamfer from control panel 0°- 15°. -- MS-40 Multi-Stage Flush/Bevel-Fine/Radius Trimming Unit: - Top/bottom (2) motors, 0.55 kW (3/4 HP) 12,000 RPM, auto tilt positioning 0° - 25°, with combination flush/radius/chamfer cutter-heads.Horizontal and vertical tracing wheels, equipped with brushless multi-axis Servo motors for positioning of work-unit & horizontal copy wheels for quick changeover. Includes (4) positioning options, profile 1, profile 2 = bevel and flush trimming. Auto-tilt and servo control for edge thickness. Nested top copy system. -- MF-50 Multi-Function Contour/Corner Rounding Unit: (2) Motors 0.35 kW (1/2 HP) 12,000 RPM, with "soft touch" Magnetic Linear Drive System for 1-mil, 2-mil & 3-mil thickness.For leading & trailing edges vertical corner rounding of panels; either radius or chamfer cutters can be mounted; 3 mm max. edge thickness. -- MZ-40 Multi-Stage Scraping, Multi-Profile (PVC): Top/bottom with (2) radii profiles. 1 mm and 2 mm or 3 mm instead of 2 mm, servo control positioning of vertical & horizontal copy wheels. Nested top copy system. PVC scrape collection box. -- Scraping Glue Unit: - Flush top/bottom on panel surface with floating insert knives. -- Buffing Unit: - Top/bottom (2) motors, 0.10 kW (0.125 HP) 2,800 RPM. Complete with:Separating spraying/cleaning agents; Motorized, programmable hold-down pressure beam; padded sound enclosure, isolation transformer for
