Description:

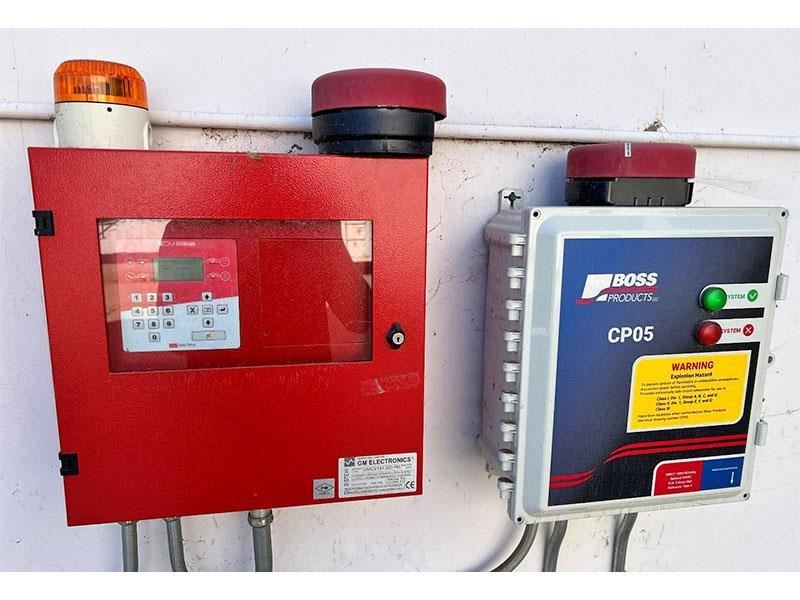

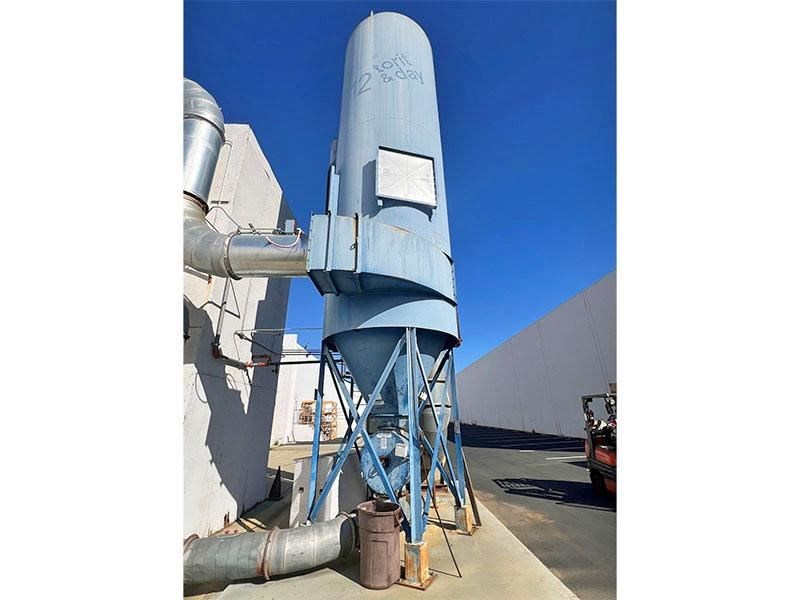

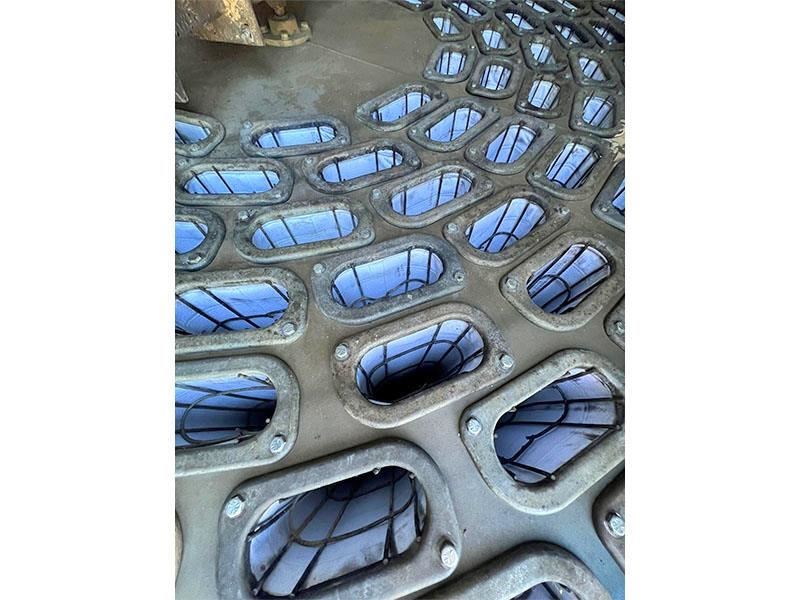

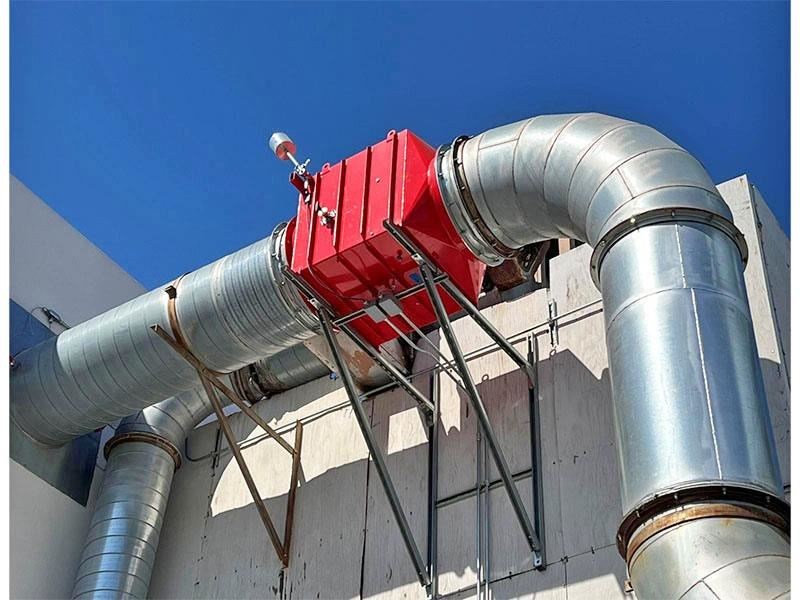

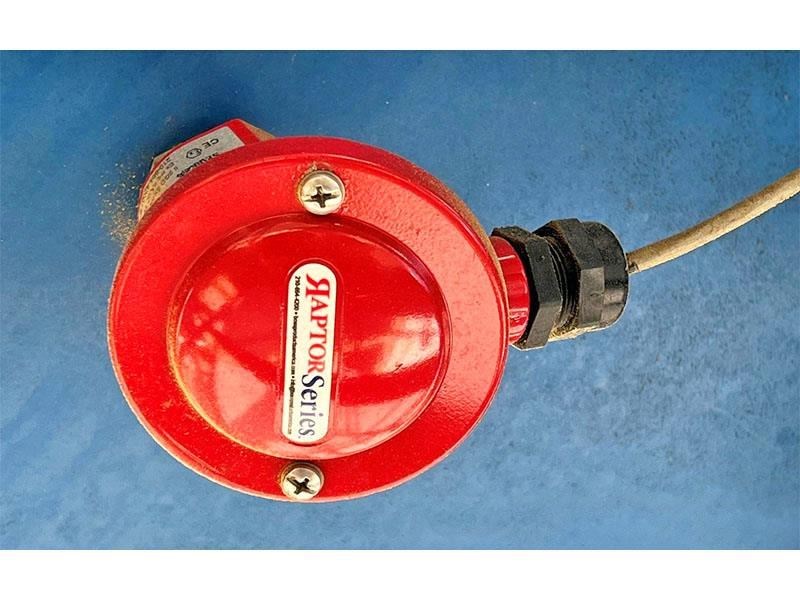

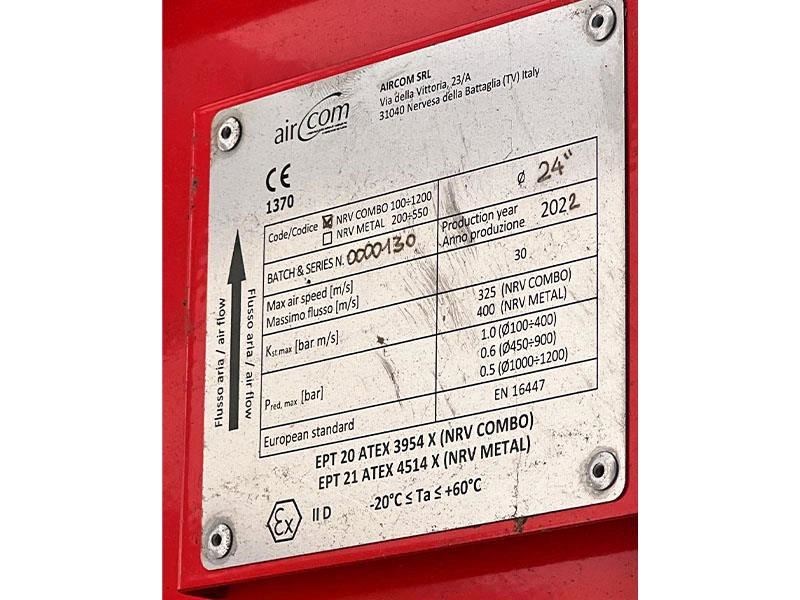

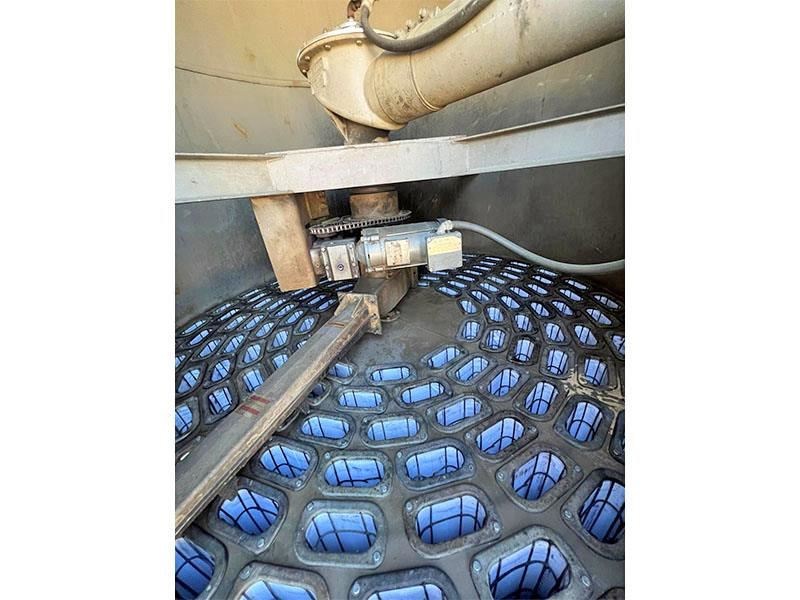

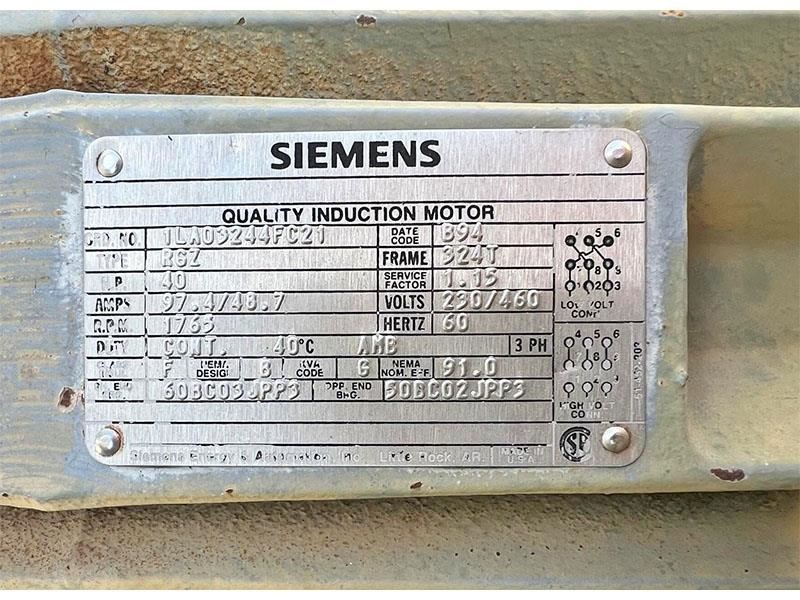

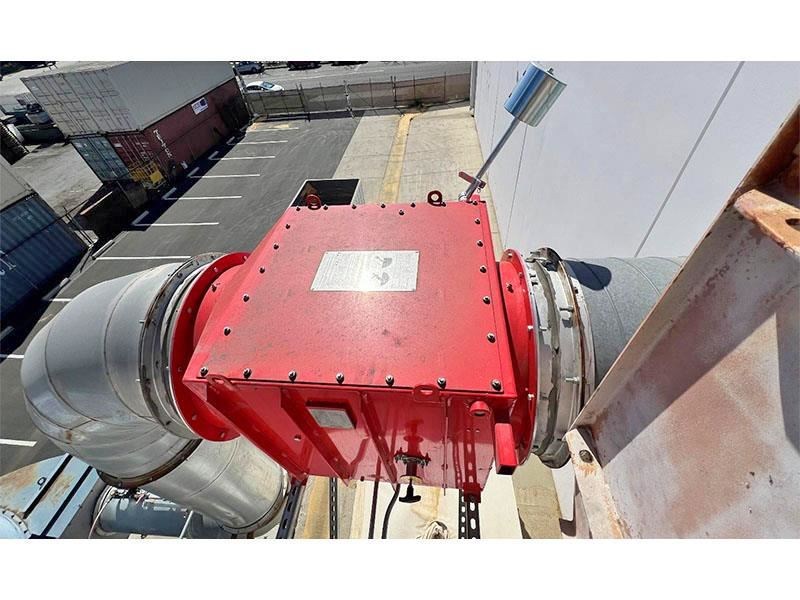

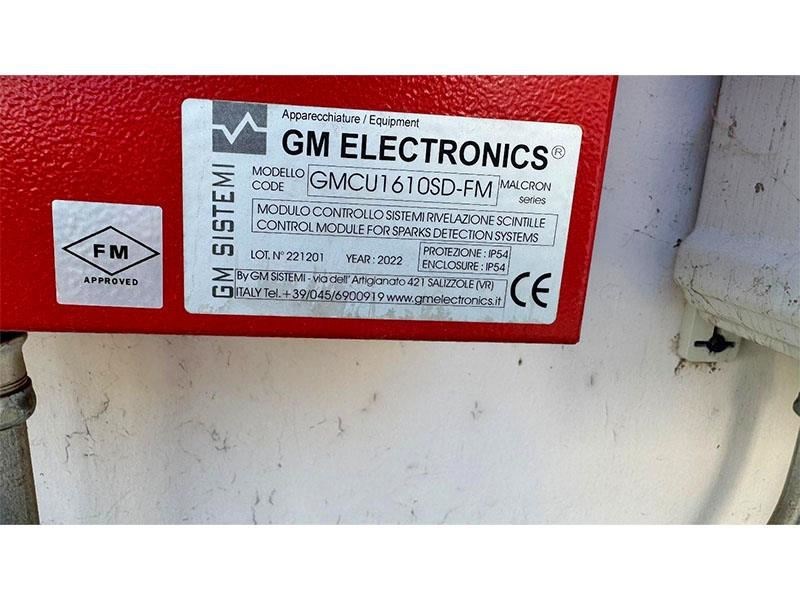

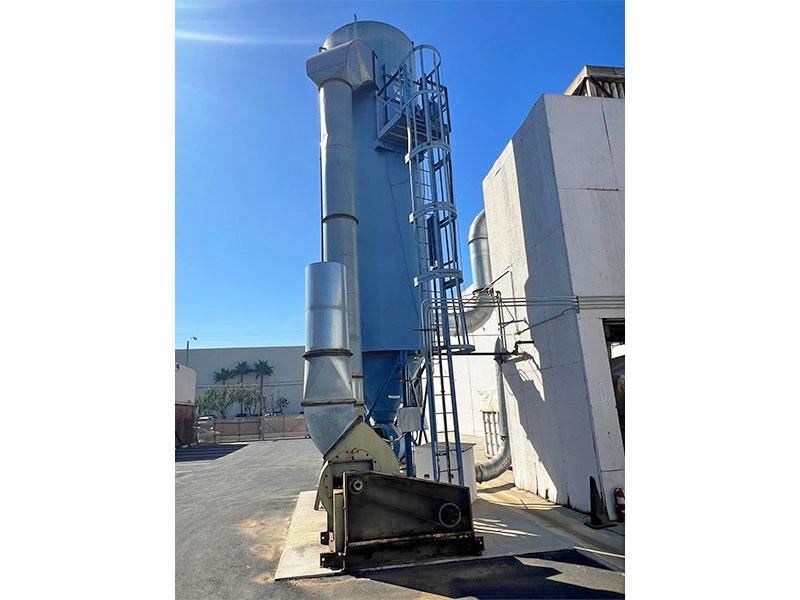

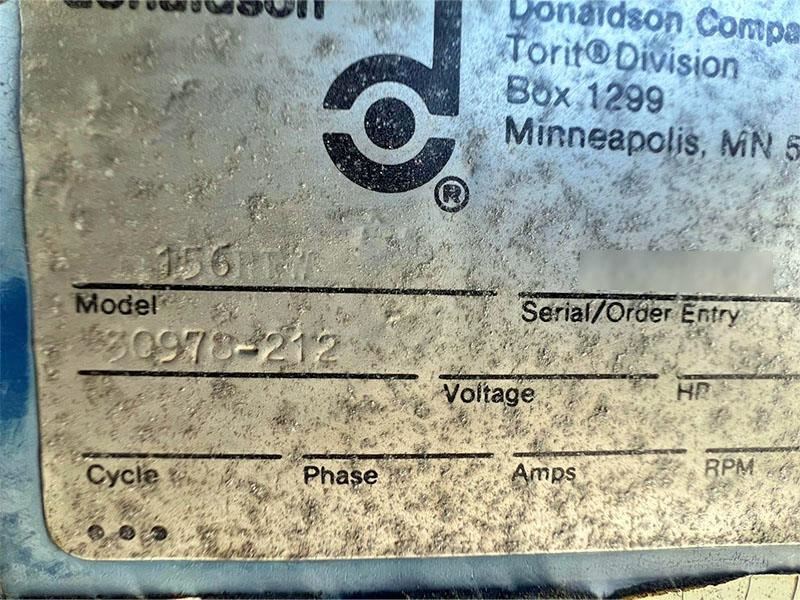

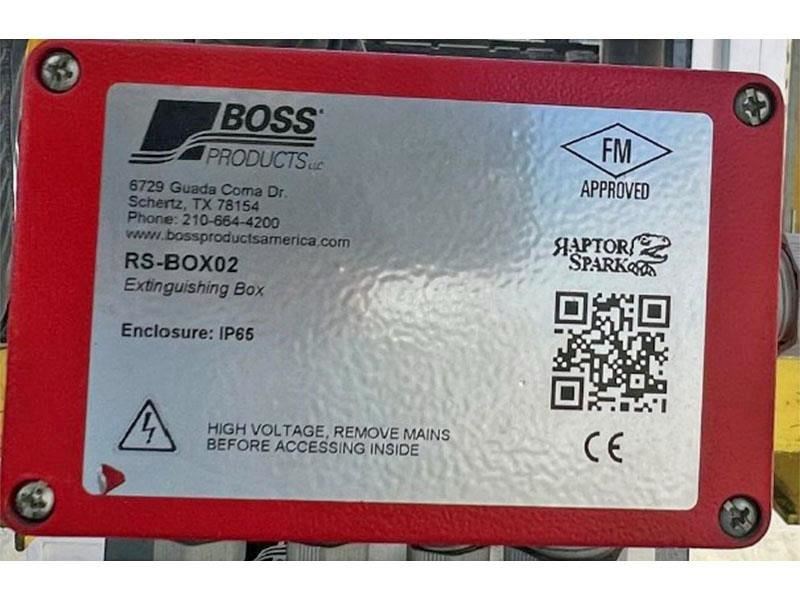

TORIT/DAY 156RFW10 Dust Collector with Rotary Air Lock and Non-Return Valve & Fire Prevention.20,300 CFM at 10:1 Air-to-cloth ratio, (156) filter bags 10' long providing a total 2030 sq. ft. of filter area; filtration media cleaning via 3 HP medium pressure air pump eliminating the need for compressed air which can be susceptible to condensation and freezing. -- Rotating cleaning air manifold driven by 0.33 HP motor, uses only (1) Nema-9 solenoid and diaphragm valve which rotates over the bag openings; galvanized steel bag frames with positive bag bolt down to eliminate leakage and ride up of bags once installed. -- Clean air side fan assembly with 24ACF CLASS I-III fan driven by a 40 HP TEFC motor; TORIT "16 AN" 16" rotary air lock at the bottom of 60° hopper. -- Features: (2022) AIRCOM/BOSS PRODUCTS. NRVC Non Return Valve Combo. Extinguishing Box. GM SYSTEMS GMCU161SD-FM Fire Prevention Control Unit which manages 5 independent lines (16 program inputs & 5+10 outputs) - FM Certified. RAPTOR SERIES with related RAPTOR SPARK RS-BOX02. -- Complete with: Walk-in plenum, maintenance platform, caged ladder & support structure, electrical control panel. -- Includes: Outdoor piping & pictured waste bin. -- Please inquire for dismantling & rigging quotations
