Description:

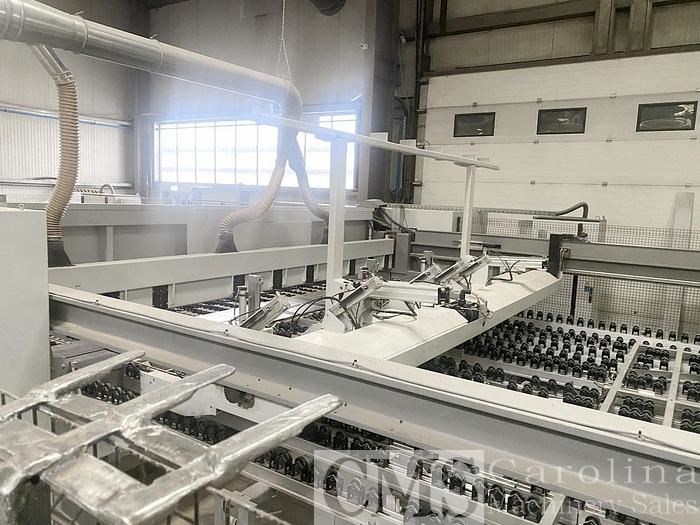

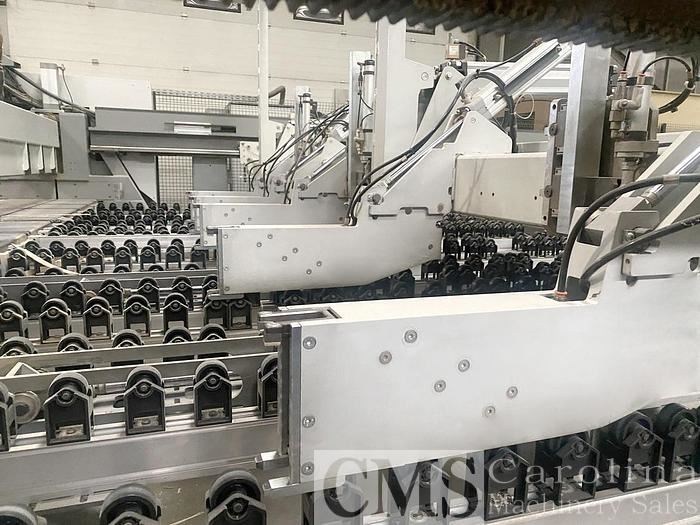

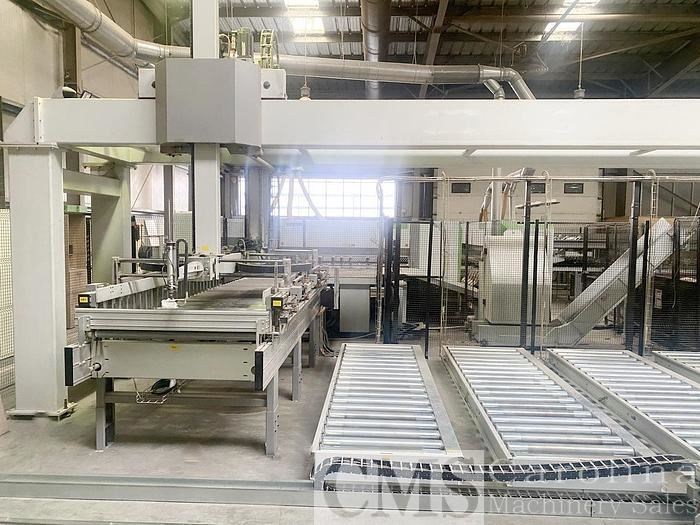

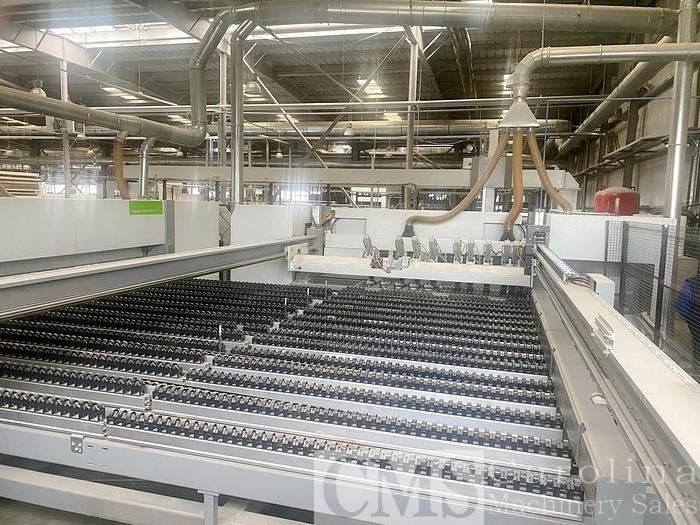

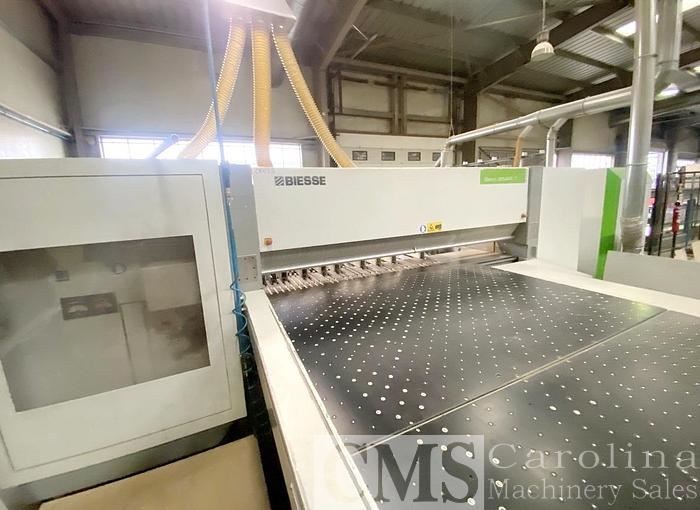

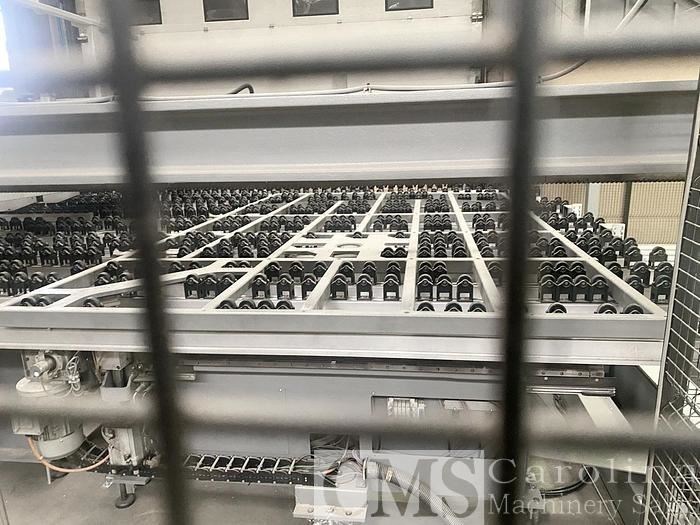

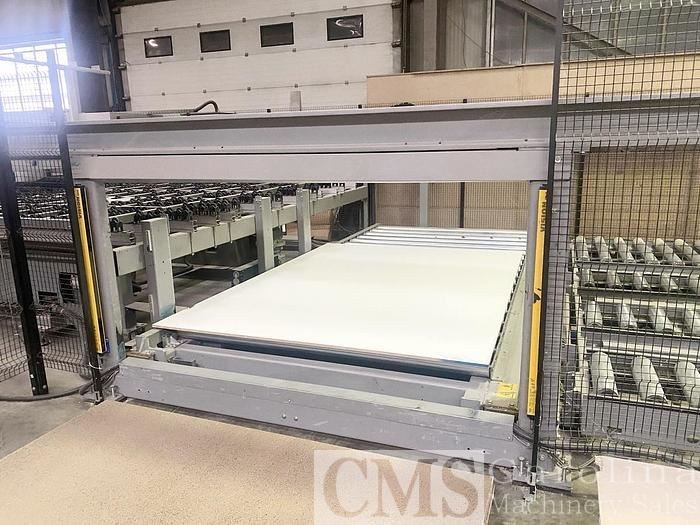

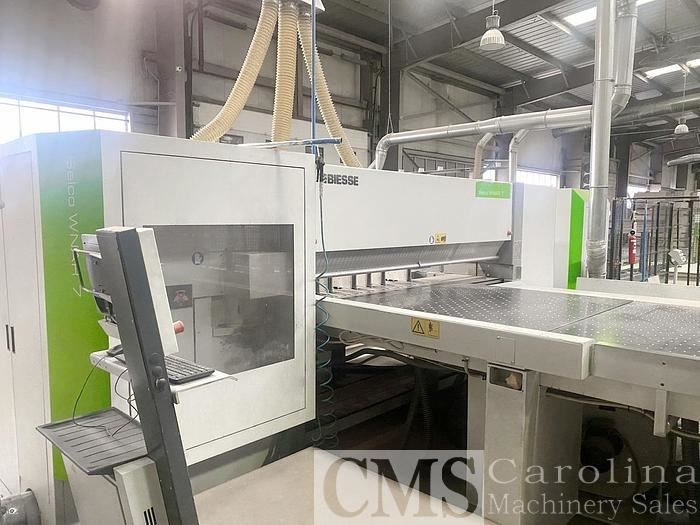

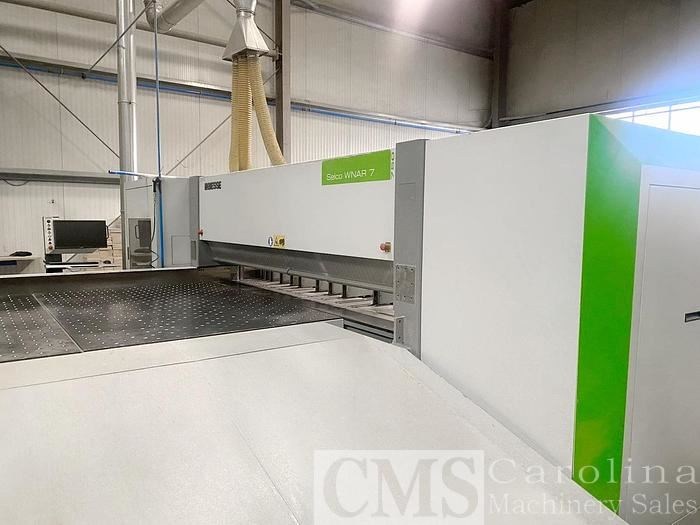

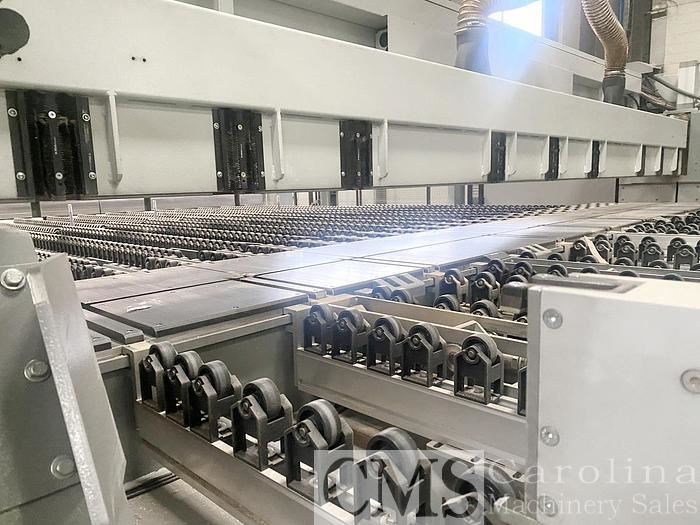

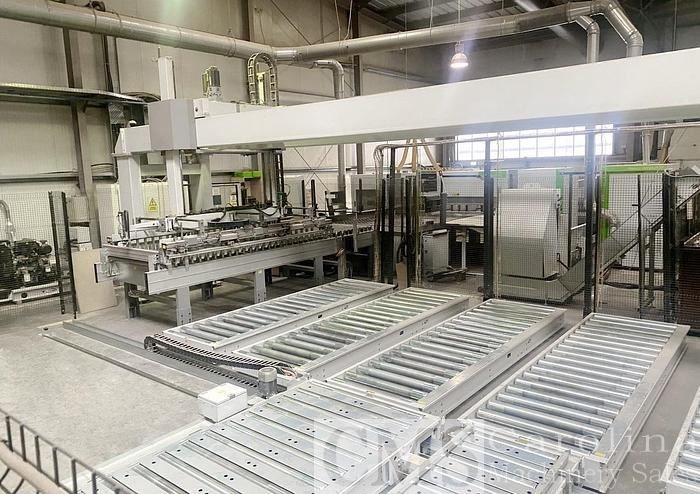

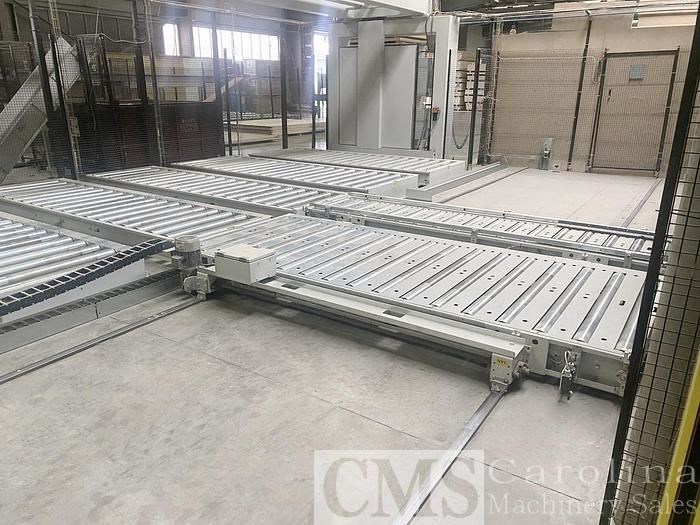

Angular sawing plant Numerical Control OSI Plus - Software Optiplanning N. 2 Pre-loading roller tables (mm) approx. 4500 x 2200 each Lifting table (mm) 4500 x 2200 1° Rear-pusher, with No. 5 clamps/grippers Turning device (rotating unit) at 90° 1° Panel saw (longitudinal) max. cutting width (mm) 4500 Max blade projection (mm) 152 Scoring Unit (max. diameter saw) mm approx. 215 Main Sawing Unit (max. diameter saw / power) mm 530 ( Kw 30) Adjustable speed of the saw carriage (m/min) 1 - 170 m/min Cutter for shredding trimmings 2° Rear-pusher, with No. 10 clamps/grippers 2° Panel Saw - Max cutting width mm 2200 Max blade projection (mm) 152 Scoring Unit (max. diameter saw) mm approx. 215 Main Sawing Unit (max. diameter saw / power) mm 530 (Kw 30) Adjustable speed of the saw carriage (m/min) 1 - 170 m/min No. 2 Front supporting tables with Air blowing system mm 2200 x 1500 Automatic unloader (bridge) for cut panels "RBO (BIESSE)" Mod. Lifter with 6 stacking stations
