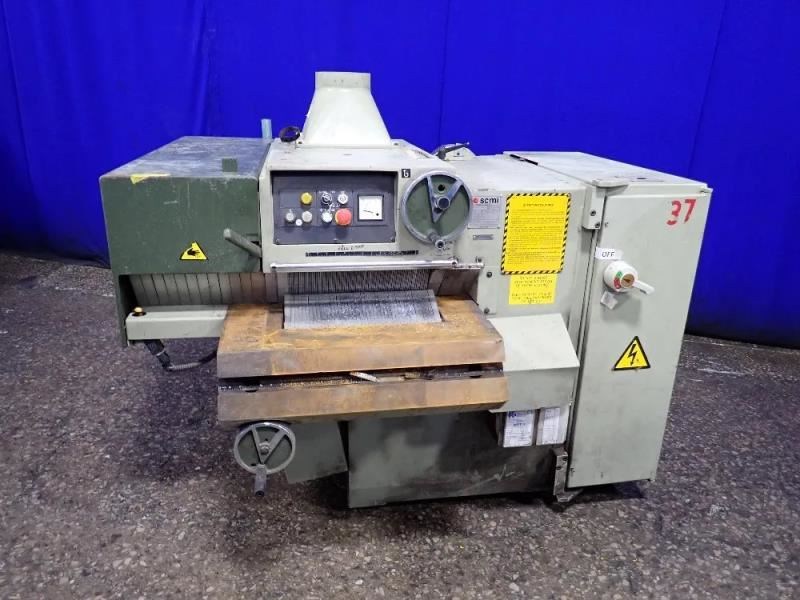

SCM - M3: Multi-Blade Dip Chain Gang Rip SawSpecifications -- Width cap.: 300 mm (11.81"). -- Max. depth of cut.: 110 mm (4.33"). -- Throat depth: 8-3/4". -- Min. stock length: 390 mm (15.35"). -- Blade diameter: 200 - 350 mm (7.87" - 13.78"). -- Arbor dia.: 70 mm (2.76"). -- Table size: 750 x 1,530 x 750 mm H (29-1/2" x 60.24" x 29-1/2" H). -- Blade speed: 4,200 RPM. -- Feed speeds: 6 - 48 MPM (19 - 157 FPM).Equipped with: -- 44 kW (60 HP) - 3,554 RPM Blade motor. -- Variable speed drive feed chain motor. (2) Upper infeed & (2) Upper outfeed 4" Dia. rollers; automatic chain lubrication. -- Top & Bottom anti-kickback fingers. -- Main dust hood with: 200 mm (7.87") Dia. outlet. -- Adjustable infeed fence: 40"; x 2-3/4"; H. -- Motor load meter.NOTE: Some spec's need to be verified
