Description:

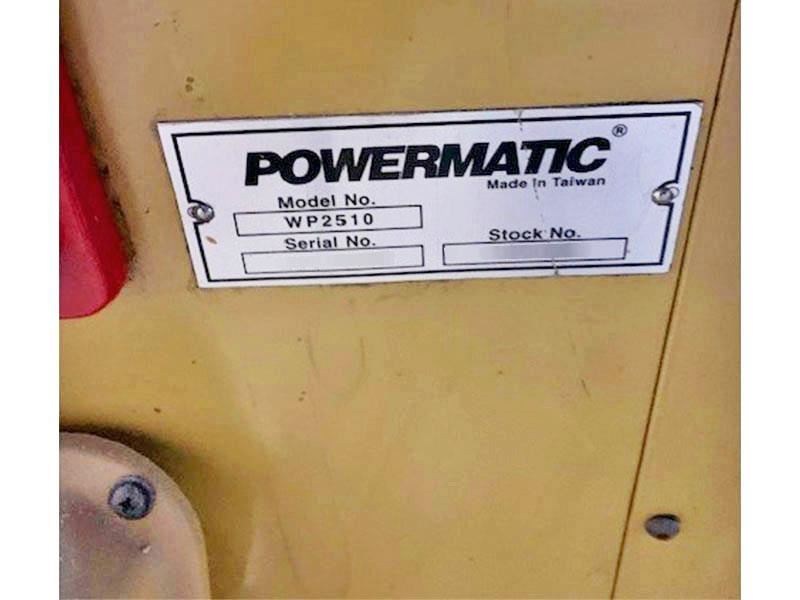

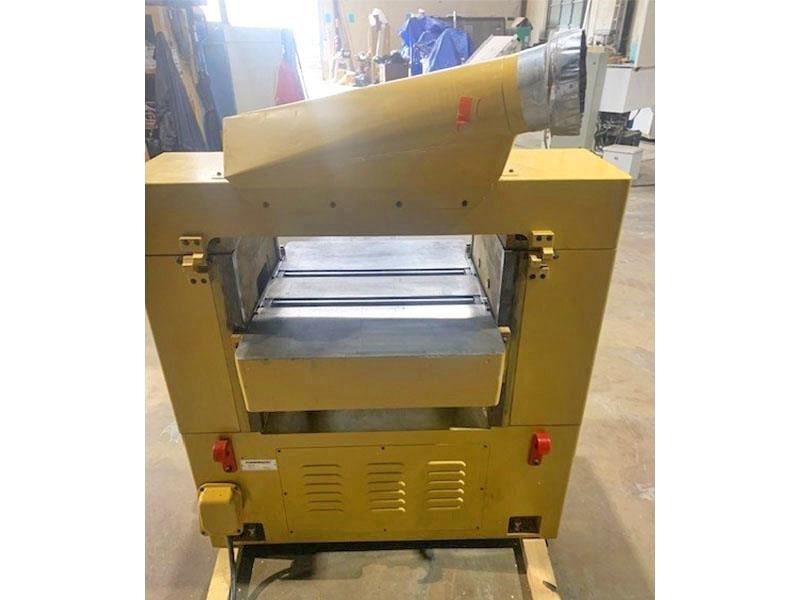

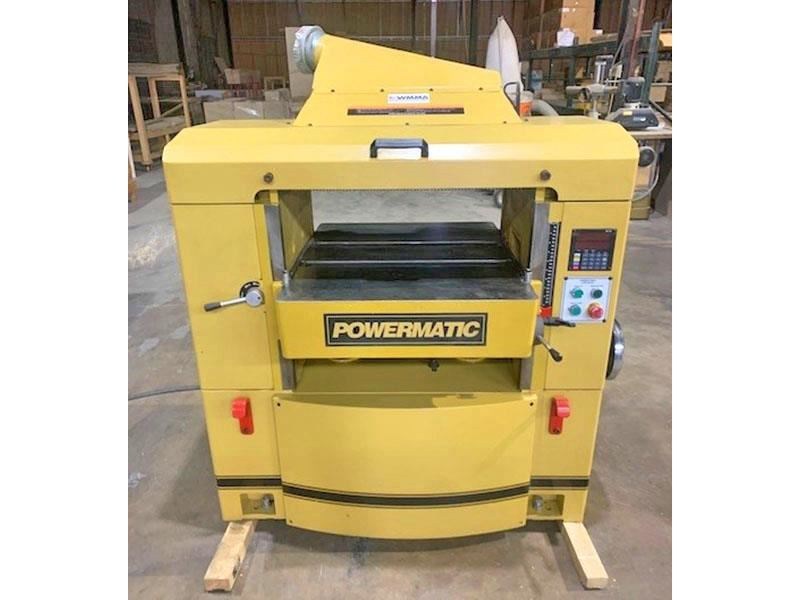

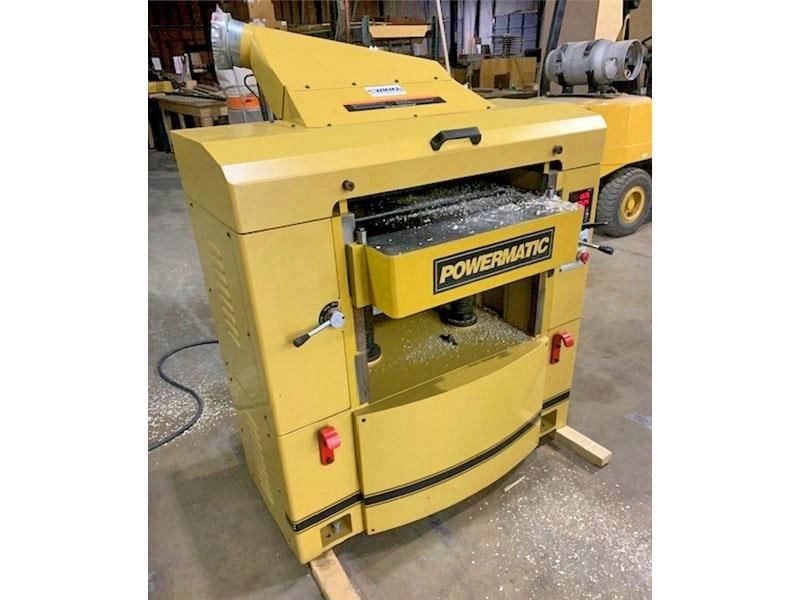

POWERMATIC WP 2510 PLANERThe POWERMATIC "WP 2510" Planer with a 15 HP motor has a solid steel helical cutterhead with four-sided carbide knife inserts that require no adjustments when changing. With a digital readout and simple PC controller, setting up table heights is quick and easy. -- The frame is machined from heavy cast iron and has extra wide side panels that offer rigid bed support and ensure accurate alignment. -- The planer's segmented, serrated infeed roll with segmented chip breakers has an independent yield of 1/4". Its automatically adjusting, chain drive gear box powers the 3" dia. infeed rollers, solid pressure bar and dual outfeed rollers for precise feeding of stock. -- The 3-speed feed selector gives woodworkers flexibility by changing feed rates quickly and easily. -- The "WP 2510" Planer has a large 32-3/16" x 26" precision-ground table which contains two adjustable table rollers for smooth feeding of uneven stock. The planer has a Quick-Set micro-adjustable lever that easily raises and lowers the table rollers from 0 to 0.05". The hood features a built-in 5" diameter dust chute. -- SPECIFICATIONS: -- Max. planing 25", max. planing thickness 9", max. full width depth of Cut 1/8", max. depth of cut ¼". -- Min. Planing length 10", cutterhead dia. 3-3/8", cutterhead speed 5,000 RPM, cuts per minute 30,000; 15 HP motor. -- Feed Rate 20, 25 and 30 FPM, Outfeed Roller Diameter 3 "; number of Knives: (174) Four-sided inserts. -- Table Size: 32 3/16" x 26"; dust port diameter 5 ", dust collection CFM Required (600) CFM. -- Bed Rollers adjustable from front fom 0" to 0.05"; Readout Scale: inch/ metric; Table Height adjust manual with 1 Turn = 1/32", (2) column for bed support, 2-1/2" column dia.; (1) infeed and (2) outfeed rollers; includes Tool Kit.
