Description:

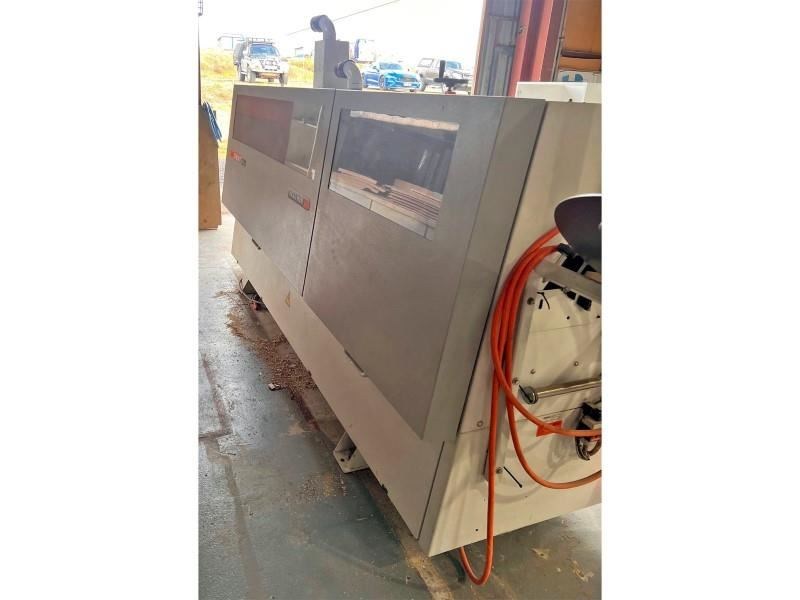

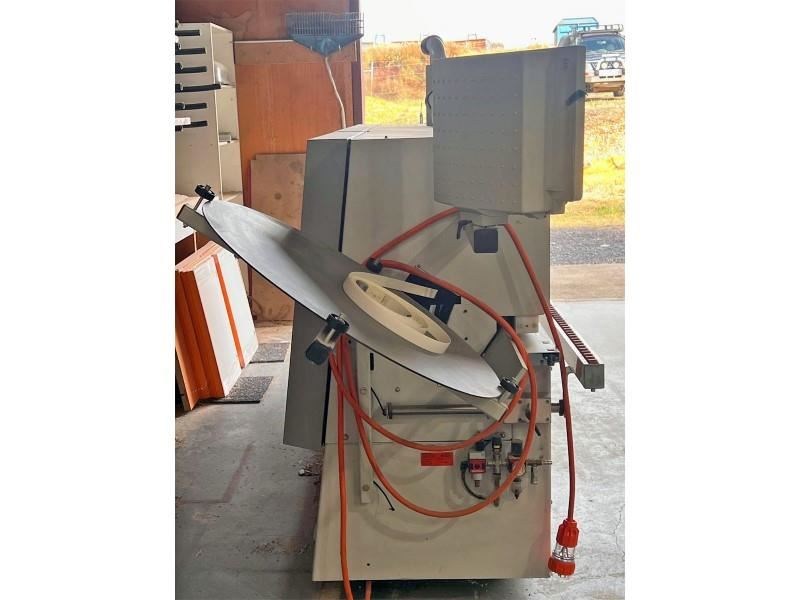

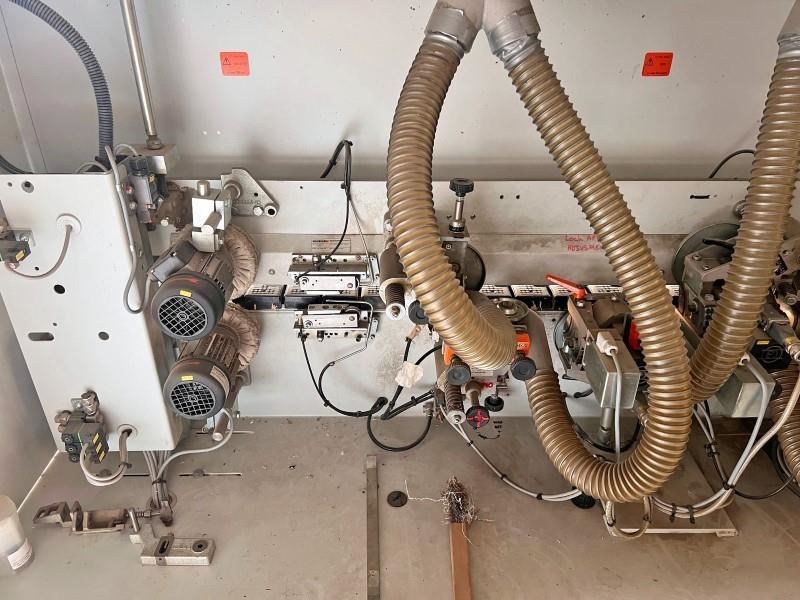

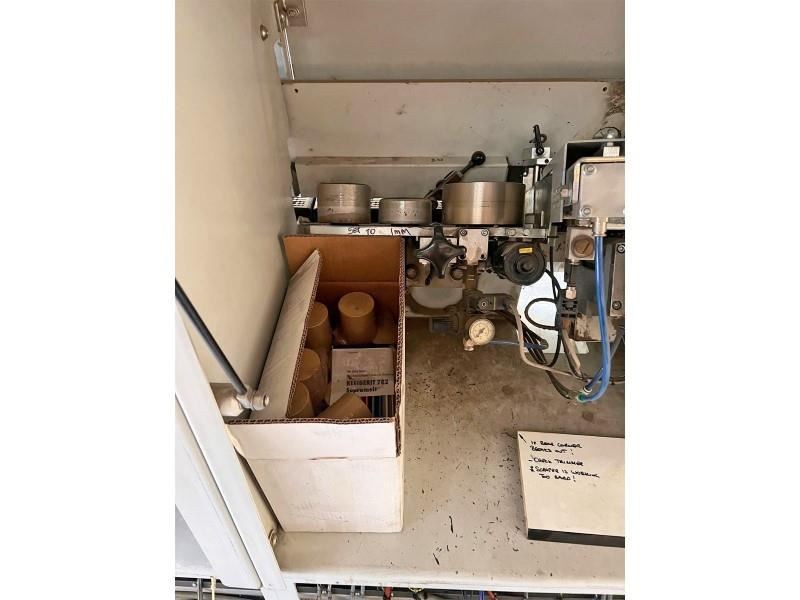

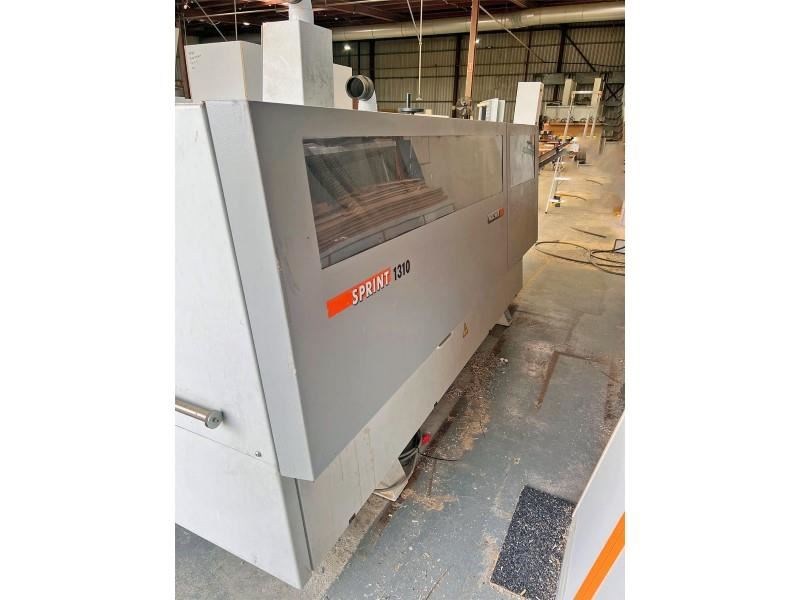

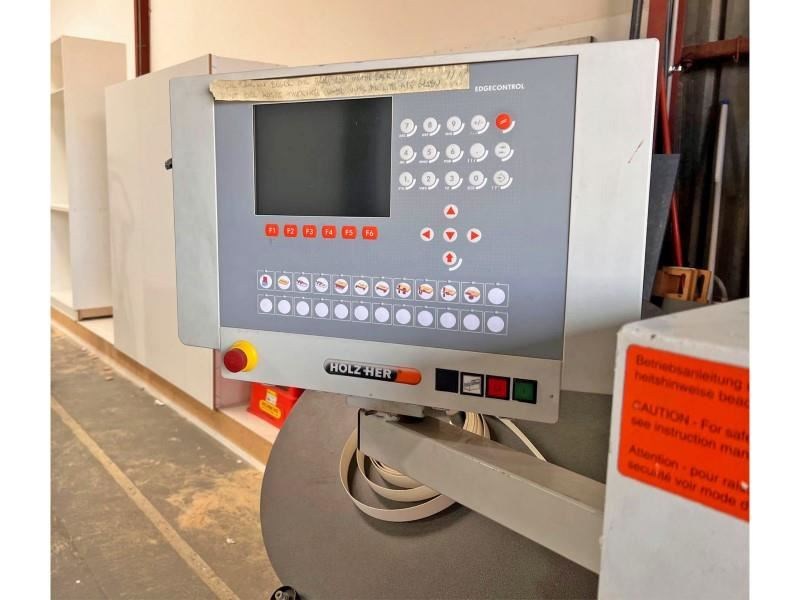

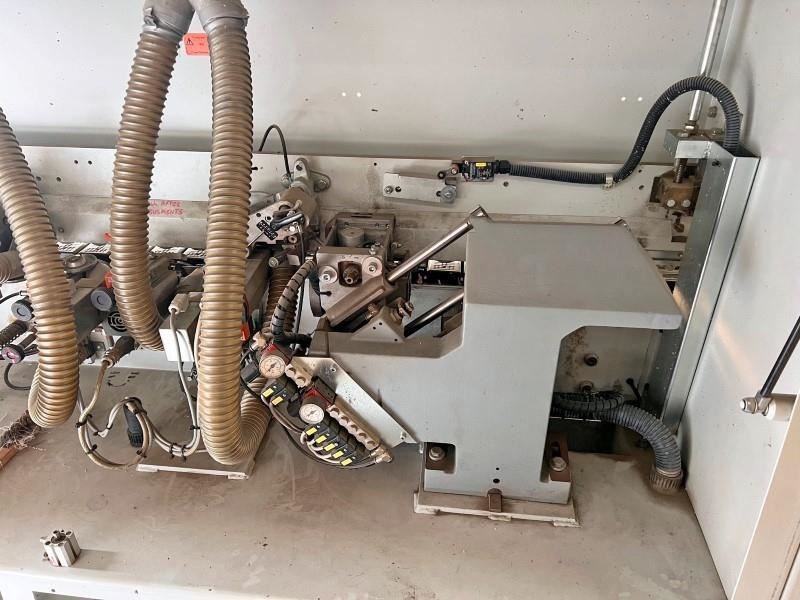

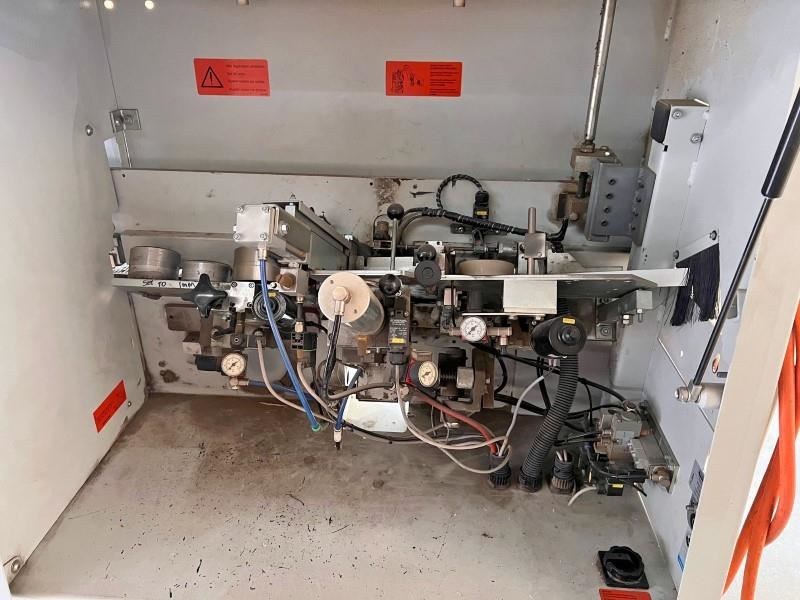

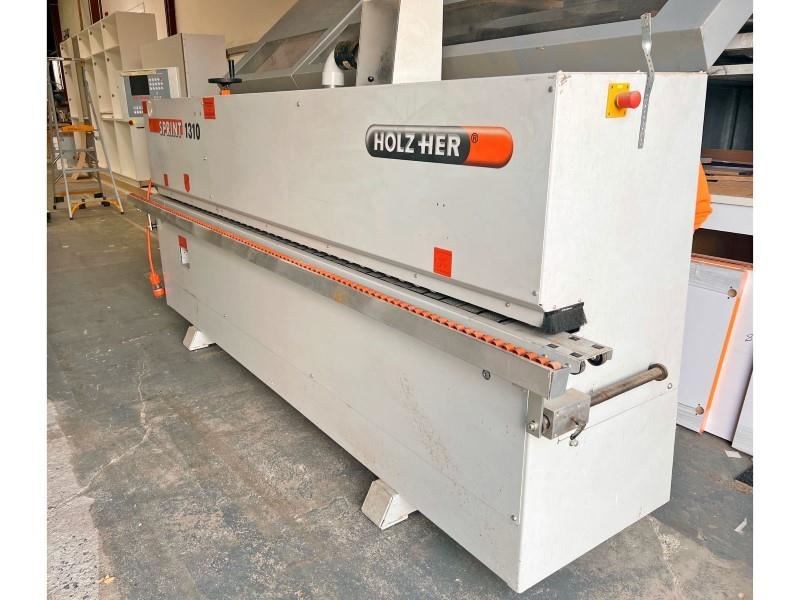

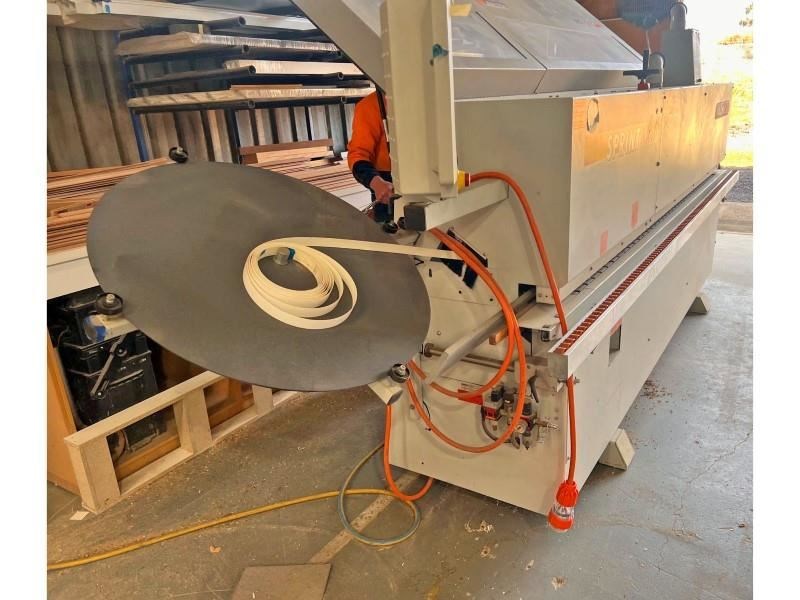

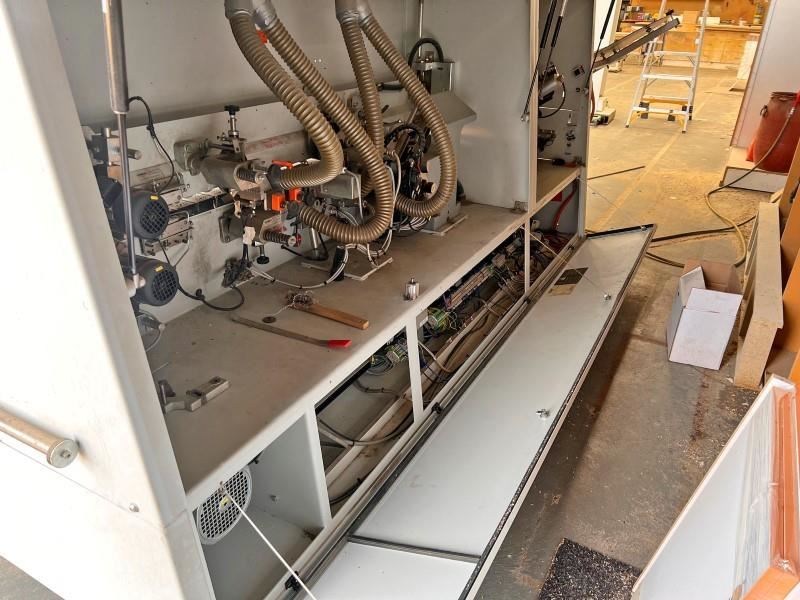

HOLZ-HER 1310 SPRINT "SPECIAL ORDER" EDGEBANDER + FIXED 30° ANGLE PROCESSING: -- Specifications:Cartridge Glue System, 3 - 5 minutes heat-up time, 8 mm (5/16") edge thickness cap., automatic magazine coil & strips (1903), 3 mm PVC cap. pneumatic guillotine for coil cut-off.Pressure Section (1913P): Pneumatic pressure control, (3) rollers, 1st. one large and synchronized with feed-track chain, programmable with servo motor. Workstations:End Trimming Station (1918): Double motor chamfers 0° - 10° (0.22 kW - 9,000 RPM motor ea.).Flush Trimming (hogging) Station (1823): Top/bottom super-imposed none tilting (0.6 kw, 0.82 hp - 15,000 RPM motors ea.).Fine/Bevel/Radius Trimming Station (1942M): Top & bottom, bevels from 0° - 15°, allows bevel & profile trimming (1 HP - 22,000 RPM motor ea.), horizontal copy wheels for precision cutter-head positioning.Scraping Unit (1929): Top & bottom edge scraping for heavy PVC from 0.8 - 5 mm radius, programmable servo motor driven horizontal copy wheels for precision scraping knife positioning.Buffing Unit (1940): Top & bottom edge buffing, 0.3 HP - 1,620 RPM motor ea. Features:Single feed speed of 35 FPM and features PLC (Programmable Logic Control) for easy setup & program storage. PCS (Pneumatic Changeover System) on trim stations, fixed outboard panel support, motorized, programmable hold-down pressure beam, frequency inverter, and sound enclosure.Actual Model is HOLZ-HER SPRINT 1310 "SPECIAL ORDER" 30° ANGLE PROCESSING
