Description:

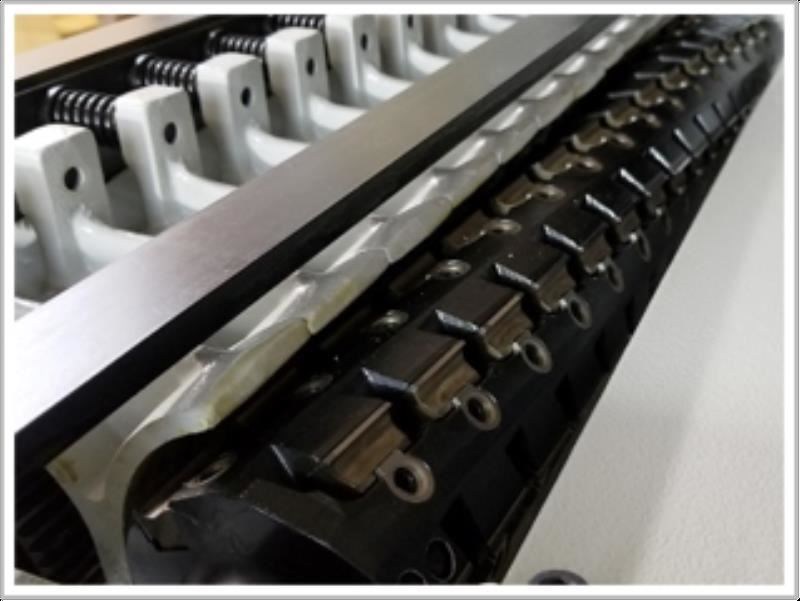

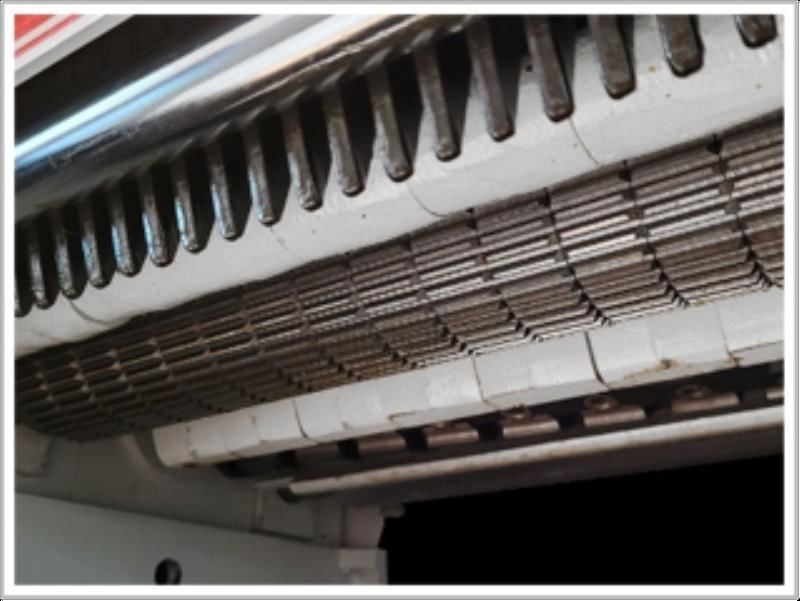

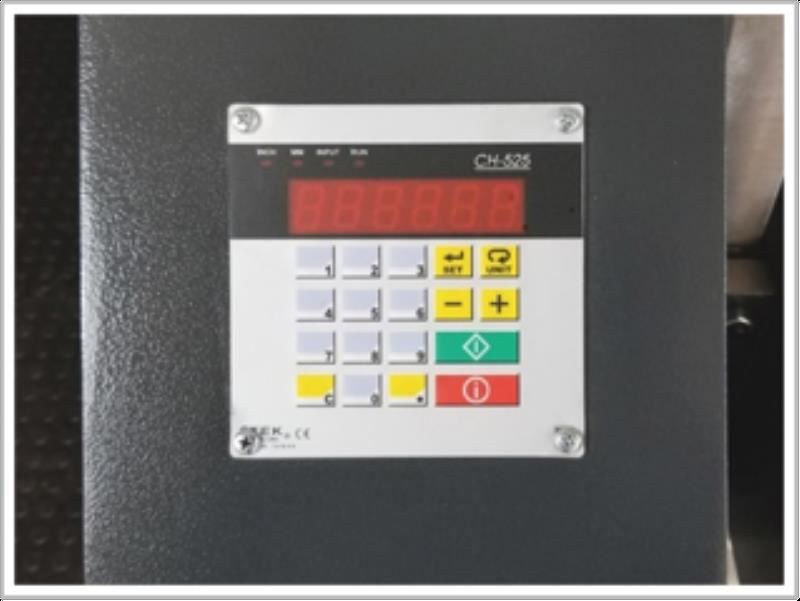

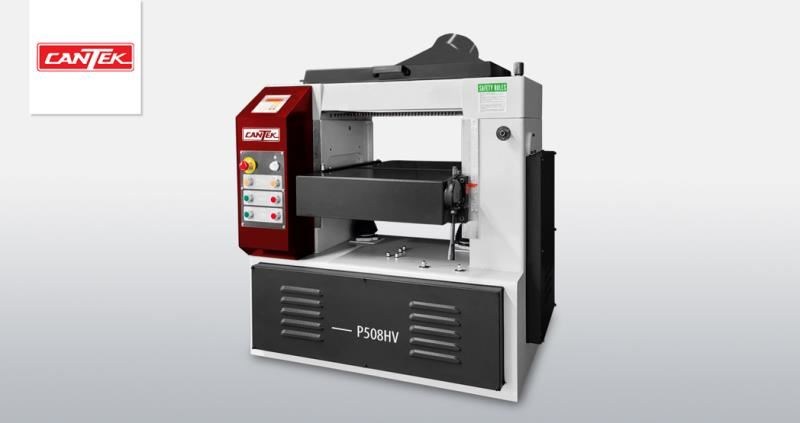

CANTEK P508HV Single-Sided Planer with Helical Head. -- PLC digital control for auto-thickness setting. -- Sectional infeed roller and sectional chip breaker. -- Anti-kickback safety fingers for safe operation. -- Variable speed drive for optimum finish results according to the planing depth and material being planed. -- Quick-set table roll adjustment to aid in feeding difficult-to-feeling material. -- Steel spiral cutterhead with carbide inserts – 6 rows of inserts 30 x 12 x 1.5 mm cutters mounted on an angle for 'shear' cut. -- Exhaust hood with 6″ outlet. -- Flip open the upper hood for easy and convenient access to change the knives on the cutterhead. Safety limit switch on the cover will not allow the operator to run the machine with the hood open. -- 4 Table raising jackscrews.Specifications: -- Maximum planing width 20″. -- Maximum planing thickness 11-13/16″. -- Minimum planning thickness 3/8". -- Max. depth of cut 5/16″. -- Minimum length 8-3/4″. -- Table size 22″ x 29". -- Feed speed 20-39 FPM Variable. -- Main motor 7.5 HP. -- Feed motor 1 HP. -- Power rise and fall of table 1/2 HP. -- Dust hood (1) 6". Machine dimensions: 51"; x 38"; x 47";. -- Shipping dimensions 46"; x 35"; x 48". -- Net weight 1590 Lbs. -- Shipping weight 1850 Lbs. -- Machine Electrics 230/3/60 - 26 amps, 460/3/60 - 13 amps. -- 575/3/60 - 10.4 amps
