Description:

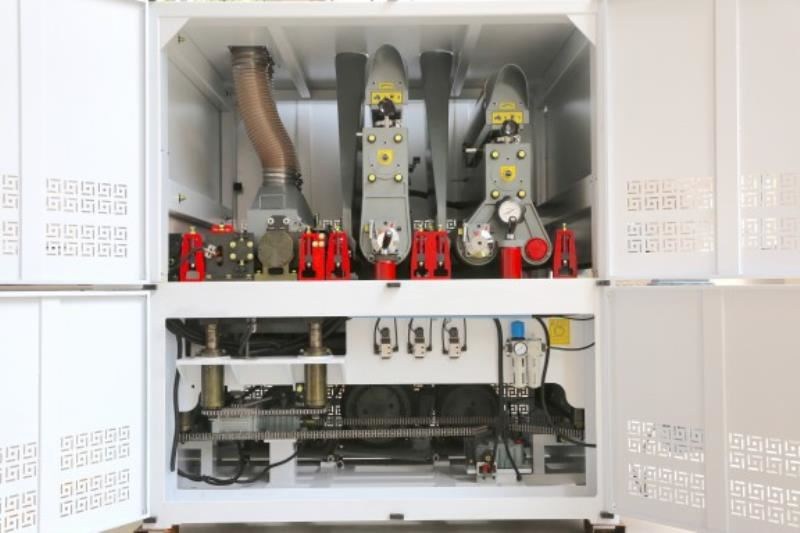

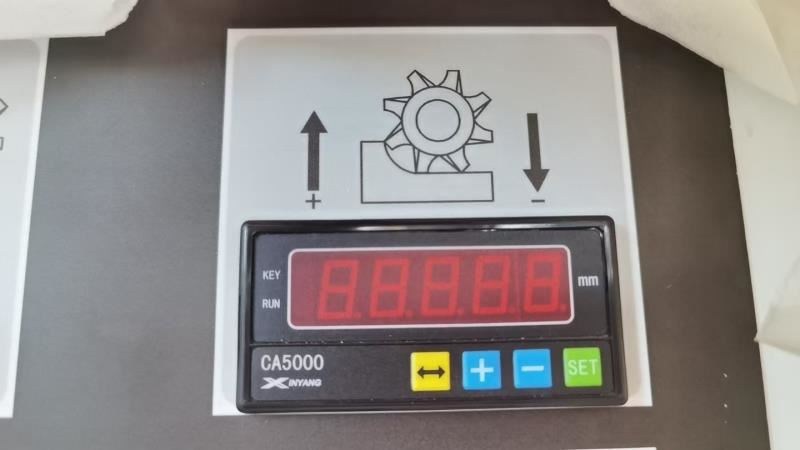

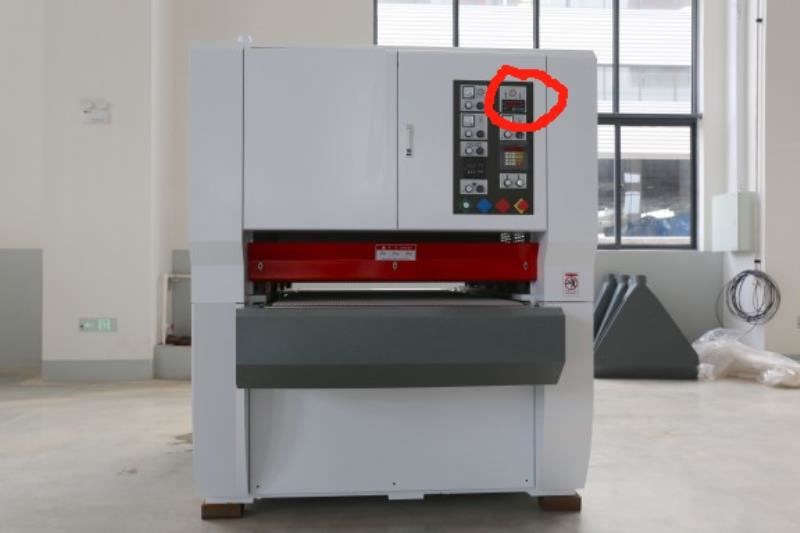

CAM-WOOD WS-M1000 NAX Planer Sander -- 2 Heads with 39.4" width capacity planer head and combination sanding headFeatures: -- This machine is especially designed for tale off heavy materials such as glue panel, bend board, rough lumber. -- The first head is a knife planer head, with 25 HP motor. The spiral planer cutterhead is fitted with 14 x 14 mm, four edge throw away Tungsten Carbide knife inserts, providing superior chip removal rate, minimum noise, and extremely smooth cutting effect. Changing knife inserts are conveniently done without removing the cutterhead. Planer head with motorized height adjustment with digital read out display -- The second head is a combination of drum and platen driven by a 20 HP motor, belt size 40.5" x 78 3/4". (1030mm X 2000 mm) -- Anti-kickback fingers, mounted at the infeed of the machine, this anti-kickback finger gives a safety guard for the operator. -- Insufficient pressure protection, in case insufficient working air pressure occurs, the machine brakes automatically for safety guard.Irreversible running of pressure roller, runs a single direction only, giving an additional safety guard for panel kickback. -- Motorized elevation of conveyor table (micro-computer controlled with digital readout), it accurately displays the position of the conveyor table and automatically moves to the setting thickness for planning, sanding. -- Panel cleaning brush roller; built at outfeed end of the machine, this cleaning brush roller cleans the powder on the sanded panel. -- Hold-down plate is hard chrome treated for maximum wear resistance.Technical Specification: -- Working width 39.4" (1000 mm). -- Working thickness up to 6 1/4". -- Minimum working length 21". -- Feed speed 10 to 90 FPM inverted driven by 3 HP motor. -- Table raised and lowered by 1/2 HP motor. -- Cleaning brush driven by 1/2 HP
