Description:

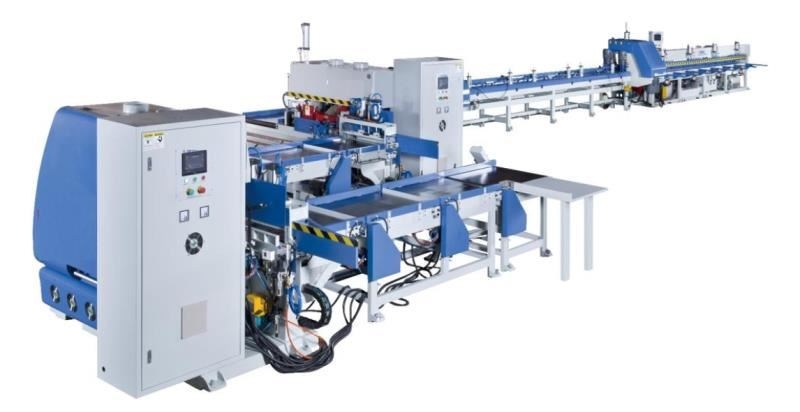

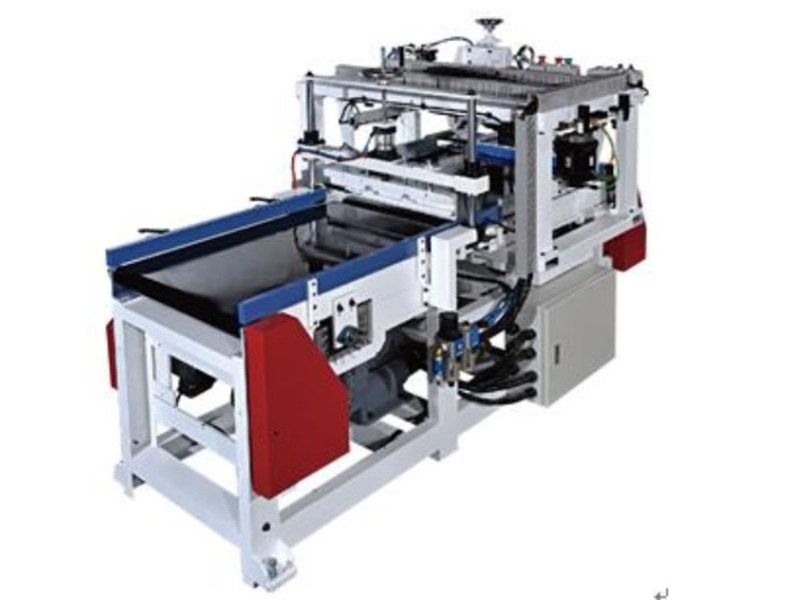

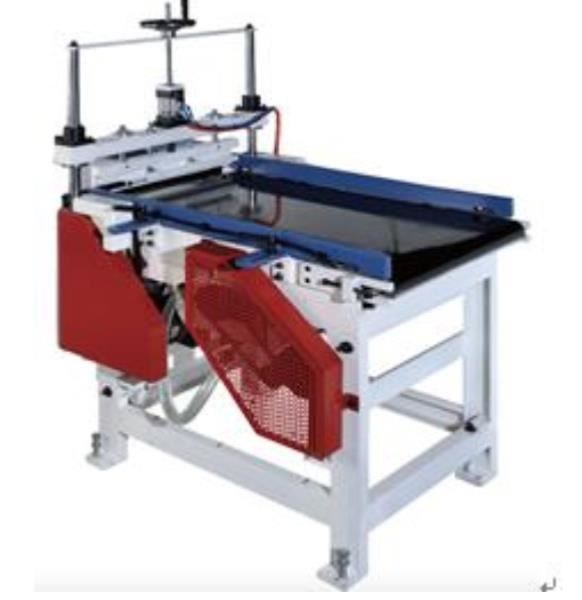

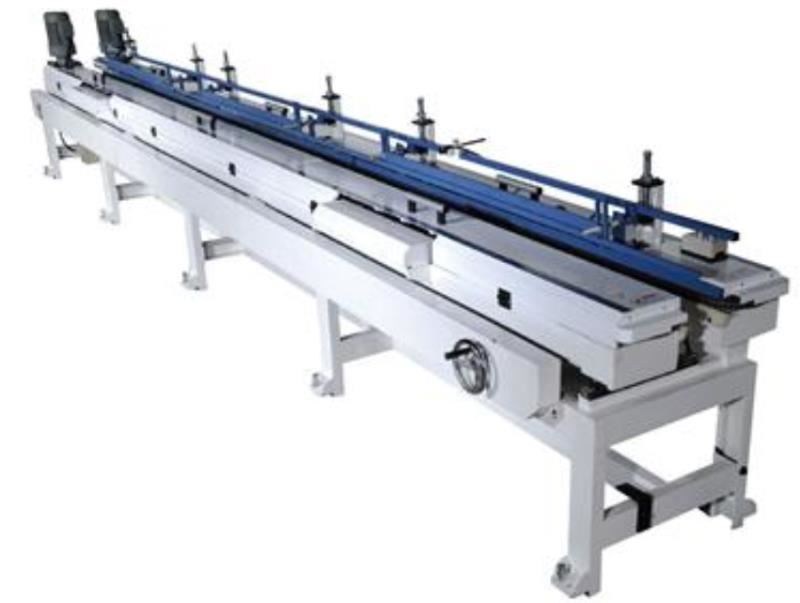

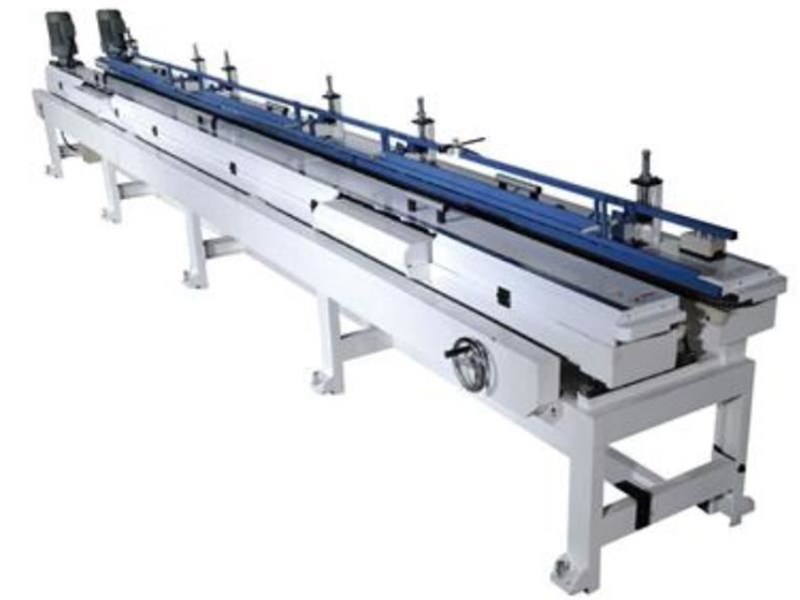

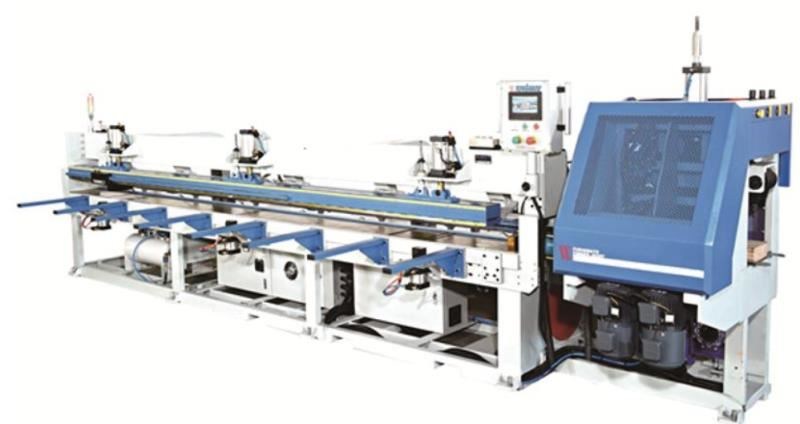

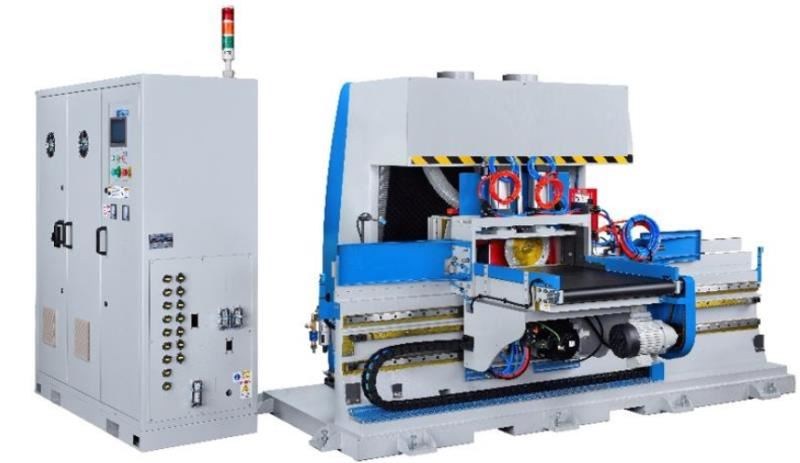

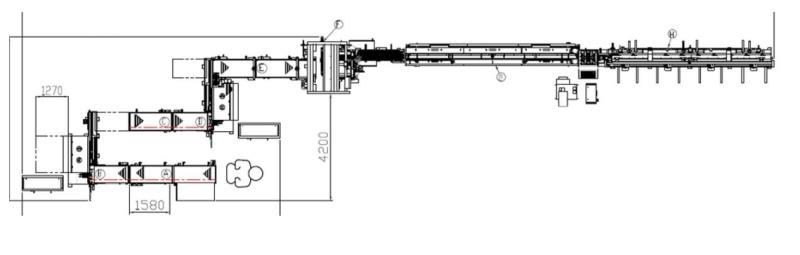

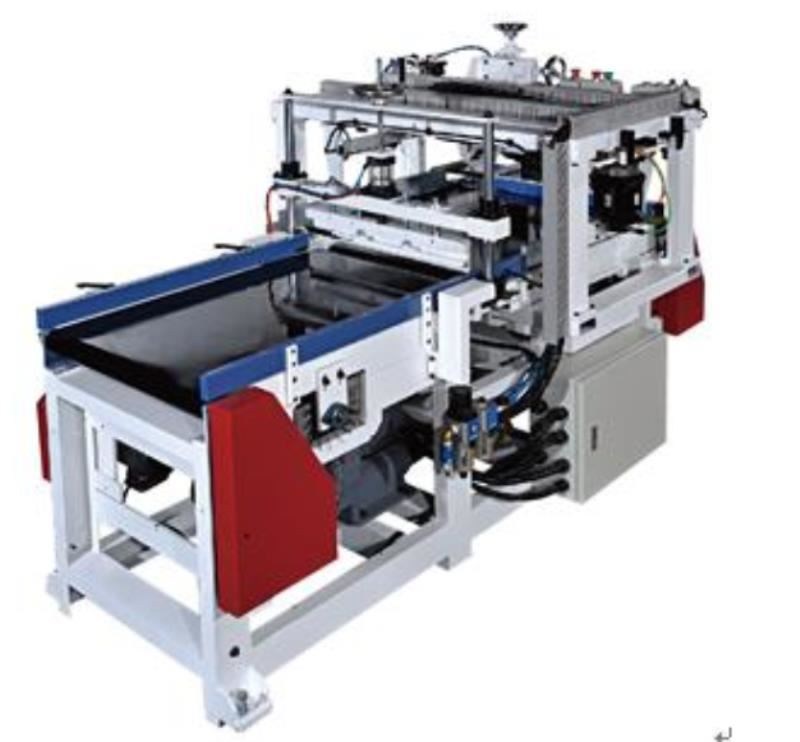

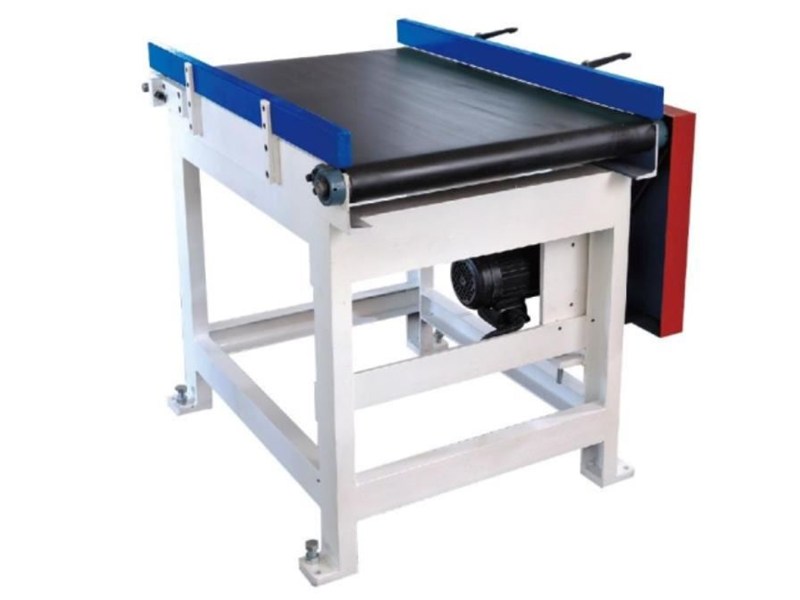

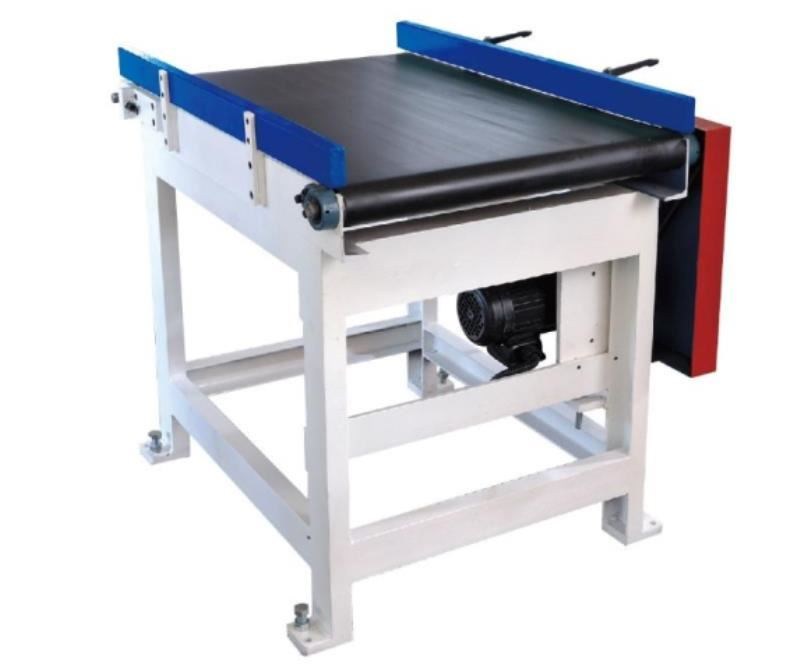

CAM-WOOD SAT-660-F MASS PRODUCTION ULTRA-HIGH-SPEED SERVO TYPE FULLY AUTO FINGER JOINT SYSTEMSPECIFICATIONS Technical data of tour line -- Timber working length(min-max) L = 150MM ~ 1,500MM (5.9"-59") Timber length to be processed must be at least 50% longer than the timber width to be processed. -- Timber working thickness T = 15MM ~ 90MM (.59" -3.5") -- Timber working width W = 25MM ~ 155MM (1" 6.1") -- Timber out-feed length L = 3,100MM ~ 6,200MM (122" - 240") For the sizes below 3100,(122") multiple out feed are required -- Glue type to be used PVAC -- Timber species SOFTWOOD / HARDWOOD Timber moisture 8 ~ 12 % Infeed qualities -- Timber must be processed via four sides moulder machine (tolerance: ±0.2mm) and wood needs 90 degrees right angle, four planning clear, straight. -- Maintenance and cleaning please refer to the operating manual.TO BE PROVIDED LOCALLY: -- Electric power supply to switch cabinet Constant voltage (voltage deviations max.: 5%) -- Temperature range for computer control not exceeding 35°C -- Maximum relative air humidity for control system computer 65% -- Dust exhaust system: (V=30M/S at a low pressure of 12M BAR) -- Compressed air connection to plant units: 6~8 KG/CM2 – 8BAR -- Cable, collecting hose Hydraulic oil AW68 Skilled operating and maintenance personnel Noise control Lighted working environment Computer cable if machine be with monitoring ? Collecting: 8"; 4PCS, 4 1PCS ? -- Total electricity demand: 138 KW, 185HP -- Compressor request: 30 HP + 100 LITER AIR TANKWOOD Production Capacity: -- Working time 480 MIN/SHIFT Average infeed length at the finger jointing line 1,200 MM (47") Average timber cross section 50.8X152.4 MM (2" X 7.75") -- Shaper max speed 7.8 TABLE/MIN the speed will change by the working height of wood -- Number of timber pieces per shaper table (vertical finger jointing 50X90) mm (2" X 3") 12 PIECES Number of timber pieces per shaper table -- (horizontal finger jointing 90X50mm (3" X 2")) 4 PIECES Turning device max speed 100pcs/min -- The speed will change by the working length of wood -- Capacity of the press 10 WORKING PIECES/MIN -- The data is the max capacity for one-section cutting, the capacity will be amended while multi-section cutting. -- Pressing length 6.2 Meters Rate of utilization 70%CAPACITIES OF THE COMPONENT -- CAPACITY OF THE SHAPER (VERTICAL FINGER JOINTING/50.8X152.4 mm (2" X 7.75")) -- 4 TABLE /MIN X 12 PIECES/TABLE X 1200 MM (47") AVERAGE INFEED LENGTH -- 1000MM (39") X 480 MIN /SHIFT X 0.7 RATE OF UTILIZATION =19353.6 M (43,400') /SHIFT=149.8 M³ -- CAPACITY OF THE TURNING 100 PIECES/MIN X 320 MM (12.5") AVERAGE INFEED LENGTH/1000MM (39") X 480 MIN /SHIFT X 0.7 RATE OF UTILIZATION =10752 M(34,950' /SHIFT -- If want to increase the capacity of the turning machine (vertical only), it is recommended to upgrade the model to APC-S -- CAPACITY OF THE PRESS(6M (19')) -- 10 PIECES/MIN X 6.2 M (20') X 480 MIN /SHIFT X 0.7 RATE OF UTILIZATION =20832 M
