Description:

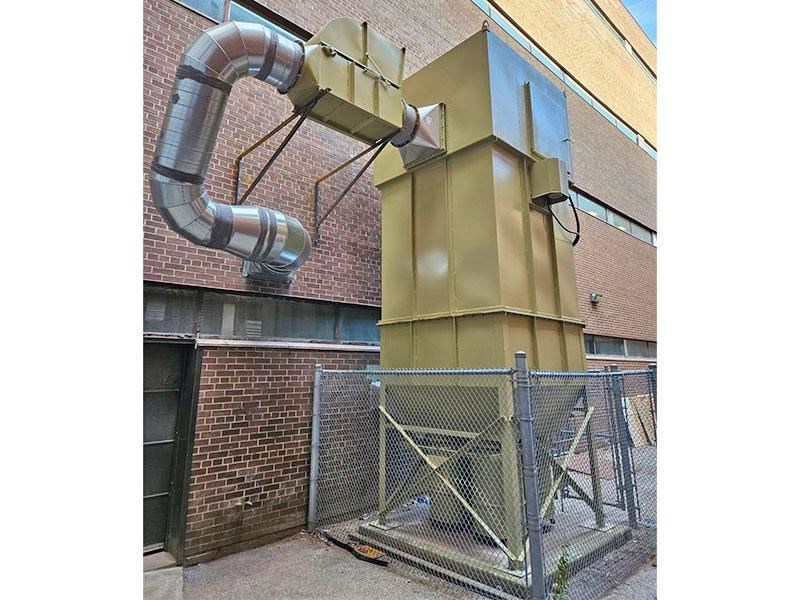

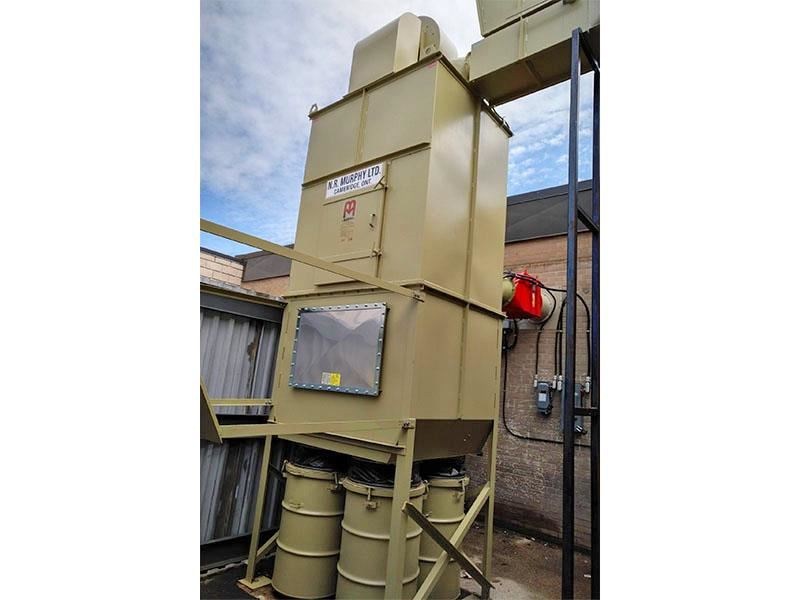

N R MURPHY LTD MKAW-575-4D Baghouse Dust CollectorMK Series Dust Collectors offer a square/rectangular design with tube style filters and mechanical shaker type cleaning. The MK Series maximizes the airflow to filter media ratio for efficient dust collection in a compact design across multiple industries. Electrically operated intermittent shaker, pull through design dust collector. Specifications: -- 15 HP TEFC Premium Efficiency fan motor. -- Air to Filter Ratio: 8.34 to1, 4,800 CFM and 575 Sq./Ft filtration area. -- Totally welded angle iron reinforced wiped galvanized enclosure c/w access door. -- Primary separation through flanged inlet with material deflector. -- Secondary filtration through filter tube section. -- Hopper to solid material discharge connectors and drum lids. -- Integral welded support structure c/w base plates. -- ½ HP TEFC electric motor driven shaker and gearbox drive in weather hood. -- Rectangular composite explosion vent(s), 304L stainless steel with zinc plate external flange, EPDM gasket, (ATEX CERTIFIED) with mounting frame to suit collector. --Top mounted size 15, Type EA-1 air handling industrial exhauster, arrangement 9, radial tipped backward inclined wheel c/w 15 hp TEFC premium efficiency motor, adjustable slide base constant speed V-belt drives, OSHA shaft and belt guard and discharge transition to 16"; dia. c/w punched matching flange. Includes: -- (4) only 55 US gallon storage drums c/w positive connecting clamps. -- (1) EEMAC-12, CSA approved, 460/3/60 voltage control panel includes: -- 15 HP exhauster starter. -- ½ HP shaker starter. -- Solid State automatic shaker controller. -- 120 V control transformer. -- Push button and 2 x pilots lights. -- Auxiliary contacts and fused door disconnect. Options: (1) 16"; Dia. full flow inline circular dissipative duct silencer c/w acoustical quality fiberglass media, perforated metal interior wall and punched matching flanges both ends (supplied loose for field installation by others)...Add $1,795
