Description:

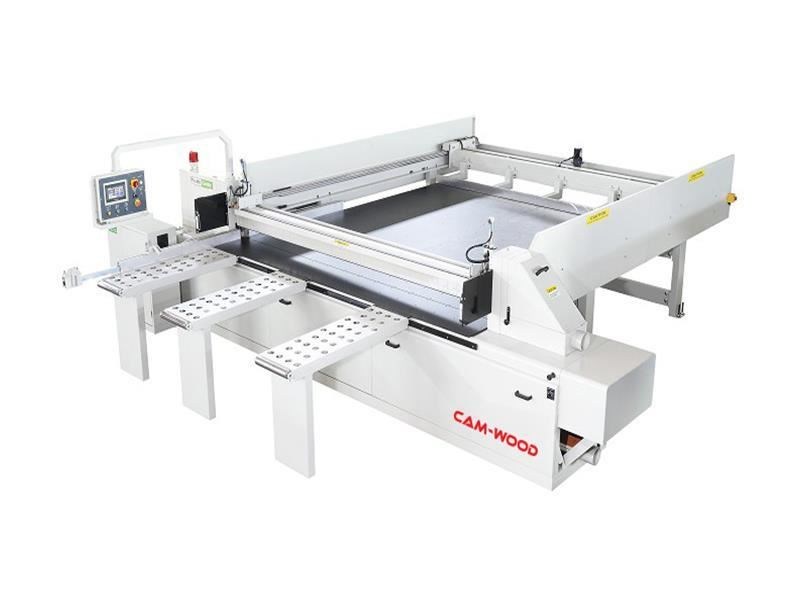

CAM-WOOD - TX-P10AAT: Front Load Automatic Panel Saw: Shop Saw -- Specifications 128" (3,250 mm) Max. rip cut cap.; 128" (3,250 mm) max. pull back front/back; 15 HP (11.45 kW) saw blades motor; 1" dia. arbors.4" (101 mm) Max. depth of cut with 355 mm (13.9") dia. blade at 4,500 RPM.160 mm (6.3") Scoring blade at 6,000 RPM blade speed. -- Positioning Speed2 HP Saw carriage drive motor; variable cutting speed from: 16 - 98 FPM (5 - 30 MPM); return speed: 98 FPM (30 MPM). -- Pusher Fence Programmable rear material push fence with: Servo drive; made of square tubular steel bar.0.5 HP Pusher motor; rack & pinion drive; 16 - 49 FPM (5 - 15 MPM) speed. -- Operator & Machine ControlPC Controller with: Touchscreen to program cutting patterns or individual line cutting operation; graphic displays; self-diagnostics; machine parameter list; touchscreen keypad for data entry. -- Complete with: (3) BAKELITE Covered front support tables; fully covered rear table (OPTIONAL: Air flotation tables available at additional cost).(4) Dust collector outlets: (1) On each end of the saw base, (1) on the right side at cutline height and (1) on the right hand side on top of the pressure beam. -- Available Options (1) TX-ATSA Auto Side Alignment device: ...$ 2,300 additional cost. (3) TX-PFT Air Floating Tables: ...$ 3,690 additional cost. -- Actual Model: CAM-WOOD - TX-P10AAT
