Description:

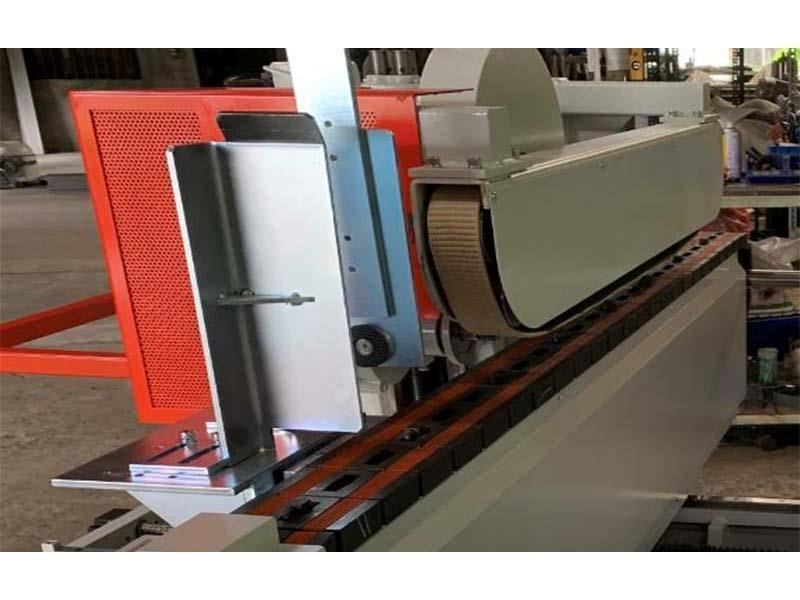

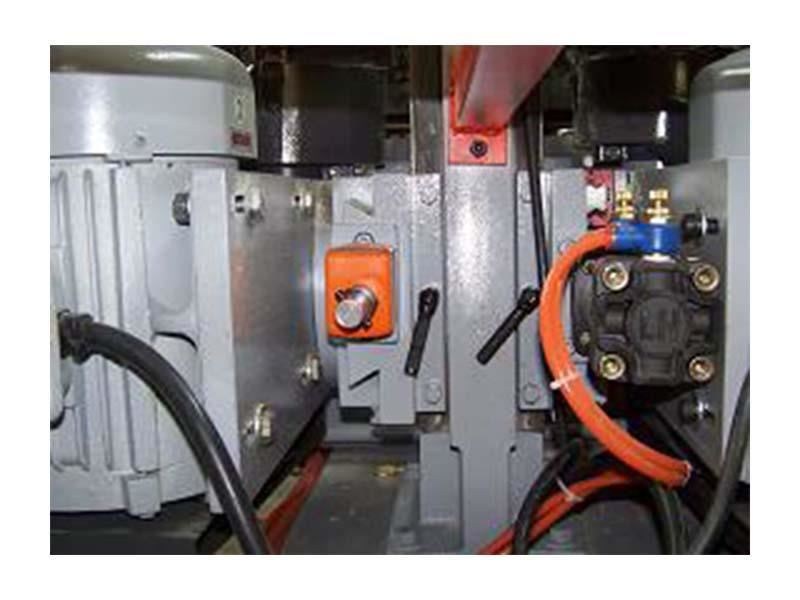

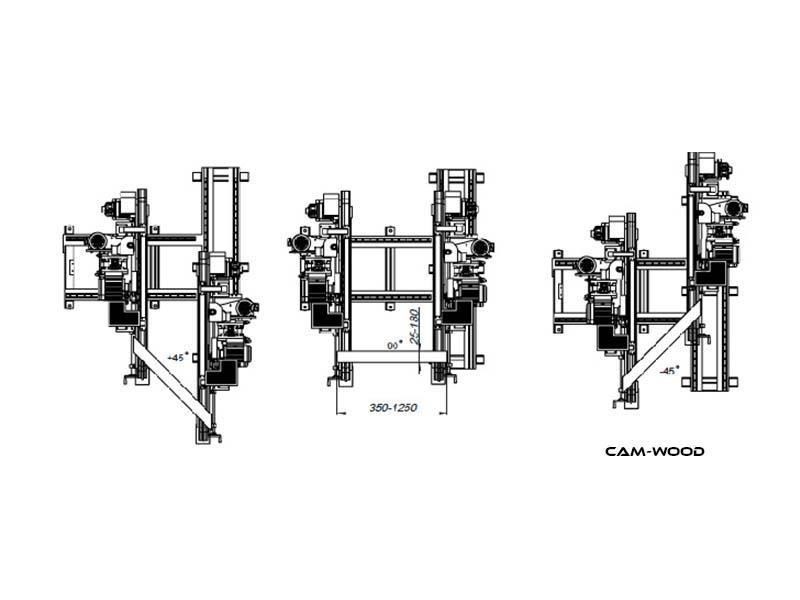

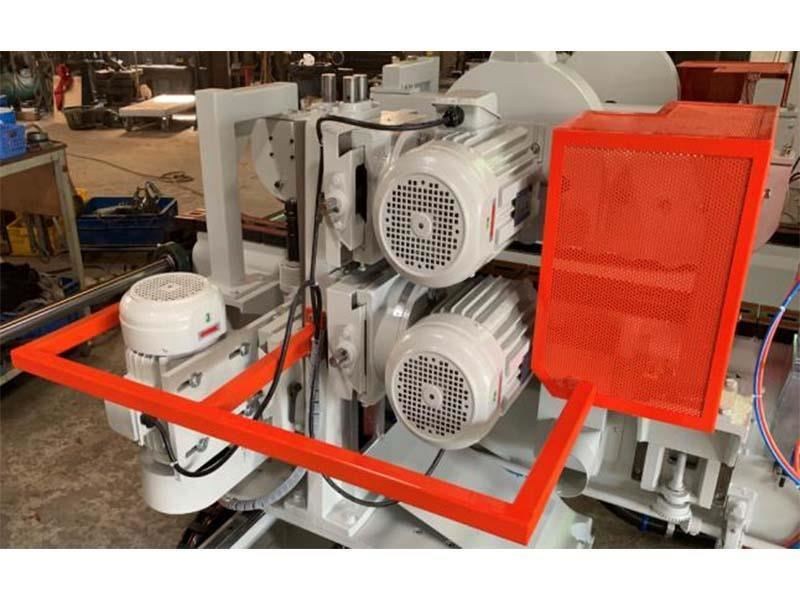

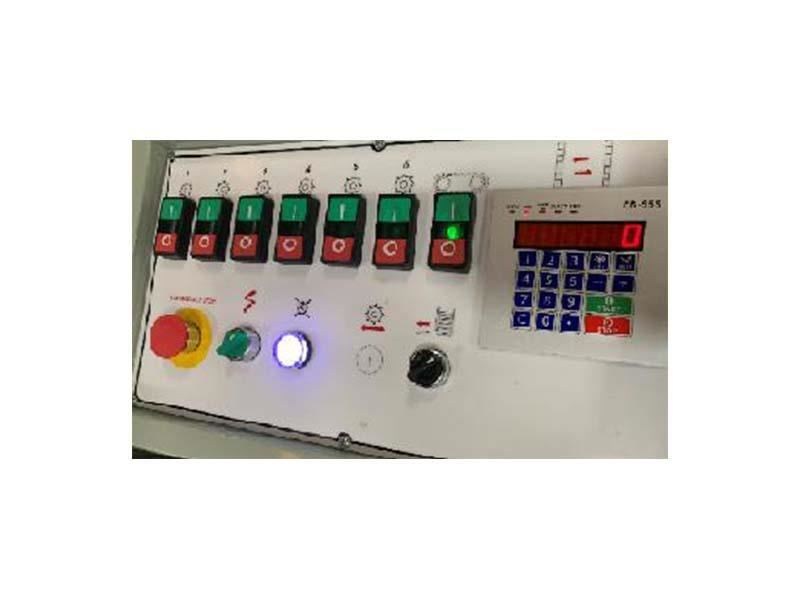

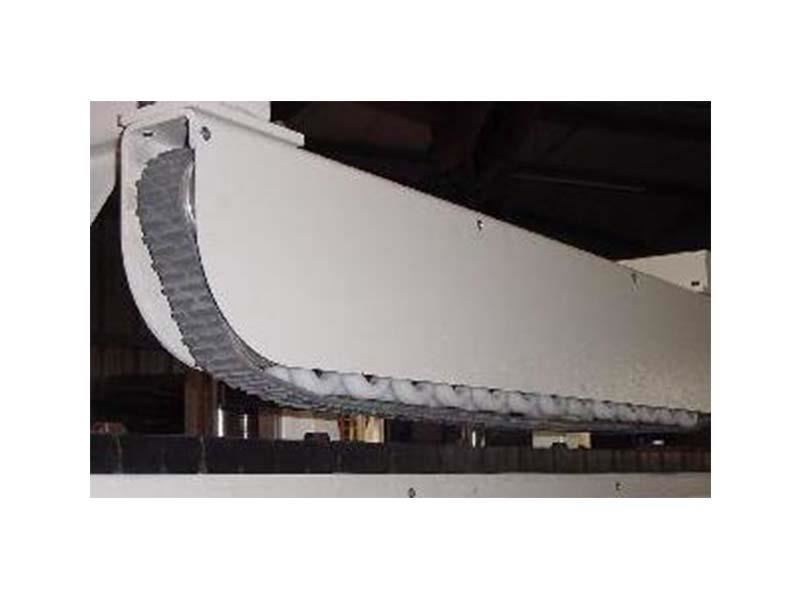

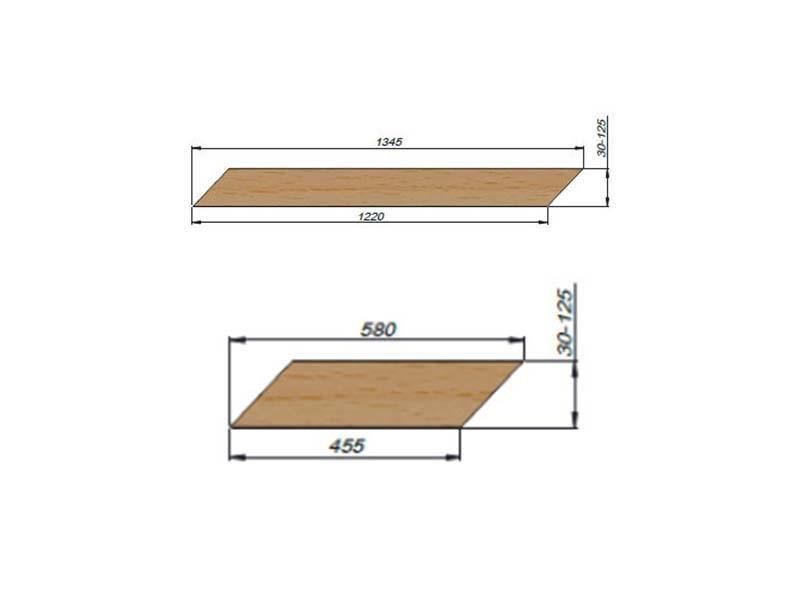

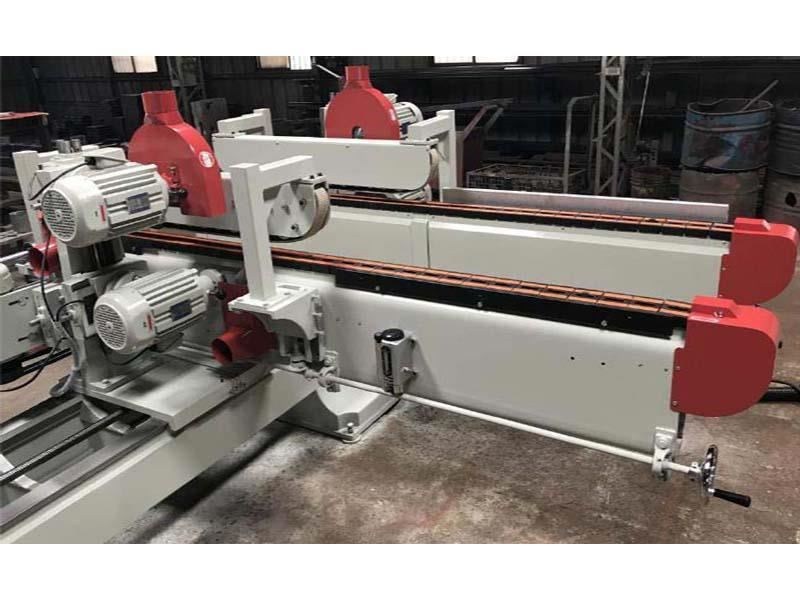

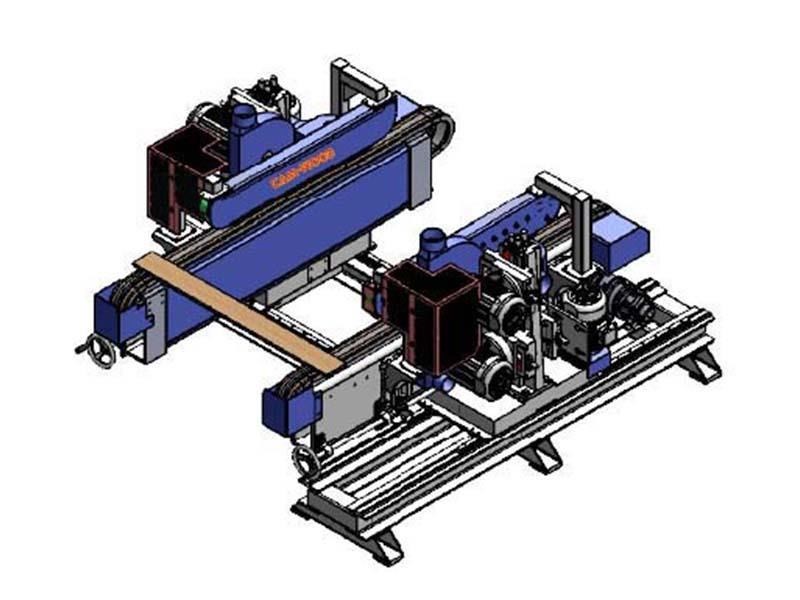

CAM-WOOD - SET-48TS-CH 3045 , ...8 Heads Double End Tenoner for Chevron & Herringbone FlooringSpecial design Servo Control for Chevron & Herringbone Double End TenonerFeatures: -- Servo Control for + 30°,45° and 90° cutting. -- The automatic high-speed through feed device allows for perfect finishing at speeds ranging from 12 - 52 FPM. -- Feed chain with dogs at 12" center distance. -- Suitable for mass production of woodworking factory for processing of double end cutting, tenoning, grooving, moulding, and sanding. -- Possibility for: Scoring Saw, Trim Saw, Jump Coping, Shaper, Coping. -- Total (4) stations at each side. -- Reversed direction cutting jump shaper head with sensor for automatic move in and out for perfect cutting to prevent tearing at end edge. -- HMI Plus PLC controller for user-friendly easy setting and operation. -- Powerful machine is great for heavy-duty production. In addition to the double end cutting, all the settings and other processing can also be executed with high accuracy. -- Since the machine is so versatile, we believe it will be one of the most satisfactory machines for bulk production lumber-processing factories. -- The specially designed numeric controller allows quick setting of sizes for tolerance within 0.004";. -- Variable speed, through feed, wide rubber pad, and spring-loaded dogs conveyor for the best finish selections. -- Heavy-duty pressure rolls at top of wide width Conveyor to hold the material tight to prevent sliding during the cutting process. -- The Shaper head can be moved up & down, forward & backward. -- Equipped with: Industrial motors for full power cutting capacity. Specifications: -- Width from 30 mm to 305 mm (1.18" to 12") -- Max. working thickness: 2"; -- Working Lenght for 8" wide: 30° 30 1/4" to 33 7/8". -- Working length for 12" wide: 45° is 26" to 41" -- Working length for 12" wide: 90° is 13 3/4" to 49". -- Min. working length: 90° is 13-3/4". -- Scoring/Main saw blade (dia.): 10" x 1". -- Shaper cutter (dia.): 6" - 8" x 1" -- Feed speed 12' - 52', variable power 3 PH - 220/440 Volt. -- V-Scoring saw: 3 HP x 2. -- Trim saw: 3 HP x 2. -- Jump Shaper: 5 HP x 2 Stationary. -- Shaper: 5 HP x 2. -- Feed motor by Servo: 2 kW x 1; Width setting by Servo 0.75 kW x 2.Available Options: -- Total sound enclosure cover: Add ...$9,875 -- Infeed Hopper Magazine: Add ...$6,250.
