Description:

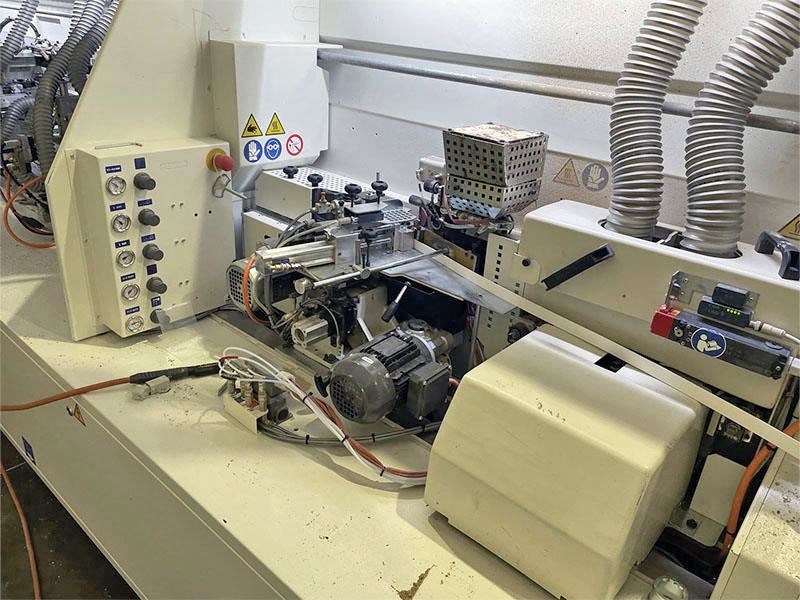

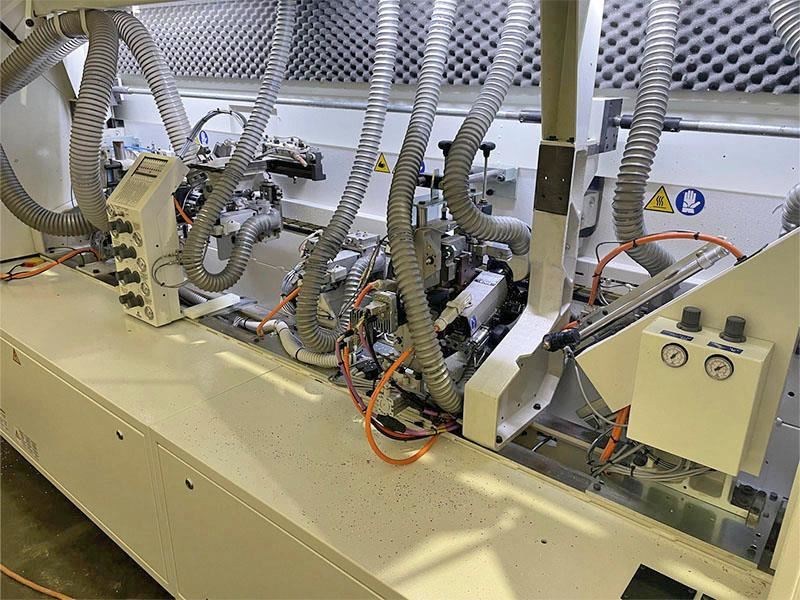

STEFANI KD-R EDGEBANDER (W/PRE-MILL & CORNER ROUNDING): + EVA or PUR Glue System. -- Specifications:0.4 - 12 mm edgebanding cap., panel thickness (min/max) 10 - 60 mm (0.375" - 2.375"); panel width min 51 mm (2") panel length min 140 mm (5.5") variable feed speed 10 - 20 MPM (33 - 66 FPM), min distance between panels: 610 mm (24";). -- Front-End equipped with: Air Cushion infeed table, to facilitate insertion of large dimension workpieces, table dims are 1,600 mm x 600 mm.Infeed Fence with a mechanical digital indicator to position the fence and determine the stock removal.It is also equipped with a pneumatic panel spacing device to prevent the operator from feeding the panels to close to one another. -- Pre-Milling:Pre-Milling unit with (2) 4 kW (5.3 HP) - 12,000 RPM motors with jumping action controlled through the PLC.The cutting heads are adjustable vertically. The unit is equipped with copying devices which guarantee that material removal is consistent on long or slightly out-of-square panels.64mm Tall diamond pre-mill cutters with replaceable inserts. -- EVA + PUR Gluing System:Quick Melt system with approx. 8 - 10-minute heat up time. Includes an SGP "QC" Glue pot with less than 1-minute change-over time. Double Thermo Regulation for easy use of both EVA and PUR glue. Color change and glue pot cleaning are able to be completed in minutes, as opposed to hours.An automatic temperature kickdown feature extends glue life and reduces glue scorching. Reverse rotation of the glue roller for the application of solid wood.Equipped with "I-Glue", which locks the glue roller in place at the end of the panel eliminating any excess glue. -- Pressure Section:(1) large dia. Teflon coated clutch-controlled drive roller & (3) pneumatic pressure idle rollers with opposing one-degree tilt to provide extra pressure along the top & bottom edge. The pressure section is also equipped with pneumatic jumping, so the unit activates exactly on the leading/trailing edges via the edge detecting sensor that will shut down the feed track when there is no material present to be applied.WORKSTATIONS: -- End Trimming Unit: 0.38 kW - 12,000 RPM (x 2 motors) End Trim units with automatic 0° - 22° on horiz. plane from the machine control with (2) pre-set positions.When operating in conjunction with the corner rounding station the unit is equipped with two position pneumatics to leave the material long, thus allowing the corner rounding unit to have a seamless finish. -- T&B Trimming Unit:Top & Bottom flush trimming, 0.75 kW - 12,000 RPM (x2). Servo controlled, with large diameter vertical and horizontal copying devices with precise digital indicators.The unit is equipped with a servo driven motor to go from one material thickness to another from the controller. -- Corner Rounding Unit: 0.60 kW - 12,000 RPM (x2). The "ROUND-K" Unit is designed to work as an additional set of trimmers for rounding the top/bottom as well as the front/rear corners of work piece with 3mm P
