Description:

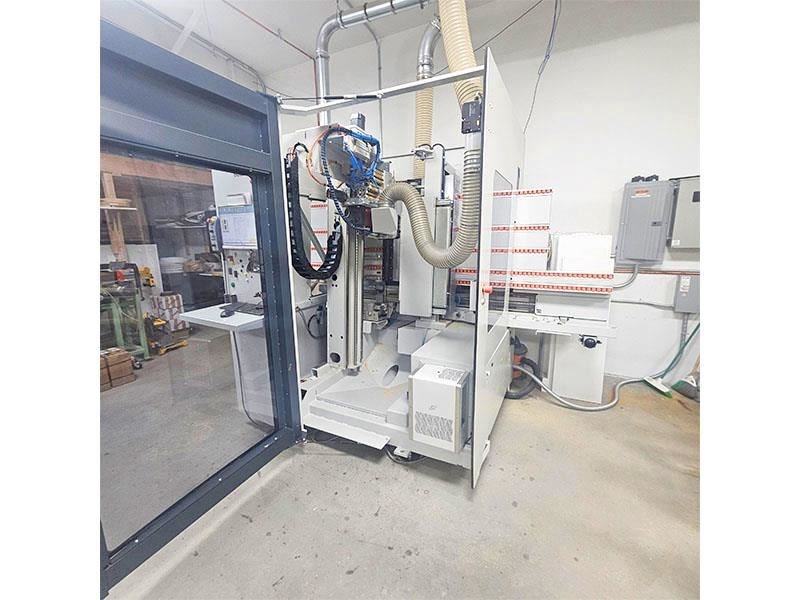

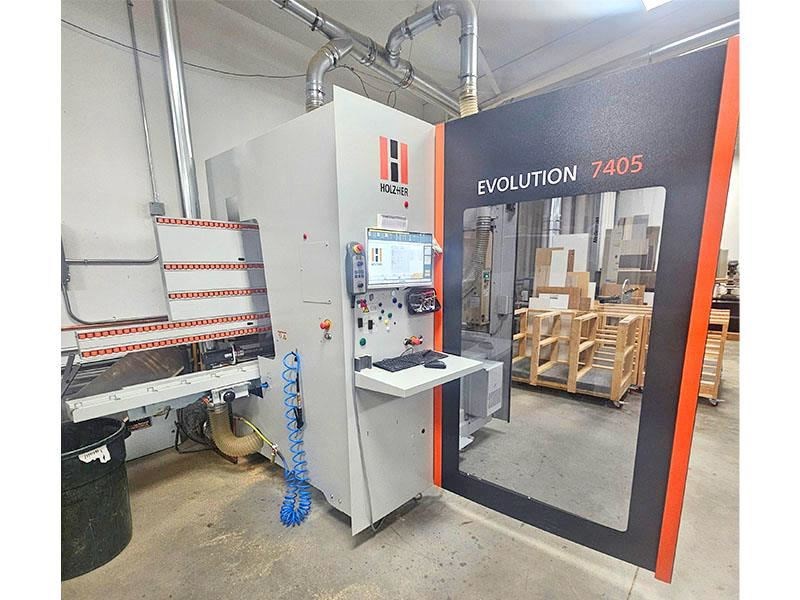

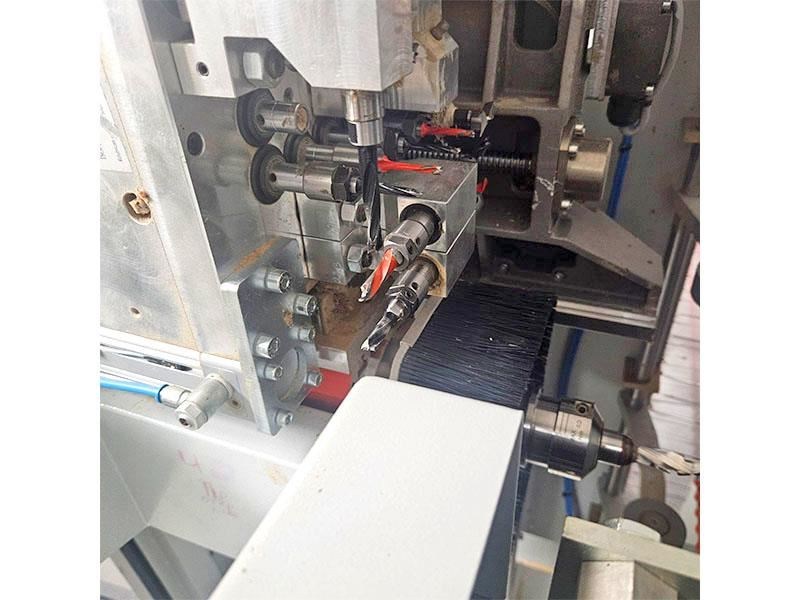

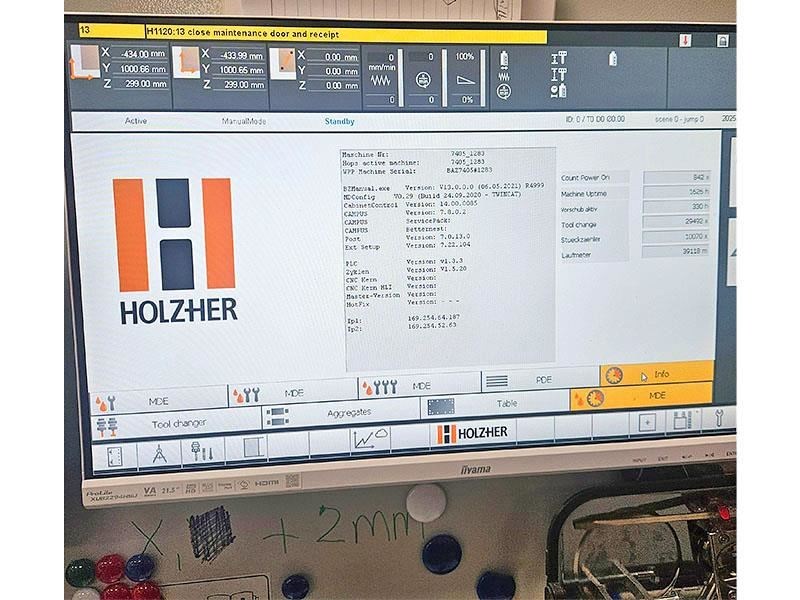

HOLZ-HER EVOLUTION 7405 CNC MACHINING CENTER (VERTICAL): -- Specifications: Flexible "Vertical" Machining Center that can reach movement speeds of 223 FPM (68 MPM) in "X" & "Y" axis & 49 FPM (15 MPM) in "Z" axis with total safety. -- Working Capacity:Maximum part size for "X" axis is 126" (3,200 mm), "Y" axis 36.2" (920 mm), max. part thickness 2.8" (70 mm).Minimum part size for "X" axis is 7.8" (200 mm), "Y" axis 2.76" (70 mm), min. part thickness of 0.31" (8 mm);Automatic in-feed/out-feed from the LH or RH side;"Patented" NC Controlled vacuum clamping system with (1) 8 m³/Hr vacuum pump. -- Boring unit:(1) Boring block with 3 HP (2.2 kW) - 4,000 RPM motor.(9) vertical spindles with (5) spindles in "X" axis & (4) spindles in "Y" axis.(6) Horizontal spindles with (2+2) in "X" axis & (1+1) horizontal spindle in "Y" axis;(1) 2.25 HP (1.7 kW) "X" axis grooving saw, 5,000 RPM, max 120 mm saw blade diameter. -- Machining;(1) 9 HP (6.7 kW) router with HSK F63 adaptor, variable speed from 1,000 - 18,000 RPM.(1) 6-position ATC rack mounted inside the working unit. -- Operator & Machine Control:PC front end with Holz-Her "CAMPUS" + "NC Hops"+ Windows "7" operating system.19" TFT Monitor; international keyboard, soft-touch keypad & industrial mouse.RS-232 Serial ports, USB ports;(1) CD ROM drive. Ethernet connection.Real-time multitask processing; programs can be transferred via diskette or downloading by wire is possible. -- Complete with:Pneumatic part clamping roller devices; auto lubrication system; hand-held control pendant; sound enclosure & safety devices. -- Actual Model is HOLZ-HER EVOLUTION 7405
