Description:

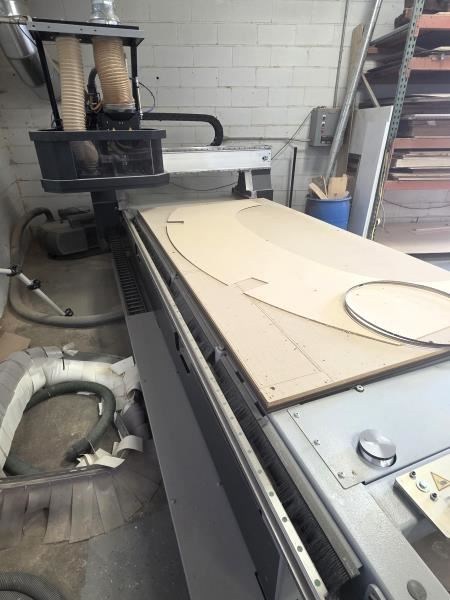

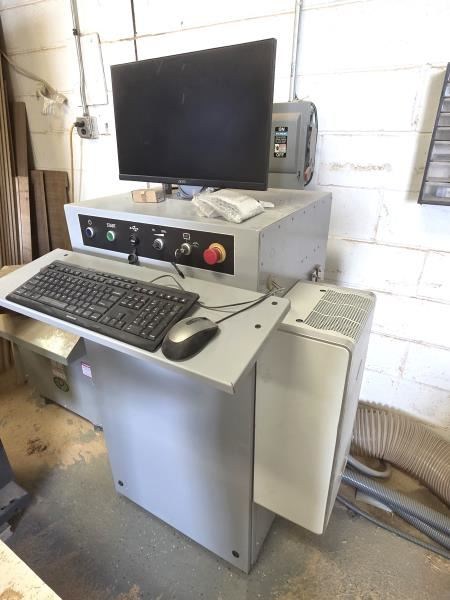

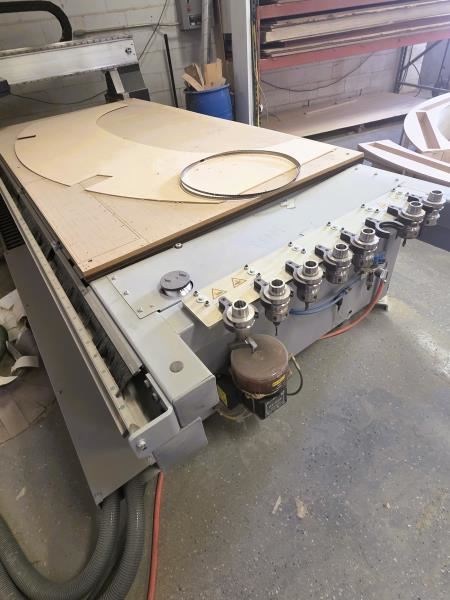

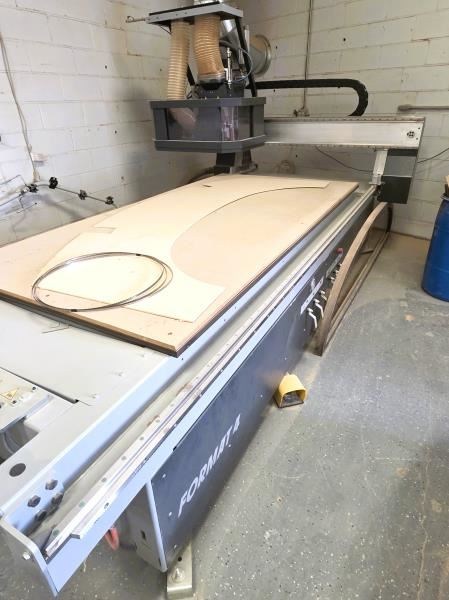

FELDER FORMAT4 PROFIT H08 FLAT TABLE MACHINE Specifications: -- 4’ x 8 ‘ Flat Table Working Capacity: X: 2,500 mm (98.4";), Y: 1,250 mm (49.2";), Z: 85 mm (3.3";)Gantry outrigger, (2) synchronized servo drivers in the X direction; max. speed rate 25 m/min (985 in/min) -- (1) servo driver in Y direction; max. 25 m/min (985 in/min) and (1) servo driver in Z direction max. 15 m/min (590 in/min), power transmission in X -- Y via rack and pinion ball bearing spindle on the Z Axis, Axis run on ground linear guides -- Automatic centralized lubrication of all axes -- Nesting Table: 2 stops in X direction, 1 stop in Y direction - left rear side, 6 manual switches situated in front of the machine, heavy valve system -- Phenolic vacuum table with 6 vacuum fields and manual field choice -- Stop cylinder at the rear left, 2 in X, 1 in Y direction, Electric box front left, with light barrier -- 1 ST 305-01004 -- Configuration package "Professional" H08 13.25 10kW (S6) main spindle HSK F63 left/right rotation 1,000-24000 RPM controlled by inverter -- Drilling head DH8, 8 vertical drills 1000-6000 RPM controlled by inverter, 8-position tool changer, Extraction hood with 2 separate connections -- Software: compact – Standard PC with windows 7 controller Control for the use of ISO-Code and Woodflash programs on the machine Includes: 210 m3/h Becker vacuum pump
