Description:

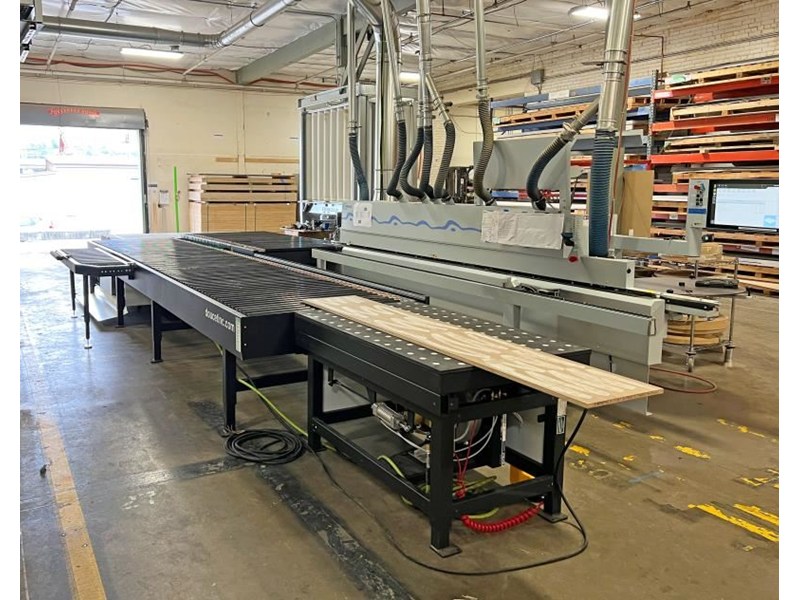

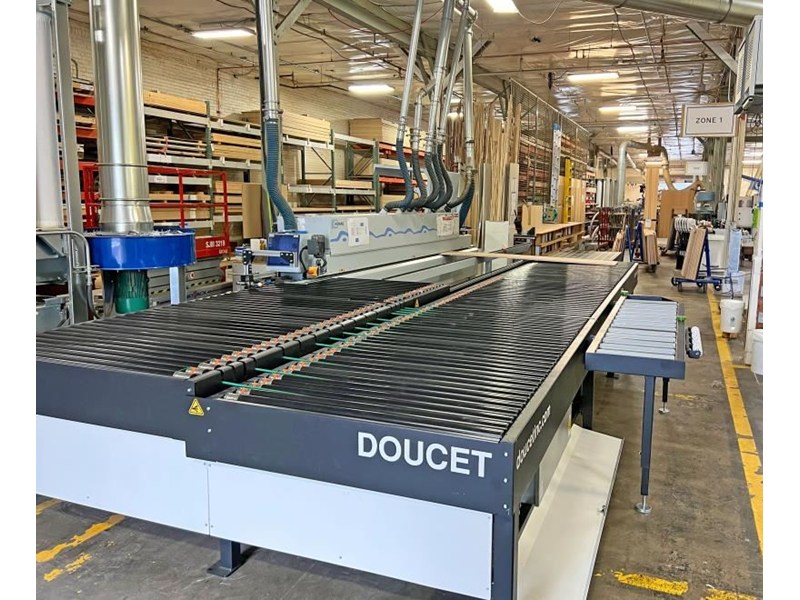

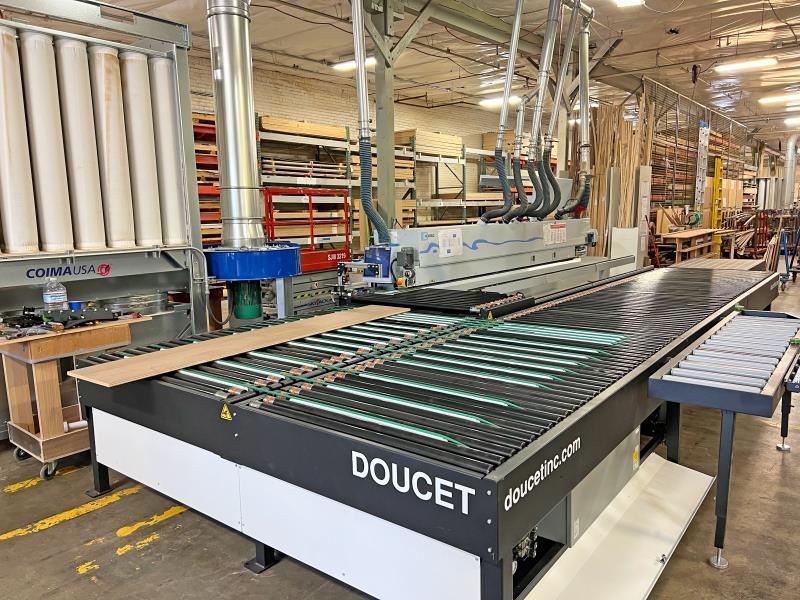

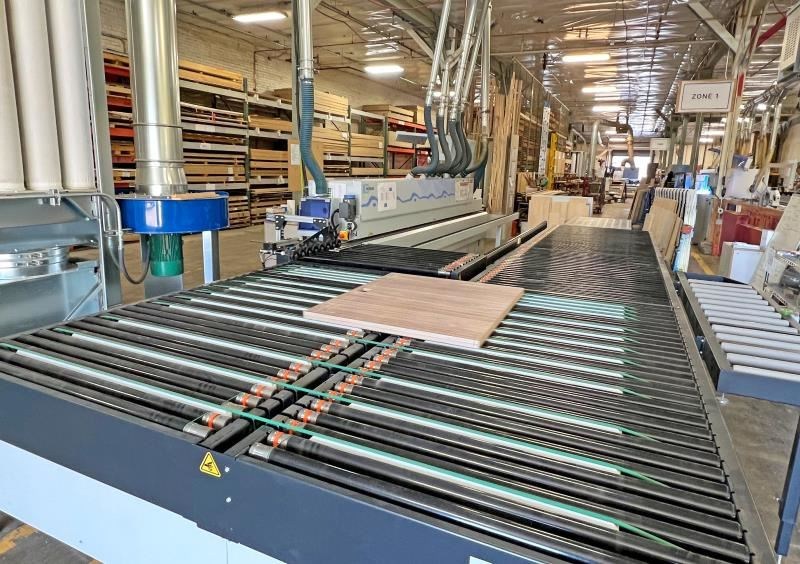

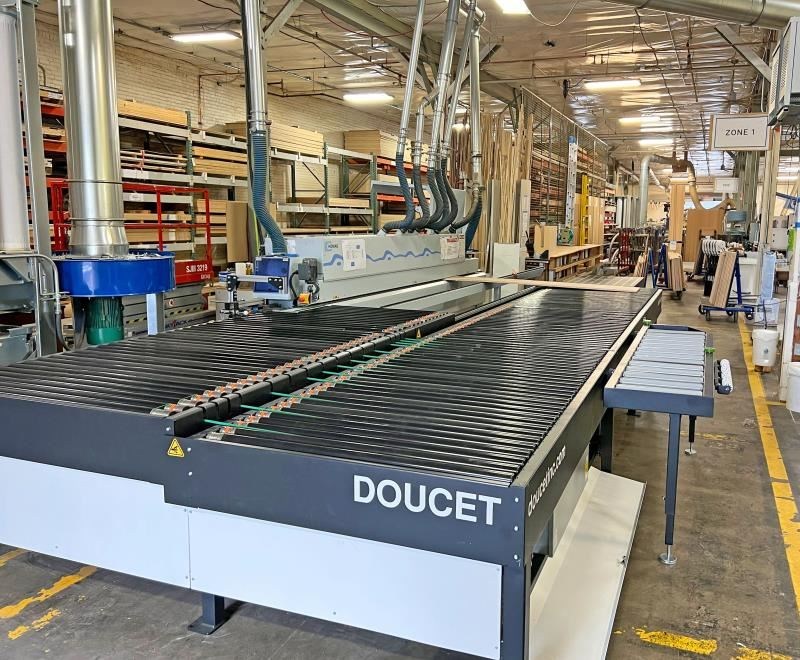

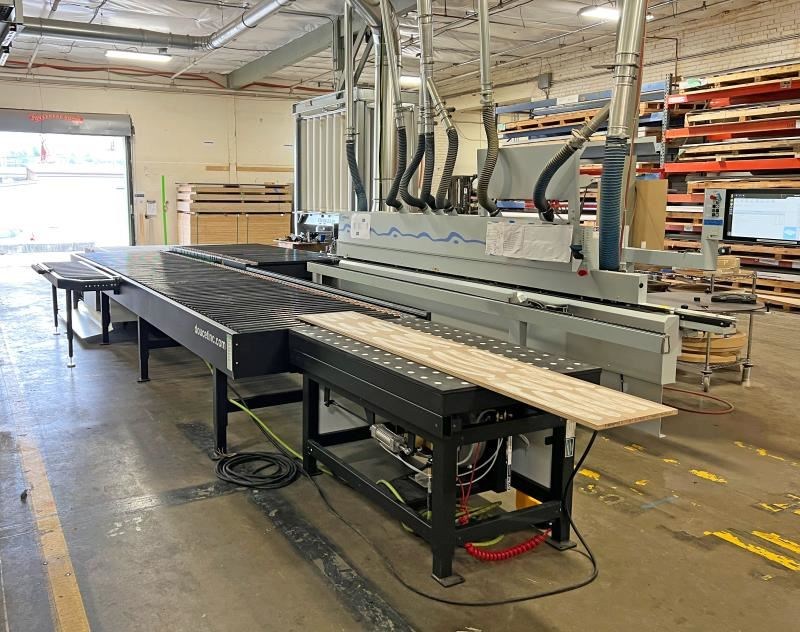

Doucet SRH-48L-31-T Return Conveyor for Edgebanders For RIGHT-HAND feed Edgebanders with LEFT-HAND return conveyor. -- SpecificationsMin part sizes on conveyors: 12"; x 12"; -- Min part sizes on conveyors as equipped with panel deviator: 4" x 12" -- Max panel sizes feeding all 4 sides: 66" x 66" -- Max panel sizes feeding long sides: 66" x 96" -- Max panel weight capacity: 150 lb -- Conveyor pass Height: 30-42"; -- Receiving table Minimum speed: 9.14 meters per minute (30ft/min) -- Receiving table Maximum Speed: 27.43 meters per minute (90ft/min) -- Return conveyor speed 18-54 meters per minute(60-80ft/min) -- Variable conveyor speed 30 to 90 feet/min. -- Belt transfer speed is fixed at 180 feet/min and return -- Return conveyor speed is adjustable 60 to 180 feet/min. -- FeaturesPneumatic actuated down-stroke transfer belts which raise and lower to transfer the receiving panel to the return conveyor rollers. 48" wide x 5’ long receiving conveyor with 2" Ø steel rollers covered with black vinyl, 10mm belt driven individually every 3" centers -- 48" wide x 31' long return conveyor with 2" steel rollers covered with black vinyl, 10mm belt driven individually every 3" centers -- Belt transfer device 6" wide featuring 9 transfer belts -- Transfer by-pass switch -- Variable speed switch located on operator console -- One rail located along the return section of the conveyor to support long and narrow pieces, adjustable in height -- A panel deviator to redeploy narrow parts over several rollers -- PT-90 panel turner to return long rectangular panels lengthwise rather after finishing -- Actual Model is Doucet SRH-48L-31-T
