Description:

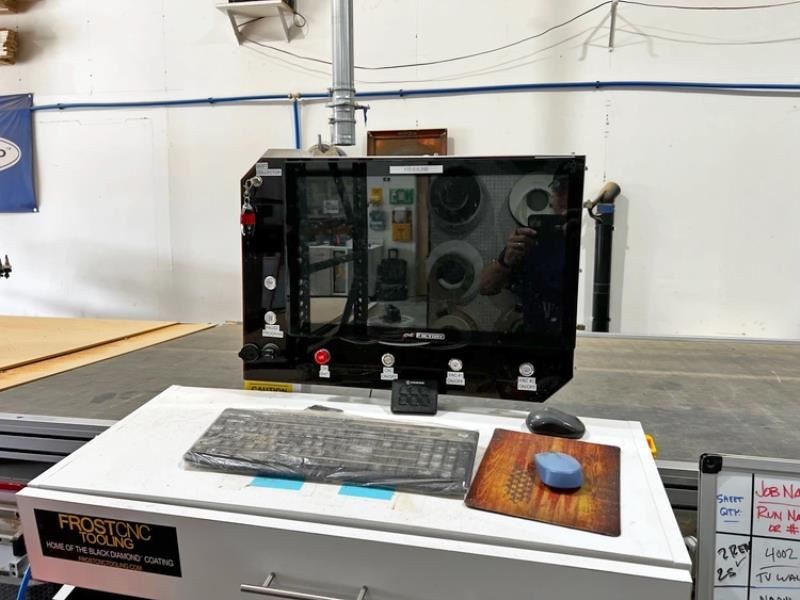

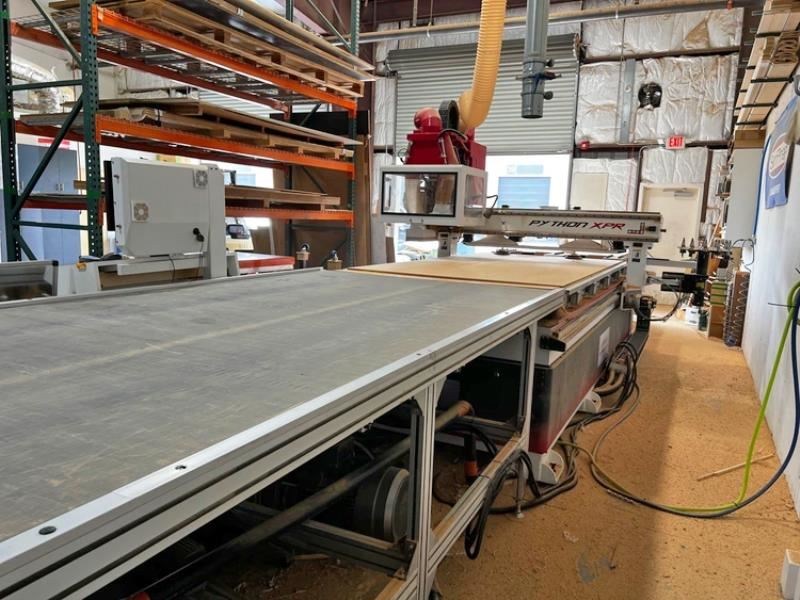

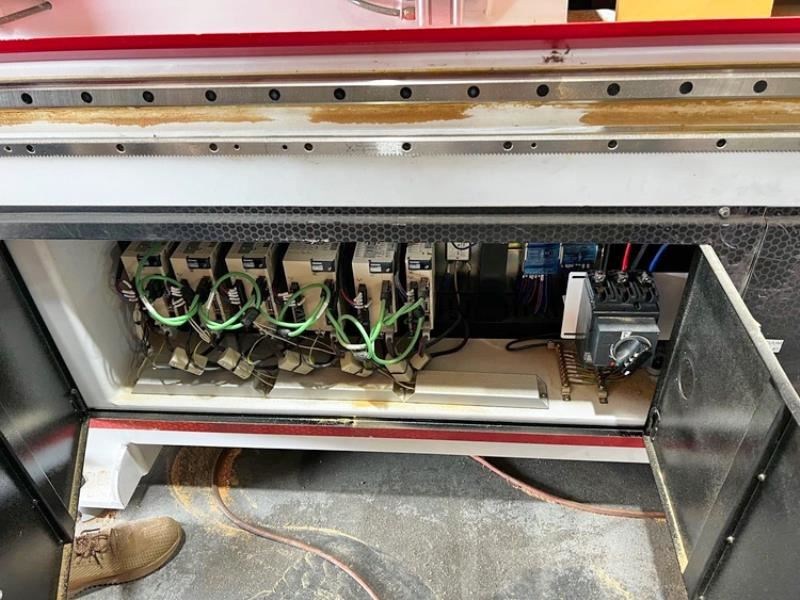

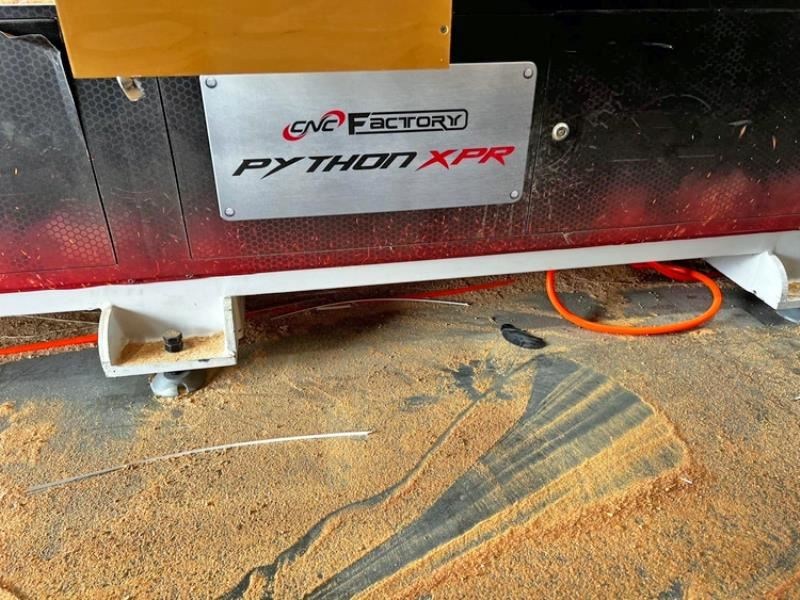

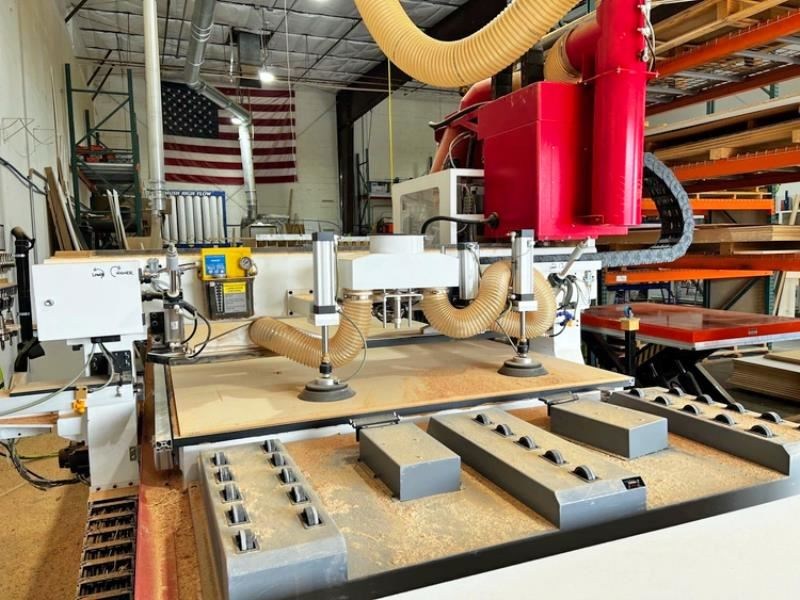

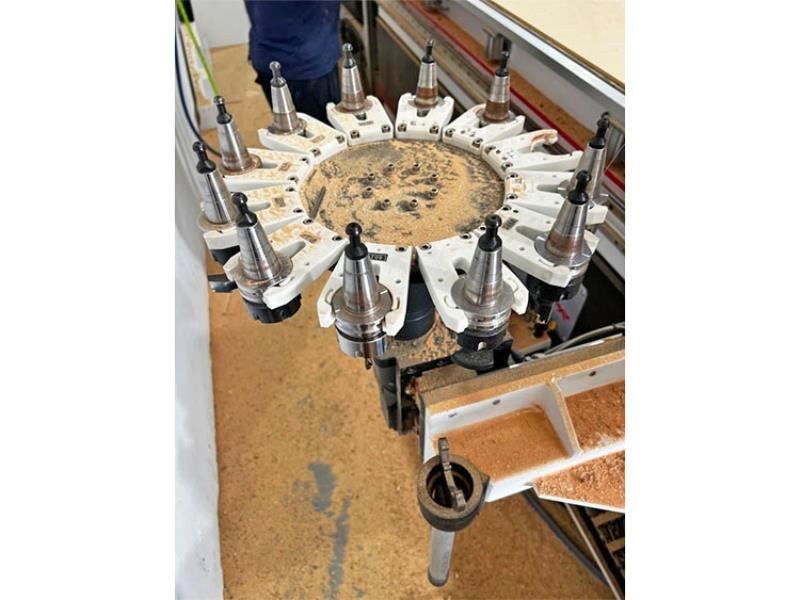

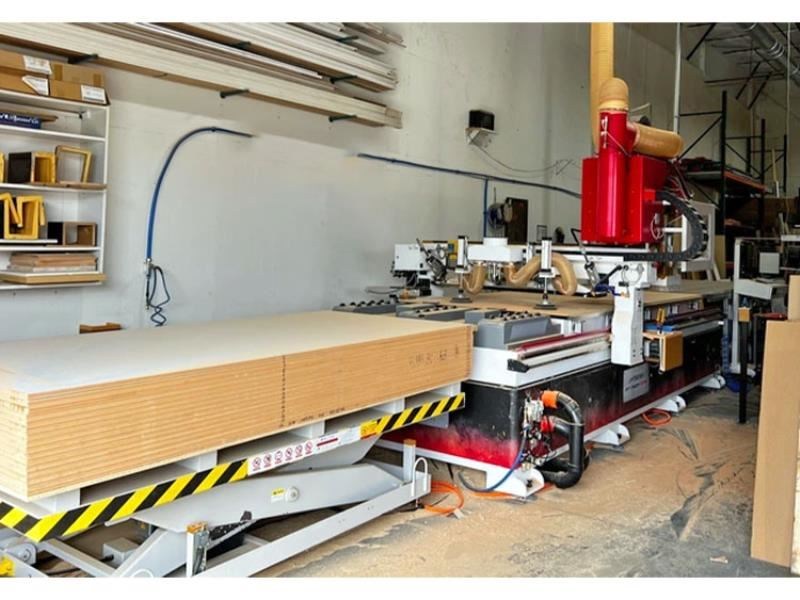

CNC FACTORY PYTHON XPR FLAT TABLE MACHINE (W/LOADING, UNLOADING): -- Specifications:5' x 10' Single Table machine: stationary phenolic table is machined with a square "MATRIX" grid pattern for fixturing parts, -- Working field:"X" axis 122" (3,099 mm), “Y"; axis 62"; (1,575 mm) , "Z" axis stroke is 12" (305 mm). -- Positioning speed:"X" & "Y" axis 233 FPM (71 MPM), "Z" axis 82 FPM (25 MPM).Closed loop AC Servo drive system driving precision helical rack & pinion in "X" & "Y" axis & ground ball screw in "Z" axis;All axes ride on extra-large precision profile linear guide ways. -- Work Table:"MATRIX" grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested based machining".Pneumatic Pop-Up Pins for manual and automatic material placement. -- Boring Unit:2 HP (1.5 KW) 7,000 RPM motor with (9) Independent Vertical Spindles, on 32 mm centers. -- Machining:(1) 12 HP (9 kW) "HSD" Electro spindle with ISO 30 adaptor, spindle speeds from 1,000 - 24,000 RPM.(1) 12-position ATC tool plate mounted on the head for "on the fly" ATC. -- Operator & Machine Control:"SYNTEC 4E 21"; graphic industrial control center with handheld controller.Built-in continuous operation file saving and production override with speed control G-Code compatible with virtual every Cad and software including USB and Ethernet file control.Acceleration and deceleration working and repositioning; Tool wear history with built-in alarm, stops work coordinates and on-screen programming19" High resolution monitor; Ergonomic industrial keyboard & mouse; USB drive; serial ports for RS-232; all housed in a separate dust free cabinet -- Complete with:(1) CNC Factory V300 m³/Hr vacuum pump; auto tool length measuring sensor. -- Options Include:(1) Additional 9 HP BECKER Vacuum Pump: (1) NC controlled "Robotic" in-feed scissor-lift loading table: (1) Rake system: (1) NC controlled & powered belt out-feed table with vacuum sweeping system. -- Actual Model is CNC FACTORY PYTHON XPR.
