Description:

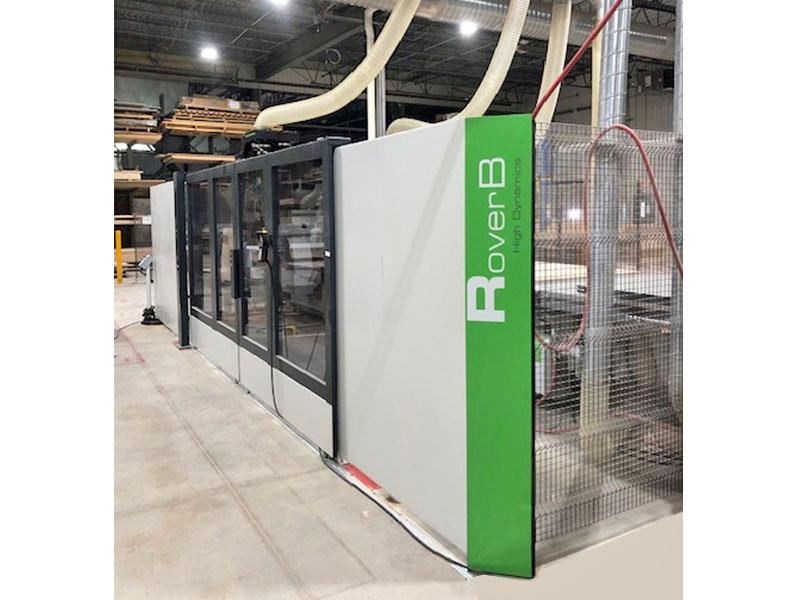

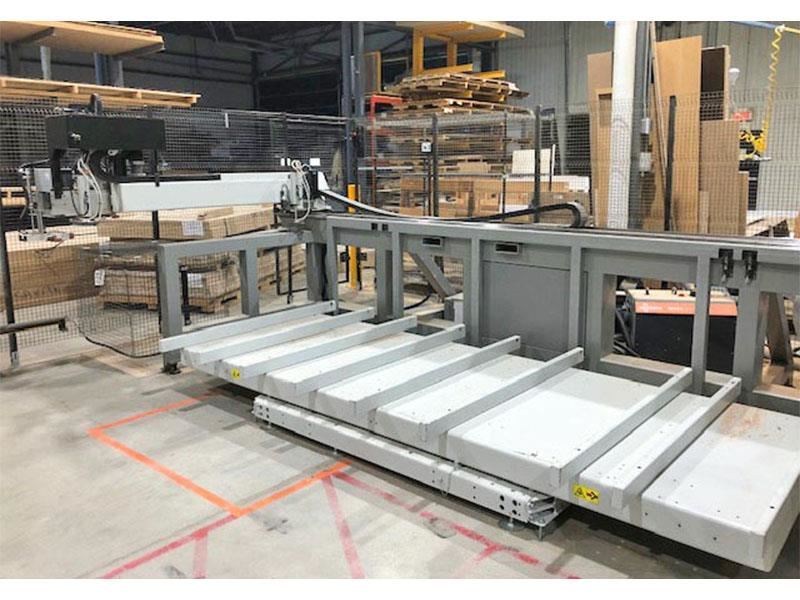

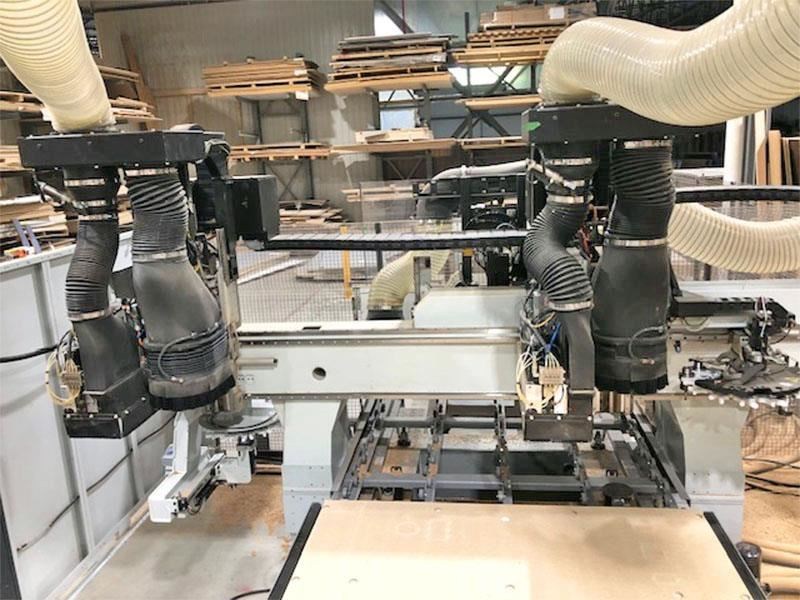

BIESSE ROVER B FT 1536 FLAT TABLE MACHINE (W/LOADING/UNLOADING) + High Production w/(2) Boring/Routing Units: -- Specifications:5' x 12' "Matrix" grid phenolic surface for "Nested Base Manufacturing" -- Working capacity:"X" Axis 148.2" (3,765 mm), "Y" axis 61.4" (1,560 mm), "Z" axis stroke is 20.2" (515 mm), max. material thickness 10" (250 mm). -- Positioning Speed:"X" & "Y" Axis 279 FPM (85 MPM), "Z" axis 115 FPM (35 MPM);"X" & "Y" Axes use a precision rack & pinion system, "Z" axis uses precision ball screws.All axes movement is on precision linear guides & ways and controlled by digital, brushless AC Servo motors.All motion components are maintained by an automatic lubrication system. -- Work area:Flat table design with "Matrix" grid phenolic surface for "Nested Base Manufacturing",The machine has (2) working areas with 2-left origins, 2-right origins, 1 front origin & 1 rear origin.(14) External pneumatic pop-up stops with (2 LH + 2 RH) rear stops, (3 LH + 3 RH) front stops & (2 LH +2 RH) side stops for material positioning.Prepared for (optional) "quick fit" vacuum outlets for optional clamping of small or awkward shaped parts; with "quick connect" vacuum outlet for custom vacuum pods & fixtures. -- Boring Unit:(2) 4 HP (3 kW) motor with variable speed up to 6,000 RPM: BH-10 Boring unit with (10) independent vertical spindles, (5) in "X" axis & (5) in "Y" axis. -- Machining:(2) 22.5 HP (16.5 kW) Liquid cooled "HSD Electro-Spindle" with HSK F63 adaptor, RH & LH rotation; variable speed from 1,000 - 20,000 RPM.(2) 16-Position tool rack mounted on the machine's "X" axis carriage, 4.3" (110 mm) max tool dia. per position & 16.5 Lbs. (7.5 Kg) max. weight per tool (including aggregates). NC controlled Tool Touch-off prob for the measurement of the tool length, max 5.1" (130 mm) tool dia. -- Operator Interface:PC Front End with: Biesse "BH 660" + "Biesse WORKS " + WINDOWS "WRT" (Windows Real-Time) operating system.Air-Conditioned control cabinet, 21.5" LCD Flat screen monitor; server, full keyboard & mouse all mounted on a mobile cart.Intel(R) Core i7 CPU; 8 GB RAM memory; 128 SSD GB hard disk superior; Dedicated graphic card; DVD burner; USB ports; Ethernet card for network connection capabilities."Biesse WORKS" Graphic interface makes full use of the operating methods typical of the Windows operating system: assisted graphic editor used to program machining operations; programming and guided creation of parametric macros.Import of CAD and other external software files in DXF and CID3 format; 3D simulation of the tool path, calculation of machining time & the ability to create rotate virtual faces. -- Complete with:(2) 300 / 360 m³/Hr (50Hz / 60Hz) "BUSH" vacuum pumps; system for linear guides, pads and re-circulating ball screw.Universal Autotransformer for voltages between 200 - 600 V, 50/60 Hz; Tele-Service capabilities; Perimeter Safety System & fencing; -- Options Include: (1) NC Controlled infeed Scissor Lift table with vacu
