Description:

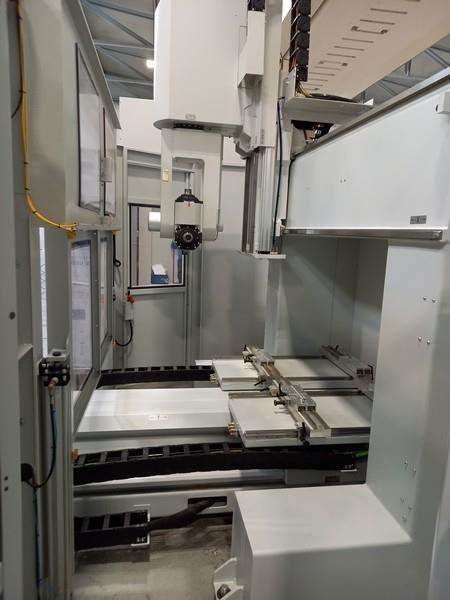

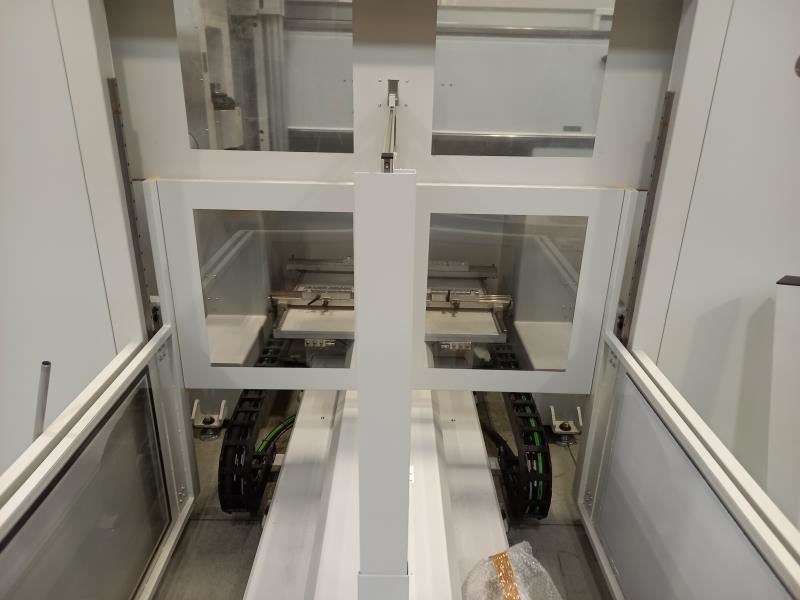

BALESTRINI IDEA 1 5-Axis CNC Router: --Specifications:The Balestrini Idea is a compact, high-performance 5-axis CNC machining center engineered by the SCM Group. It is specifically designed for solid wood element manufacturers who produce highly complex, curved components typical of interior and exterior furniture, chairs, tables, and design accessories.LINEAR AXES• X axis stroke mm 1700• Y axis stroke mm 1900• Z axis stroke mm 700• X-Y-Z axes speed m/min 90-90-60WORKTABLES• Type Bars worktable – Multifunction worktable• Workpiece locking devices JIG FREE – COMBI – CSR – Vacuum table – Lathe axisMACHINING HEAD UNITS• Type LI11 CS33 CS44• Motor power (S1) n. x kW 1 x 12 1 x 12 + 2 x 9,5 4 x 9,5• Max. speed rpm 24000ROTATING AXES• B rotation degrees +/- 120 (LI11) – 360 in continuous (CS33 and CS44)• C rotation degrees +/- 370TOOL STORES• Linear 6/8 positionsNUMERIC CONTROL• Standard OSAI OPEN SMART Numeric control machining center with fixed gantry and mobile worktable specifically designed for solid wood processing. The ideal machine to produce chairs, tables and curved kitchen doors.CONTROL UNIT• The control unit consists of a numerical control interfaced to an industrial PC eye-M PRO on which is installed the Maestro active software, specifically designed by SCM to make the programming and use of the machine simple and fast. The industrial PC allows to use on board the dedicated software Smart Pro, able to enhancethe performances of Balestrini machining centers.The key features, advantages, and technical configurations of the Balestrini Idea include:• Ultra-Compact Footprint: Marketed as one of the smallest machines in its category, it requires an operating area of just 13.5 square meters. Its reduced dimensions mean it can often be shipped without full disassembly, yet it does not sacrifice the ability to process large workpieces. • Fixed Gantry Structure: Built on a heavy, single-piece machine bed with a rigid fixed gantry architecture, ensuring high precision and structural stability during aggressive multi-axis movements. • High Processing Speed & Versatile Machining Heads:• Revolver Machining Unit: It can be configured with a 5-axis revolver head unit keeping all necessary tools ready-to-use, drastically eliminating tool-change downtime and accelerating cycle speeds.• Single-Spindle (LI11) Unit: Alternatively, it can be equipped with a single heavy-duty electrospindle designed for complex geometries and high-volume material removal.• Modular Worktables: Features highly flexible bar-style or aluminum multifunction worktables. The tables can be integrated with customized clamping systems, suction cups, or specialized pneumatic jigs to securely lock irregular, curved, or uniquely shaped wood elements.• Pendulum Cycle Operation: Available with one or two independent mobile worktables, allowing operators to run "pendulum machining"—loading or unloading parts on one table while the spindle continuously
